Цена:881,10 $ - 998,58 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 1119.44 $* 1141.27 $*
Jul-19-2025 907.1 $* 925.4 $*
Jun-19-2025 1101.49 $* 1123.83 $*
May-19-2025 1092.27 $* 1114.29 $*
Apr-19-2025 872.32 $* 889.42 $*
Mar-19-2025 1075.17 $* 1097.54 $*
Feb-19-2025 1066.73 $* 1087.9 $*
Jan-19-2025 1057.27 $* 1078.31 $*

Характеристики





Product Details




Recommend Products




Product Description

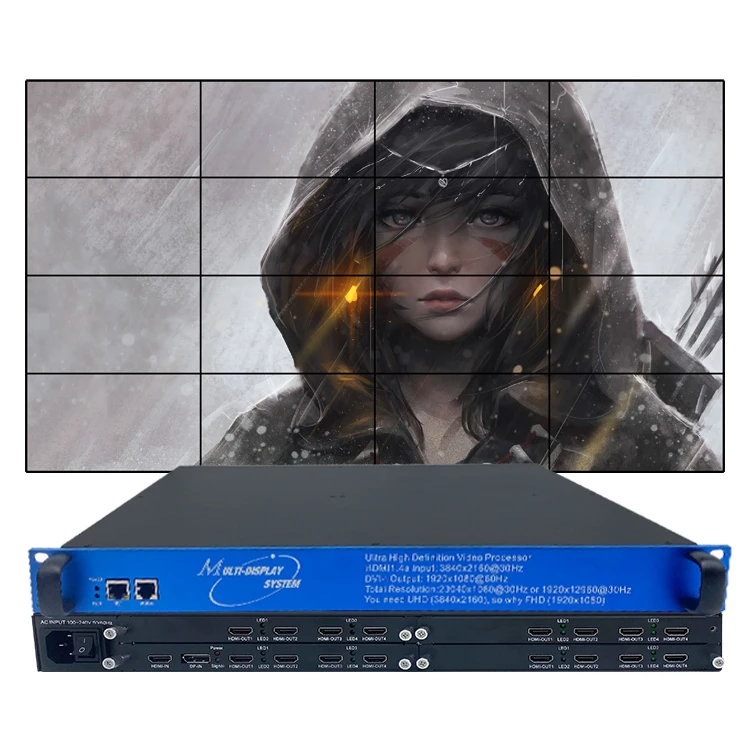

8K×2K HDMI video wall controller switcher features
BIT-VWC-U1-116 is an ultra HD Rotary Splicer by Shenzhen Bitvisus Technology Limited. Support 1 channels HDMI input , 1 channel DP input , 16 channels output HDMI.

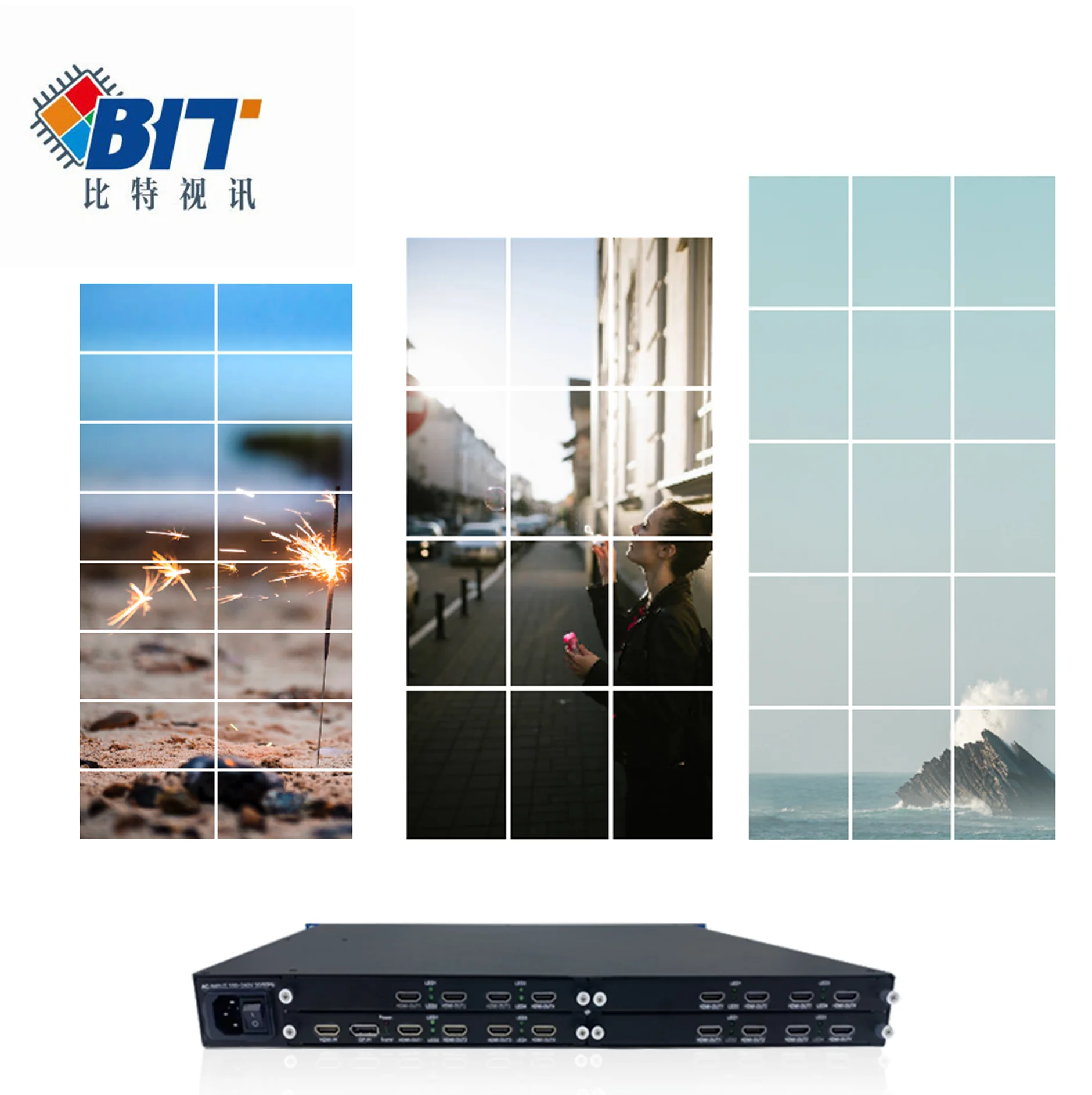

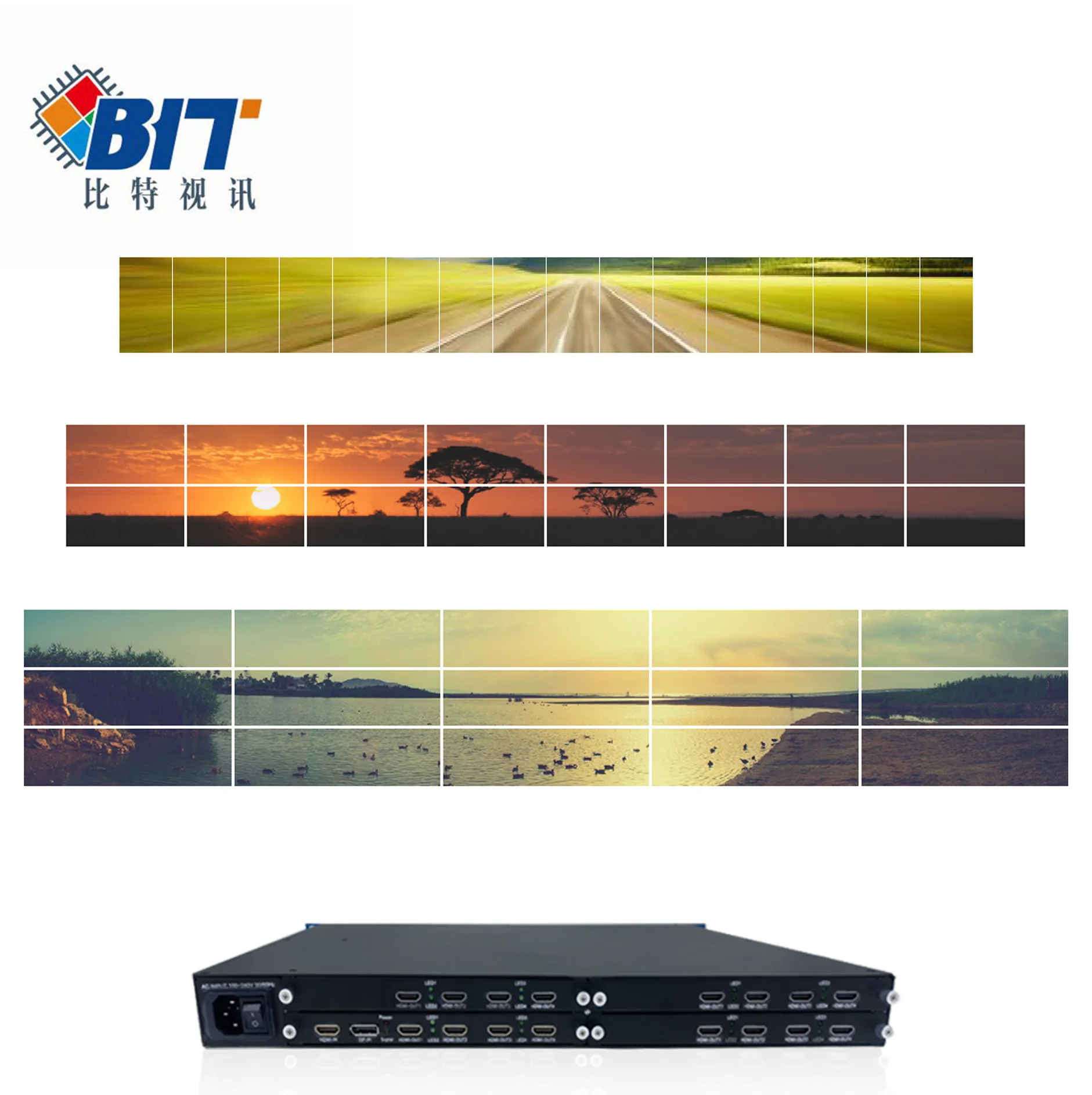

1.This is an industrial-grade high-performance product with ultra-high-definition resolution and supports up to 8Kx2K. 2.The maximum support is 1 in and 16 out, and multiple splicing modes can be combined arbitrarily horizontal screen /vertical screen /Heterotypic splicing, and supports large-scale parallel use.
3. Centralized power supply with wide voltage (100 ~ 240V), low power consumption, energy-saving and environmental protection design. Conductive heat dissipation is used internally, without any external heat dissipation measures, and its reliability is extremely high.
4.Support wired network control and wireless network control.
5. Adopt high-end programmable FPGA chip with 28nm technology, full hardware real-time processing architecture, ultra
fast processing speed without delay.
6.Industrial design, thickened 6-layer PCB board, 16KV super strong anti-static ability, super product stability.
7.Supports large-scale parallel use to ensure real-time display requirements for large screens.




Specification


4x4 Max supported resolution
5120x2880@30Hz
8x2 Max supported resolution
2560*5760@30Hz
2x8 Max supported resolution
7680x1080@60Hz

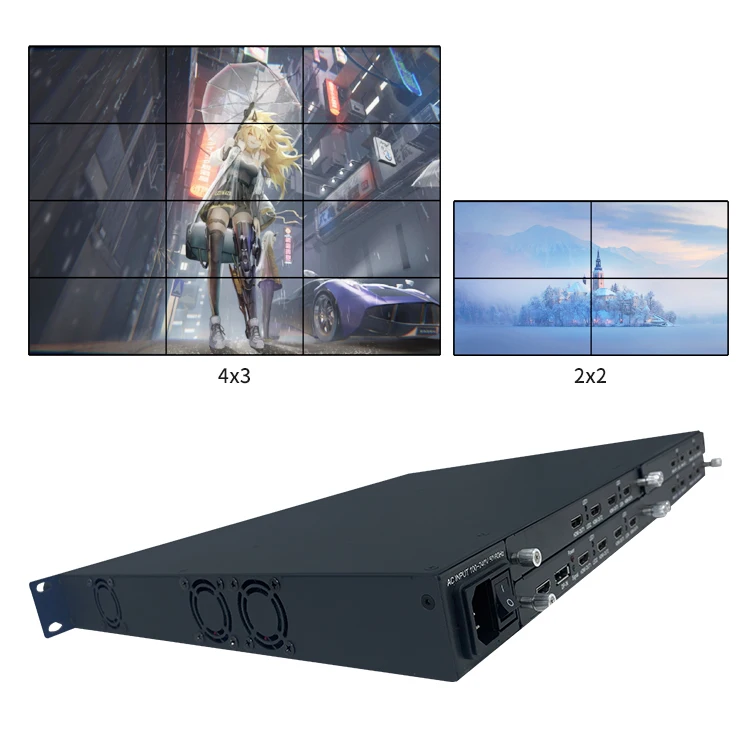

4x3 Max supported resolution
3840x2880@50Hz
3x4 Max supported resolution
5120x2160@50Hz
3x3 Max supported resolution
5760x3240@30Hz
4x2 Max supported resolution
3840x4320@30Hz
2x4 Max supported resolution
7680x2160@30Hz
2x2 Max supported resolution
3840x2160@60Hz
Factory default resolution
3840x2160@60Hz
Support custom resolution
√
Input interface type
One DP Interface
One HDMI Interface
One RJ45 Network port
One RJ45 Debug port
Output interface type
4~16 HDMI outputs
Size(L*W*H)
482.6mm*396.8mm*44mm
Weight
5kg
Power supply
100~240V
Warranty
One year
