Негорючая древесно-образная алюминиевая сэндвич-сердцевина Композитная Панель и
- Категория: Aluminum Composite Panels >>>
- Поставщик: Shanghai,Solar,Aluminium,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 36.58 $* | 38.29 $* |
| Aug-18-2025 | 35.93 $* | 37.35 $* |
| Jul-18-2025 | 30.54 $* | 32.86 $* |
| Jun-18-2025 | 35.49 $* | 37.24 $* |
| May-18-2025 | 30.96 $* | 32.5 $* |
| Apr-18-2025 | 34.25 $* | 36.46 $* |
| Mar-18-2025 | 34.91 $* | 36.3 $* |
| Feb-18-2025 | 34.79 $* | 36.8 $* |
| Jan-18-2025 | 33.11 $* | 35.4 $* |
Характеристики
Products Description
Thanks to the patented three-dimensional physical structure, Aegis3D™ reduces incredibly the weight of the facade, provides an amazing rigidity and the outstanding surface flatness.
Aegis3D™ has advanced surface treatment technology that available in an infinite range of solid and metallic colors and can be developed with any RAL, PPG coating system or custom colors, as well as anodizing, mirror, timber-look, stone-look, copper-look, titanium zinc and a variety of other finishes. Unlimited colors, exclusive textures, leaving freedom imagination space for designers.

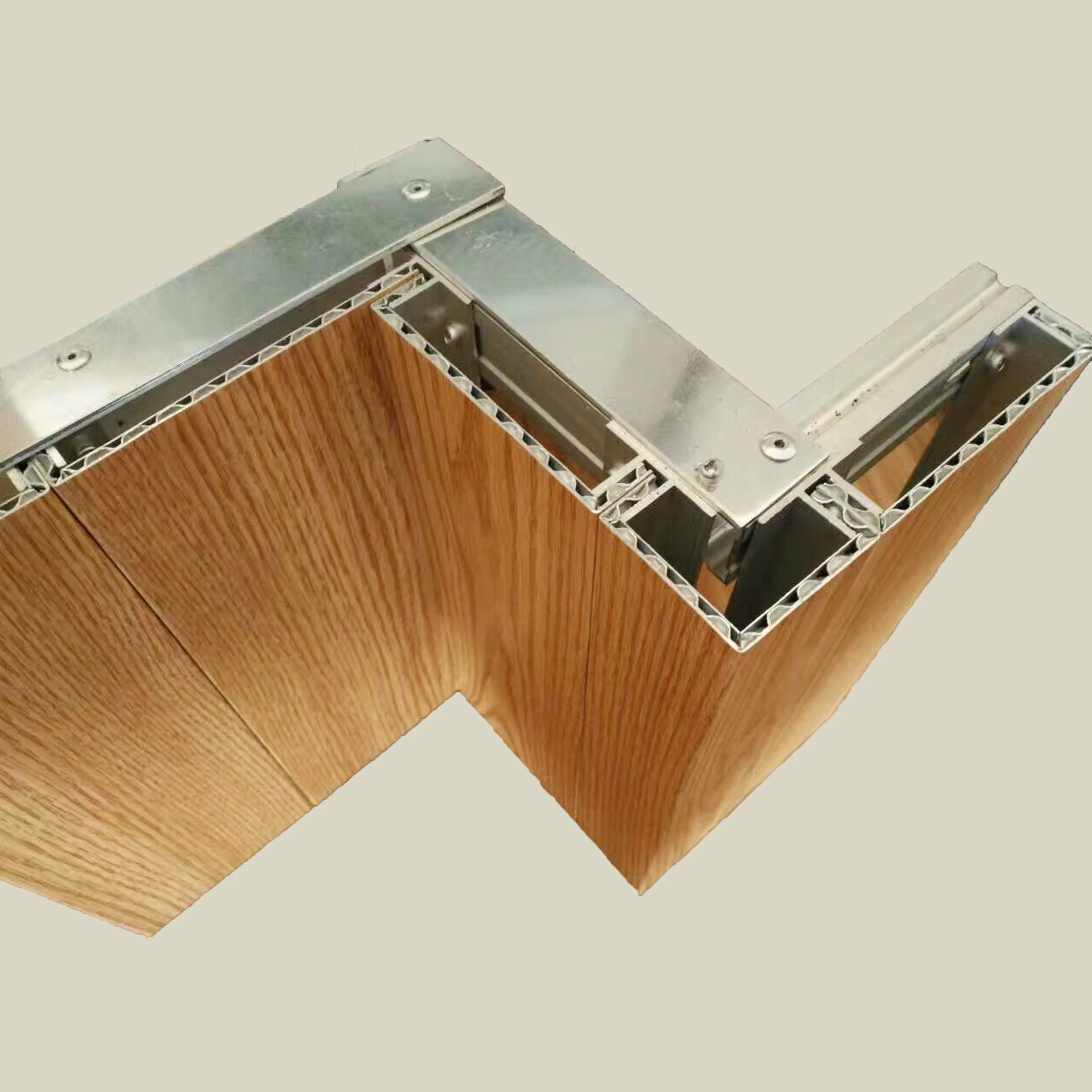

Aegis3D™ can be easily and accurately installed by a pre-made cassette system, requires minimal maintenance and comes with a minimum 15-year warranty.
Aegis3D™ has advanced surface treatment technology that available in an infinite range of solid and metallic colors and can be developed with any RAL, PPG coating system or custom colors, as well as anodizing, mirror, timber-look, stone-look, copper-look, titanium zinc and a variety of other finishes. Unlimited colors, exclusive textures, leaving freedom imagination space for designers.
Aegis3D™ can be easily and accurately installed by a pre-made cassette system, requires minimal maintenance and comes with a minimum 15-year warranty.
THICKNESS | WIDTH(mm) | LENGTH(mm) | FINISHES |
4 mm 5 mm 6 mm 7 mm | 1000 1220 1250 1500 | 2440 2700 3200 4000 customized | Mill finish Solid / Metallic coating Sparkling coating Brushed & Wood-look Anodised & Mirror |
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
ACCP is ideal for laser cutting, stamping, perforating, bending, curving, grooving and other sheet metal processing. The
coating will not fall off, excellent weather resistance, durable, UV resistant.
ACCP non-combustible aluminium cladding materials are widely used in cladding systems, facades, ceilings, billboards, curtain walls, partitions, roofs, etc.
* Deemed non-combustible, pure metal materials, no plastic components
* Ultra light(4.5kg /㎡),Unparalleled flatness
* More than 2 times stronger than other composite panels
* Resistant to corrosion, long-term durability
* Easy to install, maintain and replace
coating will not fall off, excellent weather resistance, durable, UV resistant.
ACCP non-combustible aluminium cladding materials are widely used in cladding systems, facades, ceilings, billboards, curtain walls, partitions, roofs, etc.
* Deemed non-combustible, pure metal materials, no plastic components
* Ultra light(4.5kg /㎡),Unparalleled flatness
* More than 2 times stronger than other composite panels
* Resistant to corrosion, long-term durability
* Easy to install, maintain and replace
Fabrication Guides
Circular saw
Aegis 3D™ can be cut with a directional rail circular saw and identical tooling similar ACP’s. For the CNC an up spiral cutter is recommended to assist with swarf removal. There is no coolant required on the cutter or groove. Manual folding can usually be achieved without the need for bending equipment.
Roll Bending
Aegis3D™ panel can be bent with a roll-bending machine. Safeguard the material by maintaining the protective film and make certain the rollers are clean and dent-free. Minimum radius of 500mm.
Screwing
Aegis3D™ panel can be bent with a roll-bending machine. Safeguard the material by maintaining the protective film and make certain the rollers are clean and dent-free. Minimum radius of 500mm.
Grooving
For a CNC Router, the tooling is the same as that for a 90° V-Groove of a 3mm flat ACP. As depicted in the diagram below, when using a Festool or Wallsaw, the grooving blade should remove all the aluminium of the core and be touching the adhesive layer on the rear of the face skin, the minimum thickness left in the bottom of the groove should be 0.7mm. Tools must be kept sharp to avoid heat and pressure conduction to the panel to reduce the quality of the grooves
It is highly recommended that you consult with the machine and tool supplier to ensure the best manufacturing results. We recommend that you conduct preliminary tests and tests before you start producing panels.
APPLICATION
Building facade, Wall cladding, Ceiling, Curtain wall, Exterior & interior of elevators, Cleanrooms, Re-cladding, Partition wall, Accessibility ramps, Platforms
Building facade, Wall cladding, Ceiling, Curtain wall, Exterior & interior of elevators, Cleanrooms, Re-cladding, Partition wall, Accessibility ramps, Platforms
Company Profile
Solar Aluminium is a family-owned company based in Shanghai. Specializing in manufacturing of metal materials and has been favored and supported by many professional partners for 17 years. Solar Aluminium is well skilled and experience in the manufacture of Non-combustible aluminum cladding materials for external and internal of building, with a wide range of products including aluminum core laminated panel, aluminum solid panel, coil continuous anodized aluminum sheet and mirror aluminium sheet. Respecting the environment is Solar's basic value, we are committed to the cause of environmental protection by reducing the use of hazardous materials, improving the efficiency of waste purification processes, making full use of environmentally friendly materials and improving the efficient use of natural resources. All of Solar's products have passed ISO9001:2008 quality management system, ISO14001:2015 environment management system. Solar Aluminium has a professional work team, attaches importance to "cooperation, integrity development", combined with high quality, environmental protection, preferential prices, energy-saving aluminum products and "customer-oriented" services will help many local industries grow and further demonstrate Solar's reputation, responsibility and social value in the market place. We are and shall still be customers oriented as we do believe-Customer' success is Solar's business.
Certifications
Why Choose Us
1.20 years Experience for Aluminum business
2. 7~15 days delivery
3. Spot supplier, with competitive price and shorter lead time.This product is available in stock in Melbourne, Australia.4. Passed international fireproof certifications
Our products have passed the AS1530.1 and AS1530.3 fire tests, and obtained the product qualification certificate issued by the
Australian government, becoming one of the few suppliers in Australia that has obtained the CodeMark certification.
5.Purchased enough product insurance We have provided adequate insurance for our products in Australia. From the products are
shipped out of the warehouse to the end of installation, all products are under the supervision of the local insurance company.
6.Provide free installation instructions.
2. 7~15 days delivery
3. Spot supplier, with competitive price and shorter lead time.This product is available in stock in Melbourne, Australia.4. Passed international fireproof certifications
Our products have passed the AS1530.1 and AS1530.3 fire tests, and obtained the product qualification certificate issued by the
Australian government, becoming one of the few suppliers in Australia that has obtained the CodeMark certification.
5.Purchased enough product insurance We have provided adequate insurance for our products in Australia. From the products are
shipped out of the warehouse to the end of installation, all products are under the supervision of the local insurance company.
6.Provide free installation instructions.
7. 100% warranty, up to 25 years (some products)
