UHF Штекерный обжимной соединитель PL259 для коаксиального кабеля LMR400 RG8 RG213


Поделиться:


Цена:0,70 $ - 1,05 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.55 $* 0.51 $*
Aug-18-2025 0.49 $* 0.48 $*
Jul-18-2025 0.2 $* 0.63 $*
Jun-18-2025 0.35 $* 0.57 $*
May-18-2025 0.41 $* 0.24 $*
Apr-18-2025 0.63 $* 0.66 $*
Mar-18-2025 0.43 $* 0.9 $*
Feb-18-2025 0.47 $* 0.40 $*
Jan-18-2025 0.37 $* 0.61 $*

Характеристики

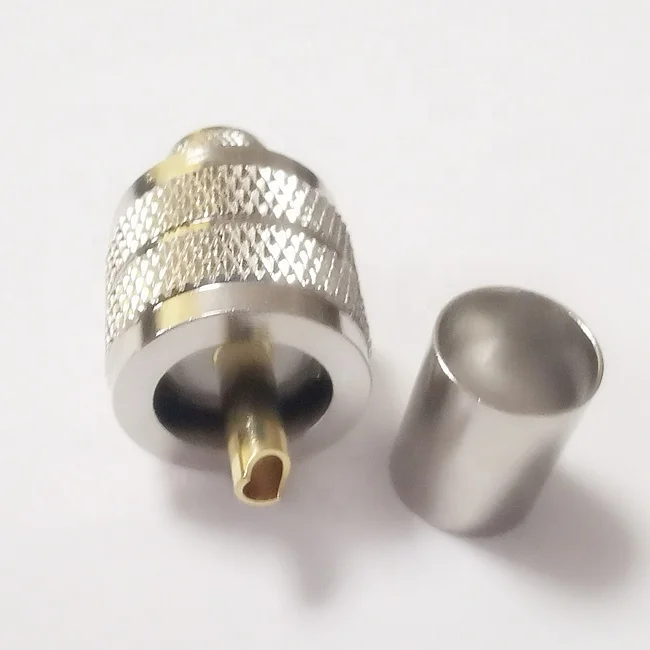

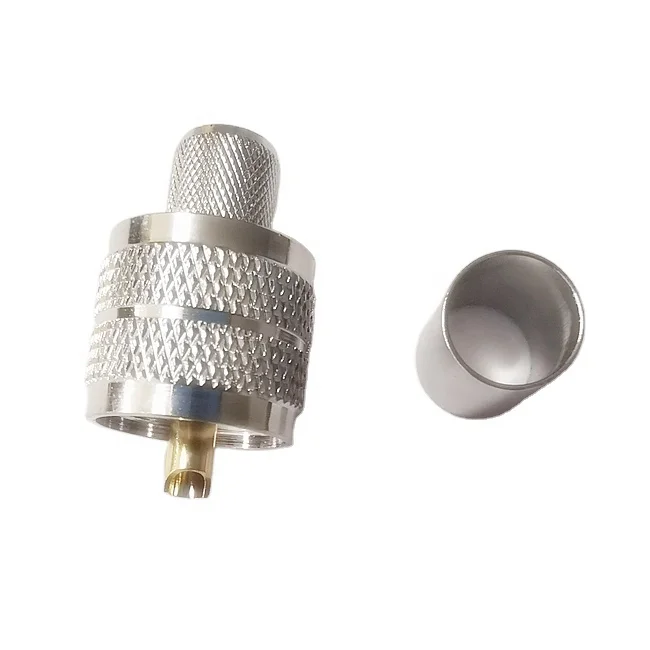

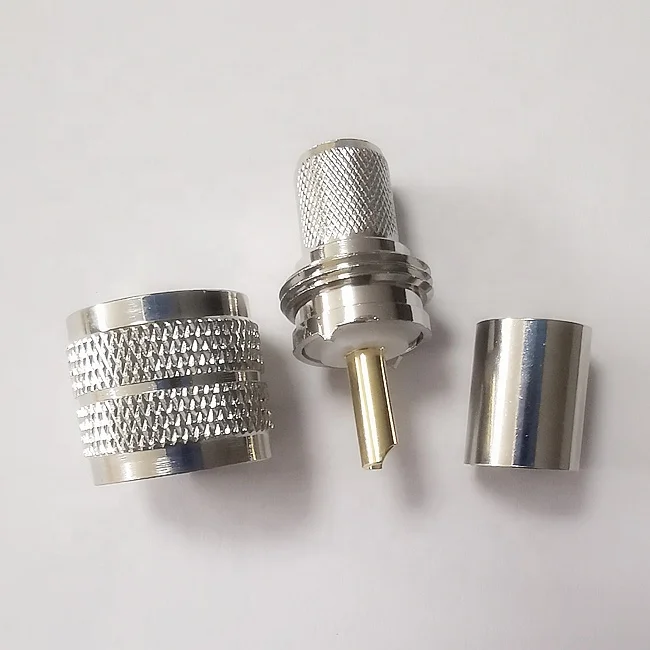

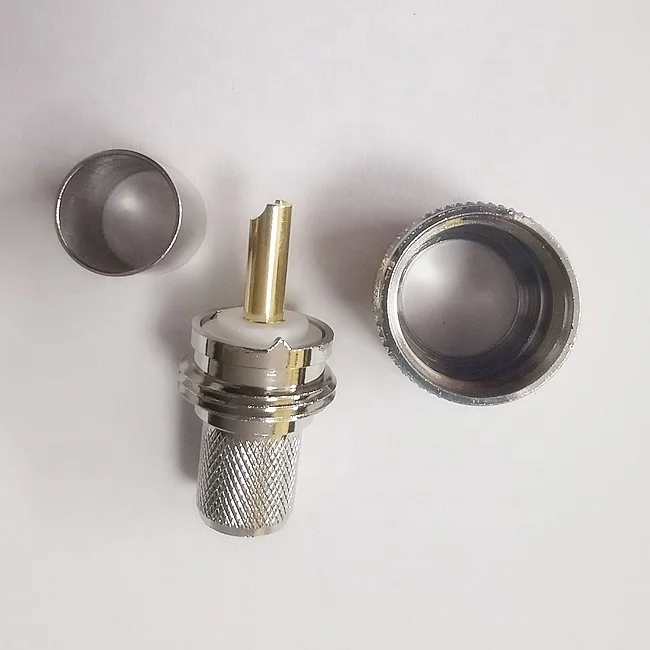

UHF Male Crimp PL259 Connector for LMR400 RG8 RG213 RG214 7D-FB Coaxial Cable


 QQ20191030160547


Overview


RF coaxial adaptor has high reliability, strong vibration resistance, mechanical and electrical characteristics of excellent performance. It is widely used in vibration and environment under the condition of radio equipment and instrument , ground launch system, and it can join all kinds of coaxial cables.





Electrical Characteristics





























































































Specifications



Major Technical Characteristics


Temperature Range


-55 degree to +150dregree


Vibration


100m/S2 (10 to 500 Hz), 10G


Impendance


50ohm/75ohm


Frenquency Range


DC-4GHZ


Working Voltage


500V r.m.s at sea level


Workstandinging Voltage


1500V r.m.s at sea level


Center Contact Resistance


 ≤1.5Mohm


Outer Contact Resistance


≤1Mohm



Insulation Resistance


≥5000Mohm


Center conductor Retention Force


≤0.57N


Insertion Loss


≤0.2dB/3Ghz


VoltaggeStanding Wave Ratio :


Straight


 ≤1.10+0.02f


Right Angle


≤1.20+0.03f


Dutability (Mating)


≤500(cycles)


Body


Brass/Gold Plated


Contact


Brass/Gold Plated


Insulator


PTFE


Nut


Brass


Washer


Brass






 Application .jpg


1598511216(1).png1598511246(1).pngUHF MALE FOR LMR400.jpg
