Характеристики
Mining Sand Making Plant Rotating Circular Vibrating Screen Sand Seiving Machine Screening Trommel Drum Screen Stone
Product Description
Product Name | Trommel Drum Screen |
Suitable for | Ores , Stone, Sands, Powder, Coke |
Color | Customizable |
Trommel Drum Screen is a special designed classifying equipments by our company for quarry, power plant, coking plant, building materials,metallurgy, chemical industry, mining and other industries ,which improved classifying system’s production capacity and reliability.
Trommel Drum Screen can be adapted to open-air operations, also can meet the special requirements of closed operation conditions.
Trommel Drum Screen is mainly applied to quarry factory to classify big and small size stones, and separate slime and stone powder, quarry factory is use to sand and stone separation, coal industry use to lump coal and powder coal separation and washing (parts of coal; washing plant),chemical industry, mineral processing industry for big sizeand small size classification and de-sliming or de-watering.
Trommel Drum Screen utilize Mechanical method, compose a screen surface by sieve bar form into pore. Classify by its weight 3 joint shaft inside trommel is higher than surface, to push up big size material so as to increase classify rate. And the inclination will help it advance, enter crusher finally. Size smaller pore will down through the pore and acquire the final product.
Detailed Images

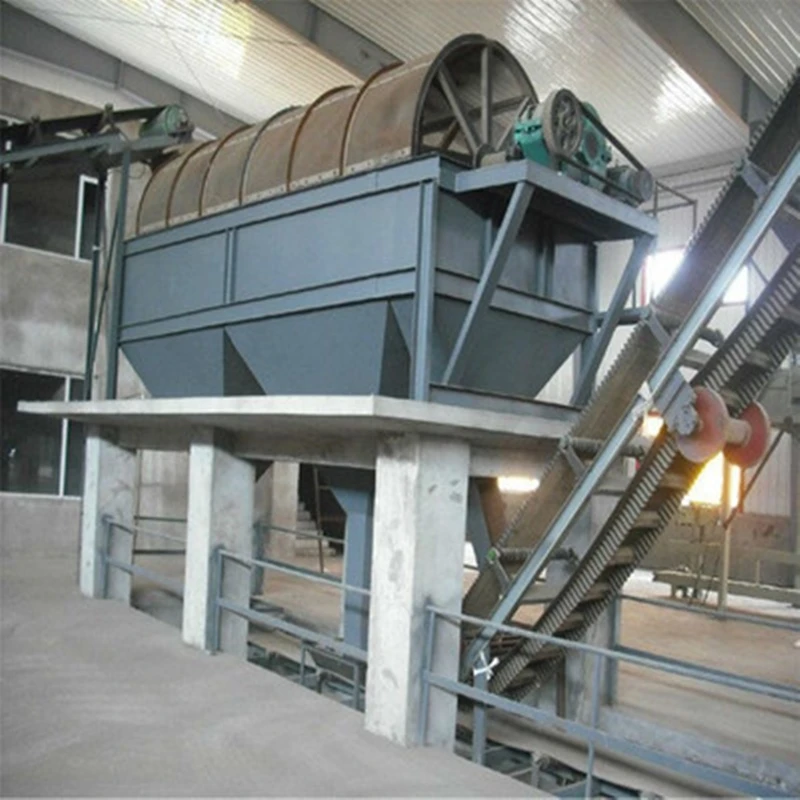

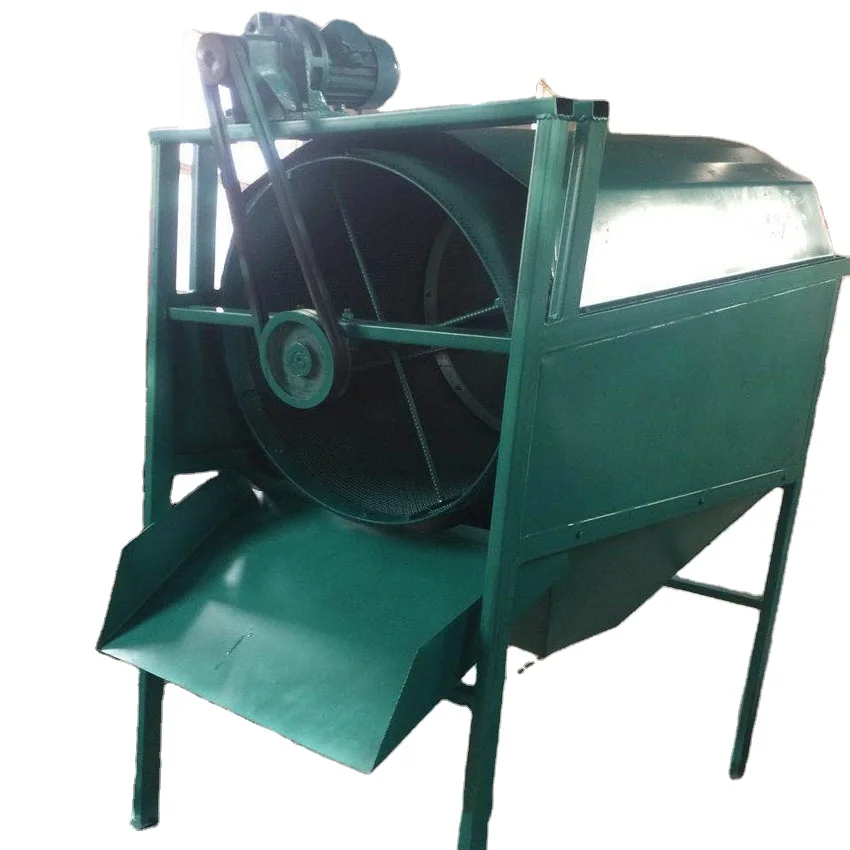

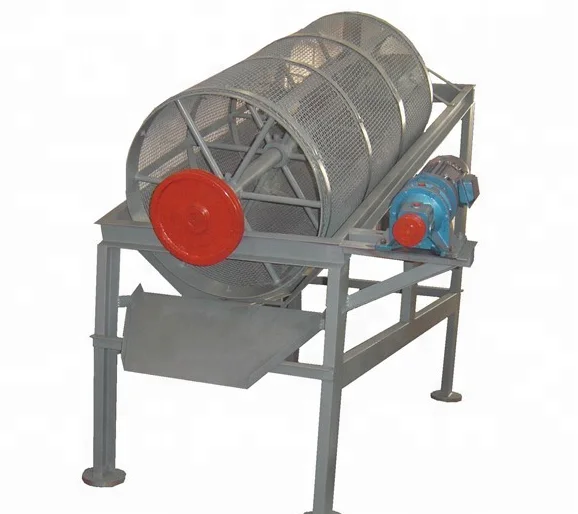

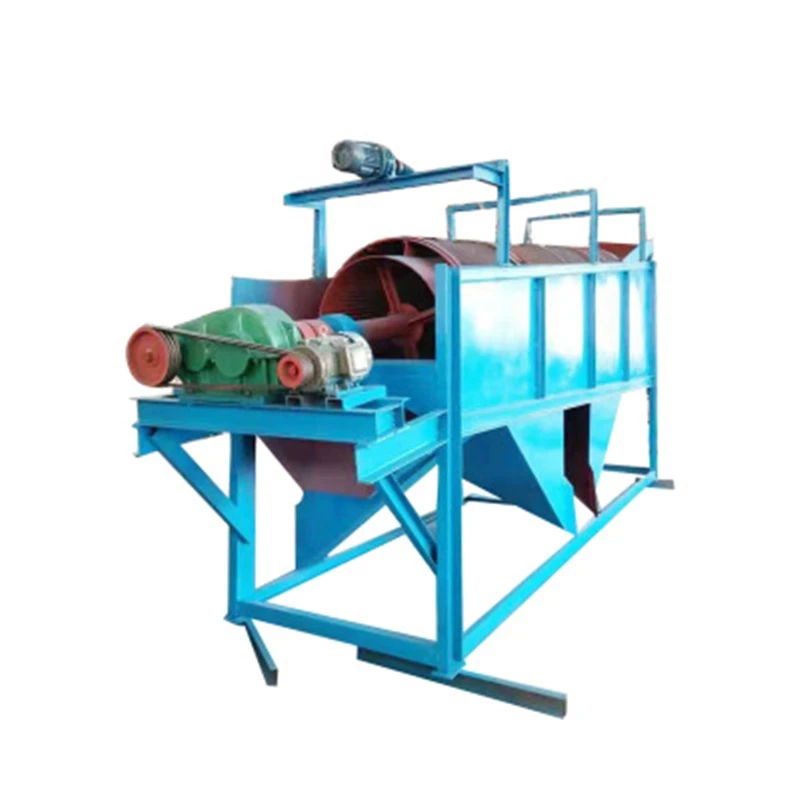

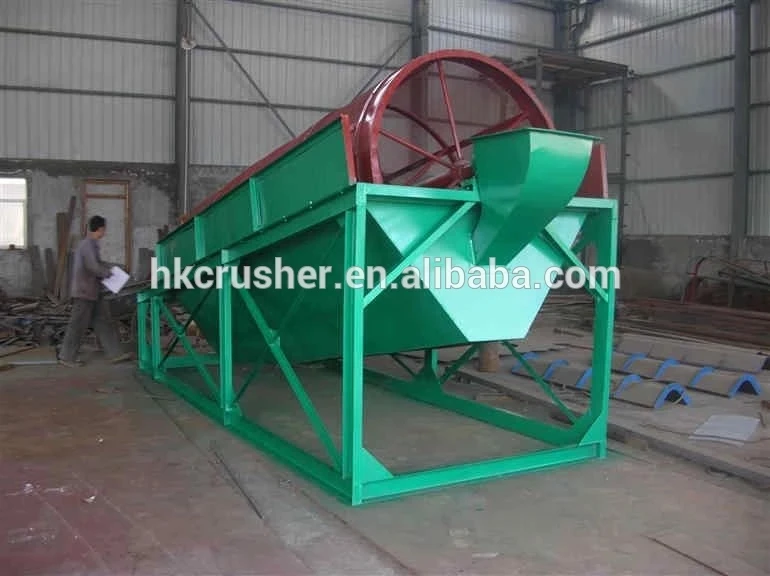

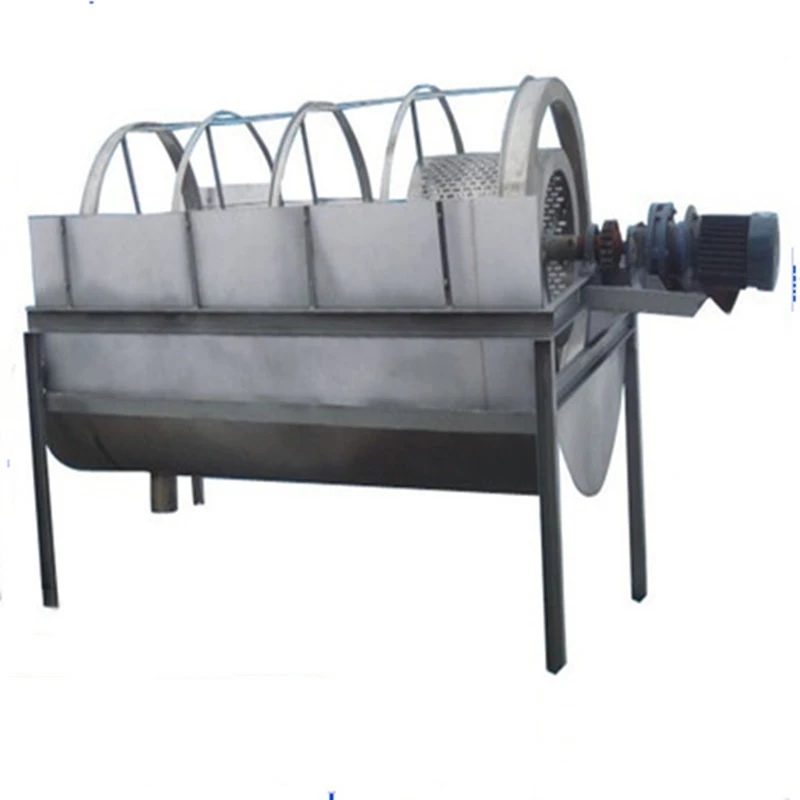

Trommel Drum Screen consists of hexagonal drum, rack, funnel, reducers and motor. Crushed ore feed into trommel,with the help of rotating centrifuge power and jigging to classify materials. And classify from different screen mesh. Different size materials
will convey to finished materials after funnel. On one hand, big size materials will flow front along the trommel inclination, and screen out from different mesh. Small size will discharge its own hopper and carry out by hand.
Size Information
Model | Capacity (t/h) | Power (kw) | Drum diameter (mm) | Drum length (mm) | Feed size (mm) | Discharge size (mm) | Dimension (L*W*H) (mm) | Weight (kg) |
GTS1015 | 50 | 3.0 | 1000 | 1500 | ≤300 | 0~100 | 2600×1400×1700 | 2200 |
GTS1020 | 100 | 4.0 | 1000 | 2000 | ≤300 | 0~100 | 3390×1400×2140 | 2800 |
GTS1225 | 160 | 5.5 | 1200 | 2500 | ≤300 | 0~100 | 4146×1600×2680 | 4200 |
GTS1530 | 250 | 7.5 | 1500 | 3000 | ≤300 | 0~100 | 4460×1900×2820 | 5100 |
GTS1545 | 350 | 11 | 1500 | 4500 | ≤400 | 0~100 | 5960×1900×3080 | 6000 |
GTS1848 | 450 | 15 | 1800 | 4800 | ≤400 | 0~100 | 6500×2350×4000 | 7500 |
GTS2055 | 600 | 22 | 2000 | 5500 | ≤400 | 0~100 | 7500×2550×4800 | 9600 |
GTS2265 | 800 | 30 | 2200 | 6500 | ≤400 | 0~100 | 8500×2750×5000 | 12800 |
Packaging and Delivery
Related Products
Working Sites
Company Introduction
Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as vibrating screen, new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as vibrating screen, new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!
FAQ
1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.
Kindly Note:
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). feeding material
2). Feeding material MAX. Size (mm)
3). Capacity (t/h) Capacity (t/h)
Upon we got your message we shall give you our favorable offer in short time.
1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). feeding material
2). Feeding material MAX. Size (mm)
3). Capacity (t/h) Capacity (t/h)
Upon we got your message we shall give you our favorable offer in short time.
