В наличии 6axis CNC вертикальный Зубофрезерный станок для 1-4 модуль с управления использованы

В наличии 6axis CNC вертикальный Зубофрезерный станок для 1-4 модуль с управления использованы

Категория: Зуборезные станки >>>
Поставщик: Zhengzhou,Well-Known,Instrument,&,Equipment,Co.,Ltd.

Цена:7 500,00 $ - 8 600,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	8925.27 $*	9371.77 $*
Aug-19-2025	8850.30 $*	9293.85 $*
Jul-19-2025	7425.34 $*	7796.65 $*
Jun-19-2025	8700.98 $*	9135.15 $*
May-19-2025	7575.11 $*	7954.27 $*
Apr-19-2025	8550.16 $*	8978.48 $*
Mar-19-2025	8475.97 $*	8899.50 $*
Feb-19-2025	8400.14 $*	8820.44 $*
Jan-19-2025	8325.56 $*	8741.22 $*

Характеристики

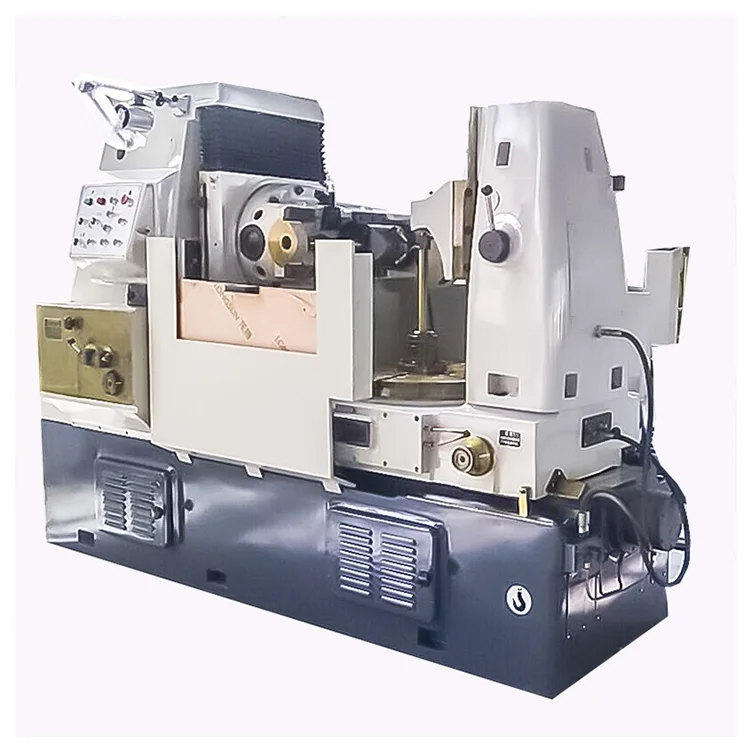

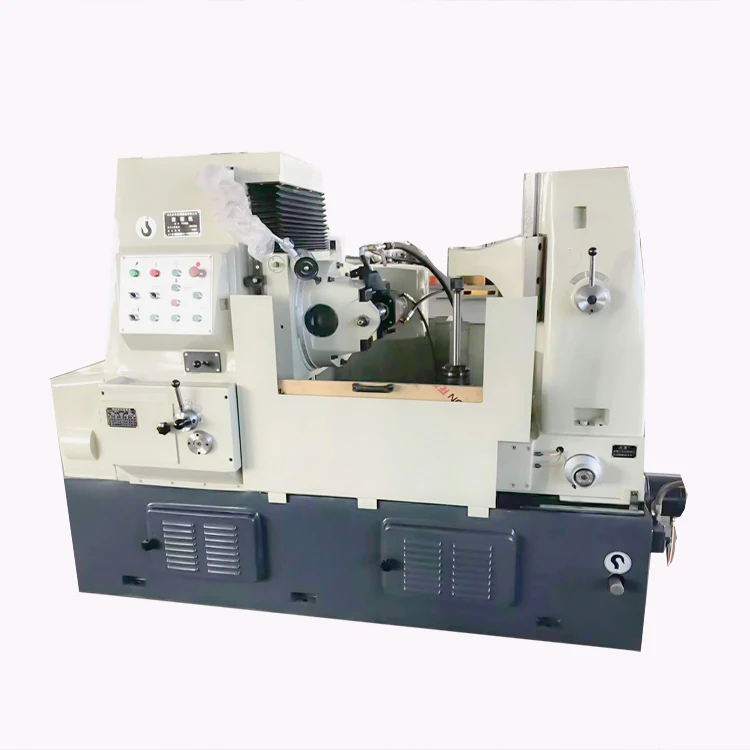

Stock 6axis CNC Vertical Gear Hobbing Machine for 1-4 Module with Siemens Control

Product introduction:

The machine is suitable for processing a variety of cylindrical spur gears, helical gears and warrants. Suitable for single-piece production and batch production, such as with more than one of the same type of machine tool is the most reasonable way to use the number of machines dedicated to the use of fine grinding to ensure that the machine tool processing.

Product feature:

1.Using four-axis CNC system to achieve four-axis linkage

2.Machinable straight teeth, helical, small taper, drum and other gear

3.helical teeth can be easily 45 ° profile

4.Machinable splines, fewer teeth and other special gear gear

5.Machine bed, column and other major castings using high-rib plate structure and large rectangular plastic rail, compact structure, strong dynamic and dynamic

6.Machine rotation chain is short, high precision, processing accuracy can reach 6 The spindle adopts high-power servo motor, which can realize stepless speed regulation in cutting range

7.Tailstock top hydraulic automatic control

Product parameters:

Specification	Unite	Y3180H
Max.dia.of workpiece (without back column/with back column)	mm	800/550
Max.modulus(casting iron/steel workpiece)	mm	10/8
Max. helix angle in turning bevel gear	°	±45°
Max. dimension of cutter (Dia. x Length)	mm	180x180
Cutter tool spindle taper hole	MS	No.5
Worktable diameter	mm	650
Worktable hole diameter	mm	80
Worktable mandrel tapper	Ms	No.5
Distance between axis of cutter and work table face	mm	235~585
Distance from hob center to workable center	mm	50~550
The distance between under end surface of the support bearing hole and the worktable	Mm	400-600
Rapid moving speed of work table	mm	50
Max. axial movement of cutter	mm	50mm(manual)
Spindle speed steps		8
Spindle speed range	rpm	40~200
Axial feeds range	mm/rev	12 steps 0.4~4
The max speed of worktable	r/min	5.3r/min (3.5r/min)
Power of main motor and synchro-speed	kw/rpm	5.5/1500
Power of rapid axial motor and synchro-speed	kw/rpm	1.1/1500
Power of hydraulic pump motor and synchro-speed	kw/rpm	1.1/1000
Power of rapid worktable motor and synchro-speed	kw/rpm	O.55/1500
The net weight	Kg	5500kg
Overall size	mm	275014901870
