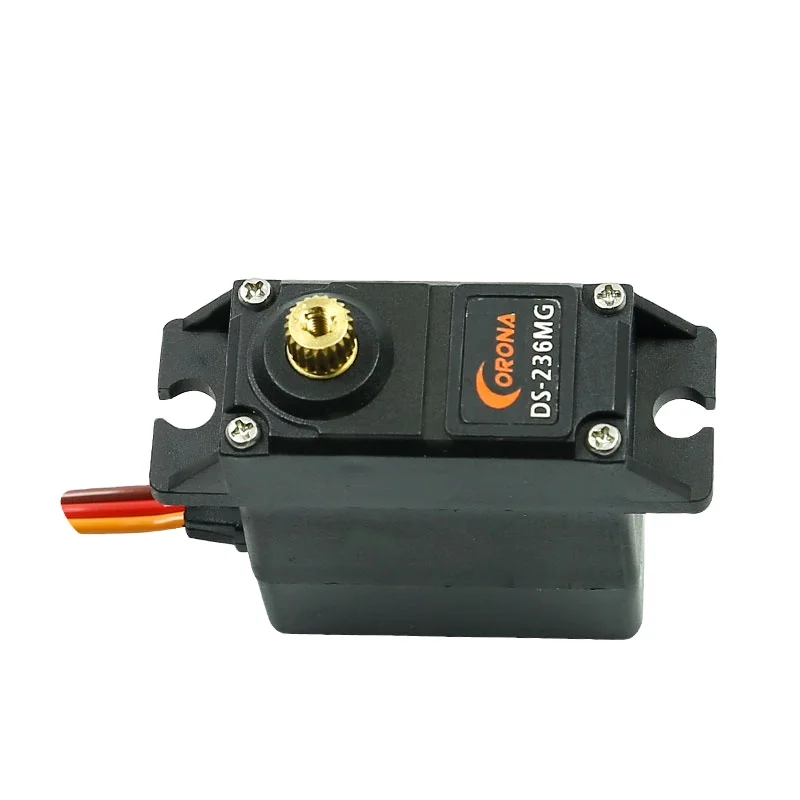

Corona DS236MG 7 0 кг 0.12sec 27g цифровой металлическими шестернями и высоким крутящим мини-мотор для хобби Робототехника образования
- Категория: Toy Parts >>>
- Поставщик: Superior,E-Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 7.50 $* | 7.37 $* |
| Aug-19-2025 | 7.87 $* | 7.35 $* |
| Jul-19-2025 | 6.84 $* | 6.67 $* |
| Jun-19-2025 | 7.28 $* | 7.43 $* |
| May-19-2025 | 6.22 $* | 6.4 $* |
| Apr-19-2025 | 7.90 $* | 7.69 $* |
| Mar-19-2025 | 7.80 $* | 7.83 $* |
| Feb-19-2025 | 7.18 $* | 7.43 $* |
| Jan-19-2025 | 7.28 $* | 7.99 $* |
Характеристики
Product Description
Specifications
Size: 28x14x32mm (1.11"x0.55"x1.26")
Weight: 27g(0.95OZ)
Operating voltage: 4.8V / 6.0V
Operating current: 300mA / 400mA
Operating speed: 0.13sec.60º/ 0.12sec.60º
Stall torque: 6.0kg.cm / 7.0kg.cm
Dead band: ≤3uSec
Operating speed: 40º/one side pulse traveling 400us
Potentiometer: 3 slider
Ball bearing: MR106
Gear Material: Metal
Connector wire length: 215mm
Temperature: -20 ℃ to +60℃
Robotic and Industrial servo OEM & ODM services available. We are confident we can make any type of servo to suit any application. Our engineering team are up to the challenge and looking forward to building a servo to suit your needs.
We can build servos with features like these and more!
Torque ranging from 2kg*cm to 700kg*cm
Travel speeds from 0.03s to 0.5s
Travel angles: from 40deg to 360deg
Communication protocols such as TTL. RS232, i2C, RS485 or PWM
Servo positioning and current feedback
Gear materials from plastics to titanium
Voltage ranges are also customizable from 4.8v to 28v
Size, Shape and design can be customized to your needs
A variety or motor options such as brushed, coreless & brushless
We can offer Potentiometer or magnetic induction control
Potential Applications.
1. Electric lock (anti-heft door lock servo)
2. Luggage case lock servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Smart lamp Switch Servo
6. Camera gimbal control servo
7. UAV heavy duty servo
8. Servo Release Servo Drop
9. Curtain Servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Car window winding servo
15. Medical equipment servo
16. safety lock servo
17. Robot servo
18. Wheel servo
19. Robot arm servo
