CE certified 5 ton Standard Lifting hoist manual chain block

Capacity from 0.25ton to 50ton. For 20ton 30ton 50ton, I keep stock, the delivery time will no more than 10days if quantity is not too big.

Lifting height: from 1meter to 100meter.

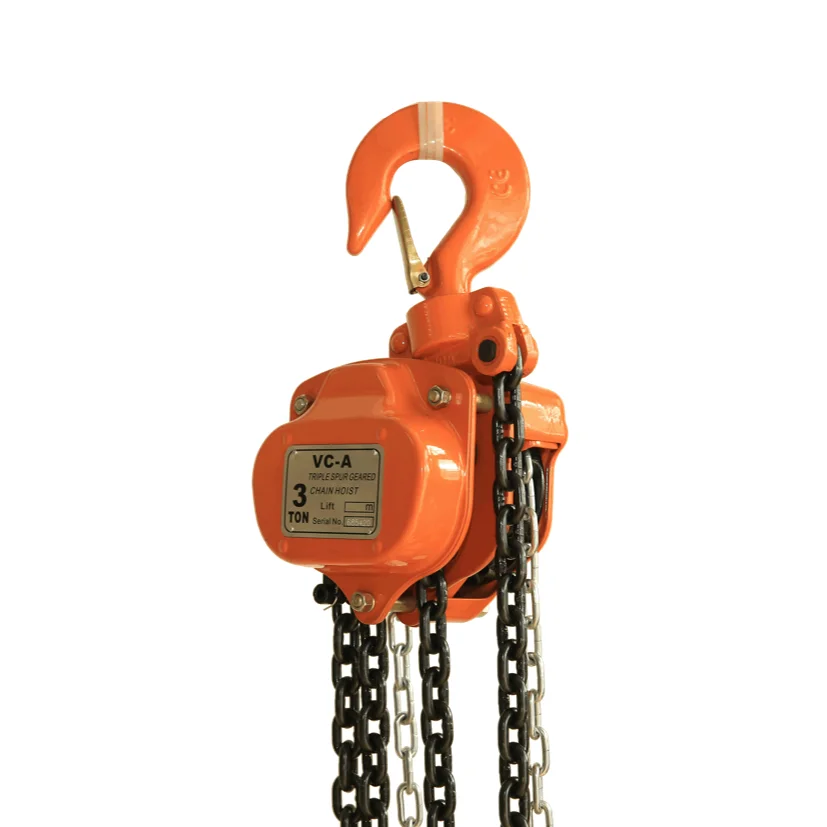

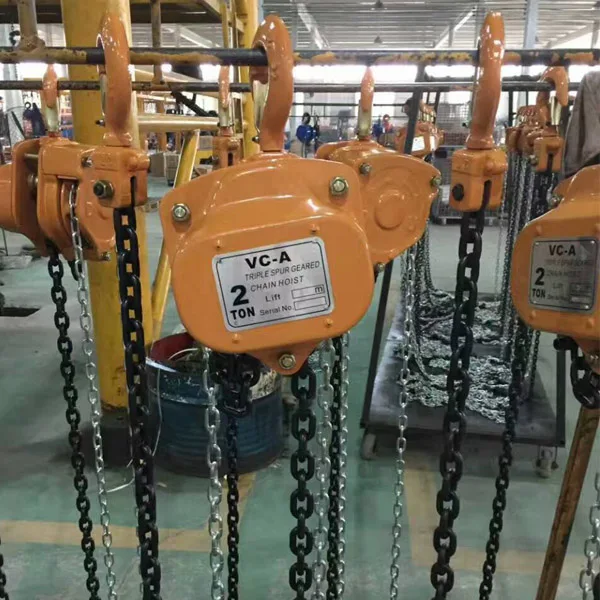

VC-A Type Chain Hoist

Gear case and hand wheel cover resistant to external shocks.
Double Enclosure to keep out rain water and dust .
Sure and reliable braking functions (mechanical break )
Double pawl spring mechanism to further increase sureness.
Hook for easy work.
Gear with natures of hing preciseness and tenacity.
Load chain guide mechanism, finely fabricated fro wrought iron.
Ultra strong load chain.





VC-A
Model	Capacity(T)	Standard lift(M)	Running test load(T)	No. of falls load chain	Load chain diameter (MM)
VC-B 0.5T	0.5	2.5	0.75	1	5
VC-B 1T	1	2.5	1.5	1	6.3
VC-B 1.5T	1.5	2.5	2.25	1	7.1
VC-B 2T	2	3	3	1	8
VC-B 3T	3	3	4.5	2	7.1
VC-B 5T	5	3	7.5	2	9
VC-B 10T	10	3	15	4	9
VC-B 20T	20	3	30	8	9
VC-B 30T	30	3	45	12	9
VC-B 50T	50	3	75	20	9

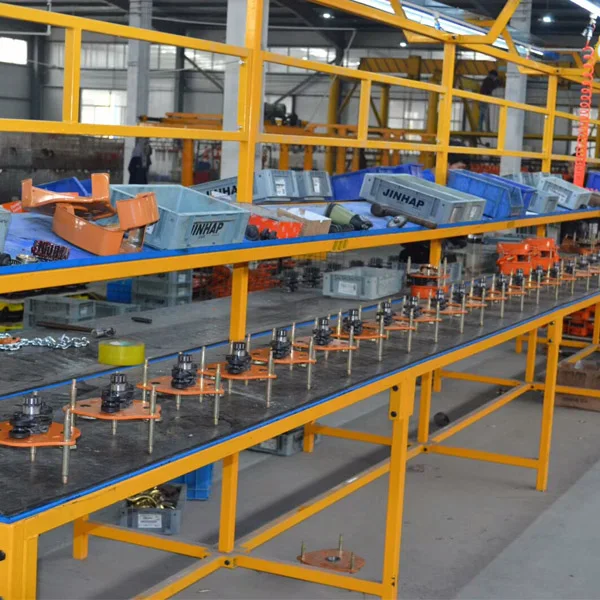

Hebei Huaige Hoisting Machinery Group Co.,Ltd. was founded in 1999 in Baoding. Today, the Huaige is a global player. Its main development and production facility in China, offers future-oriented solutions with various hoists and other lifting tools for a wide range of applications.

For hoisting, moving, pulling, driving and conveying, our Huaige lifting means, Huaige Electric Hoists, Manual Hoist, Lever Hoists, Chain, Transportation trolleys also other hoisting tools are a guarantee of quality, innovation and safety. Each product we produced was inspected by our experienced technician who had over 30 years research and producing experience, and we also use strict quality control testing system to ensure the products' stability and durability.



Please kindly note: JDP Guangzhou Technology Co.,Ltd. is the only export office of Huaige Group.

Please never believe other fake companies.

And all the email from my company should be @huaigegroup.com

More details about the product please kindly check with us elena(@)huaigegroup.com

Whatsapp & Mobile phone Number: 008613930223782

Thanks for your business!
