Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Aug-17-2025 | 27842.2 $* | 28399.79 $* |
Jul-17-2025 | 22581.0 $* | 23033.63 $* |
Jun-17-2025 | 27404.89 $* | 27952.43 $* |
May-17-2025 | 27185.64 $* | 27729.51 $* |
Apr-17-2025 | 21704.75 $* | 22138.13 $* |
Mar-17-2025 | 26746.43 $* | 27281.83 $* |
Feb-17-2025 | 26527.77 $* | 27058.15 $* |
Jan-17-2025 | 26308.97 $* | 26834.44 $* |
Power Specification | ||||||
EU Standard | EU Standard | |||||
Charging Connector Type | IEC 62196-2 (Type 2) | IEC 62196-2 (Type 2) | ||||
AC Power Input Rating | 1 Phase | 3 Phase | ||||
230V±15% | 380V±15% | |||||
AC Power Output Rating | 3.5kw/16A | 11kw/16A | ||||
7kw/32A | 22kw/32A | |||||
43kw/63A | ||||||
Frequency Rating | 50/60 Hz | |||||
User Interface & Control | ||||||
Emergency Stop Button | Yes | Plug-and-Charging | Yes | |||
RFID Card Charging | Yes | App Charging | Yes | |||
Ethernet Interface | Yes | Wifi Function | Yes | |||
OCPP Protocol | OCPP 1.6 | 4.3-inch LCD Screen | Optional | |||
Protection | ||||||
Over Voltage Protection | Yes | Under Voltage Protection | Yes | |||
Over Load Protection | Yes | Short Circuit Protection | Yes | |||
Earth Leakage Protection | Yes | Ground Protection | Yes | |||
Over-temp Protection | Yes | Surge Protection | Yes | |||
RCD | Type B | |||||
Environmental | ||||||
Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ | |||
Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m | |||
Cooling Method | Natural Cooling | |||||
M3P Wallbox Mechanical | ||||||
IP Code | IP54 | Dimension(H×W×D,mm) | 410×260×164 | |||
Weight | 12kg | Charging Cable Length | 5m or Customize | |||
Enclosure Material | Front-panel: Tempered Glass, Back-cover: Plate Metal | |||||

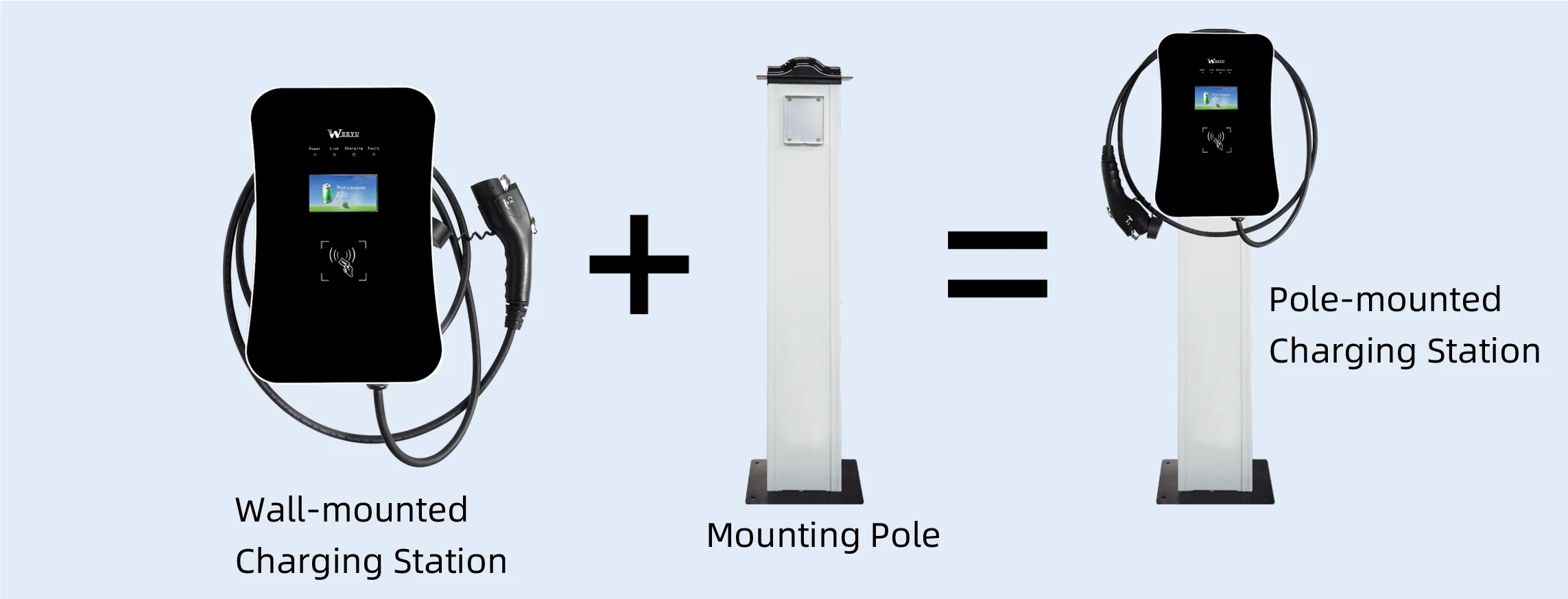

M3T Mounting Pole(Optional) | ||||||
Dimension(H×W×D,mm) | 1400×200×100 | Weight | <8kg | |||
Enclosure Material | Metal |
