LLT заводская цена 2 3 4 Pin M16 Электрический Водонепроницаемый Штекерный
- Категория: Connectors & Terminals >>>
- Поставщик: Shenzhen,Lilutong,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.96 $* | 0.16 $* |
| Aug-19-2025 | 0.65 $* | 0.51 $* |
| Jul-19-2025 | 0.18 $* | 0.88 $* |
| Jun-19-2025 | 0.20 $* | 0.6 $* |
| May-19-2025 | 0.63 $* | 0.61 $* |
| Apr-19-2025 | 0.79 $* | 0.60 $* |
| Mar-19-2025 | 0.98 $* | 0.22 $* |
| Feb-19-2025 | 0.64 $* | 0.33 $* |
| Jan-19-2025 | 0.47 $* | 0.3 $* |
Характеристики

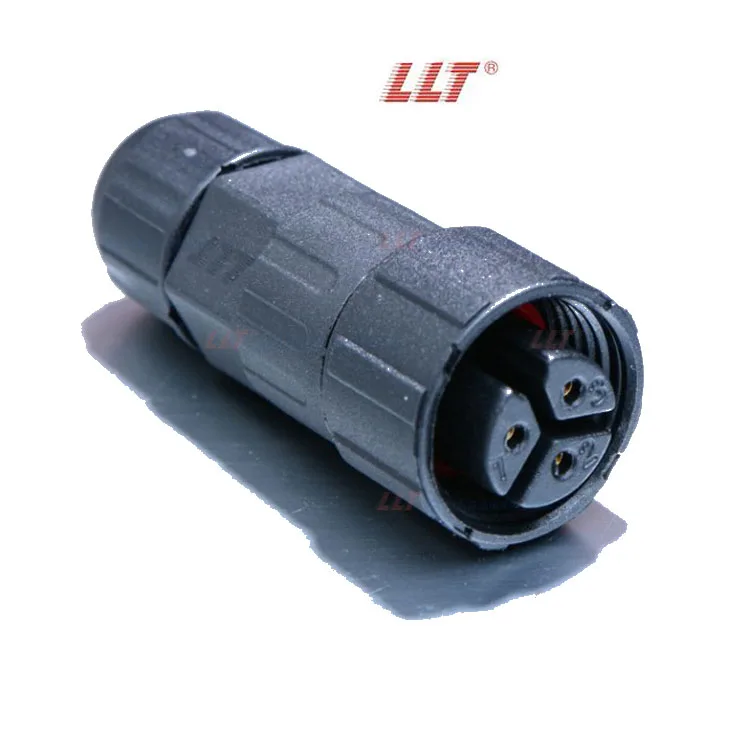

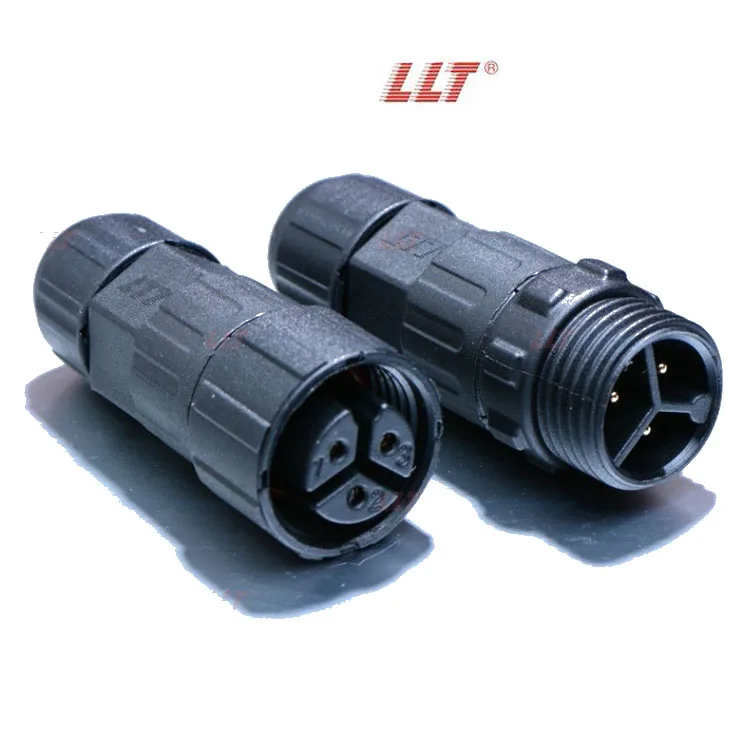

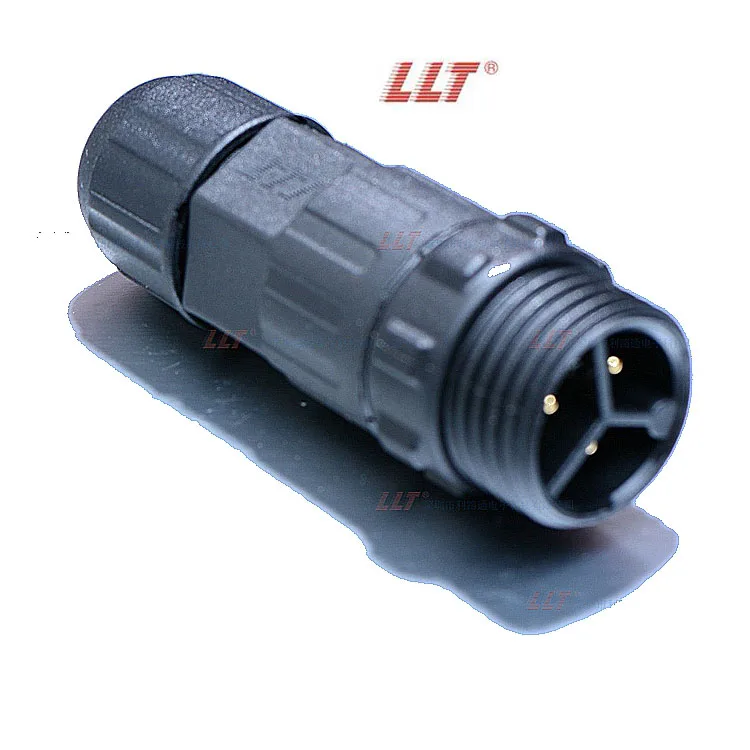

LLT factory price 2 3 4 Pin M16 electrical waterproof male female terminal connector
Feature:
1. Black Colour.
2. Assembly type, push lock, sodering docking connector, suitable for 250V 15A current.
Pins range from 2 pin to 12 pin for your choice.
wire size<=1.5mm2, Max. cable diameter: 8.5mm
3. Your samples, drawings and designs are welcome, we can Provide custom-made service.
Pls let me know the wire size and cable outer diameter, then we can go ahead.
| 1 | Model No. | LLT-M16 led waterproof connector | |
| 2 | Material | Connector Body | Nylon(PA66)+GF UL94V-0 1/16'' |
| 3 | Contact | Brass with Gold Plated | |
| 4 | Sealing | Silica Gel | |
| 5 | Property | Current Rating | 15AMP |
| 6 | Voltage Rating | 250V | |
| 7 | Contact Resistance | <10mΩ | |
| 8 | Insulation Resistance | 1000MΩ at DC 500V | |
| 9 | Breakdown Voltage | 1.5KV/1minute | |
| 10 | Temperature Rating | -45°C~+105°C | |
| 11 | Durability(Plug/Unplug) | 3000 times | |
| 12 | Waterproof Rating | IP67 IP68 waterproof | |
| 13 | Cable Max. Diameter | 8.5mm(<=1.5mm2) | |
| 14 | Pins Range | 2, 3, 4, 5, 6, 7, 8,9,10,11,12 | |
| 15 | Certificate | CCC; CE; RoHS;SAA | |
Our Related Products
Customers' feedback
Our certificate
Full Certificate such as UL,CE,TUV,ROHS,CCC,SAA,TS16949,ISO14001 and so on.
Products Application
These products are widely used for outdoor lighting,precision automation machinery,new energy vehicles and charging equipment,electricity generation facility,coal mine,oil drilling industry,communication network,underwater detector,civil air vehicle,military vehicles and other industries.
Company introduction
LLT TECHNOLOGY INDUSTRY Co., Ltd ----based in ShenZhen which is a global large-scale production enterprise, specializing in the production of high tech precision outdoor waterproof connector,aviation plug,wire and cable.
With stable,reliable quality and excellent service,We got good recognition and Comment from a lot of customers at home and abroad.
Through more than 20 years of unremitting efforts, LLT has a proven history of providing customer-driven, avant-garde, qualified safety products.
Our customers are as below:
1.London Olympic Games
2. 2008 China Olympics-the Birds Nest Stadium and the Water Cube
3. Guangzhou Asian Games
4.Shanghai World Expo
5.Shenzhen Subway
6.Western Corridor
7.Cnooc drilling platform
8.China high-speed railway
9.HUAWEI
FAQ
Q:Why choose us?
A:1.100% home made,competitive price and fast delivery.
2.strict quality control.Certified by ISO9001:2000/CCC/TUV/CE/PSE/CQC/ROHS/UL.
Q:How long is your delivery time?
A:Sample is 1-3 days;Mass products is 5-7 days.
Q:Do you provide samples?is it free or extra?
A:Yes,we could offer the sample for free of charge but do not pay the cost of freight.
Q:What is your terms of payment?
A:We accept Multiple payment methods such us T/T in advance,Western Union,Ali-trade assurance and so on.
Q:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
Please contact me for other customers' feedback about our products and free sample!
Any need,please contact me for more detail!
