Полимерный ЖК матричный УФ принтер YIDIMU 3D машина
- Категория: Цифровые принтеры >>>
- Поставщик: Shenzhen,Yidimu,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1166.81 $* | 1224.83 $* |
| Aug-16-2025 | 1156.99 $* | 1214.62 $* |
| Jul-16-2025 | 970.36 $* | 1019.75 $* |
| Jun-16-2025 | 1137.52 $* | 1194.82 $* |
| May-16-2025 | 990.55 $* | 1040.62 $* |
| Apr-16-2025 | 1117.85 $* | 1173.35 $* |
| Mar-16-2025 | 1107.15 $* | 1162.37 $* |
| Feb-16-2025 | 1098.72 $* | 1153.30 $* |
| Jan-16-2025 | 1088.59 $* | 1142.44 $* |
Характеристики
Product Description
Product Parameters:
Software : CHITU
Connection: U disk (USB connect)
Support format: Stl
Software : CHITU
Connection: U disk (USB connect)
Support format: Stl

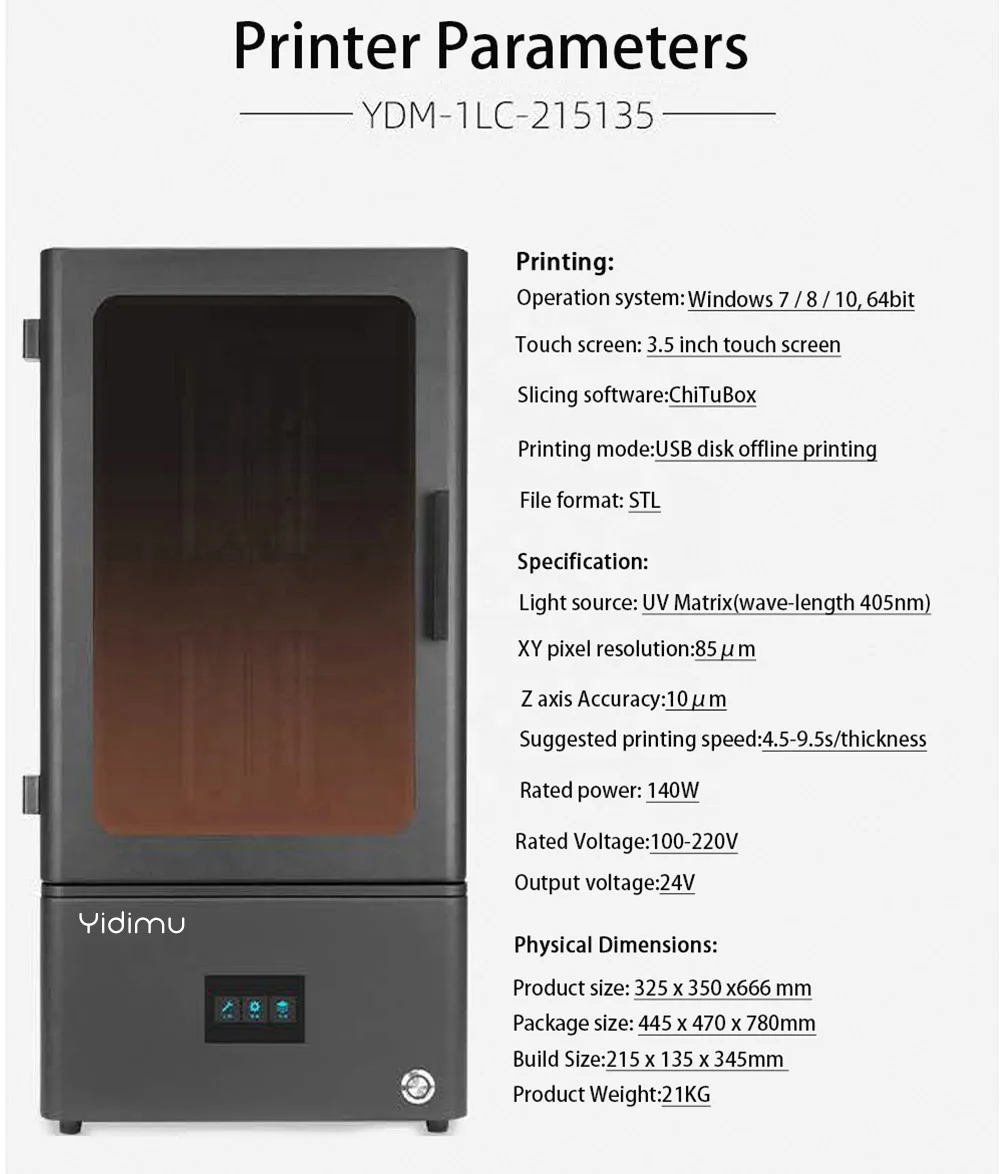

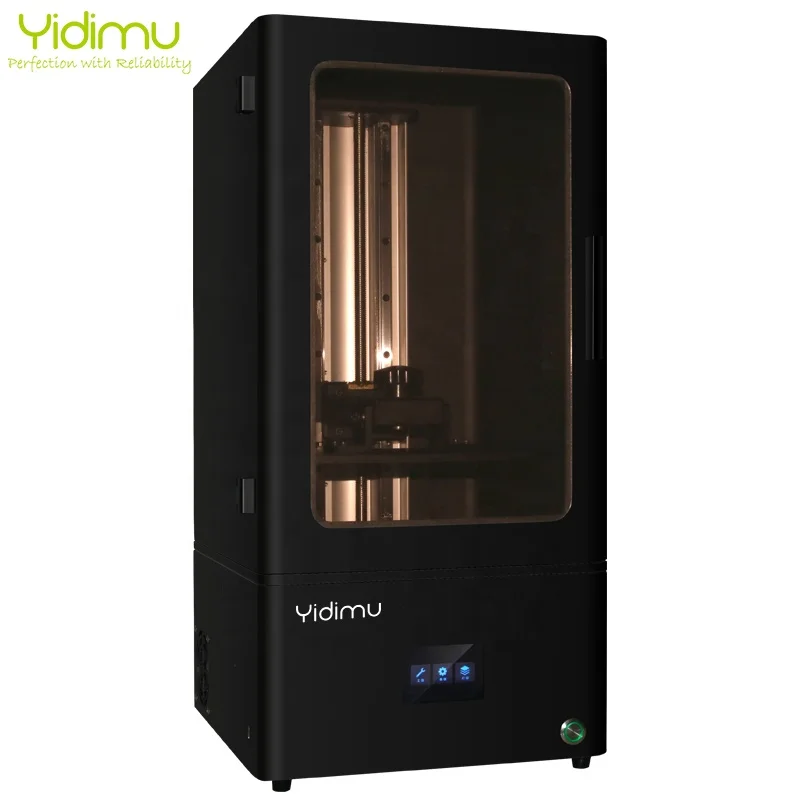

Product Name | YIDIMU Falcon Pro LCD 3D Printer |
Model NO. | YDM-1LC-215135 |
Build Size | 215mm ( L ) x 135mm ( W ) x 345mm ( H ) |
Technology | SLA/LCD |
Print speed | 4.5-9.5 s/layer |
XY Precision | 85μm |
Light source | UV integrated light(wavelength 405nm) |
Printing material | 405nm photosensitive resin |
Operation software | CHITU |
Z axis resolution | 10um |
File format | STL |
Connection mode | U disk (USB connect) |
Touch screen | 3.5 inch color touch screen |
Voltage and Power | 24v 10A 140w |
Layer resolution | 10~ 100um |
Technique | LCD Shadow Masking |
UV led board | 80W high power |
LCD display | 10.1 inch 2560*1600 |
Z Axis screw | Double track control |
Printing volume | 215*135*345mm |
Packing Details:
Product weight:21kg
Product size:325 x 350 x666 mm
Package size:445 x 470 x780 mm
Packing Contents:LCD 3D Printer*1 , Power supply*1, print platform *1, Mask*1, Storage box*1, Dust-free towel*1,Finger
sleeve*10,Gloves*2, Tweezers*1,USB*1, Tool*1
Product weight:21kg
Product size:325 x 350 x666 mm
Package size:445 x 470 x780 mm
Packing Contents:LCD 3D Printer*1 , Power supply*1, print platform *1, Mask*1, Storage box*1, Dust-free towel*1,Finger
sleeve*10,Gloves*2, Tweezers*1,USB*1, Tool*1
Company Profile
Our Advantages
Factory
Exhibition
Certificate
FAQ
1:Castable resin ok?
A: Yes, there are castable resins that will work with it.
2:Do you need to have a UV Lamp to cure the finished product after printing?
A:I just leave it outside for a few hours in the sun. If you don't have good direct sunlight, then yes.
3:This machine works with these software input formats: .stl, .obj, .amf ?
A: Works with .stl but I have never used .amf and I usually convert to .stl when I check the mesh when using .obj.
4:Is this printer dlp or lcd?
A: Its a LCD printer.
5:Does this come with a sample bottle of resin?
A:Yes. Mine came with transparent resin.
6:What is the melting temperature of a printed piece?
A: It is unable to melt. At 100 degrees, the print cracked. Carbonization at 300 degrees.
7:Is it possible to print directly on the build platform and use supports?
A: Yes, you can do that.
8:What is the maximum dinensions of an object that can be printed? Circumfrence and height.
A: it's roughly a 120*65*165(mm) build volume.
9:Would this unit work well for making minatures for rpgs like dungeon and dragons?
A:Yes, it will. I primarily bought mine for making monsters for roleplaying games (such as d&d),
but it can make humanoids, animals, inanimate objects, basically whatever you can find a design for within the size parameters
[you will just need to find or create the files for the figures themselves, but the detail is great].
A: Yes, there are castable resins that will work with it.
2:Do you need to have a UV Lamp to cure the finished product after printing?
A:I just leave it outside for a few hours in the sun. If you don't have good direct sunlight, then yes.
3:This machine works with these software input formats: .stl, .obj, .amf ?
A: Works with .stl but I have never used .amf and I usually convert to .stl when I check the mesh when using .obj.
4:Is this printer dlp or lcd?
A: Its a LCD printer.
5:Does this come with a sample bottle of resin?
A:Yes. Mine came with transparent resin.
6:What is the melting temperature of a printed piece?
A: It is unable to melt. At 100 degrees, the print cracked. Carbonization at 300 degrees.
7:Is it possible to print directly on the build platform and use supports?
A: Yes, you can do that.
8:What is the maximum dinensions of an object that can be printed? Circumfrence and height.
A: it's roughly a 120*65*165(mm) build volume.
9:Would this unit work well for making minatures for rpgs like dungeon and dragons?
A:Yes, it will. I primarily bought mine for making monsters for roleplaying games (such as d&d),
but it can make humanoids, animals, inanimate objects, basically whatever you can find a design for within the size parameters
[you will just need to find or create the files for the figures themselves, but the detail is great].
