Высокая точность наполнения топлива Поплавковый Тип дизельного для хранения бака контроллер уровня ATG система Датчик масляный шар
- Категория: Прочие продукты энергетической отрасли >>>
- Поставщик: Henan,Sinotech,Intelligent,Control,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.98 $* | 0.68 $* |
| Aug-19-2025 | 0.89 $* | 0.75 $* |
| Jul-19-2025 | 0.4 $* | 0.40 $* |
| Jun-19-2025 | 0.29 $* | 0.55 $* |
| May-19-2025 | 0.64 $* | 0.1 $* |
| Apr-19-2025 | 0.75 $* | 0.36 $* |
| Mar-19-2025 | 0.68 $* | 0.97 $* |
| Feb-19-2025 | 0.84 $* | 0.48 $* |
| Jan-19-2025 | 0.43 $* | 0.73 $* |
Характеристики
Product Discription
Product Parameters

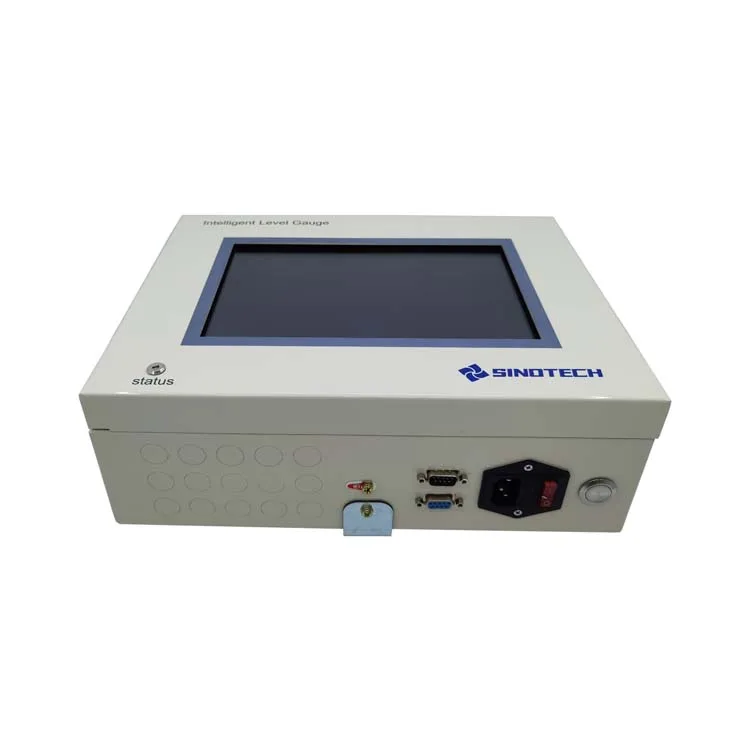

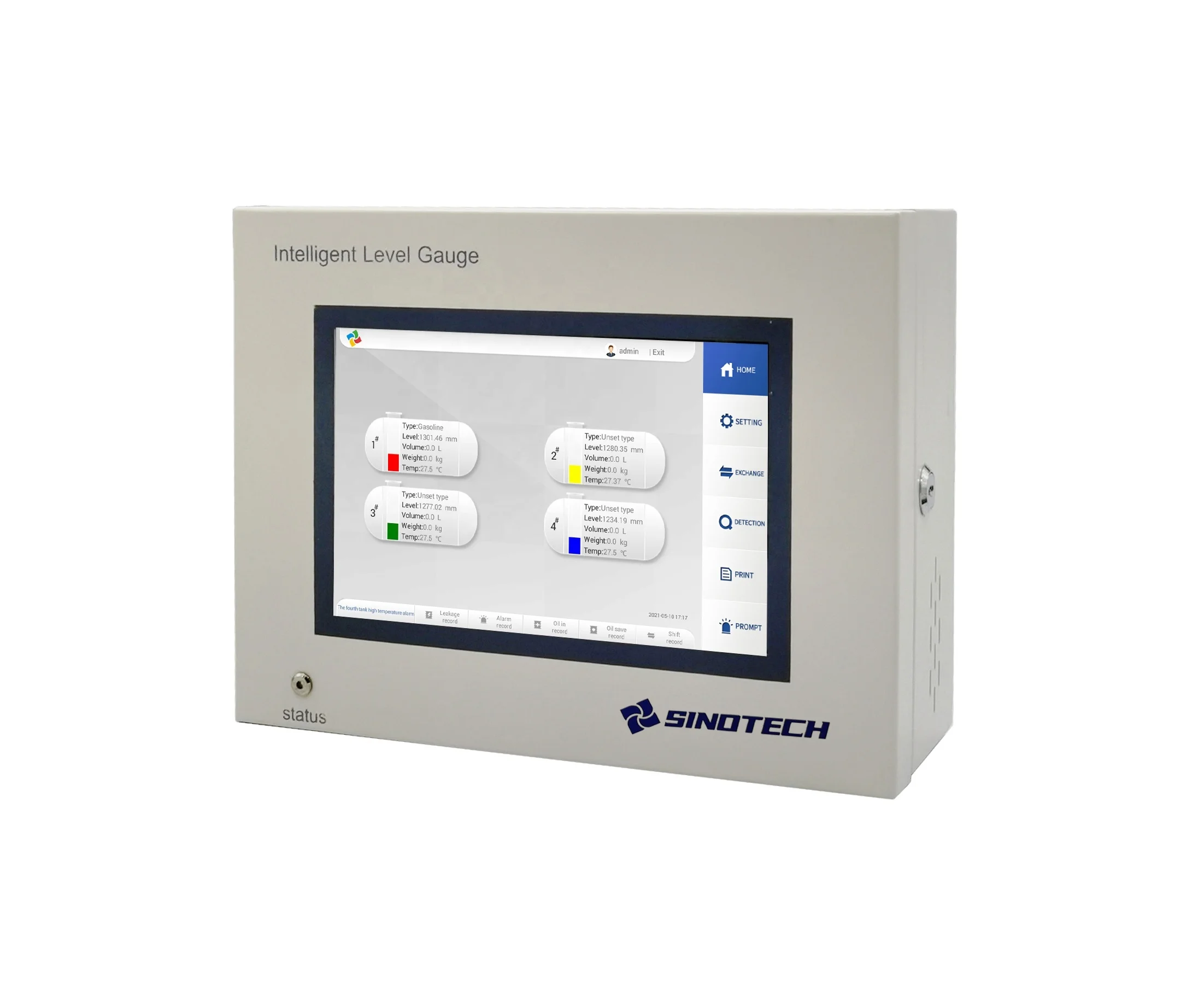

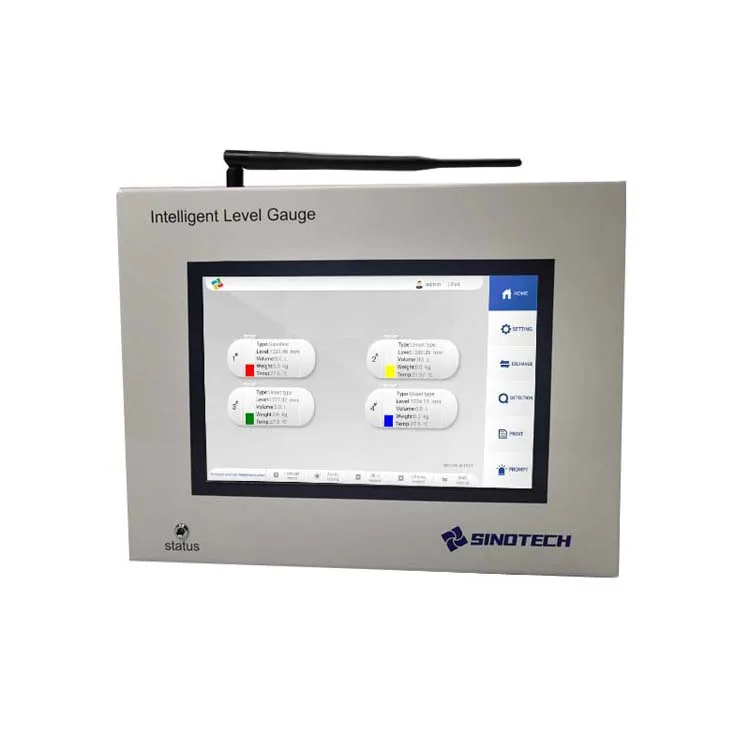

Item | Automatic Tank Gauge | |
Usage | Used to display oil level, water level, oil storage volume and temperature | |
Design principle | Based on 32-bit ARM MCU | |
Screen size | 10 inch true color touch screen | |
Input voltage | AC220V | |
System working voltage | DC5V, DC24V | |
Operating ambient temperature range | - 40℃~+60℃ | |
Relative humidity | 45% - 75% | |
Atmospheric pressure | 86kpa ~ 106kpa | |
Measuring range | 200mm～7000mm | |
Output mode | RS-485 | |
Maximum communication distance | 1200m | |
Product power consumption | ≤40mA | |
Working temperature | -40℃ ～ +60℃ | |
Measurement accuracy | ±0.5mm | |
Repeated accuracy | ±0.2mm | |
Oil level resolution | 0.01mm | |
Water level resolution | 0.01mm | |
Temperature measuring point | 5 | |
Temperature sensor resolution | 0.0625℃ | |
Upper blind area | 90mm | |
Lowe blind area | 50mm | |
Explosion protection sign | [Ex ia Ga]IIA/Ex ia IIA T5 Ga | |
Related equipment | Zener safety barrier | |
Applicable medium | gasoline, kerosene, diesel, light oil, heavy oil, and crude alcohol mixture | |
Protection class | IP67 | |

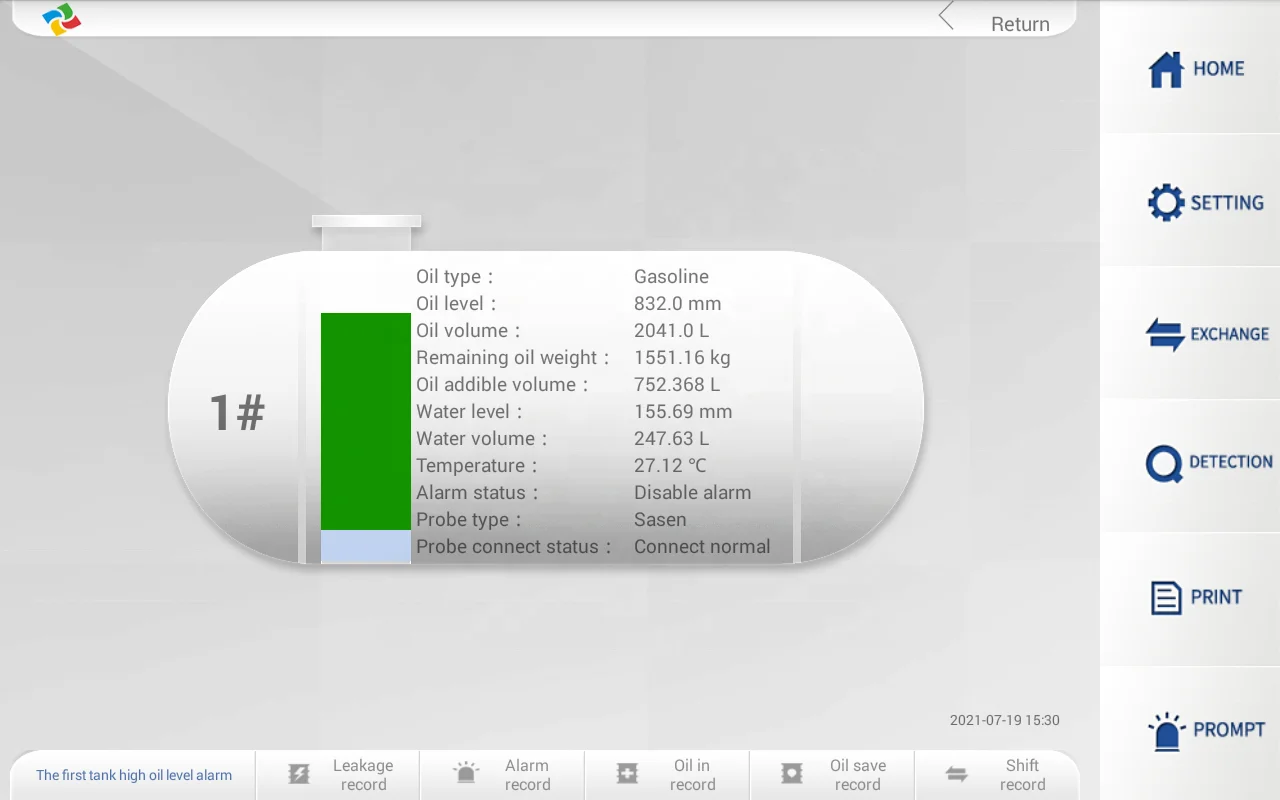

Real time display of oil level, water level, temperature and volume | ||
It has the functions of automatically generating oil leakage test, alarm, oil inlet, oil storage, shift handover record, etc | ||
Large capacity data storage: up to 24 months of data stock | ||
The tank capacity is input point by point, and the measurement is more accurate | ||
It adopts 4-layer circuit design and is equipped with photoelectric isolator, lightning protection tube and TVs anti-interference device | ||
Make the system more safe, stable and reliable | ||
The system has multi-level password protection to make the data confidentiality more secure and reliable | ||
Support RS232 interface communication | ||
Support RS485 industrial bus | ||
The longest communication distance can reach 1200 meters | ||

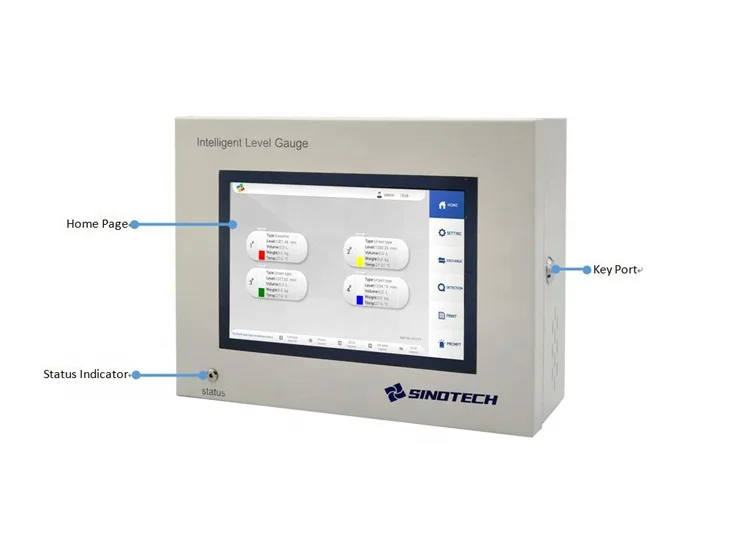

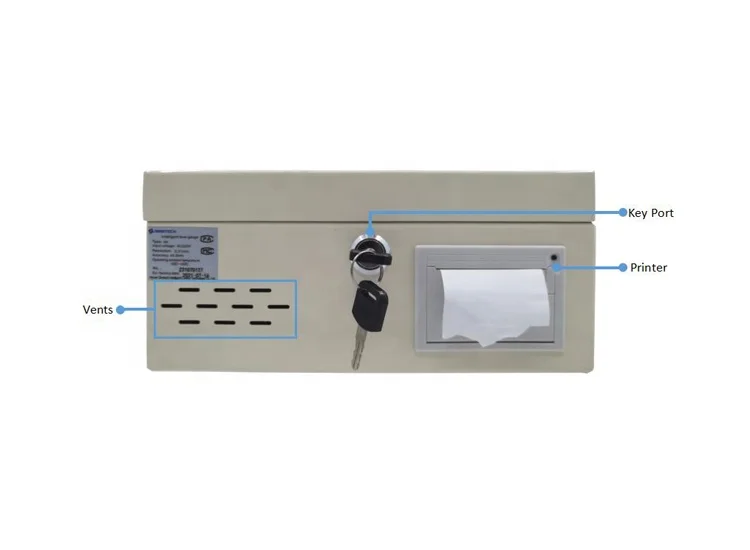

Details Images
Functions
Our Advantages
* Automatic generation of tank table
* Data backup
* The software is updated regularly
* More user-friendly operation
* Support small ticket printing
* Remote access to level gauge data
* Mass storage data
* Multi user management
* Simple and convenient maintenance
* Voice Announcements
* Data backup
* The software is updated regularly
* More user-friendly operation
* Support small ticket printing
* Remote access to level gauge data
* Mass storage data
* Multi user management
* Simple and convenient maintenance
* Voice Announcements
APP Remote monitoring
Statistical data, alarm information, gas station situation, mobile phone remote monitoring is simple and convenient
Cloud Platform Remote monitoring
Equipment status, equipment list, alarm information, oil tank information details, big data remote cloud platform monitoring, making statistical management simple
Application
