Product Description
LCD air bubble removing machine
Product Introduction:
Air bubble remover for LCD screen with new design is designed for LCD and touch screen, it can remove the air bubble out from the laminated glass quickly without any bubble left. To ensure the quality of LCD,the high pressure air bubble removing machine is afull automatic type, PLC can set working pressure, working temperature and time according to different product, to achieve a perfect bubble removing effect. This is the most popular and effective way to remove air bubble at present.
Application Fields
LCD product, TV screen, computer screen, laptop screen, IPAD screen, Mobile phone touch screen, glass manufacturing etc.

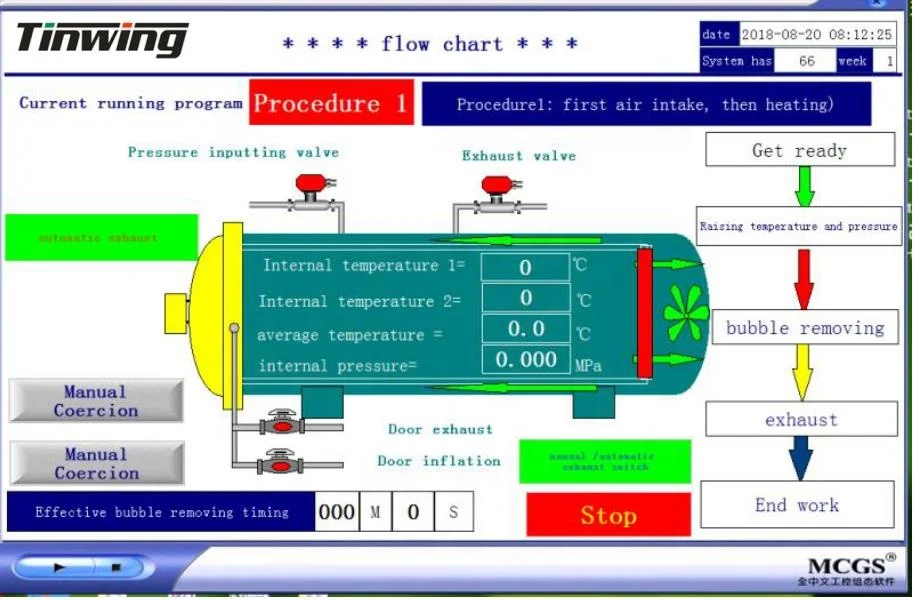

Touching screen operation
333
Main features:1) Full automatic control avoids misoperation. user just needs to set the parameter, all procedures will finish automatically
2) It has an accurate temperature controlling system and timing system. all information shows on screen.
3)Top quality material and advanced technology ensure the quality of machine, achieving best effect of removing bubble.
4) High efficiency, low energy consumption, less labor work can save cost as much as possible.
5) Reasonable construction, humanized design make it beautiful and practical.
2) It has an accurate temperature controlling system and timing system. all information shows on screen.
3)Top quality material and advanced technology ensure the quality of machine, achieving best effect of removing bubble.
4) High efficiency, low energy consumption, less labor work can save cost as much as possible.
5) Reasonable construction, humanized design make it beautiful and practical.
6) machine size can be customized as per user's actual need.
Size Information
Process control | PLC control+BKS Independent software | temperature controlling system | Constant temperature+ Wind circulation temperature control system |
Design temperature | RT-120 | barrel diameter | 800 mm |
Design pressure | 1.0Mpa | effective working lengths | 1200 mm |
Maximum working pressure | 0.80Mpa | working medium | compressed air |
Maximum working temperature | 90ºC | Material | SUS304 |
Degree of corrosion | 1mm | effective volume | 0.6m³ |
Power source | AC380V±10% 50/60HZ | recirculating fan power | 0.37 KW |
Air source | 0.5-0.8Mpa,Dry air | heating power | 8 KW |
Operating environment | standard workshop | boundary dimension | 2250mm(L)X1310mm(W)X1700mm(H) |
Packing&Shipping
We usually pack our products with exporting- standard cartons. We always choose the best and safe packaging material to make sure no damage to the machine won't be damaged during delivery.
Company Introduction
Shandong Tinwing Machinery Manufacturing Co.,Ltd.is a professional manufacture of pressure autoclave,including air bubble removing machine, sterilization autoclave,,vulcanization autoclave, timber processing autoclave, and composite material autoclave etc.
We have strong R&D team and manufacturing ability, our products are exported to USA, South Korea, Japan, India, Germany, Russia, etc.
Welcome to visit our company at any time and thanks for visiting our website!
Welcome to visit our company at any time and thanks for visiting our website!
Our Workshop
Our Customers
Certifications
FAQ
1.What are the payment terms?
TT,L/C and trade assurance are acceptable,TT will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 2 month after the deposit recipit,depend on how many machines included in the line.
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee accord with the contract.
5.What's the capacity you can do?
We always produce depend on customers' requirement.
TT,L/C and trade assurance are acceptable,TT will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 2 month after the deposit recipit,depend on how many machines included in the line.
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee accord with the contract.
5.What's the capacity you can do?
We always produce depend on customers' requirement.
