Гибочный станок Shijiazhuang Hebei Cnc
US $9600-$22000

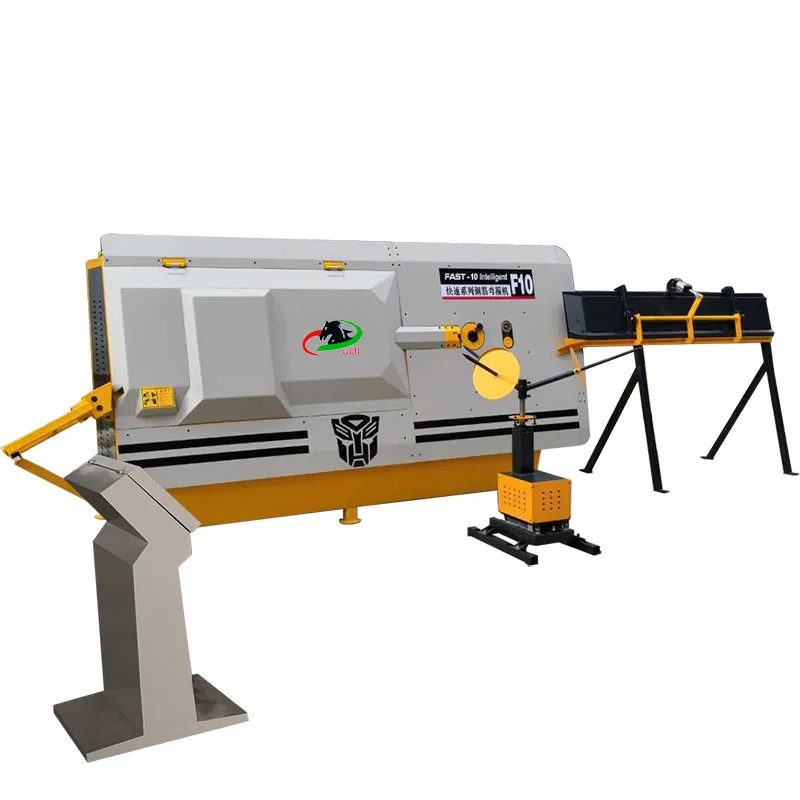

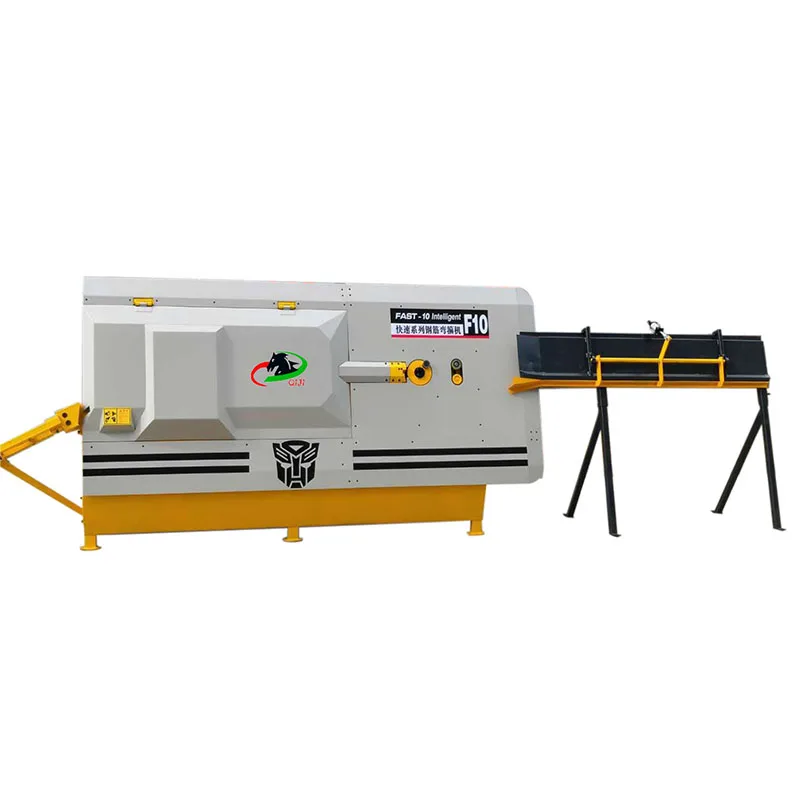

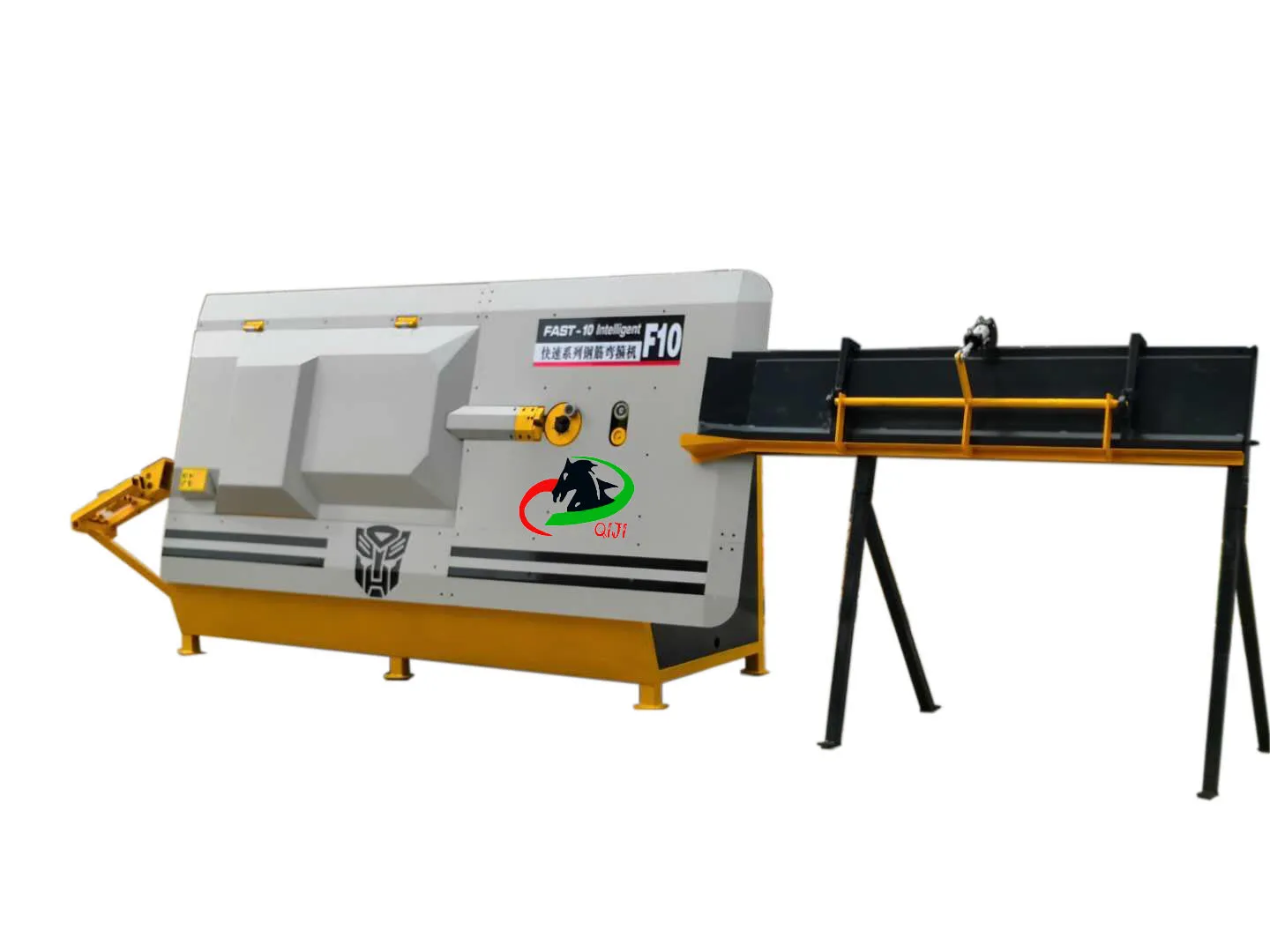

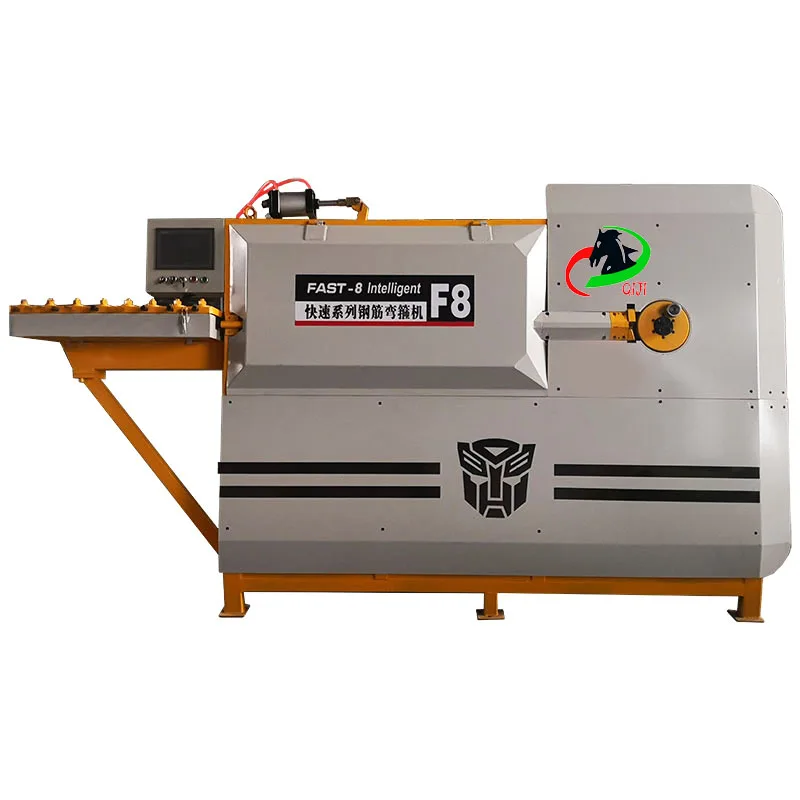

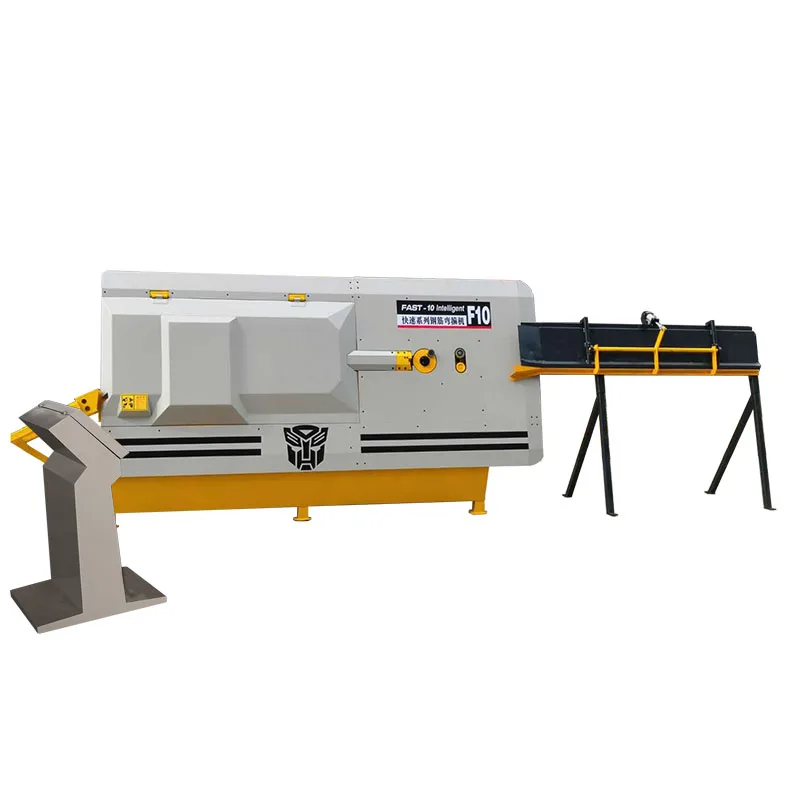

Полностью автоматический станок с ЧПУ стальной стержень стремя и пластинчатая планка Регулируемый прямой гибочный
- Категория: Rebar Bending Machine >>>
- Поставщик: Xingtai,Qiji,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 16065.58 $* | 16868.33 $* |
| Aug-19-2025 | 15930.41 $* | 16727.39 $* |
| Jul-19-2025 | 13365.46 $* | 14033.91 $* |
| Jun-19-2025 | 15660.78 $* | 16443.41 $* |
| May-19-2025 | 13635.38 $* | 14317.88 $* |
| Apr-19-2025 | 15390.43 $* | 16160.80 $* |
| Mar-19-2025 | 15255.52 $* | 16018.3 $* |
| Feb-19-2025 | 15120.86 $* | 15876.7 $* |
| Jan-19-2025 | 14985.47 $* | 15734.61 $* |
Характеристики
Product Description
This machine is multi-purpose, suitable for construction site, bridge construction, steel reinforcement distribution center, tunnel construction, housing construction and other places.Using high quality material, quality assurance, high power pure copper core motor to ensure efficient work, intelligent hydraulic system to save time and effort operation is simple.
product model | QJ-12D | Equipment power | 19KW | ||
Single wire Processing capability | 4-12mm | Double wire Processing capability | 4-8mm | ||
Bending angle | 180° | Center pin diameter | 18·20·22 | ||
Maximum traction speed | 90m/min | Maximum bending speed | 1100mm/sec | ||
Average power consumption | 4-5km/h | Length accuracy | ±1mm | ||
Angle accuracy | ±1° | Number of processing | ≤2 | ||
Pneumatic pressure | ≥0.8mpa | Steel bar processing shape | 285 kinds | ||
Control Way | Automatic | Working environment humidity | -5° -50° | ||
Equipment color | yellow White or customized | Machine weight | 1620KG | ||
Overall dimension | 3200*1000*1900mm（L*W*H) | Other configuration | Can be matched | ||
Show details
Details Images
Adopt digital control system Equipped with automatic system graphics generation easy to use Work status can be monitored at any time.
Straightening motor
Bending motorCut off the motor
Hydraulic system
Pneumatic system
All work independently
Powerful, efficient, sustainable work
Cutting and bending system
The cutter seat is made of No. 45 steel, after heat treatment, it has impact resistance, high toughness and not easy to break.
The cutter head is made of chromium 12 molybdenum vanadium. After a quenching process, the strength of the cutter head is increased and the cutter head becomes indestructible.
The cutter head is made of chromium 12 molybdenum vanadium. After a quenching process, the strength of the cutter head is increased and the cutter head becomes indestructible.
he straightening part adopts the oblique feeding method.
Curve straightening is better than straight straightening.
Curve straightening is better than straight straightening.
Recommend Products
Product packaging
Fumigation
wooden box
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
will be provided.
Company Introduction
Our Services & Strength
We are a manufacturer and exporter specializing in the design, development and production of construction machinery products. The company is located in Xingtai City with convenient transportation. All our products comply with international quality standards and have passed CE, ISO,SGS and other EU certifications. Our products enjoy a good reputation among customers. We welcome friends from business associations around the world to contact us and seek mutually beneficial cooperation.
FAQ
1.Are you manufacture.
ans：Yes, we have more than 15 years of professional manufacturing experience.
2.what is your terms of payment?
ans：Payment terms support TT. credit card. Bank card. LC. Wait for customer service。
3.what is your terms of delivery？
ans：EXW，FOB, CFR, CIF, DDP, DDU..
4：About delivery time？
ans：Shipped within 3-7 days after receiving payment. Except for customized models (you can contact customer service)
5.What is the warranty of our machine？
ans：Yes, we have more than 15 years of professional manufacturing experience.
2.what is your terms of payment?
ans：Payment terms support TT. credit card. Bank card. LC. Wait for customer service。
3.what is your terms of delivery？
ans：EXW，FOB, CFR, CIF, DDP, DDU..
4：About delivery time？
ans：Shipped within 3-7 days after receiving payment. Except for customized models (you can contact customer service)
5.What is the warranty of our machine？
ans：The machine is guaranteed for 12 months and the main parts are guaranteed for 2 years.
6.Do you test att your goods before delivery
ans：Products will be tested before delivery.
7.Do you Preferrde provide wear parts for transacted clients？
ans：We provide customers with wearing parts.
6.Do you test att your goods before delivery
ans：Products will be tested before delivery.
7.Do you Preferrde provide wear parts for transacted clients？
ans：We provide customers with wearing parts.
