5H-KB Series low temperature batch grain dryer adopts the design of all-in-one multifunctional type, hot air indirect heating, large capacity, it increase the area of drying layer. Due to its ingenious structure design, it reduces the required power and improve and improves drying efficiency in the foundation of saving occupied area and saving energy for users. Using this grain dryer can effectively reduce crackle ratio, improve the accuracy of grain, so to enhance the quality of grains.
One Stove-Two
One Stove-Three
Two Stove-Four
Product Range
5H-KB series grain dryer is widely used in grain material such as rice, corn, wheat, soybean, sorghum, rapeseed, ect., and also suitable for seed drying. At the same time, the granule materials such as oil tea seed and sunflower seeds can be dired.

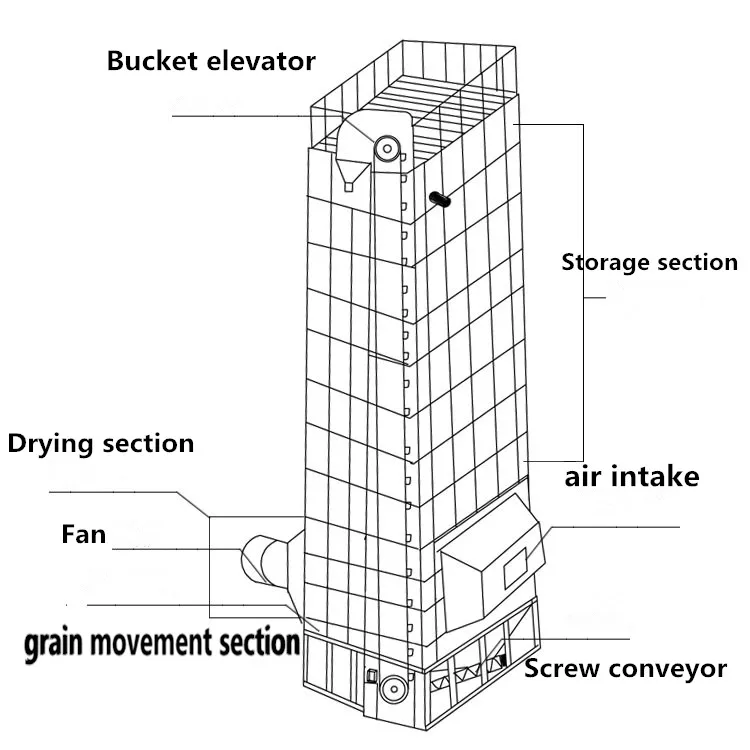

Overall Sturcture
Feature
1. All use stainless steel material, wear resistance.
2. Drying cereal shiny bright, no paste. After drying, bursting rate below 2%, cracking rate of less than 4%, the color showed a natural state, No grain pollution.
3. Using two-stage hoist, the lifting capacity reaches 30-35 ton / h.
4. The surface adopts baking paint technology, does not drop paint, beautiful and durable.
5. PLC control box, fully automatic control system, touch screen display, easy to operate.
6. Simple structure, high quality and low price, low investment cost , occupying a small area and no site restrictions.
7. Uniform heat, low thermal damage, low breakage rate, full and complete particles, high seed germination rate.

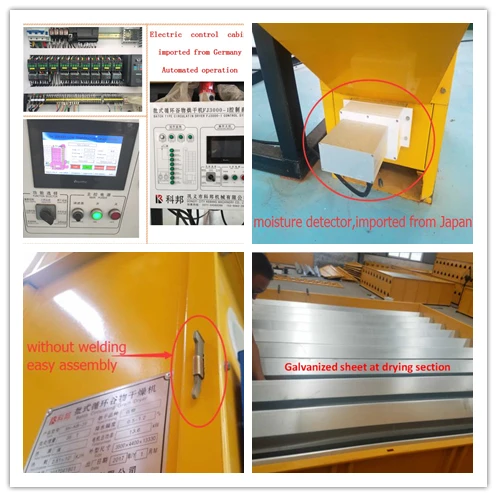

Detailed Images

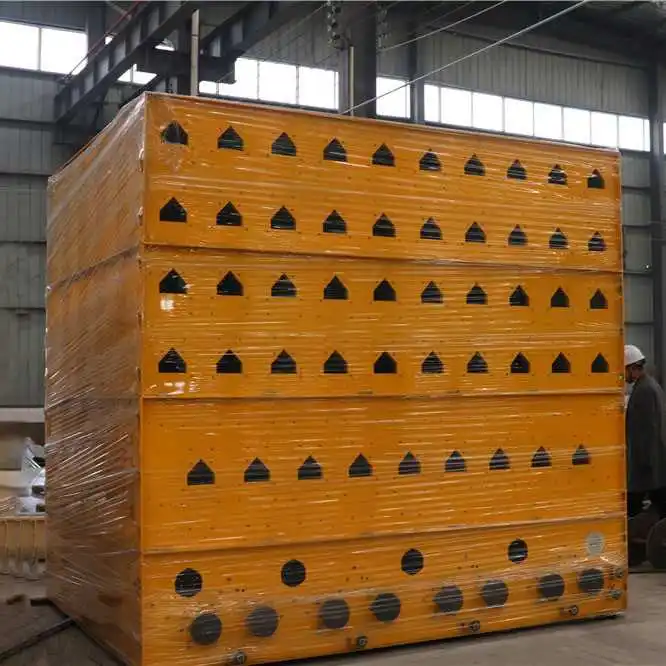

Drying Section
Three-layer drying section,adopts a pentagonal galvanized sheet structure to avoid direct contact between grain and hot air,prevent grain pollution, uniform drying and good drying effect, bright color after drying, and firm structure for easy maintenance.
Electric Control Cabinet
The electric control cabinet adopts imported PLC control system to accurately control drying temperature and moisture content. Easy to operate with touch screen operation.
Stove
The stove consists of 3 sectors of the fire-proof wall, 2 layer brick of every fire-proof wall. The reasonable design can avoid the open flame. So it runs steadily, safely and has long use-life. And it can be fueled by coal, wood, rice husk, diesel, etc.
Moisture Detector
Imported form Japan
Equipment Interface Galvanized
Without welding, easy assembly
Induced Draft Fan
Low noise
Related Products
Technical Parameter
Model Specification
5H-KB-15
5H-KB-20
5H-KB-35
Structural Style
Circulatory Type
Size(mm)
2900*4500*10800
2900*4500*12200
2900*4500*13330
Capacity
15 tons/batch
20 tons/batch
35 tons/batch
Overall Weight
3075kg
3350kg
8000kg
Drying Rate(%/h)
0.5~1.2
0.5~1.5
0.5~1.2
Installed Capacity
28m³
37m³
63m³
Type Of Fuel
Biomass pellet rice husk dual-purpose furnace(independent research and development)/natural gas/liquefied petroleum gas
The above data is for reference only. For more information, please contact us.
Shipping&Installation
Company Introduction
Henan Hao Kebang Machinery Equipment Co., Ltd. was founded in 2008, covers an area of 32,000 square meters, has 8,000 square meters of standardized heavy industrial production room, specializing in the production of grain dryers, tumble dryers, granaries and clear grain sieves of various specifications. Various grain machinery and equipment. The company has a variety of large and medium-sized sophisticated equipment, senior management and engineering and technical personnel, a professional foreign trade team to answer your questions online.
Our Services
Pre-sale
1. Selection of equipment model.
2. Design and manufacture products according to the special requirements of customers.
3. Train technical staff for customers.
4. The company sends engineering and technical personnel to the user site for free to plan the site for the user and design the best process and plan.
On Sale
1. Product acceptance.
2. Assist clients in drawing up construction plans.
After sale
1. Assign special after-sales service personnel free of charge and arrive at the scene to guide customers to install and debug.
2. Equipment installation
3. On-site training operator
4. After the installation of the complete equipment is completed, the full-time technical staff will assist the customer to produce smoothly on site until the user is satisfied
FAQ
Q: Why choose us?
A: 1. We can provide a complete solution according to customer requirements.
2. We can make market planning for customers after grain drying.
3. We can provied one-stop service(harvesting, peeling, threshing, transportation, drying, storage, bagging).
4. We p rovied 24 hours after-sales service, feel free to contact, solve problems at any time.
5. We can accept OEM&ODM.
Q: How long times does it take to dry the grains?
A: The drying time is determined by the yield and moisture content, and the national standard stipulates that the moisture is reduced by about 1% in one hour.For example, the water is 25% dried to 13%, and the drying time is about 12 hours.
