Product Description

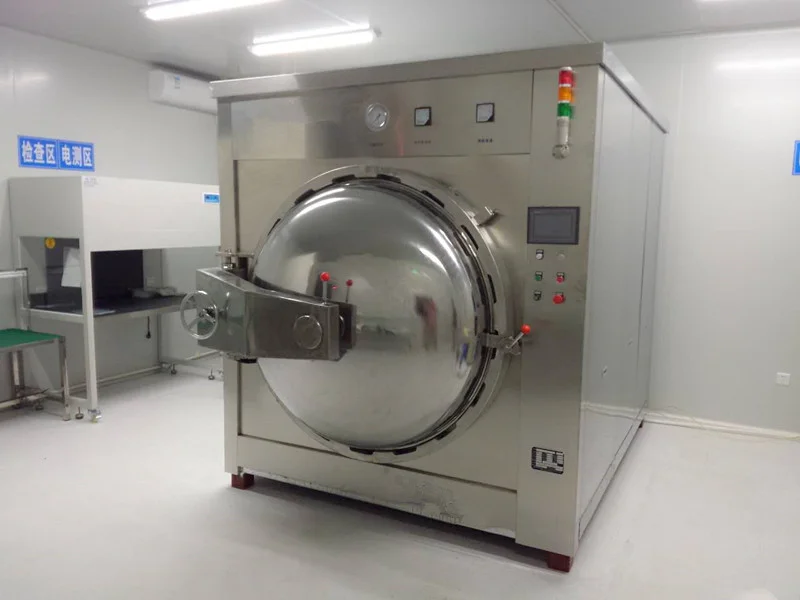

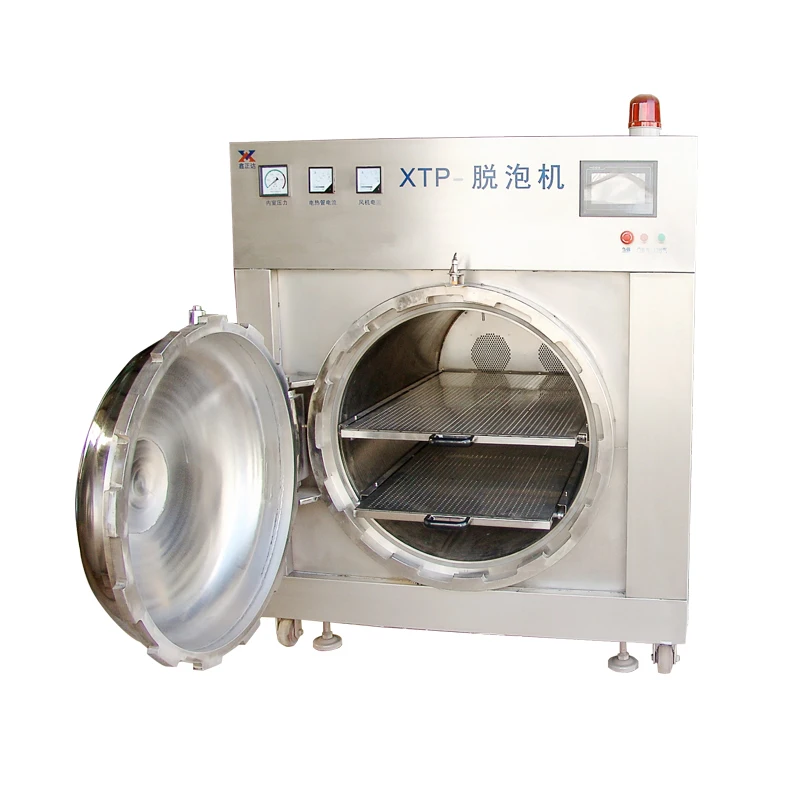

Air bubble remover LCD Screen Autoclave with High Temperature and Pressure
Product Introduction:
Air bubble remover for lcd repair with new design is designed for LCD and touch screen, By increasing the pressure and temperature in the tank, it can effectively remove the air bubble between the Polaroid and LCD glass, ITO pet film and glass, touch screen polarizing film and protective film. To ensure the quality of LCD,the high pressure air bubble removing machine is a
full automatic type, PLC can set working pressure, working temperature and time according to different wafer product, to achieve a perfect bubble removing effect.


Product Features
1,Automatic operation
2,Convenient operation
3,Safety performance
4,Reasonable structure
5,The device is compact in structure , the safety interlock protection device , reliable and unique multiple protection , switch the door fast , safe , the whole device has the advantages of high reliable and safe operation , reasonable structure , high degree of automation , convenient operation , productivity .




Equipment Performance
1,To protect a variety of high temperature and high pressure,, the misoperation:
2,Vertical door way, speed can be adjusted;
3,Based on the clectromagnetic induction heating mode. effect on the pressure cabin body satety position, make mutual convection heat air molecules, and uses centrifugal force fan and other high-tech equipment effectively solve the uneven temperature and temperature control is not accurate high utlization rate of electric energy to reach above 99%.
4,Using natural cooling way , environmenta protection , safety ;
5,Two kinds of operation method (manual/ automatic selection );
6,According to process requirements adjust the pressure holding time (0-60 minutes ), and open the door to delay cycle (0-30 seconds );
7,The configuration of intake high precision air filter , to ensure that air pollution-free ; 8,Mitsubishi PLC control system (or other same level brand ), with 7 inches of Xinjie colour man-machine interface , easy operation ;
9, Pressure , temperature , mechanical and electrical double safety protection structure .




Application Fields


LCD/LCM manufactures,LCD TV manufactures,LCD manufatures,notebook computer manufatures,mobile phone touch screen manufactures.






Size Information


Process control
PLC control+BKS Independent software
temperature controlling system
Constant temperature+ Wind circulation temperature control system
Design temperature
RT-120
barrel diameter
800 mm
Design pressure
1.0Mpa
effective working lengths
1200 mm
Maximum working pressure
0.80Mpa
working medium
compressed air
Maximum working temperature
90ºC
Material
SUS304
Degree of corrosion
1mm
effective volume
0.6m³
Power source
AC380V±10% 50/60HZ
recirculating fan power
0.37 KW
Air source
0.5-0.8Mpa,Dry air
heating power
8 KW
Operating environment
standard workshop
boundary dimension
2250mm(L)X1310mm(W)X1700mm(H)


Packing&Shipping


We usually pack our products by standard export cartons as master carton. We always choose the best and safe packaging material to make sure your orders won't be damaged during delivery.




Company Introduction


Shandong TinWing Machinery Manufacturing Co.,Ltd.is a professional manufacture of food processing machine and pressure vessel,inculding sterilization autoclave,jacketed pot,vacuum cooling machine,modified atmosphere packaging machine,vulcanization
tank,autoclave,animal waste rendering plant,feather meal production line,fish meal production line,wood processing machine etc.
We have many years’ experience in this industry.
We can produce the machine according to your requirement and production.Please don't
hesitate to contact me if you have any question or you are interested in any of our equipment,
we will offer the best service to you within 24 hours.
Welcome to visit our company at any time and thanks for visiting our website!




Our Workshop




Our Customers




Certifications




FAQ


1.What are the payment terms?
TT,L/C and trade assurance are acceptable,TT will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 2 month after the deposit recipit,depend on how many machines included in the line.
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee accord with the contract.
5.What's the capacity you can do?
We always produce depend on customers' requirement.
