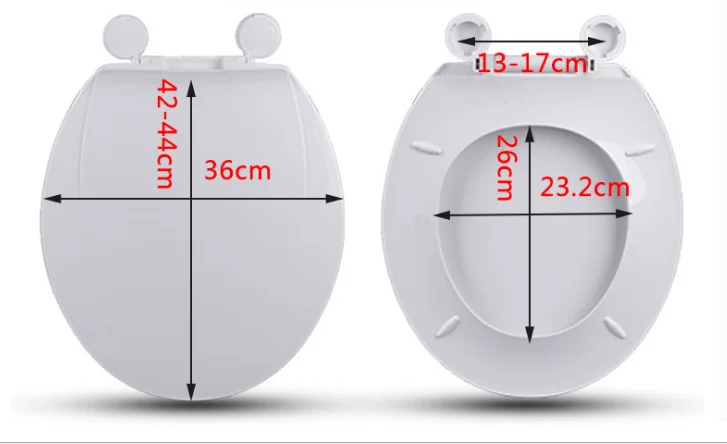

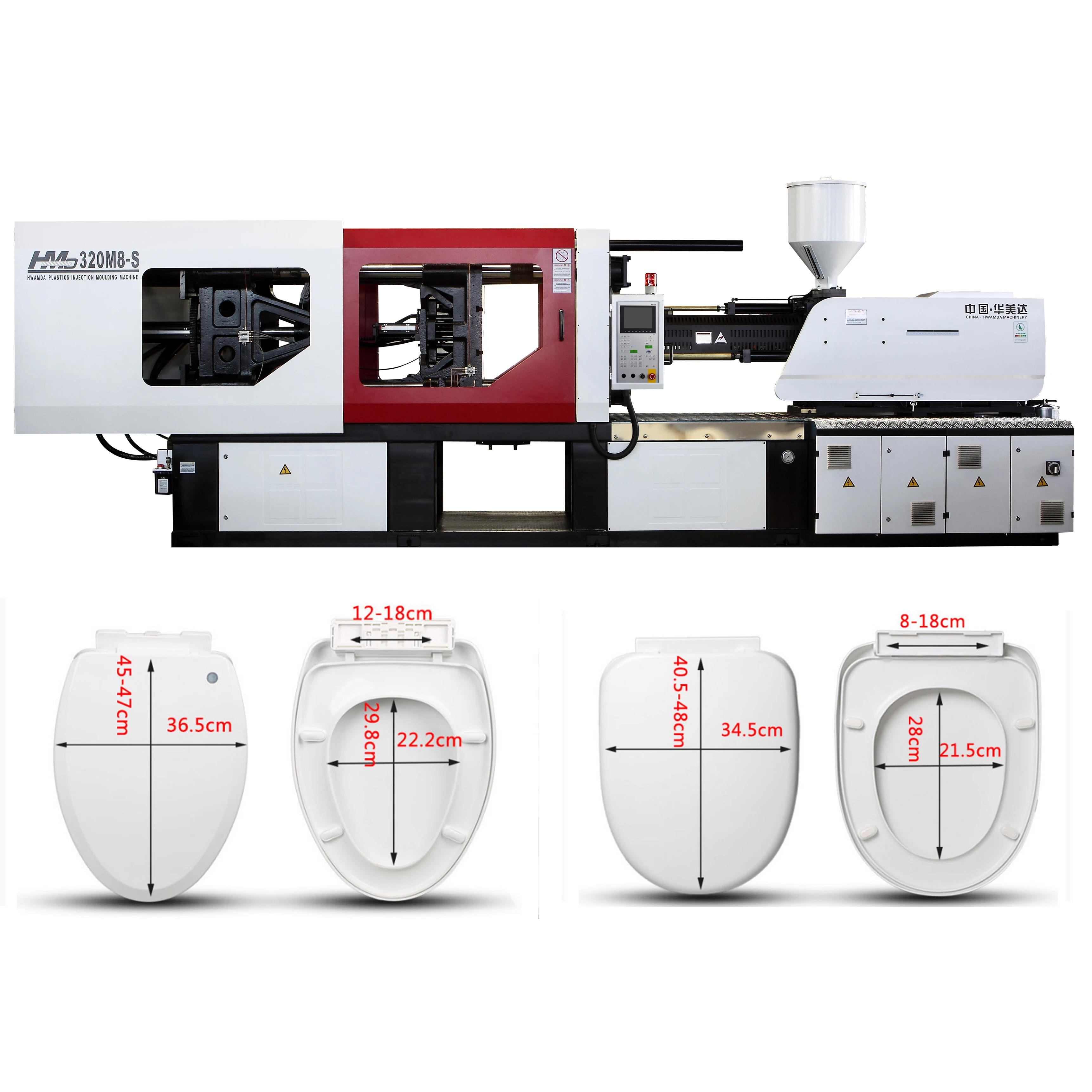

Изготовление пластиковых крышек для унитаза 400 тонн литьевые машины HMD400
- Категория: Установка для инжекционного прессования >>>
- Поставщик: Ningbo,Mega,Machinery,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 60690.57 $* | 63725.55 $* |
| Aug-19-2025 | 60180.12 $* | 63189.37 $* |
| Jul-19-2025 | 50490.25 $* | 53015.53 $* |
| Jun-19-2025 | 59160.3 $* | 62118.45 $* |
| May-19-2025 | 51510.64 $* | 54086.22 $* |
| Apr-19-2025 | 58140.82 $* | 61047.29 $* |
| Mar-19-2025 | 57630.24 $* | 60512.45 $* |
| Feb-19-2025 | 57120.29 $* | 59976.31 $* |
| Jan-19-2025 | 56610.25 $* | 59441.96 $* |
Характеристики
Products Description
Injection unit
- Double Cylinder injection cylinder system and the double oblique nozzle cylinder, make sure the injection smooth and stable.
- Optimized design screw can reach excellent plasticizing and effect.
Hydraulic unit
- Servo motor and energy machine adopt fully digital closed loop control. The pressure can accurate to 0.3 bar, with high precision and stable flow, especially under low flow rate.
- Adopt permanent magnet synchronous motor and motor drive with high response
Title goes here.
Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
DESCRIPTION | Unit | HMD400 M8/M8-S | |||||
International size rating | 2856/400 | ||||||
INJECTION UNIT | A | B | C | ||||
Shot volume | cm3 | 1385 | 1809 | 2289 | |||
g | 1260 | 1646 | 2083 | ||||
oz | 44.4 | 58.1 | 73.5 | ||||
Injection rate | cm3/s | 298 | 388 | 492 | |||
Screw diameter | mm | 70 | 80 | 90 | |||
Injection pressure | MPa | 206 | 158 | 125 | |||
Screw L:D ratio | L/D | 23.2:1 | 21:1 | 18.7:1 | |||
Screw stroke | mm | 360 | |||||
Screw speed (stepless) | r/min | 0~135 | |||||
CLAMPING UNIT | |||||||
Clamping force | kN | 4000 | |||||
Opening stroke | mm | 710 | |||||
Platen size | mm | 1045 x 1020 | |||||
Space between tie-bars (HxV) | mm | 730 x 710 | |||||
Max. daylight | mm | 1440 | |||||
Mold thickness (Min-Max) | mm | 250~730 | |||||
Ejector stroke | mm | 185 | |||||
Ejector force | kN | 111 | |||||
POWER UNIT | |||||||
Hydraulic system pressure | MPa | 17.5 | |||||
Pump motor power | kW | 37/56.3 | |||||
Heating capacity | kW | 31.5 | |||||
Number of temp control zones | / | 6 | |||||
GENERAL | |||||||
Oil tank capacity | L | 700 | |||||
Machine dimensions (LxWxH) | m | 8.5 x 1.98 x 2.45 | |||||
Machine weight | Kg | 17500 | |||||
