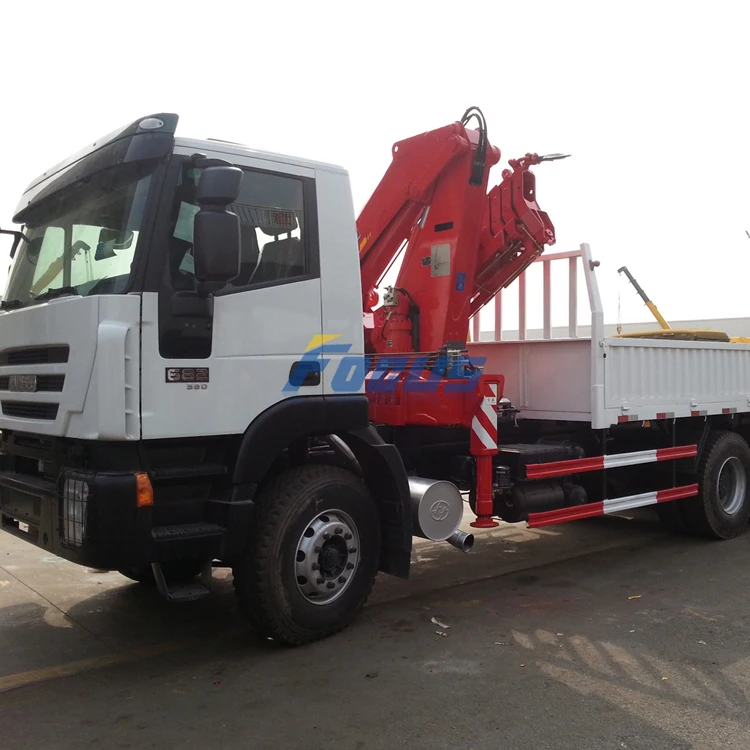

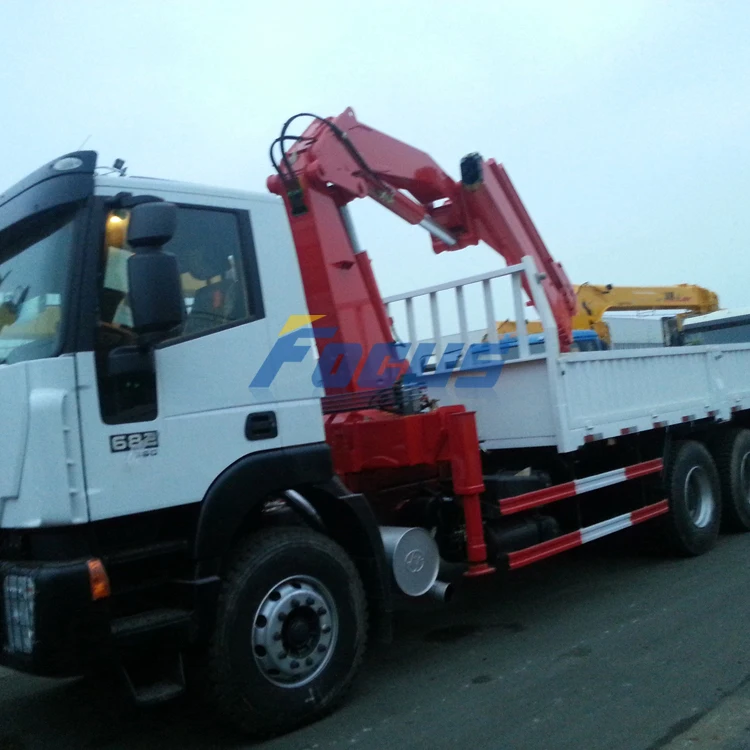

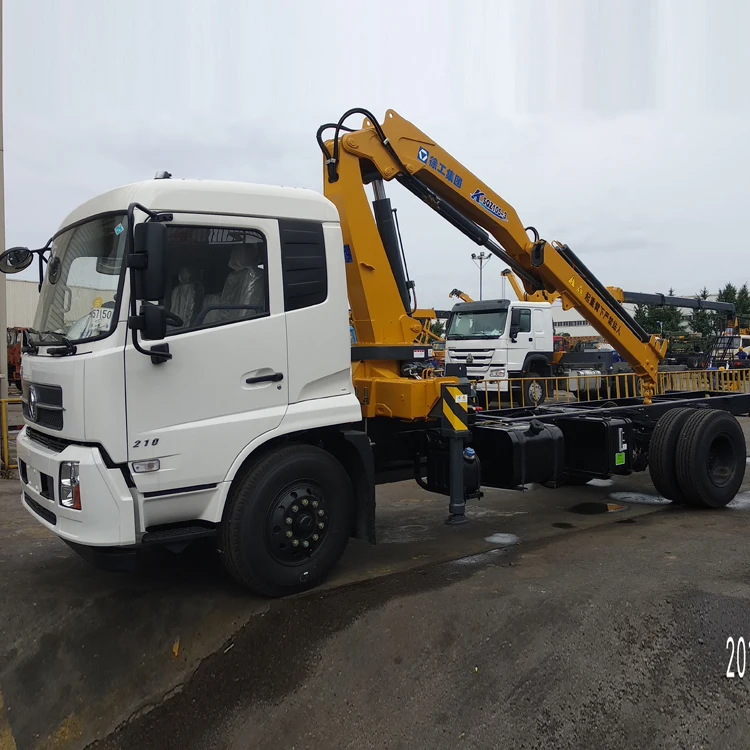

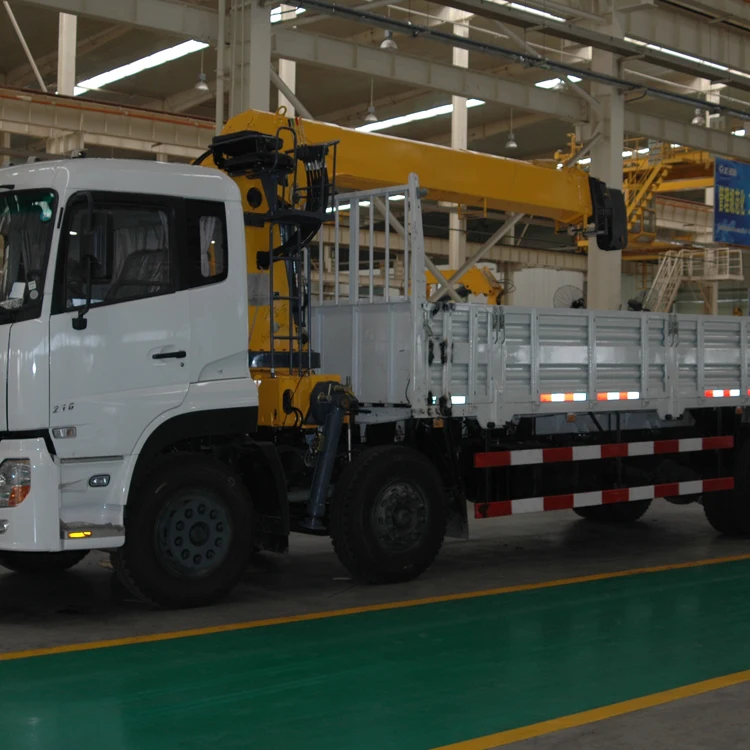

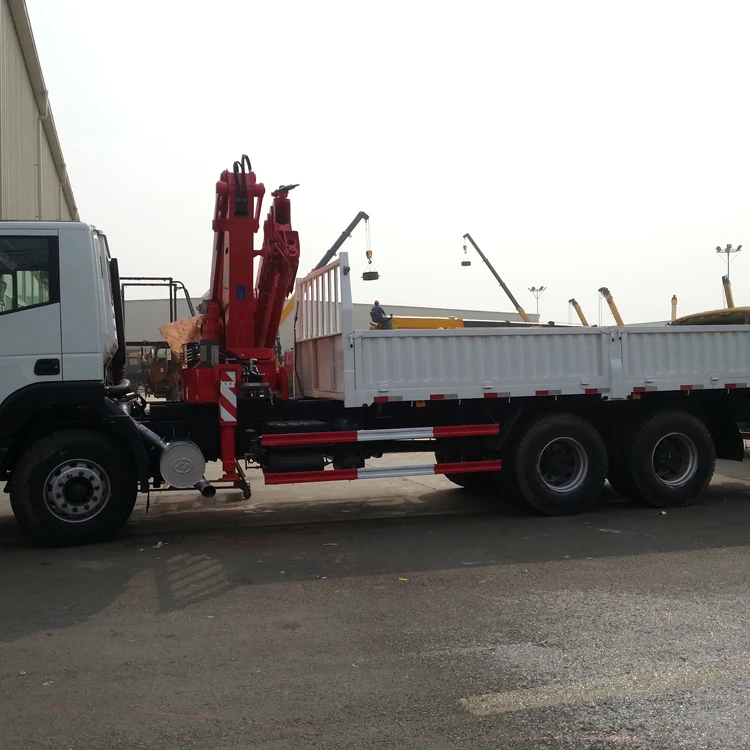

                  SQ10SK3Q New 25TM 10 Tonne Telescoping Crane for Sale





Main parameters:

Max Lifting Moment: 25t.m

Max Lifting Capacity: 10000kg





Optional parts:

* Moment limited device

*Remote control equipment

*Anti-overwind magnet valve

*High seat on column

*Assistant stabilizer leg







OUR SERVICE:

* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.

* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.





Model	SQ10SK3Q			Unit
Max Lifting Capacity	10000			kg
Max Lifting Moment	25			T.M
Recommend Power	28			kw
Max Oil Flow of Hydraulic System	63			L/min
Max Pressure of Hydraulic System	26			MPa
Oil Tank Capacity	160			L
Rotation Angle	All Rotation
Crane Weight	3800			kg
Installation Space	1150			mm
Choice of Chassis	DFL1250A9 ; CA1240PK2L7T4EA81; CA1200PK2L7T3EA80; BJ1317VNPJJ-S5; BJ5253ZKPJJ; CA1253P7K2L11T1E; EQ1252GFJ; DFL1253AX;
SQ10SK3Q Lifting capability diagram
Working radius (m)	2.5	4.5	7		9	12
Lifting capacity (kg)	10000	5500	3200		2300	1500
