Б/у машина для изготовления винтов из стали
US $1000-$2000
Тайваньский бренд Songwei nut insert and self clinch stand off машина для
- Категория: >>>
- Поставщик: Dongguan,Songwei,Machinery,And,Metal,Product,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 65450.4 $* | 68723.31 $* |
| Aug-18-2025 | 64900.69 $* | 68145.18 $* |
| Jul-18-2025 | 54450.94 $* | 57173.81 $* |
| Jun-18-2025 | 63800.9 $* | 66990.75 $* |
| May-18-2025 | 55550.72 $* | 58328.83 $* |
| Apr-18-2025 | 62700.27 $* | 65835.24 $* |
| Mar-18-2025 | 62150.76 $* | 65258.12 $* |
| Feb-18-2025 | 61600.56 $* | 64680.30 $* |
| Jan-18-2025 | 61050.20 $* | 64103.23 $* |
Характеристики
Product Description
| Model | SW-NF 14B6S Self Clinching Standoff Nut |
| Forging Station | 6S |
| Cut off Diameter (Max) | 15 MM |
| Cut off Length (Max) | 25 MM |
| Kick-Out-Length (Max) | 100 MM |
| Center Distance Between Die (MM) | 60 |
| Ram Stroke (MM) | 80/130 |
| Forging Power (Ton) | 90 Ton |
| Product Size (Inch) | 1/4 3/8 6/8 MM |
| Product Rate (Pic/Min) | 220 |
| Main Motor | 22 KW |
| Pump Motor (HP) | 1/1 |
| Lubricate (Gallon) | 300 |
| Machine Weight (Ton) | 9 Ton |
| Dimension (L*W*H) | 3.05m *1.88m *1.45 m |
Nut Bolt Making Machine for Eccenric Wheel
Machine Detail
Innovational features
1. Servo Motor Feeding System
2.All-in-one Integrated Bearings-Bushings

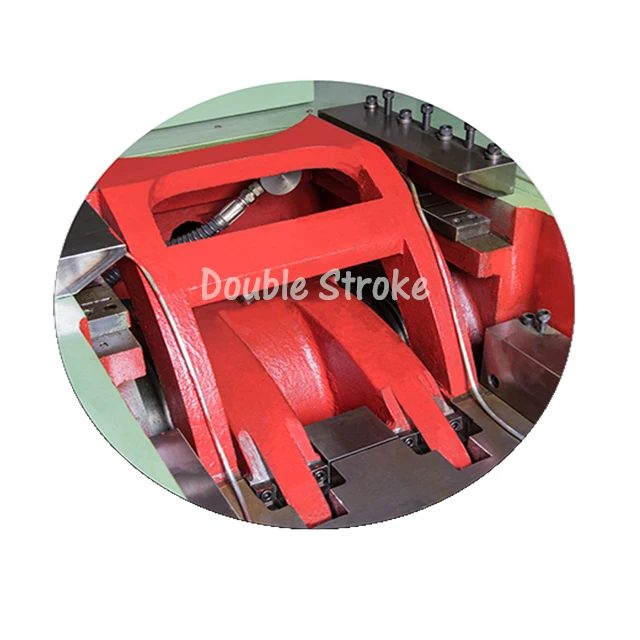

3. Double Slider Mechanism
Reference Products
Application
—Presently it is widely used in Construction, Automobile, Furniture, Electronics, Machinery, Aerospace, National defense industries ect.
—Not only can be used for manufacturing Normal nuts, like Hex nut, Flanged nut, Square nut, Weld
nut, Rivet nut, but also Motorcycle link pin, Oil plug screw, Pipe joint, Chain roller, Bearing roller,
Bearing ring Expansion anchor, Bushing sleeve, Bicycle and Motorcycle shaped spare parts, Auto spare
parts, shaped nuts and various shaped pieces of shaped and non-standard items, ect.

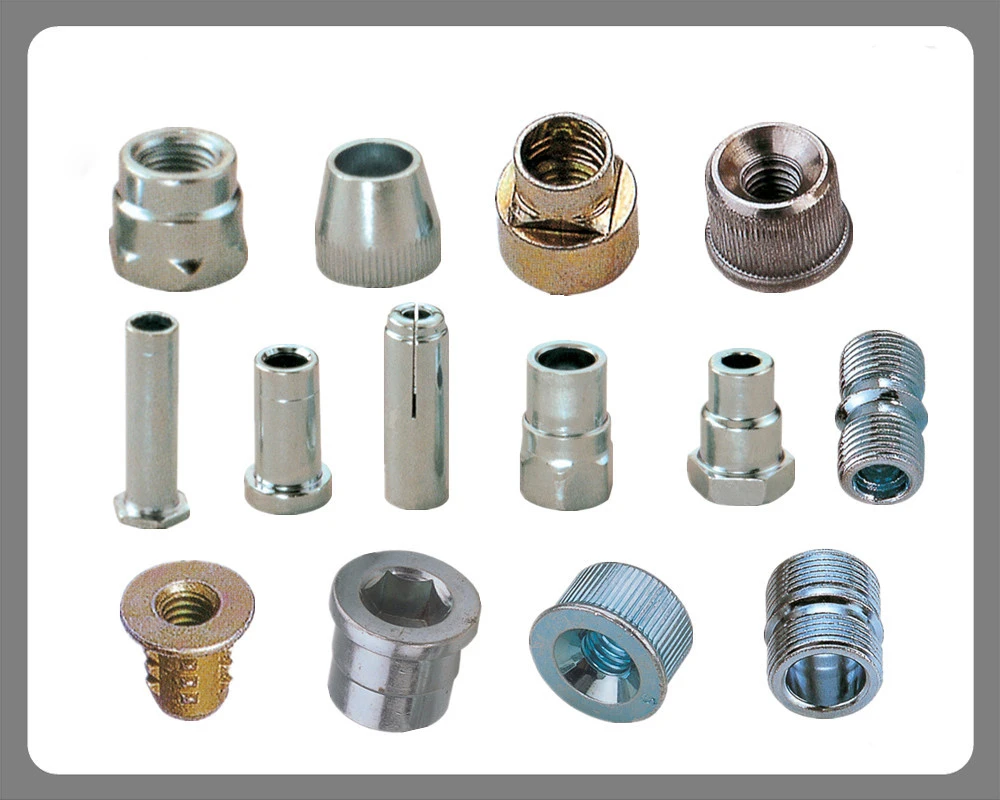

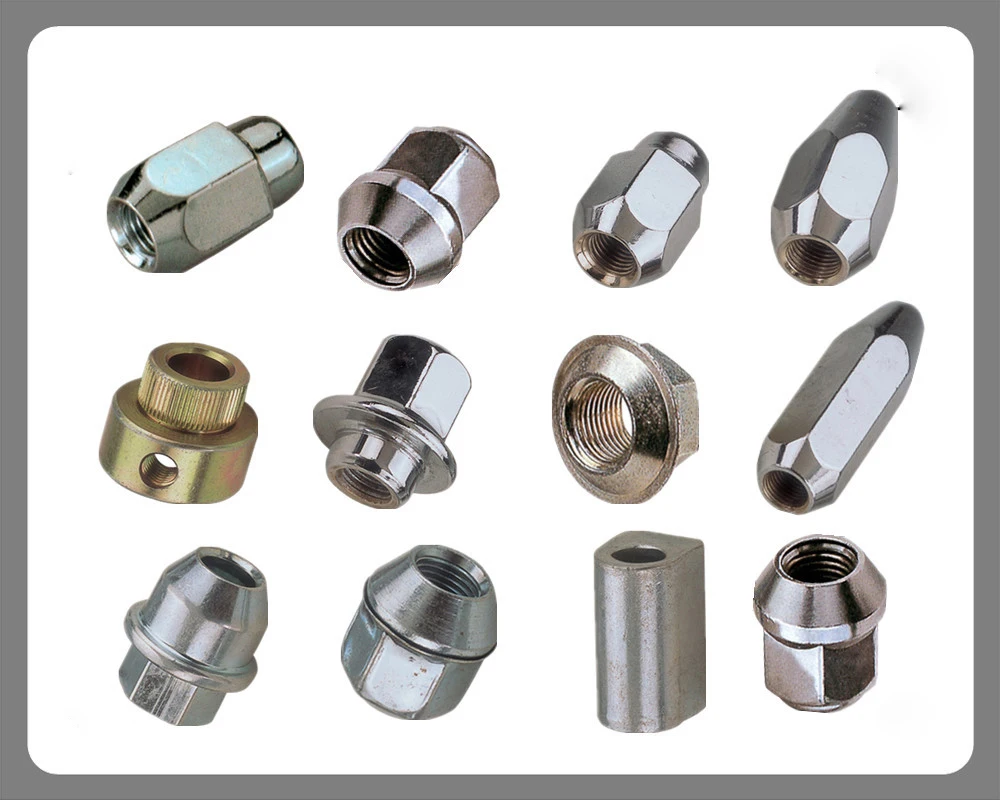

These following picture just a part sample, our machine also can production other prodcuts, so if you have any need, pls sent the product drawing to me.
Our Services
1. Provide after-sale service, including profession engineer in oversea, one year warranty and according you need.
2. Designing the machine and the mould according the customers' product drawings and product samples.
3. Offering the technical supports and former documents according you need.
4. Provide the professional engineer , teaching customers how to operate the machines.
5.Reply you in 24 hours, we can reply you soonest.
Packaging & Shipping
1. Each set is wrapped with stretch film and packed in a wooden case. Or according to the circumstances and need.
2. Shipping after receip the payment or better shipping is chosen for you accordingly.
Company Information
Dongguan SongWei Machinery&Metal Products Co., Ltd., a Taiwan founded enterprise, which has been specialized manufacturing multiple station screw nut former machine and hardware over than 20 years. It has dedicated to research and development, production and sales multiple station high speed nut part former/cold forging machinery.
Also, Our company it always insisted on customer service first and peresist in “quality is our survival guarantee, the company developing depends on a good reputation.” At the same time, it will be constantly update and develop new technologies to meet the needs of the future.
The exhibition
Our company have participated in the Cnaton Fair,Chongqing, Ningbo, Beijiang, Shanghai, Vietnam, India,Indonesia
and other exhibition.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: After receipt the payment.
Q: Will you supply the installation?
A: Yes, we will.
Q: What is your terms of payment?
A: FOB, TT and other.
Q : What is your company’s main market?
A: Our main markets are in southeast Asia, South America and Africa ect.
Contact Information
WOW!Come on! Contact me to get more information that you want to know.
