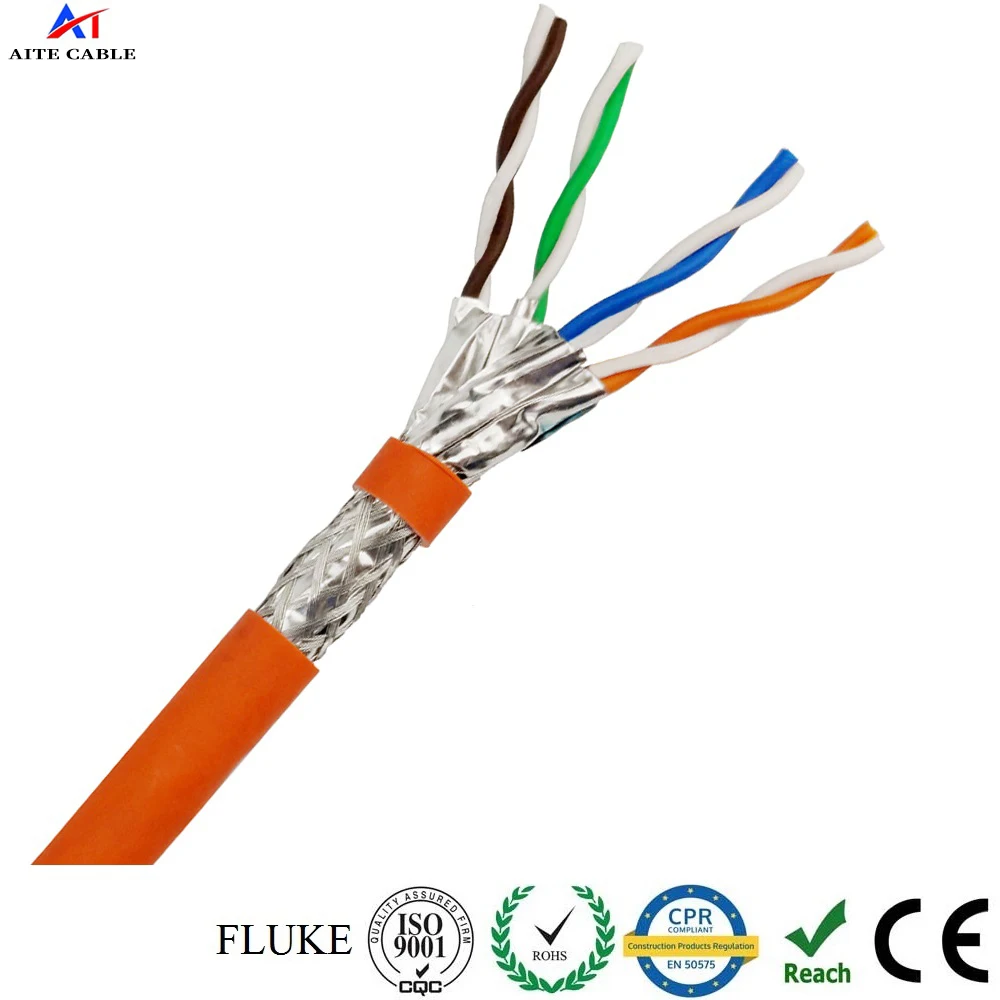

AITE 100% Copper Cat7 ethernet cable LSZH CPR certificate cat 7 Cable
- Категория: Telecommunications >>>
- Поставщик: Hangzhou,Aite,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.58 $* | 0.18 $* |
| Aug-16-2025 | 0.85 $* | 0.10 $* |
| Jul-16-2025 | 0.14 $* | 0.84 $* |
| Jun-16-2025 | 0.69 $* | 0.88 $* |
| May-16-2025 | 0.98 $* | 0.91 $* |
| Apr-16-2025 | 0.36 $* | 0.86 $* |
| Mar-16-2025 | 0.25 $* | 0.18 $* |
| Feb-16-2025 | 0.76 $* | 0.39 $* |
| Jan-16-2025 | 0.81 $* | 0.93 $* |
Характеристики
Production Video
Products Description
Name | |||
Cat7 4Pair SFTP | |||

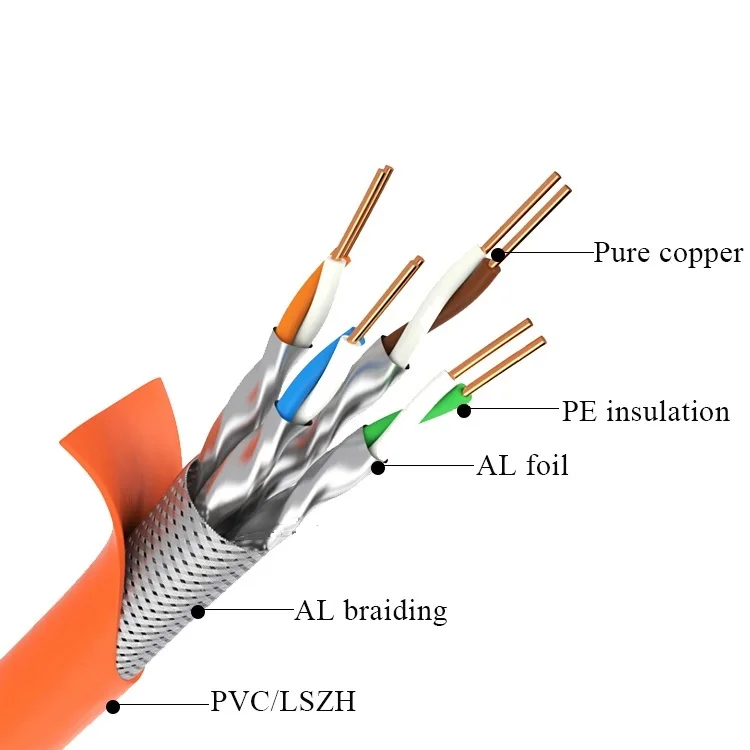

Structure | Material | Diameter(mm) | |
Conductor | BC | 0.56 | |
Insulation | PE | 1.33 | |
Pair Shield | AL Foil | 100% | |
1st Shield | PET Tape | 100% | |
2nd Shield | AL/TC Braiding | 40-90% | |
Jacket | PVC/LSZH | 7.50 | |
Temperature Rating | -20℃ to 60℃ | ||||||||
Dielectric Breakdown | 2500V | ||||||||
DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||||||
Characteristics Impedance | 100±22Ω | ||||||||
Other Electric Performance | Frequency （MHz） | Attenuation （dB/100m） | Return Loss （dB/100m） | Pair to Pair | |||||
Next （dB/100m） | ELFEXT （dB/100m） | ||||||||
4 | 3.7 | 23 | 78 | 78 | |||||
8 | 5.2 | 24.5 | 78 | 75.9 | |||||
10 | 5.9 | 25 | 78 | 74 | |||||
16 | 7.4 | 25 | 78 | 69.9 | |||||
20 | 8.3 | 25 | 78 | 68 | |||||
25 | 9.3 | 24.3 | 78 | 66 | |||||
31.25 | 10.4 | 23.6 | 78 | 64.1 | |||||
62.5 | 14.9 | 21.5 | 75.5 | 58.1 | |||||
100 | 19 | 20.1 | 72.4 | 54 | |||||
150 | 23.6 | 18.9 | 69.8 | 50.2 | |||||
200 | 27.7 | 18 | 67.9 | 48 | |||||
250 | 31 | 17.3 | 66.4 | 46 | |||||
300 | 34.2 | 17.3 | 65.2 | 44.5 | |||||
600 | 50.1 | 17.3 | 60.7 | 38.4 | |||||

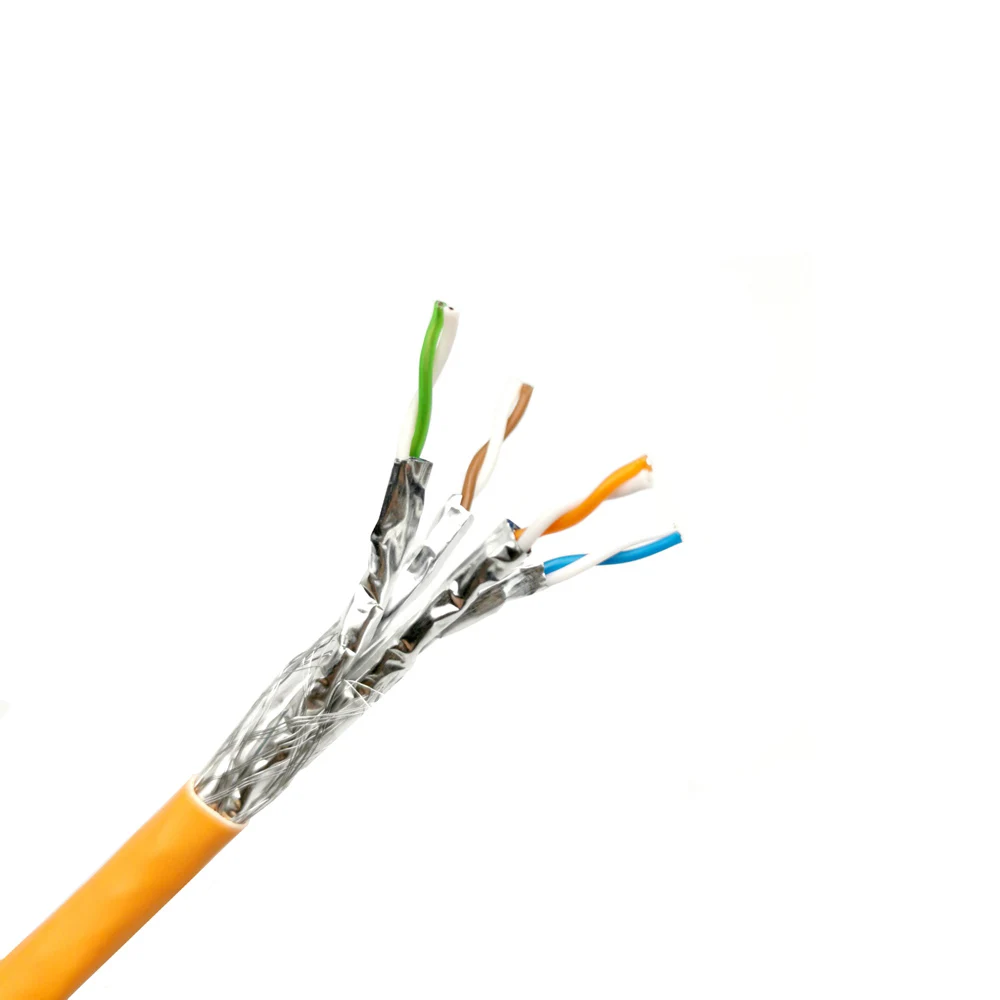

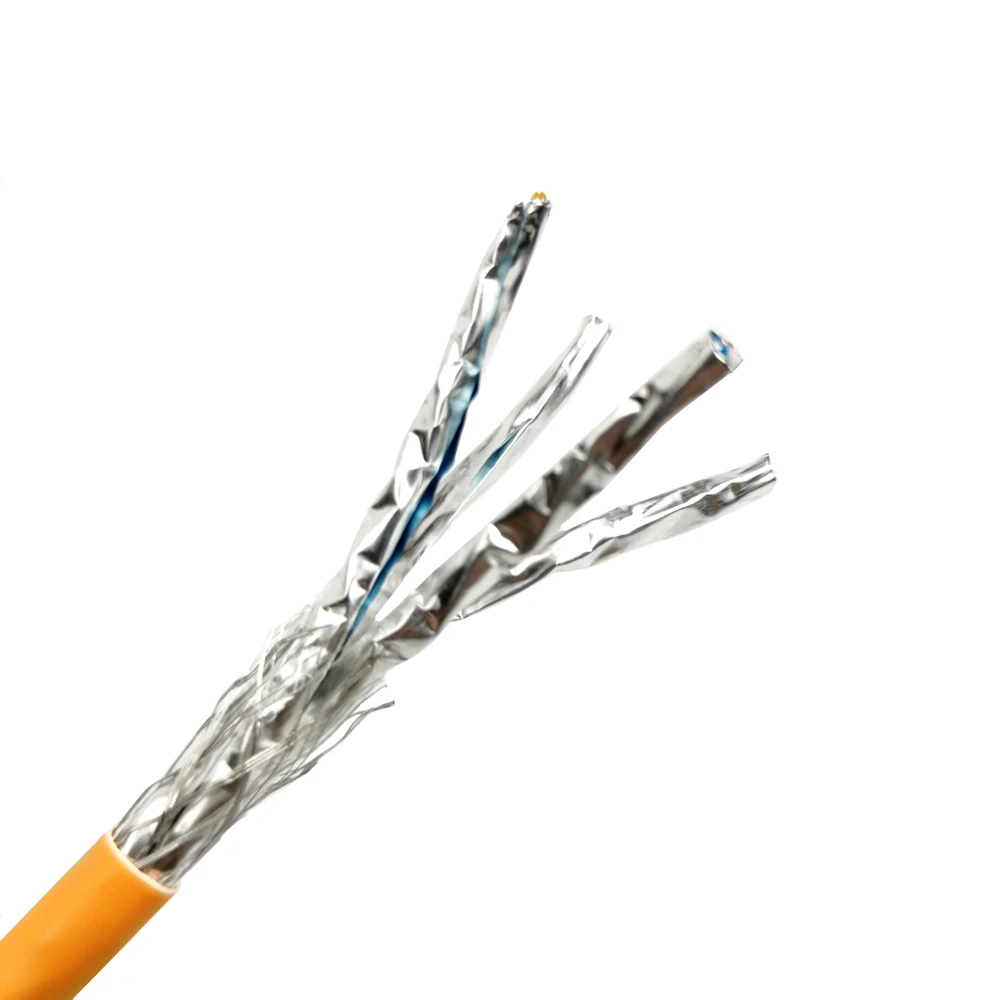

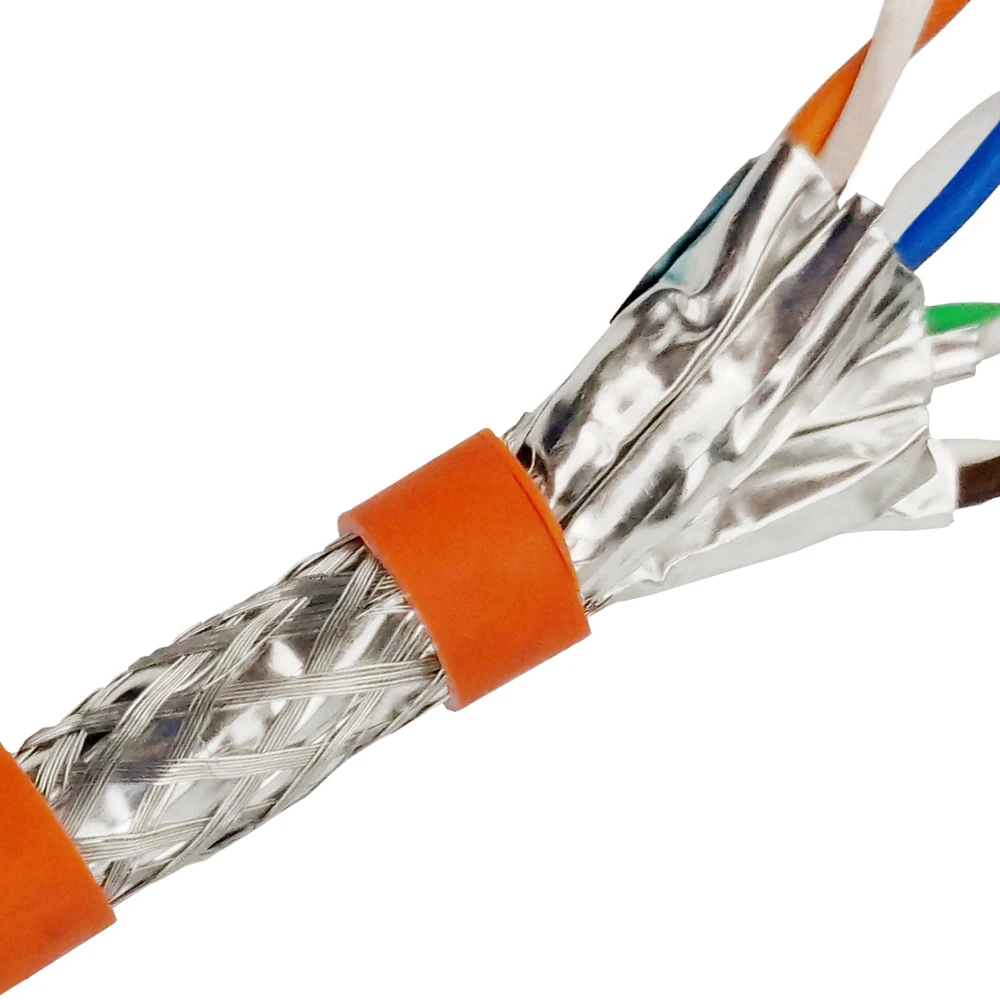

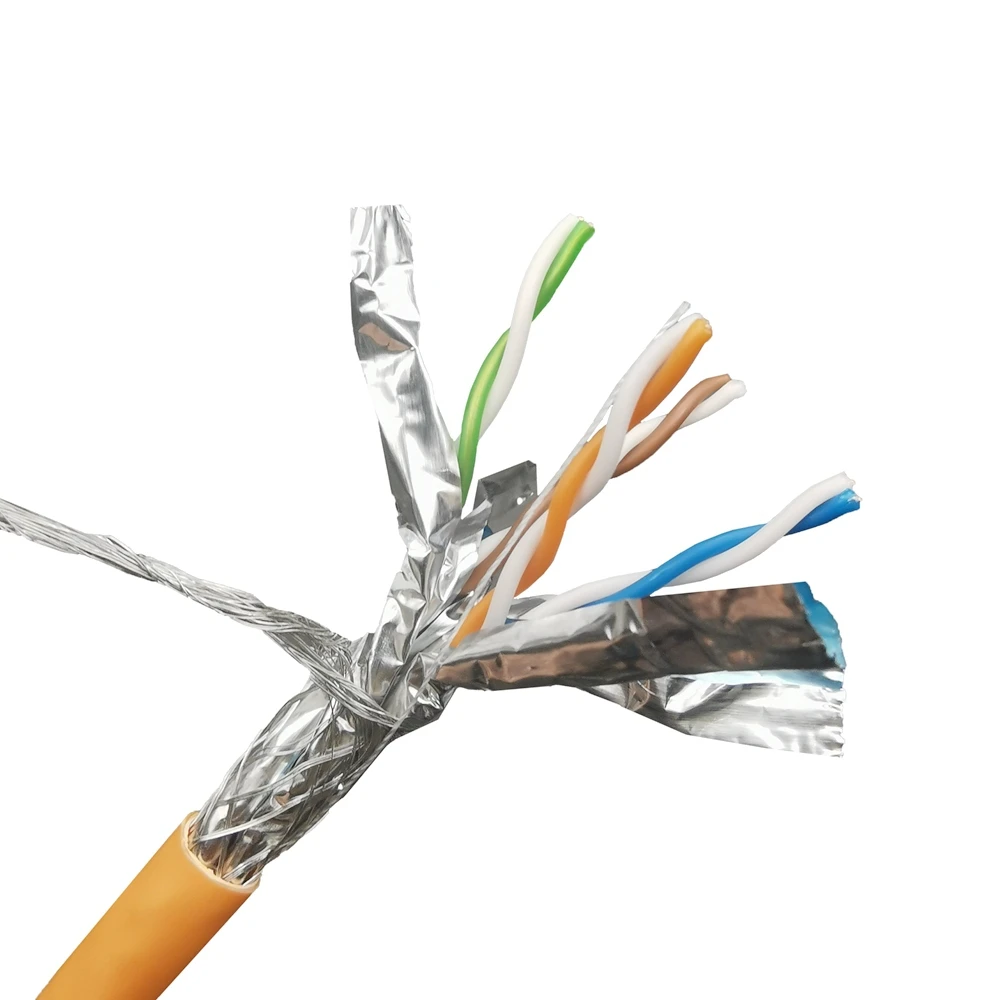

Details Images
