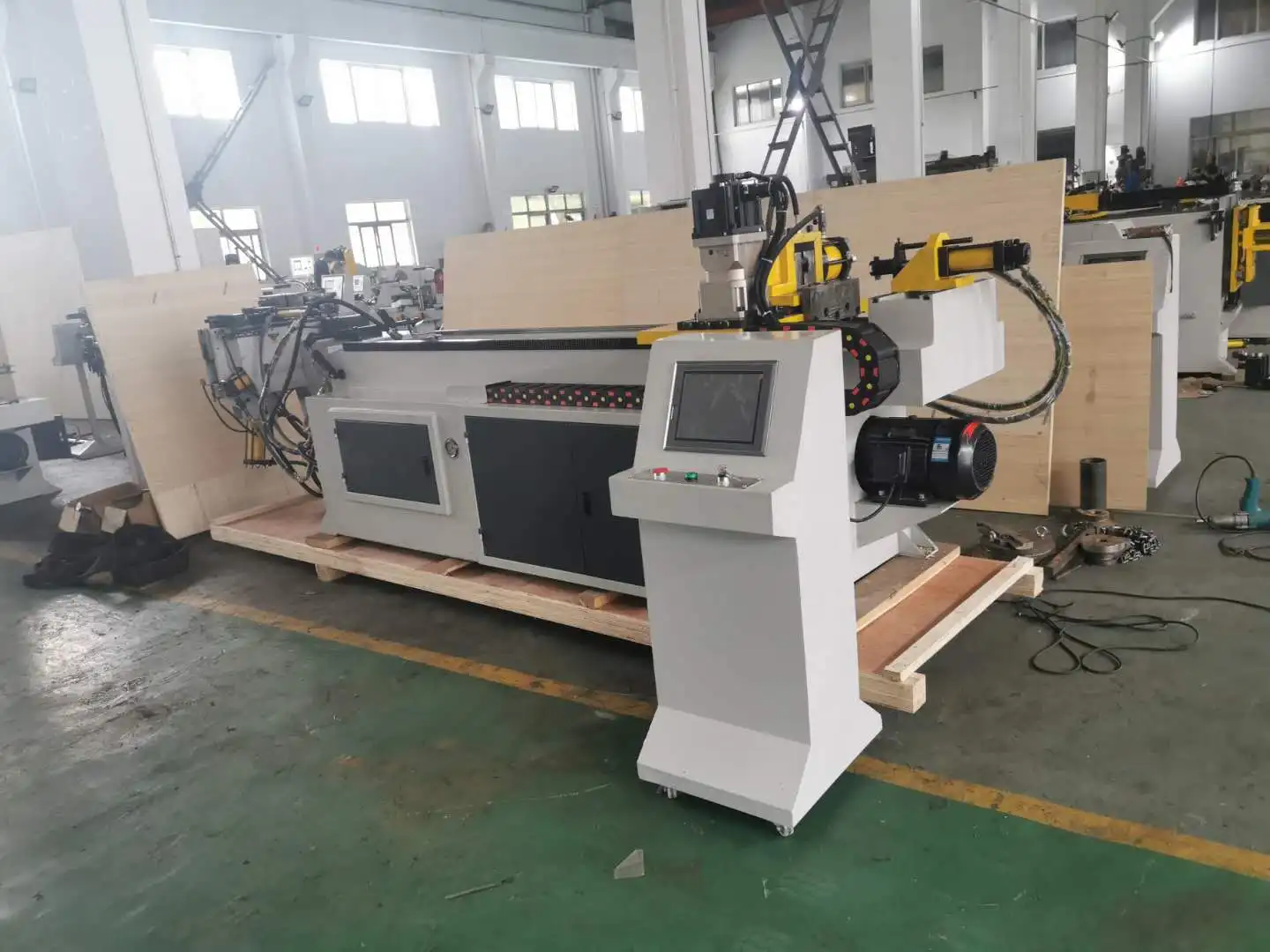

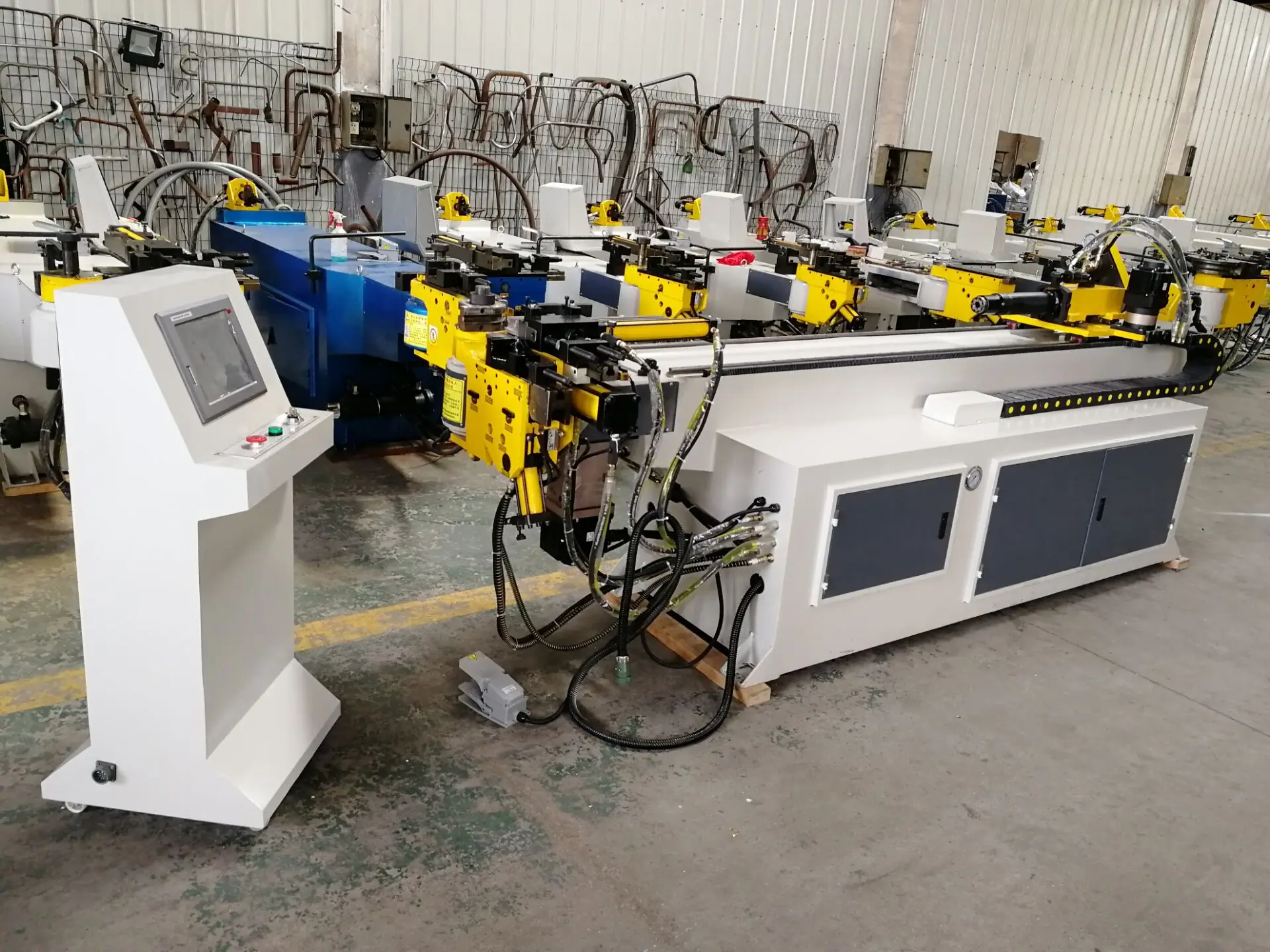

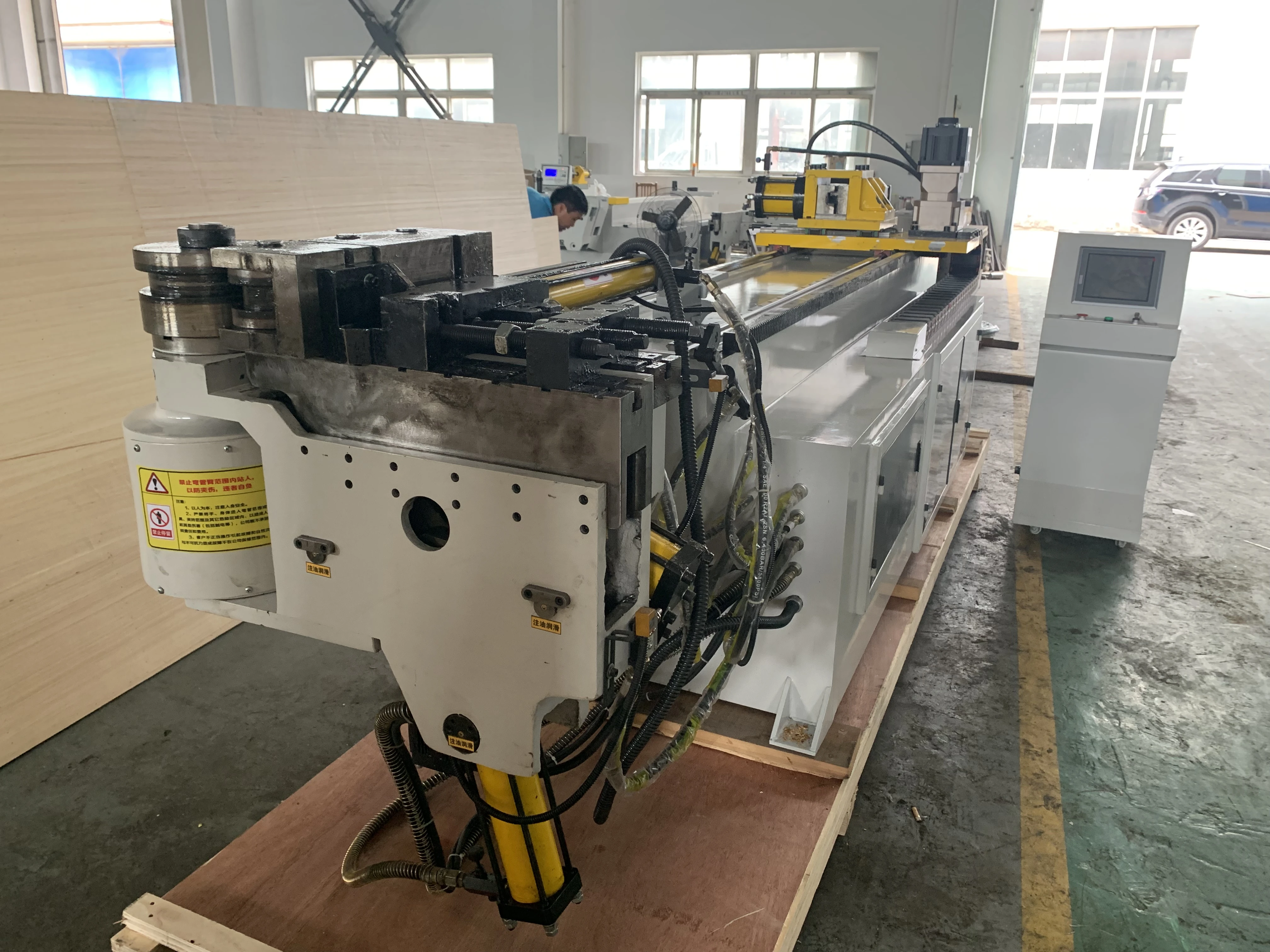

Гибочный станок Zhuoran DW38CNC для металлических алюминиевых

Цена:20 000,00 $ - 21 000,00 $*

Количество:

Main specifications			Models : Models : DW38CNC-3A-1S	Note:
Maximum bending pipe diameter ×Wall thickness.			Φ38mm×2mm Carbon steel pipe	1, The minimum bending radius is based on the diameter of the pipe. 2,Maximum bending radius can be according to customer requirements. 3,The maximum core length can be according to customer requirements.
Maximum bending radius.			R200mm
Minimum bending radius.			R1.5D
Maximum bending Angle.			190°
Standard core length			2200mm
Feeding method			Direct delivery Clip
Working speed	Bending speed	Max 150°/s
	Tubing speed	Max200°/s
	Feeding speed	Max 1000mm/s
Working accuracy	Bending accuracy	±0.1°
	Tubing accuracy	±0.1°
	Feeding accuracy	±0.1mm
Information input mode			1. coordinate(X . Y. Z) 2. Working value(Y. B. C)

Main parts:

	Name	specification	Place of origin
1	Hydraulic motor	4KW	Wuxi taihu lake
2	The oil pump	PVL1-17	Zhejiang hongtai
3	Pressure valve	02W	Taiwan's seven ocean
4	Solenoid valve	G02-2C-DC24	Taiwan's seven ocean
5	The overflow valve	2B3B-D24	Taiwan's seven ocean
6	Sealing ring		Taiwan CHO
7	Pressure gauge	0-25Mpa	Huatai
8	AC contactor	LCED1801	Taiwan also,
9	touch screen	10	Shenzhen ICM
10	Switching power	24V	Taiwan MingWei
11	Corner servo motor	400W	Japan's mitsubishi
12	Feed servo motor	1KW	Japan's mitsubishi
13	bend servo motor	5kw	Japan's mitsubishi
14	Intelligent transformer	RP-7.5	Shanghai Ruoqiang
15	Linear Guide	20*2600	Taiwan PDF
16	Corner reducer. Feed reducer. bend reducer.	1. SPL70-32 2. GPL120-5 3. GPX180-63	Hubei Planet
17	Central controller	ICM-880W03	Shenzhen ICM
18	Relay	RXM2MB	Taiwan also,
19	thermal relay	LR-16B	Taiwan also,
20	sensory switch	24V	Chande
