Ролик для гофре из легированной стали Zhenhua 52CrMo по лучшей
- Категория: Packaging Machinery Parts >>>
- Поставщик: Cangzhou,Zhenhua,Packing,Machinery,Manufacturing,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 12689.4 $* | 12943.81 $* |
| Jul-16-2025 | 10291.46 $* | 10497.50 $* |
| Jun-16-2025 | 12489.23 $* | 12739.12 $* |
| May-16-2025 | 12389.59 $* | 12637.80 $* |
| Apr-16-2025 | 9891.99 $* | 10089.8 $* |
| Mar-16-2025 | 12189.95 $* | 12433.23 $* |
| Feb-16-2025 | 12089.75 $* | 12331.57 $* |
| Jan-16-2025 | 11989.91 $* | 12229.27 $* |
Характеристики
Product Description
Machine Description
1.The corrugated roll is made of high quality alloy steel. The technology comes from war industry.

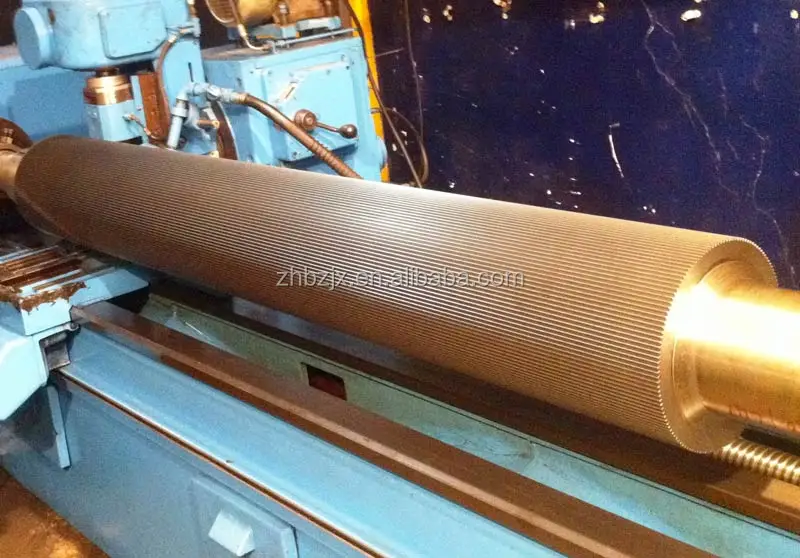

2.It's made by high precision CNC corrugated roll grinding machine from the USA. The quality is very high.

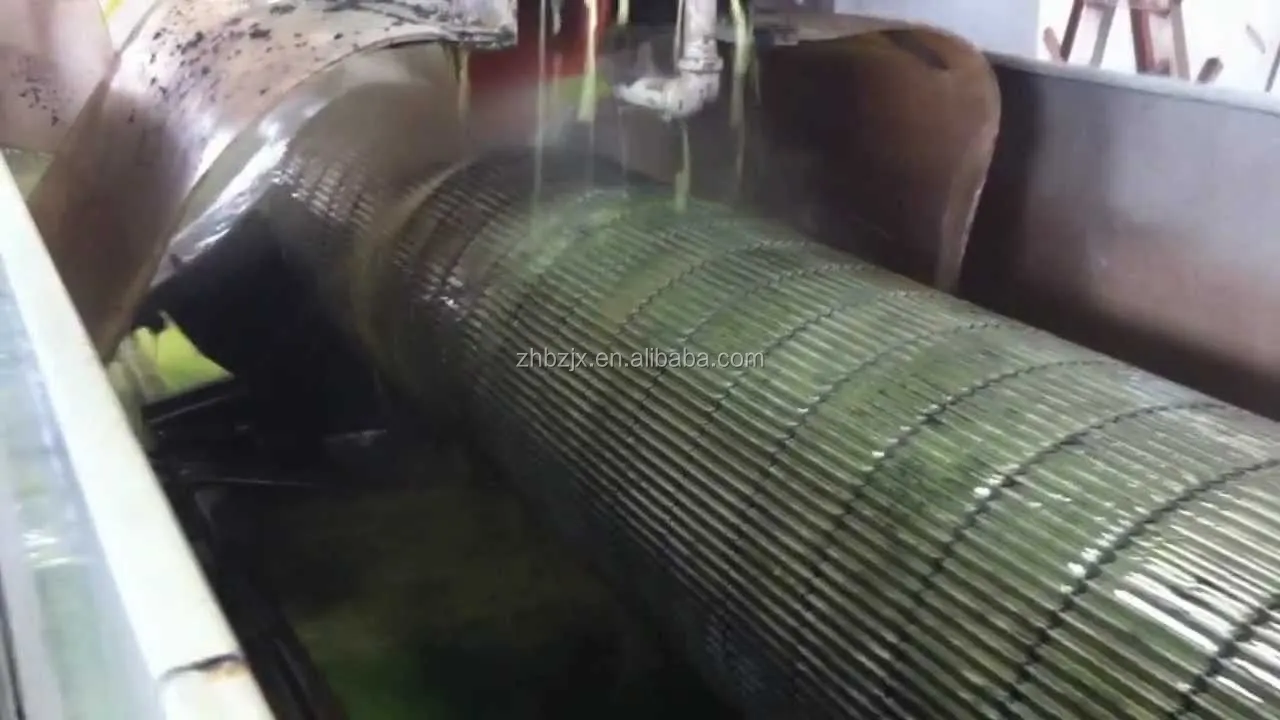

3.It is treated by special corrugated roll surface treated technology. The hardness is very high.
4.High-speed corrugated roll with big diameter. The maximum working speed is 300m/min.

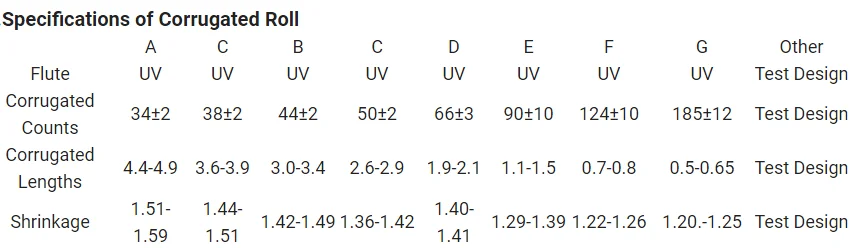

5.Gear type: UV,V. Flute type: A, B, C, BC, D, E, F optional.
6.Fingerless suction and inner suction are optional.
7.We are engaging in design ,repair, manufacture all kinds of corrugating roll
Technical Parameter
1. Intermediate Frequency Corrugated Roll
1.1 tooth shape: UV, V, alike V type
1.2 tooth height: 0.9-5.5mm
1.3 process length: Max. roller length 2800mm
1.4 Process diameter: Φ 100mm~Φ 500mm
1.5 Material: made in China, 42CrMo~50CrMo
1.6 hardness: ≥ HRC55°
2.Laser Corrugated Roll
2.1 Surface hardness: above HRC60°
2.2 Character of laser quenching: For the same material, the metallographic structure is more refined. And it is more durable than
the traditional quenching process.
2.3 It won't enlarge the surface crack. It is the best process to repair the old roller.
2.4 The depth distribution of the quenching layer is that the top of the tooth is thick and the side of the tooth is thin. It can
effectively solve the problem that the main wearing part of the roller is the top of the tooth.
3.Special Material Corrugated Roll
3.1 Hardness: above HRC62°
3.2 Long life-span: The life-span is above 50% longer than the roller made by medium carbon chromium molybdenum steel.
3.3 Low cost: The price is only 20% higher than the roller made by medium carbon chromium molybdenum steel.
4.Tungsten Carbide
4.1 Surface hardness: above HRC70°
4.2 The flute height is not easily wearing. So, you needn't change the rollers frequently. It uses the specially designed flute
type.
4.3 It can save the consumption of the corrugated paper.
1.The corrugated roll is made of high quality alloy steel. The technology comes from war industry.
2.It's made by high precision CNC corrugated roll grinding machine from the USA. The quality is very high.
3.It is treated by special corrugated roll surface treated technology. The hardness is very high.
4.High-speed corrugated roll with big diameter. The maximum working speed is 300m/min.
5.Gear type: UV,V. Flute type: A, B, C, BC, D, E, F optional.
6.Fingerless suction and inner suction are optional.
7.We are engaging in design ,repair, manufacture all kinds of corrugating roll
Technical Parameter
1. Intermediate Frequency Corrugated Roll
1.1 tooth shape: UV, V, alike V type
1.2 tooth height: 0.9-5.5mm
1.3 process length: Max. roller length 2800mm
1.4 Process diameter: Φ 100mm~Φ 500mm
1.5 Material: made in China, 42CrMo~50CrMo
1.6 hardness: ≥ HRC55°
2.Laser Corrugated Roll
2.1 Surface hardness: above HRC60°
2.2 Character of laser quenching: For the same material, the metallographic structure is more refined. And it is more durable than
the traditional quenching process.
2.3 It won't enlarge the surface crack. It is the best process to repair the old roller.
2.4 The depth distribution of the quenching layer is that the top of the tooth is thick and the side of the tooth is thin. It can
effectively solve the problem that the main wearing part of the roller is the top of the tooth.
3.Special Material Corrugated Roll
3.1 Hardness: above HRC62°
3.2 Long life-span: The life-span is above 50% longer than the roller made by medium carbon chromium molybdenum steel.
3.3 Low cost: The price is only 20% higher than the roller made by medium carbon chromium molybdenum steel.
4.Tungsten Carbide
4.1 Surface hardness: above HRC70°
4.2 The flute height is not easily wearing. So, you needn't change the rollers frequently. It uses the specially designed flute
type.
4.3 It can save the consumption of the corrugated paper.

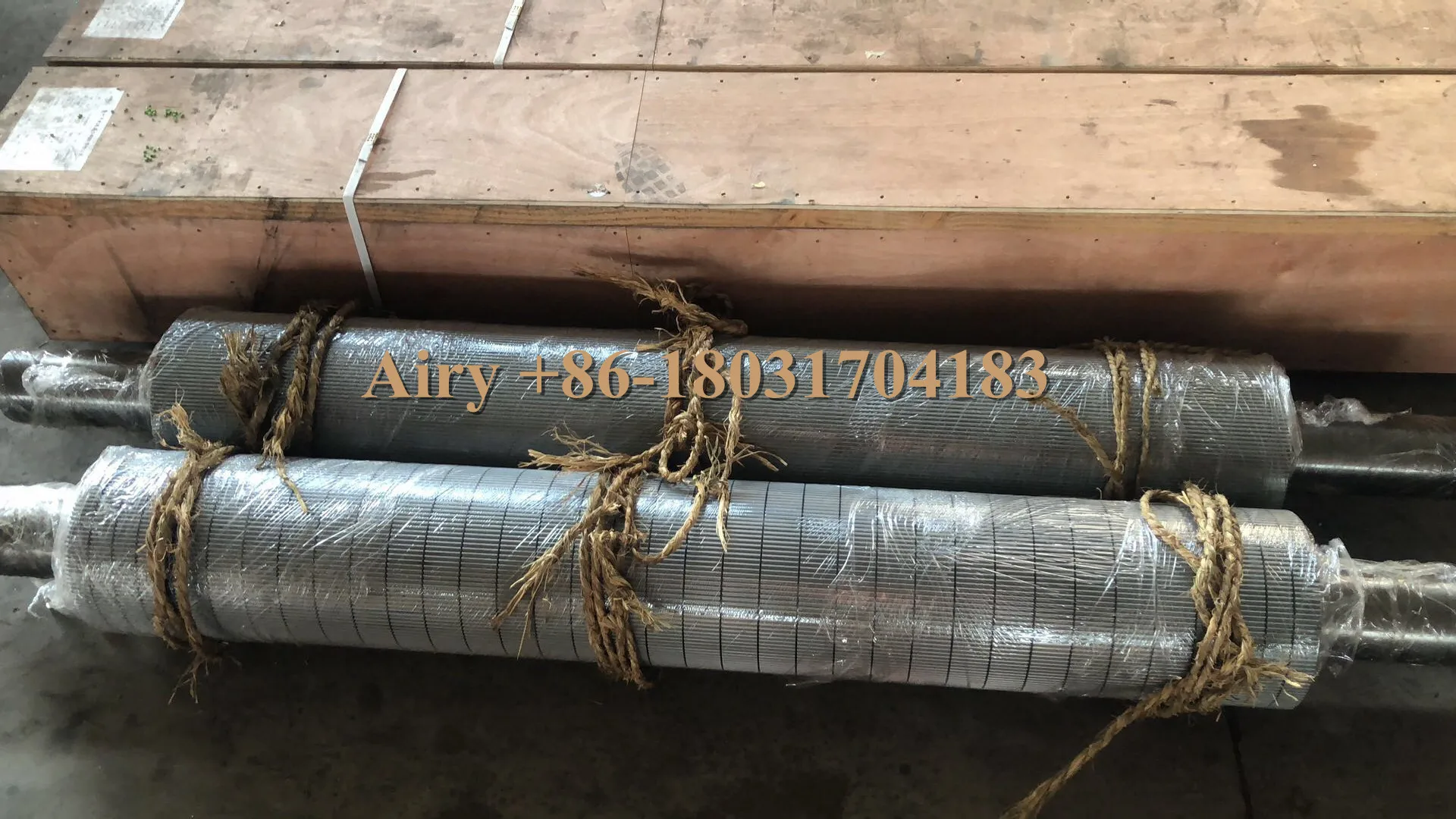

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
CANGZHOU ZHENHUA PACKAGING MACINERY MANUFACTURING CO., LTD
We are provided full production of Automatic Carton Box Making Machine, Corrugated Paperboard Production Line.
We already sold to these country as below:
America: Mexico, Peru, Bolivia
Asia: Korea, Malaysia, India, Thailand, Philippine, Pakistan
Middle East: Saudi Arabia, Syrian, Lebanon, Palestine, Kosovo
European: Italy, Poland, Bulgaria, Finland, Bosnia, Spain, Germany, Hungry, Romania
Africa: Morocco
Oceania: Australia
We are provided full production of Automatic Carton Box Making Machine, Corrugated Paperboard Production Line.
We already sold to these country as below:
America: Mexico, Peru, Bolivia
Asia: Korea, Malaysia, India, Thailand, Philippine, Pakistan
Middle East: Saudi Arabia, Syrian, Lebanon, Palestine, Kosovo
European: Italy, Poland, Bulgaria, Finland, Bosnia, Spain, Germany, Hungry, Romania
Africa: Morocco
Oceania: Australia
