STONE 5.6 Inch Touch Screen Graphic LCD For Treating Equipment Led Display
Product Description

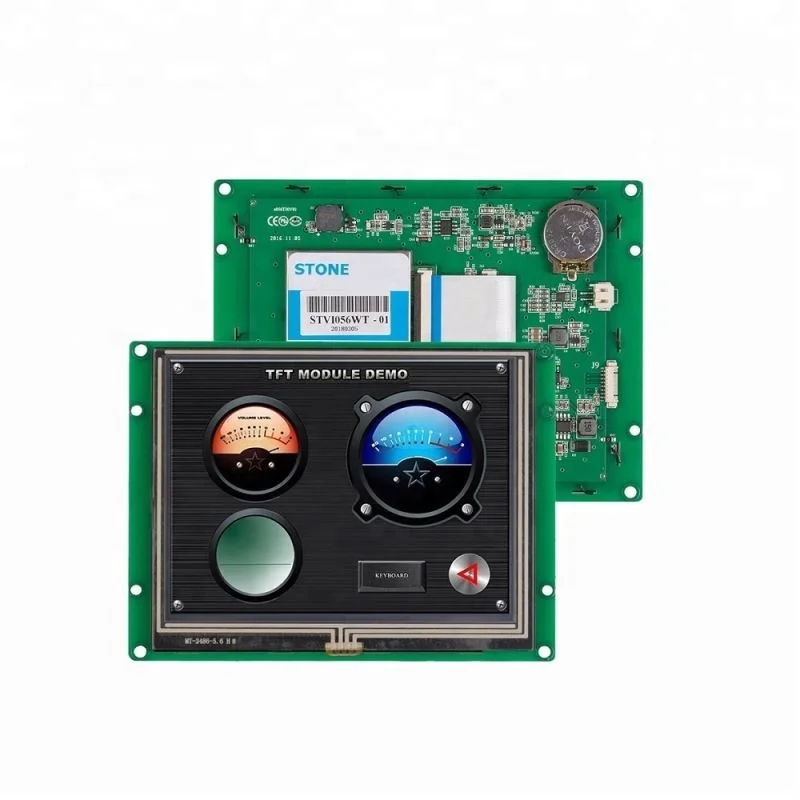

STVI056WT-01

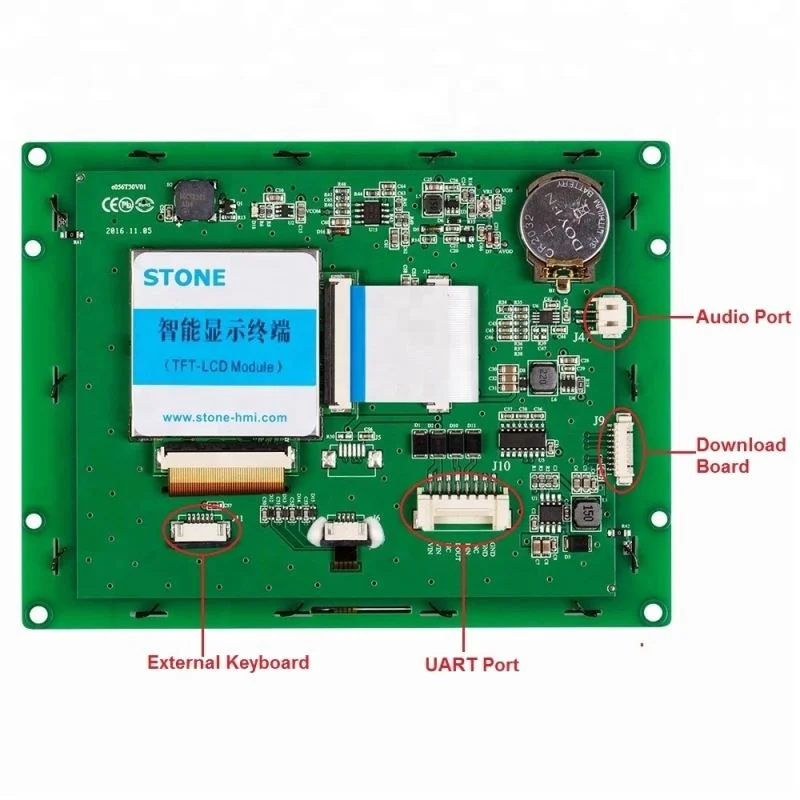

The STVI056WT-01 is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display & Touch controller in various electronic equipment.

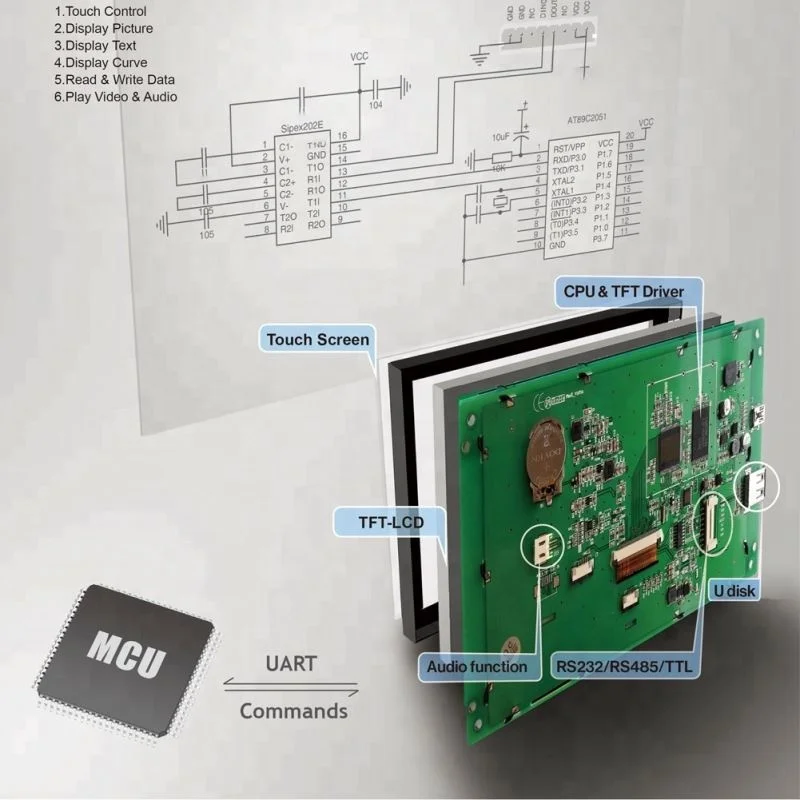

The STVI056WT-01 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers.
Product Parameters
Physical Parameter
Model
STVI056WT-01
Size (Inch)
5.6 inch
Resolution
640×RGB×480
Color
65536 colors (16 bit)
Viewing Area
112.9 mm × 84.7 mm
Pixel Spacing
0.1905 mm × 0.0635 mm(H×V)

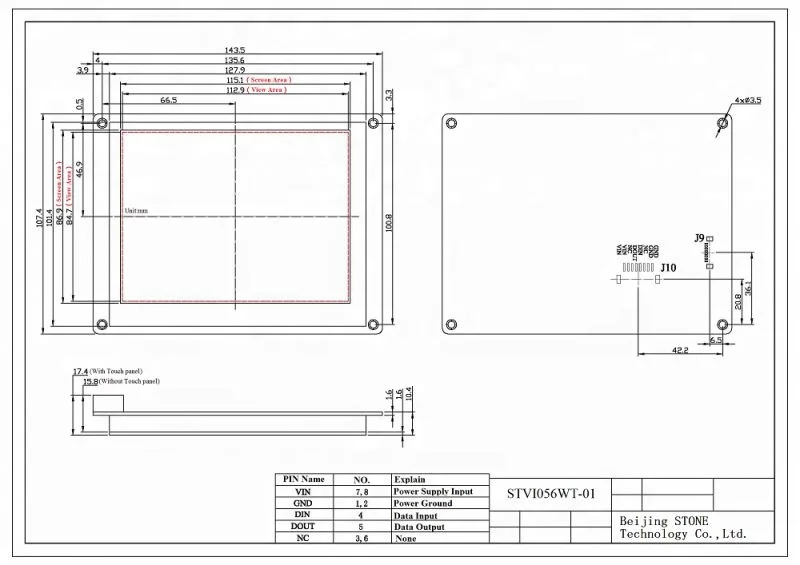

Overall Dimension
143.5mm×107.4mm×15.8mm(N)/17.4mm(T)
Net Weight
240g(N)/275g(T)
TFT Panel
A Class Industry Panel
Touch Screen
Industry Level 4 wire resistance Or without touch screen is optional.
Backlight Parameter
Backlight Type
LED
Brightness
300 cd/m2(Brightness can be adjustable in 100 levels.)
According to the capability of the image, Suggest "JPG" format.
Interface
RS232/ USB Interface
Image downloading
USB2.0 (12Mbps) &U storage Disk downloading
Voltage Range
DC6.0V ~ 35V (typical value: 12V)
Power
2.2W
Test Report
MTBF
4,250,000H
Working Temperature
-20°C ~ +70°C
Air Humidity
60°C, 90%
Continuous Vibration Testing
10-55Hz, 1.5mm, 10G
Impact Acceleration Testing
6ms, 100G
ESD Testing
10KV
Radiation Reliability Testing
44W
