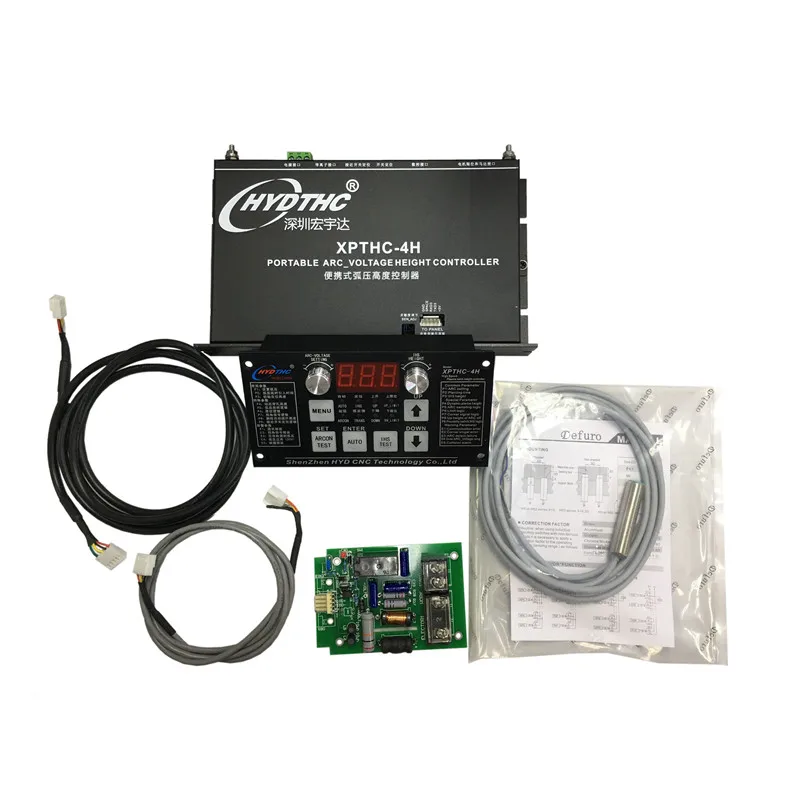

THC

4H3

SAFETY:

Please read this manual fully before use XPTHC-4

DO NOT open cabinet of THC unless trained technician.

DO NOT adjust the sealed resister.

Turn off Powersupply if when THC is unused.

DO NOT put liquid on THC.

Attention Anti-dust work, DO NOT let metal dust into THC.

Installation Note:

Power supply: AC 24V or DC 24V

Please offer the enough power supply: usually, 25W motor, the current couldn’t be

less than 3A, the AC24V transformer couldn’t be less than 50W.

Power supply= 2*motor’s power + 10W

GND Must follow THC instruction, GND resister≤4Ω.

UP/DOWN on THC must be same to Z-axis Lifter

To avoid interference, follow cables please use shield cable( connection between

CNC controller and THC, to motor, to voltage divider, to IHS card), especially the

cable from THC to voltage divider, please use shield twisted pair cable, and shield

net connected at THC side.

The plasma raw arc couldn’t connect to the THC directly, must connect to the

voltage divider correctly.
