Product name

TM-AI01 WDR AI Face Recognition Access Control Terminal

Screen

5.0 Inch IPS Touch Screen, HD 720*1280

Keypad

Touch keypad

Operation system

LINUX 3.10

CPU,NPU

1.2G Dual-Core ARM Cortex-A7

RAM

256M DDR3L

ROM

4G EMMC

Binocular camera

Real Sensor 1/2.9 inch FOV 75° 200W pixel high-definition color camera WDR wide dynamic

Sensor 1/5 inch FOV 75°200W pixel infrared live camera

Live detection

Dynamic dual-camera anti-counterfeiting, to prevent all kinds of black-and-white, color photos and videos from deception

Logs capacity

500000

Face Registration

Local operation: Enroll face with machine, import user photo with U disk

Software operation: Import user photo to software, capture user photo with camera

Verification

Dynamic face recognition, password, ID (IC card optional)

Face capacity

5000(20000 optional)

Card Capacity

5000(20000 optional)

Password Capacity

5000(20000 optional)

Face Recognition Accuracy

99.70%

Recognition Speed

≤0.2s, support single user/multi user(at most 5 users) recognition at same time

Recognition Distance

0.5~2.5 meters (0.5~1.5 meters with live face recognition on)

Prevent Photo

Dual camera anti-counterfeiting, prevent recognition with photo/video

Principle of Identification

Face algorithm technology of multi-task cascaded convolutional neural network based on

video stream for dynamic face detection, tracking and recognition

WDR

Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight
Supports simultaneous recognition of up to 5 people, face tracking, face capture

USB

USB2.0x1，Support U disk import/export data

Power supply

DC12V 2A

Network Communication

TCP/IP, Wifi

Free Attendance sofware

Support exporting excel attendance report with U disk

Shift

Support shift setting and importing shift schedule with U disk

Management Software

Desktop, Cloud ,SDK, Mobile APP

Access Control Function

Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals, anti passback,
interlock

one set of alarm signals, time permission control, connect external access control reader,

Group combination to open the door, user effective date

Wiegand 26/34, input/output

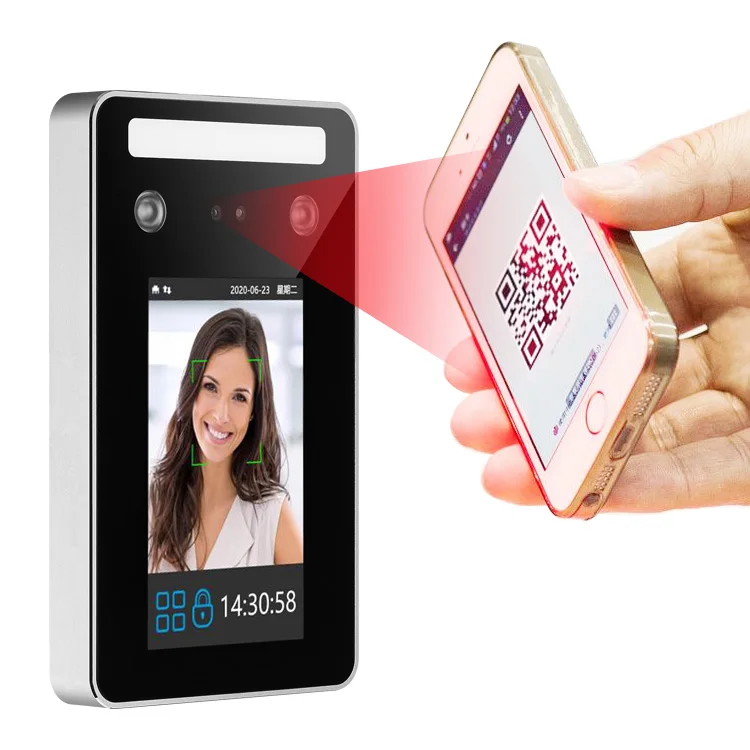

QR Code Scanner

Support

Environmental adaptability

Working temperature: -15C~+45°C (storage temperature -40C~+65°C)，

Working humidity: 20% ~90% (storage humidity 20%~90+2%)，

Dark enviroment: LEDSoft light automatic fll light (Automatic control according to ambient light)

Ambient light adaptation range: 0-50000Lux

Muti language

Support 20 national languages and voices including English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese,
Korean, etc

Broadcase and ring

Support display name, voice broadcase name, builtin bell ring

Automatic fill light

Support infrared fill light, the white fll light automatically lights up when face is captured in dark light

Support TTS

Chinese and English voice report name

QR Code Scanner

Support

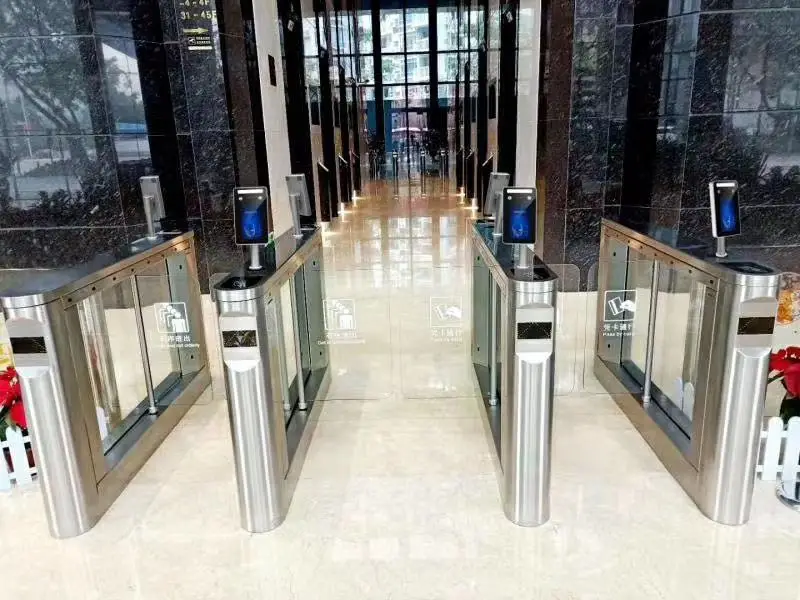

Installation Way

Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand

Specal features:

Display user enrolled photo when verified face;
Support capture stranger's face
Support mask detection
Support setting face recognition distance: close(around 0.8m), middle(around 1.5m), far(around 2~3m);
It will say happy birthday when user verify face if you put user's date of birth in machine
