Просторный мобильный медицинский грузовик Прямая продажа с завода транспортное средство для медицинской

Specification No.

4802C—003

Quantity

Chassis

Dongfeng DFL5160XXYBX2V

Engine

Model: ISD21050

Type: Inline 6 cylinder, supercharged intercooled, high pressure common rail diesel generator

Displacement (ml): 6700

Fuel type: diesel

Rated power / speed (kW / (r / min)): 155/2500

Maximum torque / speed (N.m / (r / min)): 800 / (1300-1500)

Van

Interior dimensions (length, width, height / mm): 7610 * 2345 (3645 after expansion) * 2035

The top of the Vehicle has a thickness of 70mm and a peripheral thickness of 46mm.

Van Expansion

Electronically controlled automatic expansion and contraction

Supporting System

4-point electric support cylinder support (motor 520W)

1

Conditioner

KD-35cb, cooling 3.5KW, heating 2.4KW

3

Extractor Fan

20W, displacement: 5 cubic meters / minute

2

Generator Set

Output AC220V,  5.5KW

1

Generator Set Lifting System

Electric cylinder drive, motor DC24V, 60W

1

Awning

Electric (full box DS800)

1

Cable Reel

JT-50-3-I, pedal electric telescopic (24V DC )

1

Lead room protection

The X-ray protection level is in accordance with the level of GBZ130-2002, and the X-ray leakage according to the conditions specified in GBZ117-2006 is ≤2.5uGy/h.

The tube has a wire harness away from the X-ray console, and the lead plate around the lead room is affixed with a lead plate ≥ 2.5 lead equivalent.

A lead glass observation window is placed in the X-ray console;

1

100L Medical incubators

The main parameters:

Volume: 100L

Voltage: DC12V-24V

Cooling power: 70W

Box temperature: -12 ° C ~ 10 ° C

Dimensions: 485 × 490 × 843

1

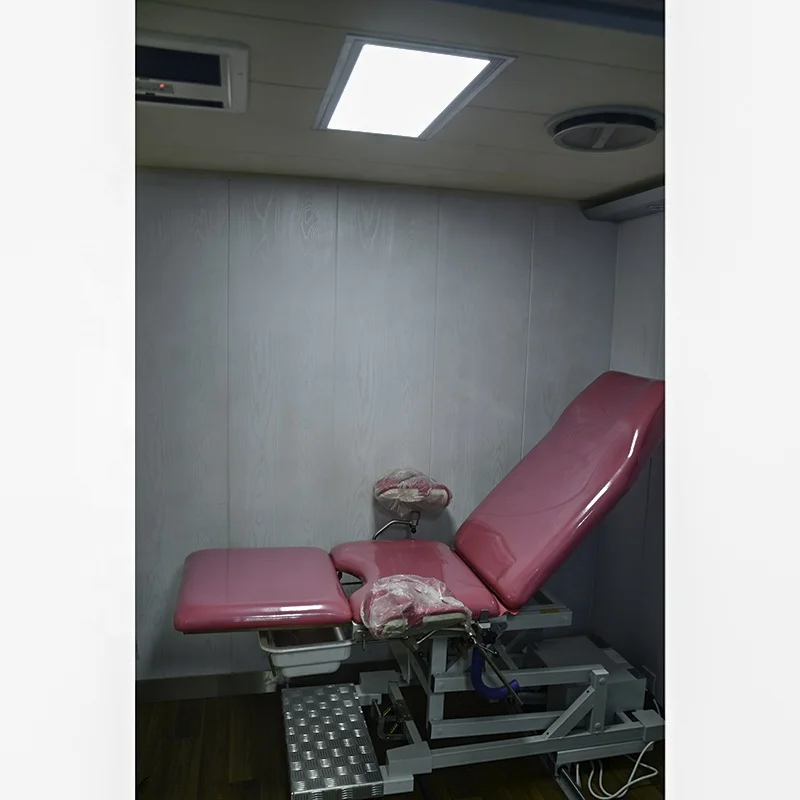

Bed

With a length of 2 meters and a width of 0.6 meters, the bed is equipped with lockers for medical equipment and medical supplies.

1

Chair

Liftable

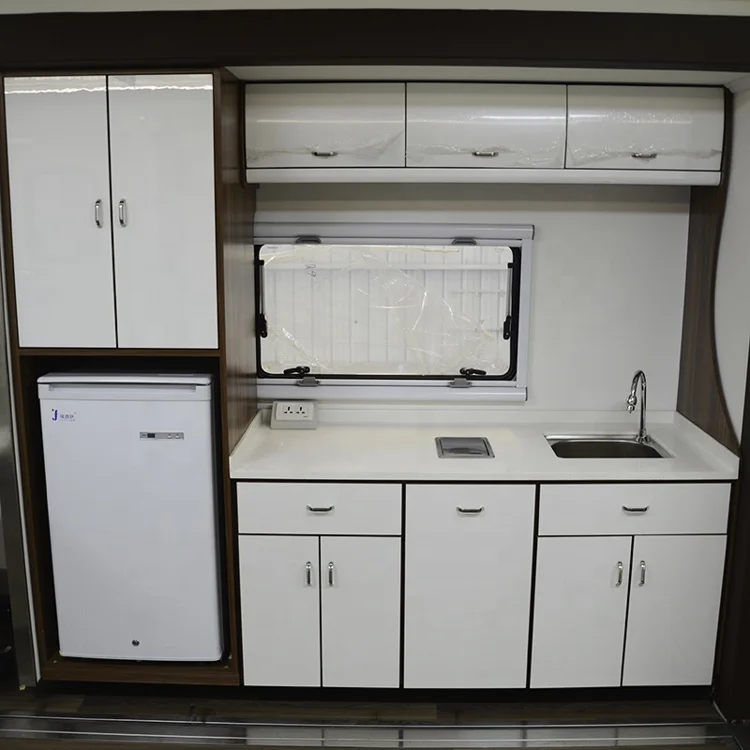

Electric hand basin

Electric operation, with water purification, sewage tank 25L each, stainless steel

1

LED full color outdoor screen

P4 standard full color waterproof outdoor screen with power amplifier and voice system, area 1.605m*2.148m

1

Fuel heater system

Plumbing heater

Model: YJH-Q15A

Voltage: DC24V

Fuel type: diesel

Heating power: 15KW

Heater

Model: 120.27.106

Voltage: DC24V

Heating power: 5.2KW

Electric power: 100W

1
