Высокояркая светодиодная башня электрическая механическая телескопическая мачтовая
- Категория: Телекоммуникационная башня >>>
- Поставщик: Shenzhen,Okaf,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 2539.26 $* | 2590.84 $* |
| Jul-16-2025 | 2059.63 $* | 2100.27 $* |
| Jun-16-2025 | 2499.78 $* | 2549.50 $* |
| May-16-2025 | 2479.88 $* | 2529.8 $* |
| Apr-16-2025 | 1979.59 $* | 2019.65 $* |
| Mar-16-2025 | 2439.62 $* | 2488.73 $* |
| Feb-16-2025 | 2419.50 $* | 2467.59 $* |
| Jan-16-2025 | 2399.95 $* | 2447.62 $* |
Характеристики
Product Description
High Bright LED Lighting Tower Electric Mechanical Telescopic Light Mast Pole
Features of Military electric telescopic mast
Telescopic masts perfect for fast deployment of telecommunication ,PTZ camera surveillance ,emergency lighting devices to a certain height in the air (range from 3 to 20m), which offer an elevation solution with different payload capacity (range from 2kg -100kg)
OKAF motorized telescopic mast material is aluminum alloy, It is widely applied to radio facilities, monitoring and illumination systems in public works and military installations, radio amateurs, in metrology and other fields. What's more, we are able to offer special solutions for non-standard applications.
Our telescopic mast electric has same advantages as manual telescopic mast, it can be operated electrically or manually, and it can be self-locking at any position.
The mechanical nature allows partial extension of the mast when desired and provides powered retraction for extreme wind or ice conditions. Long periods of extension are commonplace.the ability to continue to maintain mast extension is a primary benefit.

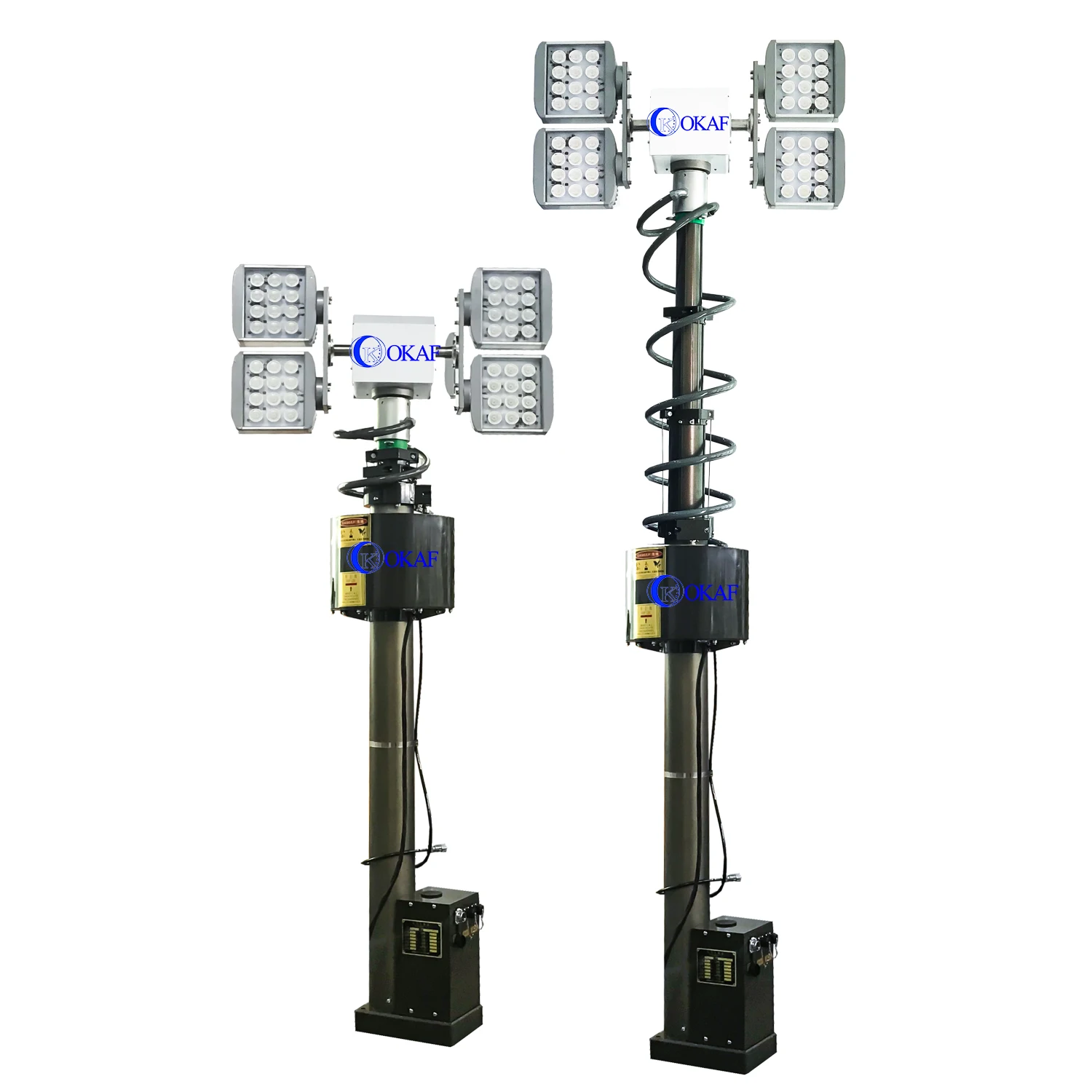

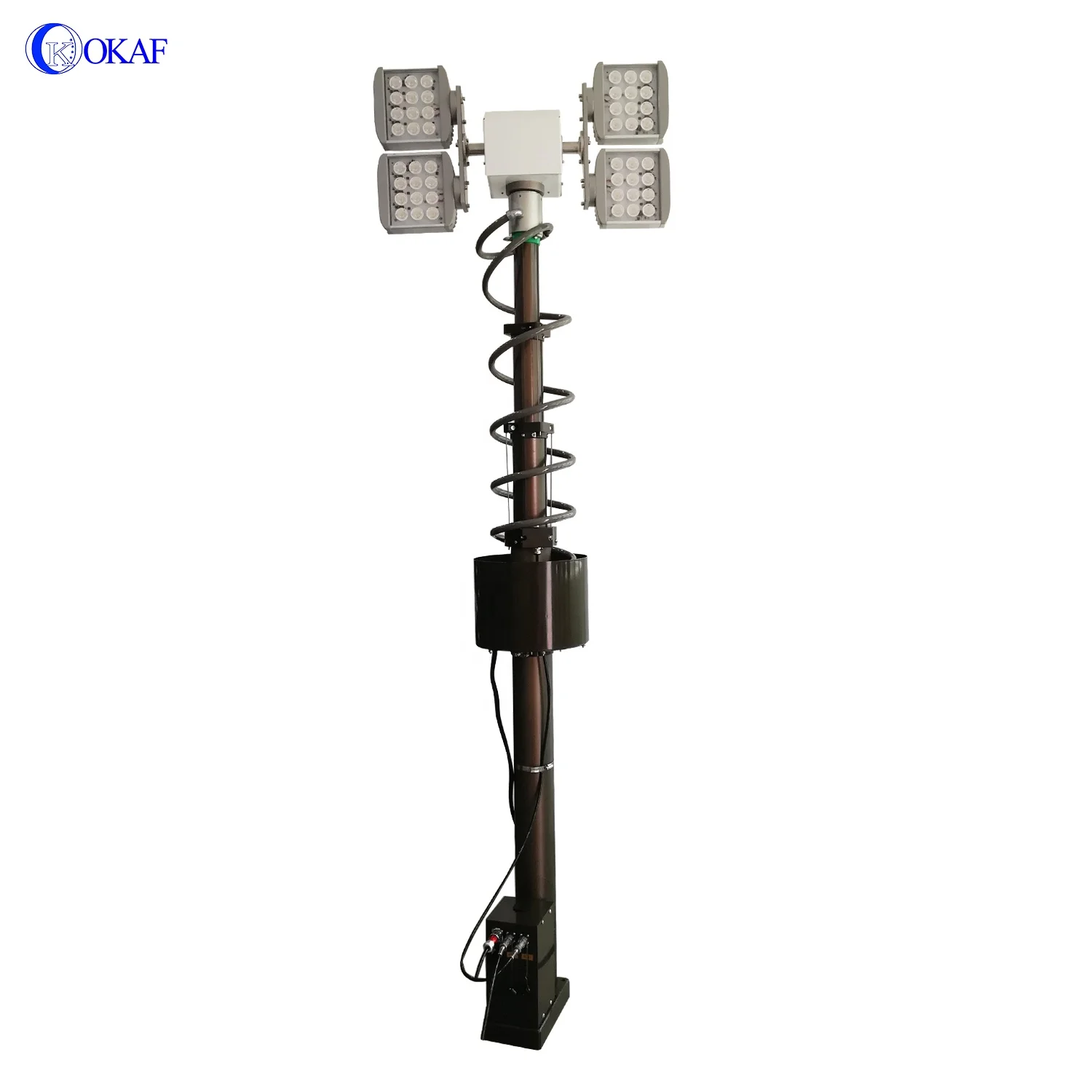

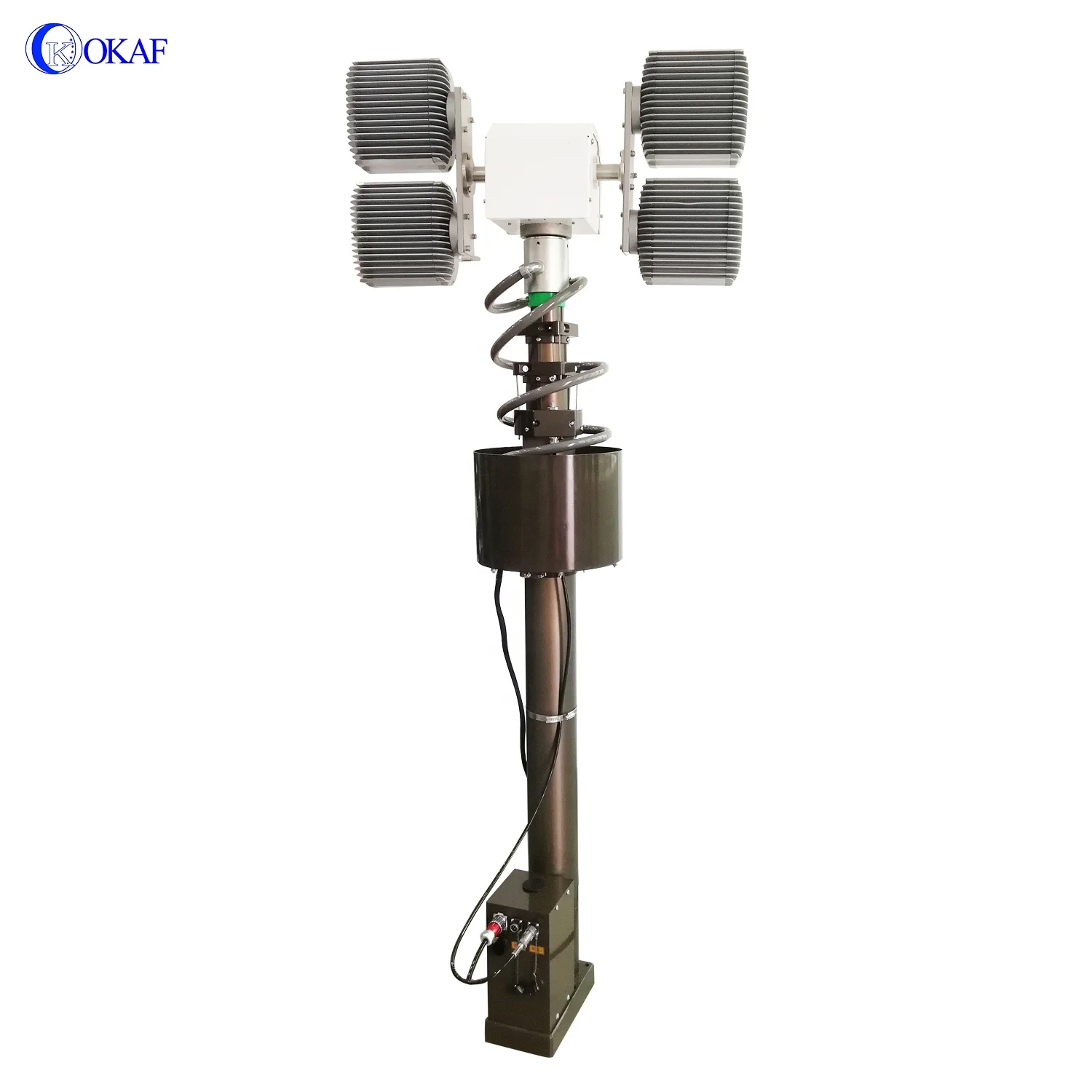

On the top there are 4 led lights. We usually provide 4*120W /4*150W or 4*200W led lights according to customers requirements. The Luminous flux is more than 48000 lumen.
Details of Electric telescopic Mast Light Pole
Applications of OKAF Electric telescopic light mast
1. High brightness. The luminous flux It is up to 24000 Lumen which is super bright and suitable for fire fighting rescue.
2. Easy to operate. One key start automatically; homing function; with protect function when the positive-negative power gets wrong connection.
3. Smart control. The high mast light is dual control by wired and wireless remote control. Control protocol RS485 Pelco-D/P protocol.
4. Space saving. Fold down design which is saving the space and easy to install.
5. Easy to get power. DC power operating entirely from the vehicle’s standard battery system which is ideal for vehicles without a generator.
6. Wide range application.It is widely applied to medium-size rescue, pumper rescue, service and utility vehicles or smaller wrecker vehicles.
7. Mobile lighting. integrated design, which is Perfect for police car, fire truck, ambulance, military vehicle mounted which need mobile video surveillance or mobile lighting for rescue.
Application
Electric telescopic antenna mast is helpful for telecommunication industrial. It meets the radio amateurs requirements that need to use antenna to enhance signal.
Telescopic Light Tower electric power could be install on small trailers for some construction site lighting system.
1.Wi-Fi antennas.
2. Temporary communications.
3. Emergency Light services (mobile Light tower for fire fighting rescue)
4. Mobile surveillance ( PTZ camera for law forensics)
4. Radio installation Surveying
5. Semi-permanent Installations for outdoor Events(Military or patrol surveillance)
6. Construction site surveillance( Telescopic Mast for mobile CCTV trailers for construction sites monitoring)
Packaging & Shipping
OKAF telescopic masts are well pack with standard export wood cartons, Which ensure customers get best quality products.
Accessories
| Model | OK-DD04SJ-4LED | OK-DD05SJ-4LED | OK-DD06SJ-4LED | OK-DD08SJ-4LED |
| Extended height | 4meter | 5 meter | 6meter | 8meter |
| Retracted height | 1.4m | 1.6m | 2.5m | 1.8 |
| Maximum diameter | 80mm | 80mm | 106mm | 106mm |
| Minimum diameter | 40mm | 40mm | 40mm | 40mm |
| Top payload | 25kg | 25kg | 20kg | 20kg |
| Number of sections | 4sections | 4sections | 6 sections | 6 sections |
| Light power | 4*120W 4*150W 4*200W | 4*120W 4*150W 4*200W | 4*120W 4*150W 4*200W | 4*120W 4*150W 4*200W |
| Wind power | Level 8/19m/SEC | |||
| Torsion precision | ≤±2º | |||
| Power supply | DC12V /DC24V for all kinds of vehicles/ trucks/trailer | |||
| Installation | Vehicle mounted / ground mounted by tripod | |||
| Control way | RS485 wired or wireless remote control | |||
Low temperature storage | -55℃ | |||
| Low temperature work | -40℃ | |||
| High temperature storage | 70 ℃ | |||
| High temperature work | 55℃ | |||
Humidity | Relative humidity 90%(temperature 25℃) | |||
Rain | 6mm/min continuous 1h | |||
Rated load | Lifting ≤120N | |||
Lifting speed | Average speed 4m/min | |||
| Safety | Self-locking at any height | |||
Accessories | Flange, Guy wires, ground anchors | |||
Company Information
Shenzhen Okaf Technology Co., Ltd has specialized in CCTV surveillance products such as vehicle PTZ Camera, 4G deployment dome camera, telescopic mast ( manual/ pneumatic and electric mast ), mobile cctv trailer since 2005. It is one of the most professional CCTV surveillance system developer & manufacturer in China nowadays. Our main products apply to public security departments such as: vehicle PTZ Camera, 4G deployment dome camera, vehicle mobile lifter, vehicle mobile lighting devices, police dynamic forensics system, highway patrol and rescue system, fire emergency rescue system, urban management law enforcement system, mobile commanding system, operation commanding system etc.
Our Services
Our Service
1. OEM manufacturing is welcome.
2. Sample order is available.
3. Most of the products are able to customized.
4. Fast reply within 12 hours as soon as we get your inquiry.
5. We will provide the most suitable solution for you when we get your requirement.
6. No worry if cooperate with OKAF. We will provide best service before sales and after sales. We are here always happy to help until you get the goods, test them and make sure everything is fine.
FAQ
Q1. What's the different between electric telescopic mast, manual telescopic mast and pneumatic telescopic mast ?
A1. Electric telescopic mast use electric winch to make the mast lifting. The top payload is similar to the manual telescopic mast. When there is no power, the eletric telescopic mast could also work by the manual hand crank. The manual telescopic mast work by hand crank, there is no power needed. Both the manual and electric telescopic mast could work in the very low temperature. The pneumatic telescopic mast top payload is much higher then the electric and manual mast. Pneumatic mast lifting by air compressor, it may not work in the temperature under 45 degree.
Q2.: Does OKAF electric telescopic mast works in all kinds of vehicle ?
A2: Sure. Our electric telescopic mast power supply could be DC12V/ DC24V. which allows to work in any vehicles/ trucks.
Q3. What's the extended height of electric telescopic mast could you make ?
A3.: We could do customize from 3 to 20m according to customer's requirements.
Q4. What could be installed on your telescopic mast ?
A5. You could install antennas, radio antennas, lighting protection, CCTV Camera, PTZ Camera, LED lighting etc on the telescopic mast.
Q5. Is it ok only buy electric masts without lights or camera?
A5. Sure. We could provide complete system including lights. if you have your own lights or you need telescopic mast for other purpose, we could also provide electric telescopic mast without lights or camera.
Q6. Can I have a sample order ?
A4. Yes. Sample order is welcome. You could order directly by Alibaba trade assurance. Any questions before order, please feel freely to contact us freely. We will reply within 2 hours.
