Профессиональный специальный разъем RJ12 6P6C совместимый с Wedo 2 0 или шипами аксессуарами для
- Категория: Connectors and Accessories >>>
- Поставщик: Dongguan,City,Coorle,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 1.42 $* | 1.24 $* |
| Jul-20-2025 | 1.34 $* | 1.89 $* |
| Jun-20-2025 | 1.2 $* | 1.58 $* |
| May-20-2025 | 1.5 $* | 1.52 $* |
| Apr-20-2025 | 1.58 $* | 1.54 $* |
| Mar-20-2025 | 1.26 $* | 1.96 $* |
| Feb-20-2025 | 1.21 $* | 1.18 $* |
| Jan-20-2025 | 1.23 $* | 1.88 $* |
Характеристики

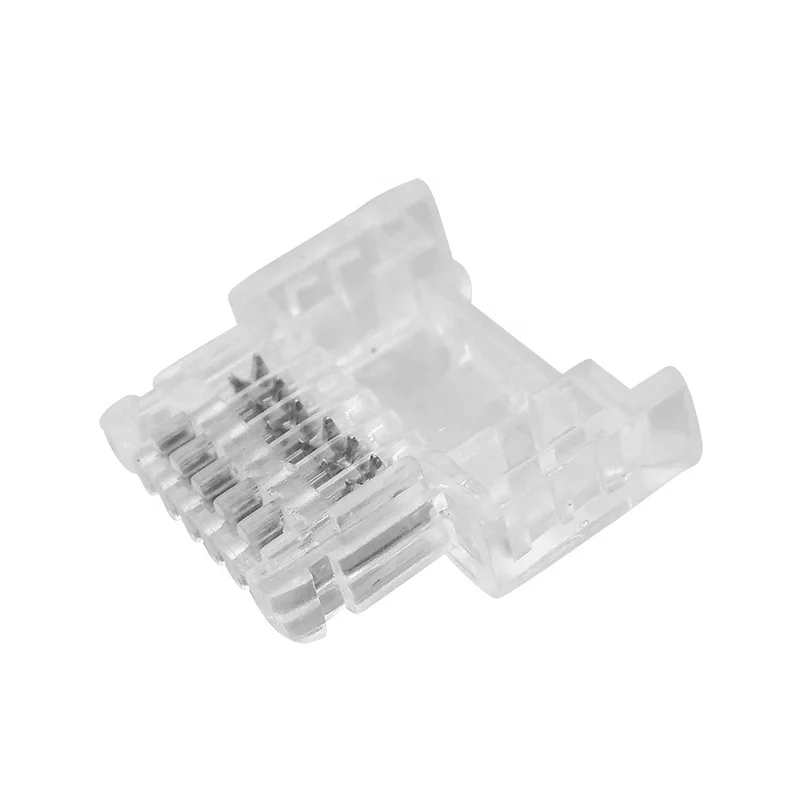

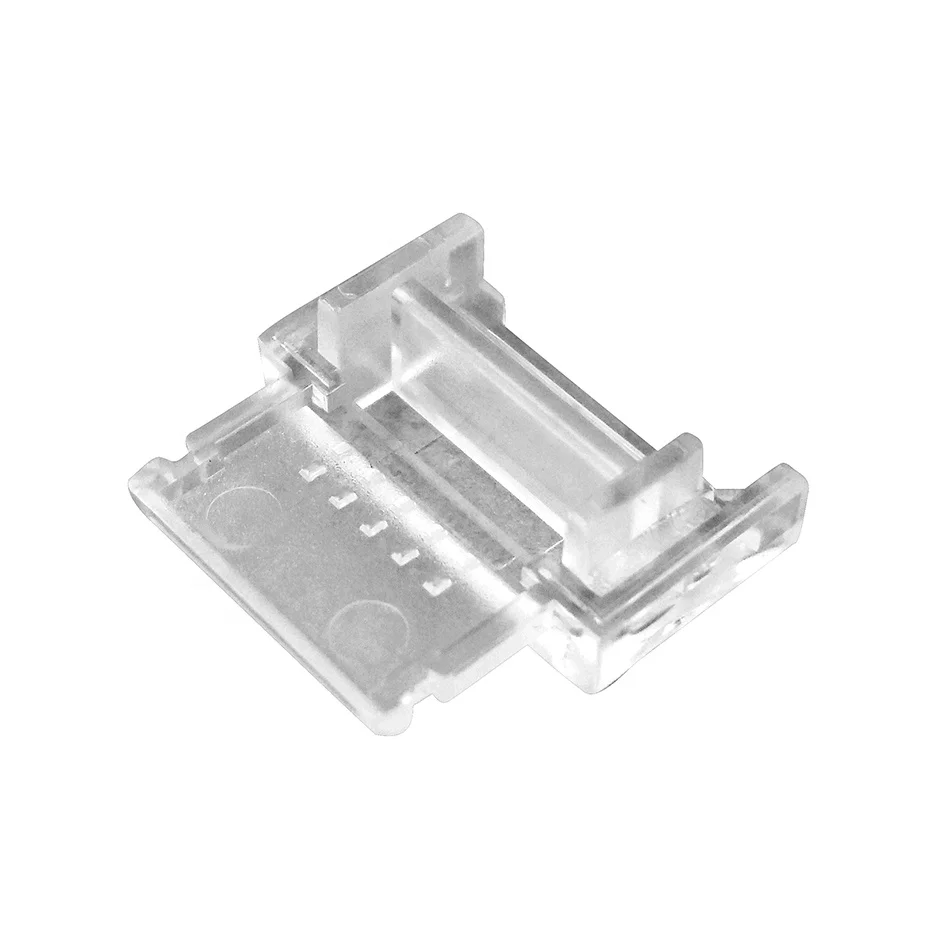

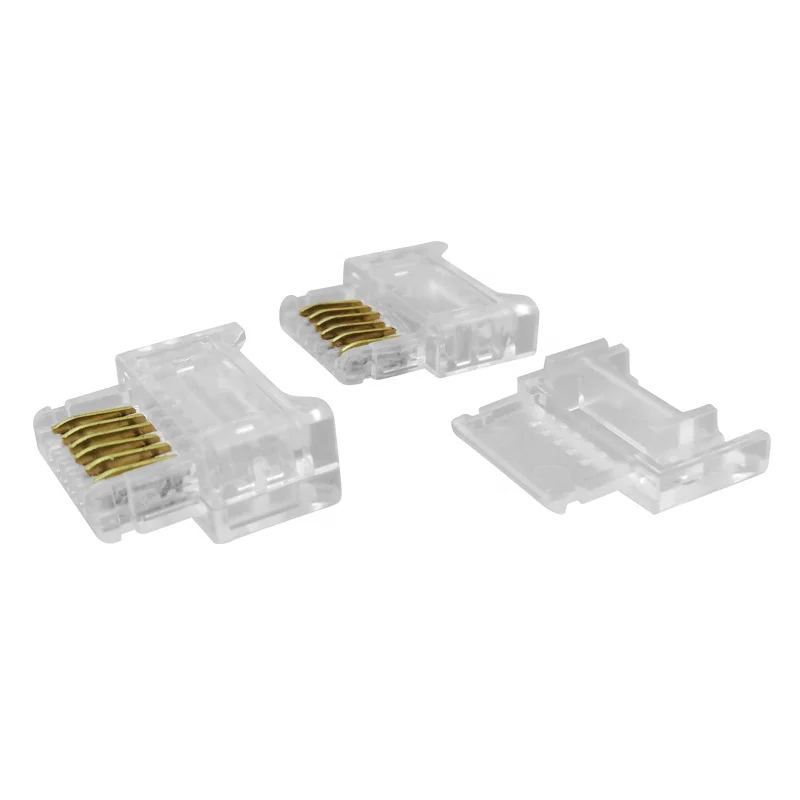

Detailed Images
Product Description
| ELECTRICAL | |
| CURRENT RATING: | 1.5 AMPS |
|---|---|
| VOLTAGE RATING: | 125 VAC RMS |
| INSULATION RESISTANCE: | 1000 MΩ Min. @ 500V DC EIA-364-21C |
| WITHSTAND VOLTAGE: | 1000 V AC OR 1500V DC RMS @0.5mA 50Hz / 60Hz 1 Minute EIA-364-20B |
| CONTACT RESISTANCE: | 1XN ROUND PIN 35 mΩ Max./ 1XN FLAT PIN 45 mΩMax./ 2XN ROUND PIN 40 mΩ Max./ 2XN FLAT PIN 50 mΩMax. EIA-364-23 |
| MECHANICA | |
| MATING/UNMATING FORCE: | 22N / 2.27kg Max. EIA-364-13B |
| RETENTION STRENGTH: | 57.83N Min./ 30N Min. EIA-364-98 |
| DURABILITY: | 750 MATING/UNMATING CYCLES Min. |
| ENVIRONMENTAL | |
| OPERATION TEMPERATURE: | -40℃~+85℃ / -20℃~+70℃ |
| STORAGE TEMPERATURE: | -10℃~+40℃ RELATIVE HUMIDITY<80% |
| MATERIAL | |
| HOUSING: | PBT/PA46/PA66/ABS/PC, UL94V-0 OR UL94V-2 |
| TERMINAL: | DIAMETER 0.46mm/THICKNESS 0.35mm PHOSPHOR BRONZE,SELECTIVE GOLD PLATING OVER NICKEL |
| GOLD PLATING: | Fu inch , G/F inch, 3u inch, 6u inch,15u inch, 30u inch, 50u inch |
This form content is standard information, for reference only. If you need more detailed data about this product, please contact us. After receiving the inquiry, we will answer and provide help for you as soon as possible.
- Product model specifications and product quality shall be inspected according to the samples, drawings or standards confirmed by both parties, consistent with the samples.
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.
If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.
