Introduction of Mobile Hydraulic Crank-arm Lifting Platform

The crank-arm lifting platform can be divided into straight arm and crank arm according to the way of arm deployment. It is Widely used in factory, automatic warehouse, exhibition hall, wharf, construction, decoration, logistics, power, transportation, petroleum, hotel, gymnasium, industry and mining, enterprises and other high-altitude operations and maintenance.  It can be designed and manufactured according to individual requirements.



Features:



1. The turntable rotates 360 degrees .

2. Storage height 2 meters, easy to pass through the doorway;

3. Easily works in crowded sites;

4. Loading limited , safety;

5. Two people work with tools at the same time.

6. Control of all actions with single handle;

7. Two-wheel drive;

8. Fast lifting speed, zero tail swing, suitable for working in mall space places

9. It is durable, reliable and easy to maintain. 007



Parameter of Mobile Hydraulic Crank-arm Lifting Platform

Model (platform height)	Working height	Dimensions	Maximum working radius	Load	Total Weight
YLQB-8	9.5m	4100*1700*2700	2.5m	160-200kg	1600kg
YLQB-10.5	12m	4100*1700*2700	2.5m	160-200kg	1600kg
YLQB-12	13.5m	4100*1700*3050	3.8m	160-200kg	1700kg
YLQB-12.5	14m	4100*1700*3050	3.8m	160-200kg	1700kg
YLQB-13	14.5m	4100*1700*3250	4m	160-200kg	1800kg
YLQB-13.5	15m	4100*1700*3250	4m	160-200kg	1800kg
YLQB-14	16m	4100*1700*3250	4.2m	160-200kg	1900kg

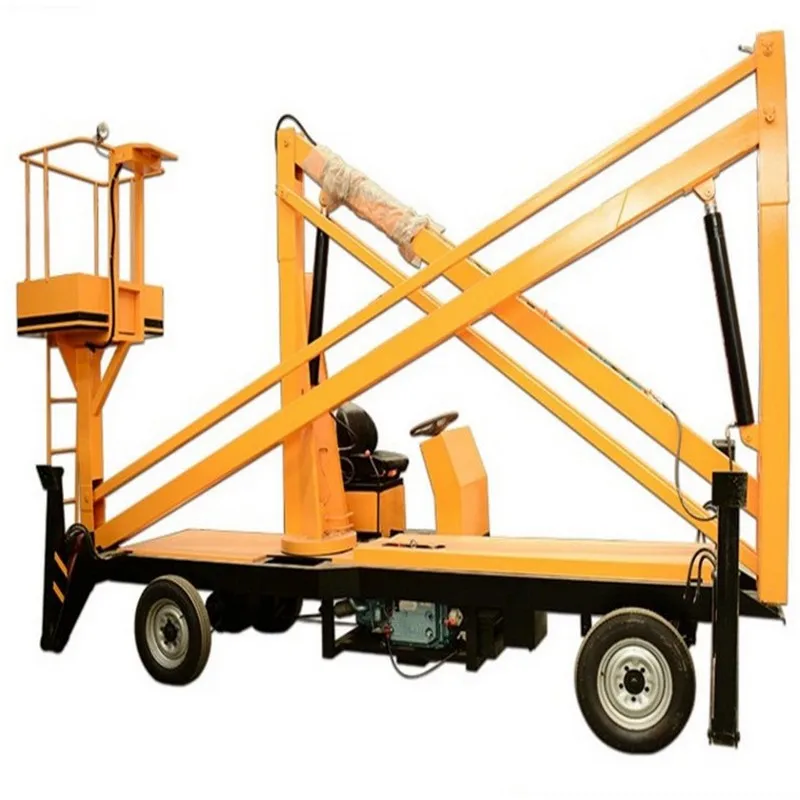

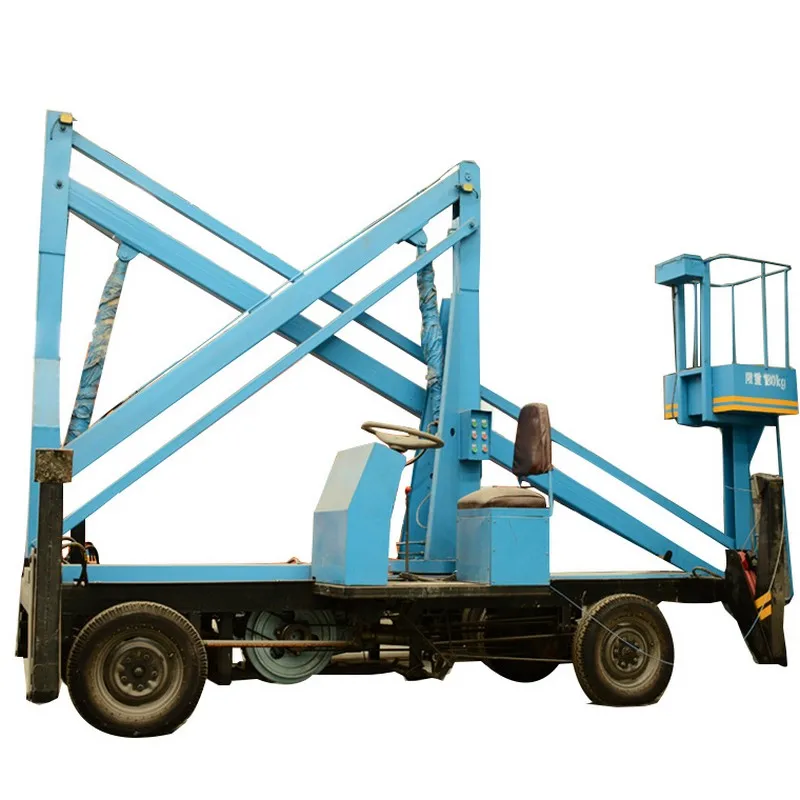

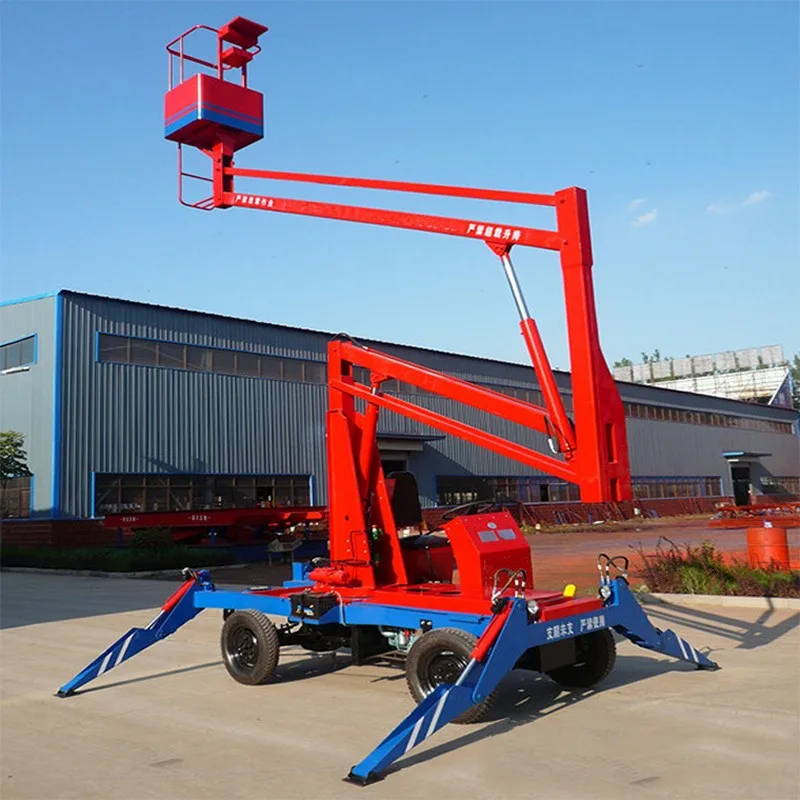

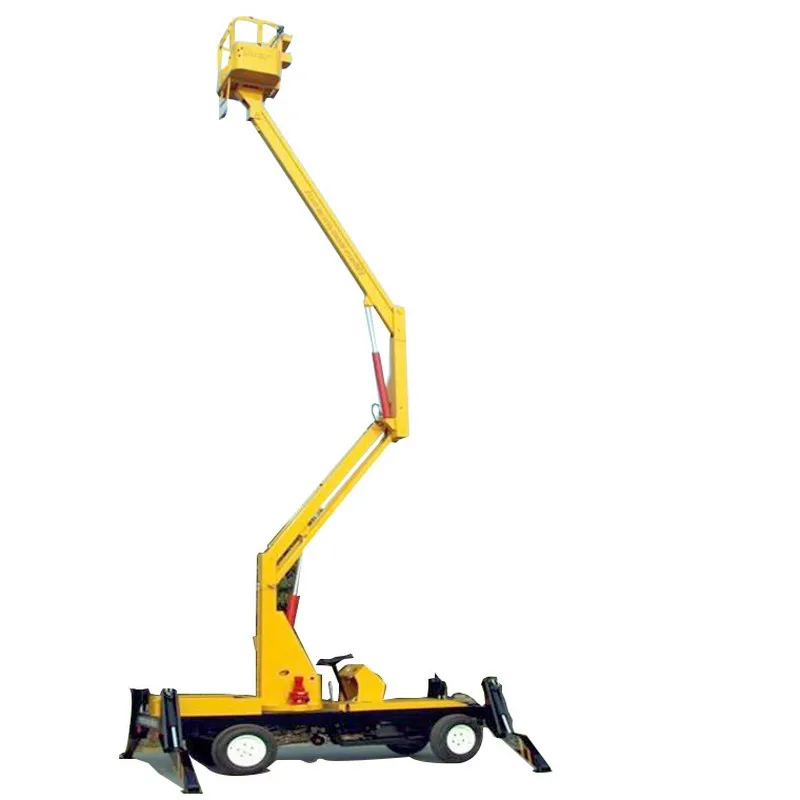

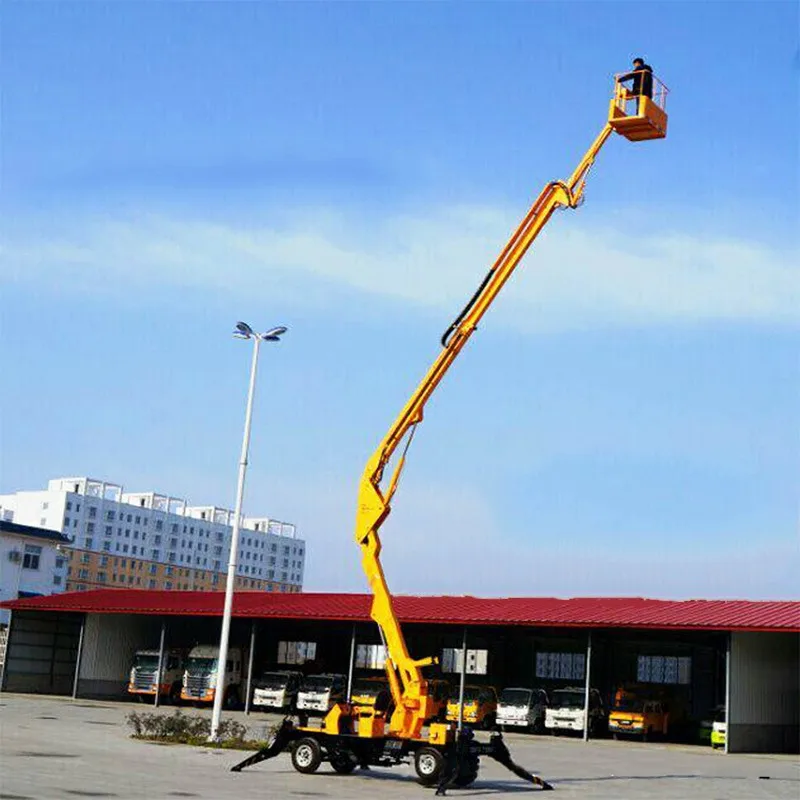

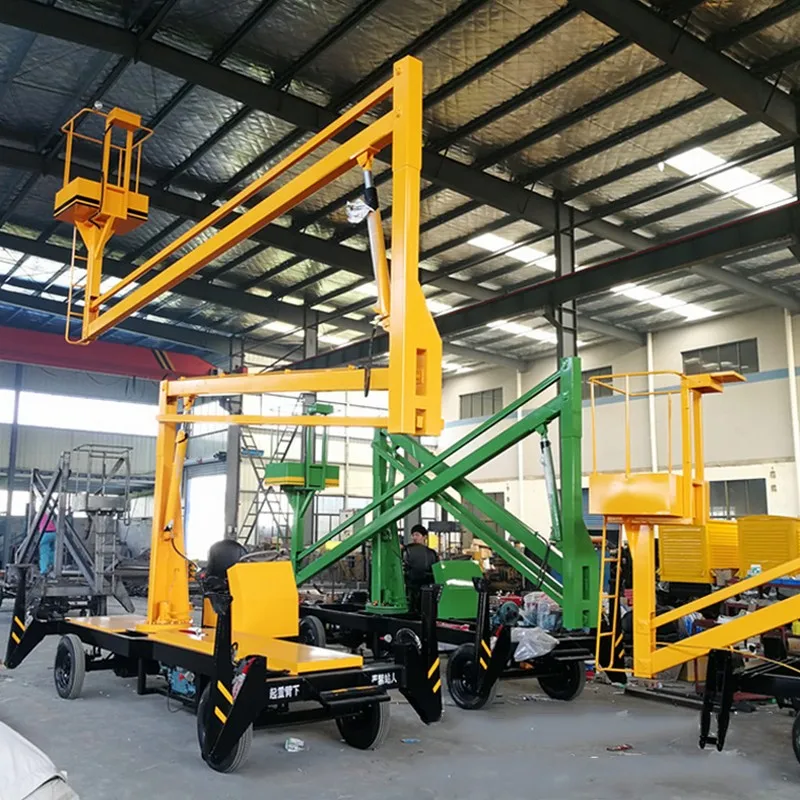

Photos of Mobile Hydraulic Crank-arm Lifting Platform
