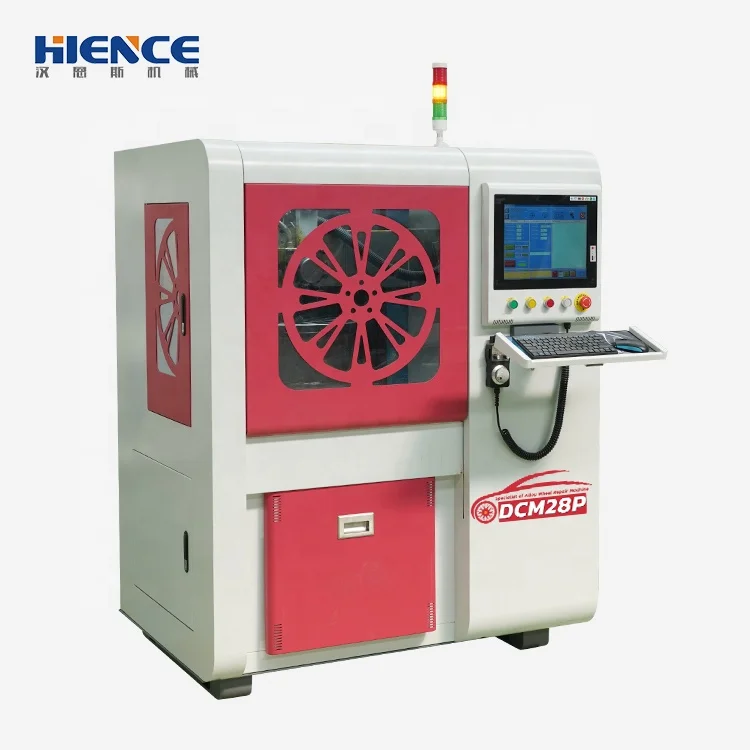

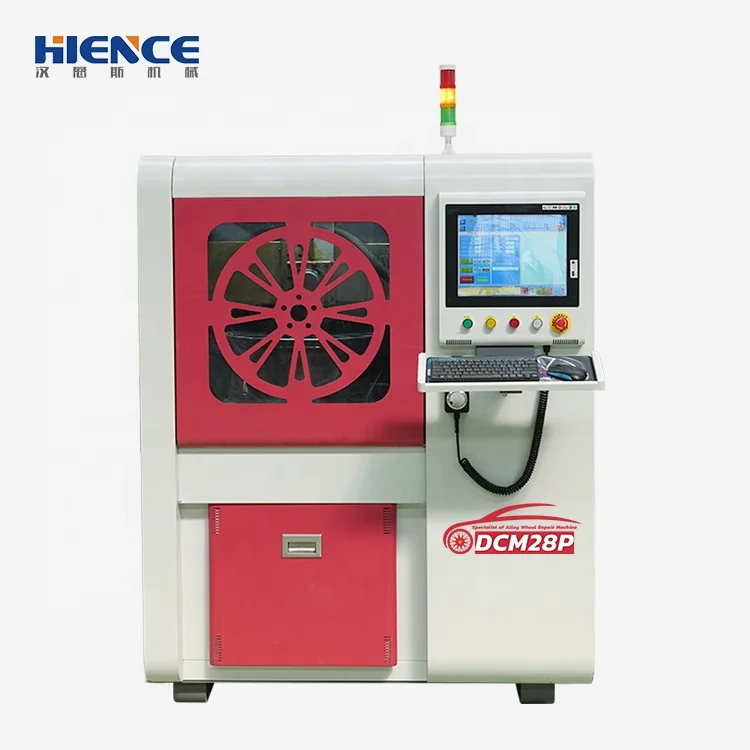

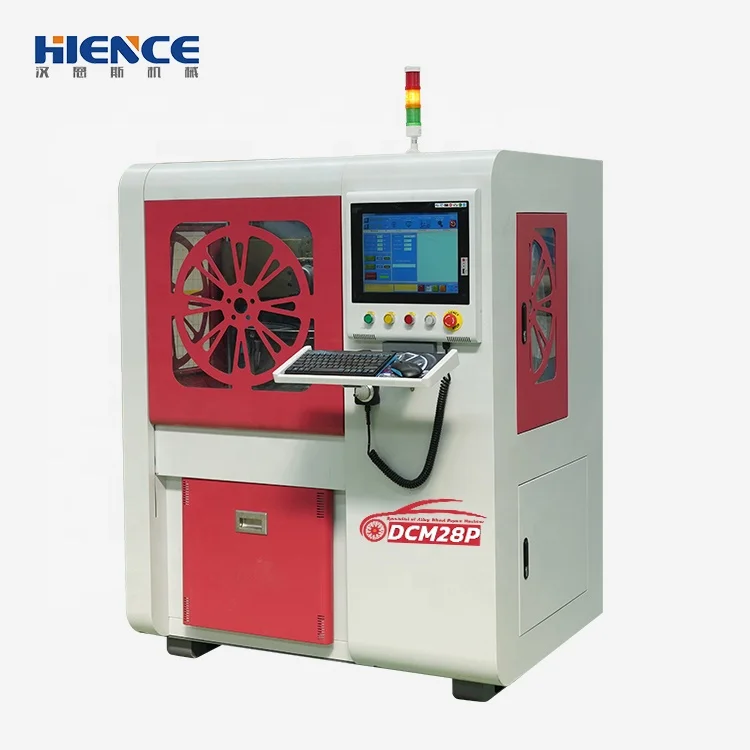

Our company developed the vertical wheel repair lathe. The machine covers a small space, can be designed to meet different space request.The 2 axis of wheel lathe adopt the most stable gantry structure.The structural body is made of cast iron and resin sand casting. The Z axis is driven by four linear guides, double ball screws and double servo motor. Meanwhile, the counterweight is used to balance the z-axis with a large load bearing capacity,which effectively ensures the influence of the two axes due to different stress structures. The cutting feed in the process of wheel repair can keep sensitive control response and achieve the perfect alloy wheel repair effect.

ITEMS	DCM28P
Max. swing over bed (mm)	700
Max wheel repairable size (inch)	5’’~28’’
X axis guide rail type/Number	Linear guide rail / Double
X axis driving torque	6N.M
Z axis guide rail type/Number	Linear guide rail
Z axis Driving motor power	10N.M
Range of spindle speed (RPM)	50~1500
Spindle speed control	Servo control
Spindle motor power	4KW (Servo motor)
Min. setting unit of motor	(Z) Long   12m/min, (X) Cross  16m/min
Moving speed of post	(Z) Long   12m/min, (X) Cross  16m/min
Stations of tool carrier	4 position
Tool holder control method	Automatic
Machine size(L/W/H) (mm)	1300×1050×1630
Net Weight	1090KG

DCM28P Wheel repair lathe Advantages:

l The Max.wheel repair size can up to 26 inch;

l Two-axis adopts linear guide rails and ball screws for precise control;

l The gantry structure can ensure perfect wheel repair effect from the center to the edge;

l Cast iron body, strong rigidity, avoiding the vibration texture caused by the wheel during the cutting process;

l The main servo motor can maintain strong torque at different speeds;

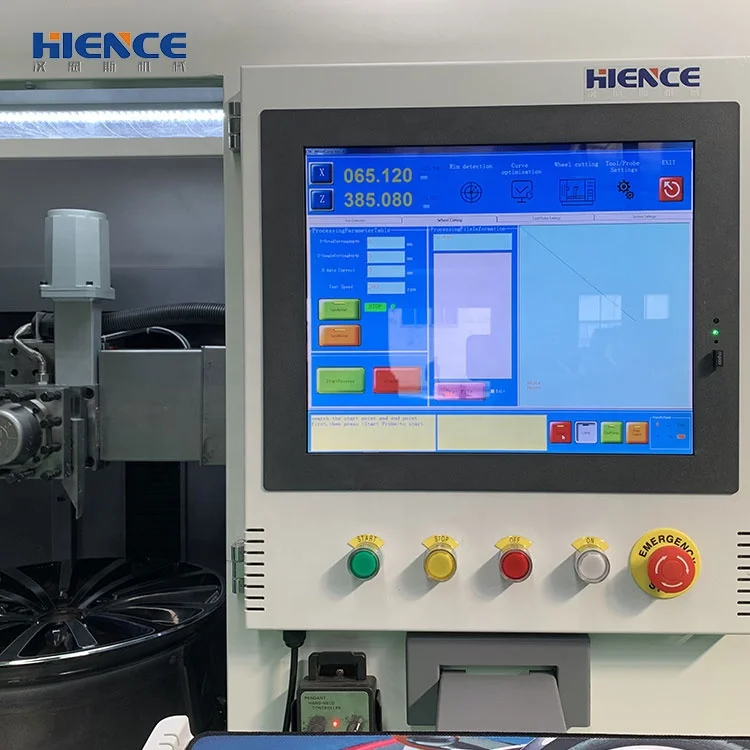

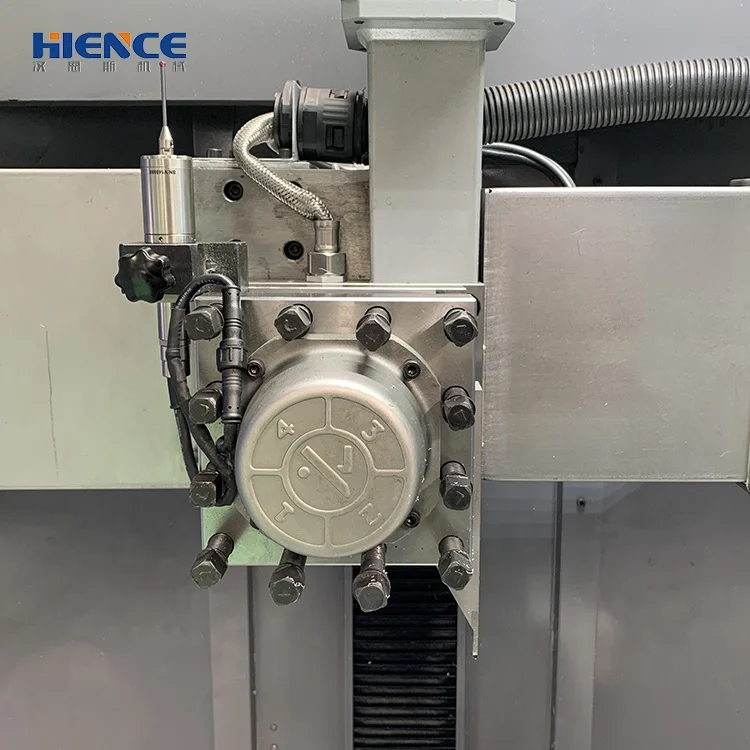

l Automatic tool holder: the tool and detection station conversion can be realized by CNC system;

l Guide rail and screw are fully closed and protected to avoid precision damage caused by the entry of aluminum chips;

l Automatic lubrication system is used for main moving parts;

l Can choose different machine appearance;



Q:What is the difference between vertical wheel repair machine and horizontal machine ?

A:The vertical machine is more convenient to clamp wheel and occupy a smaller space; But in terms of the force structure of the 2 axis, the horizontal machine is superior to the vertical machine, but we solved the problem, so if you choose the vertical machine, please carefully choose the experienced manufacturer.



Q:What is the advantages of your vertical wheel repair machine ?

A:The 2 axis adopt the most stable gantry structure.The structural body is made of cast iron and resin sand casting. The X/Z axis is driven by linear guides, double ball screws and servo motors. The machine uses perfect structure and parts to achieve the perfect alloy wheel repair effect.



Q:Is the operation of the machine easy to learn and operate?

A:Our company provides detailed operate instructions and training videos. Our professional after-sales service team can provide remote technical guidance to help customers carry out systematic and comprehensive learning; Customers can learn and master all operations in a short time from our company's market experience in more than 80 countries around the world. Customers can also choose to arrive our factory for free training, or provide paid face-to-face training services to customers' countries according to customer requirements.
