Product Overview

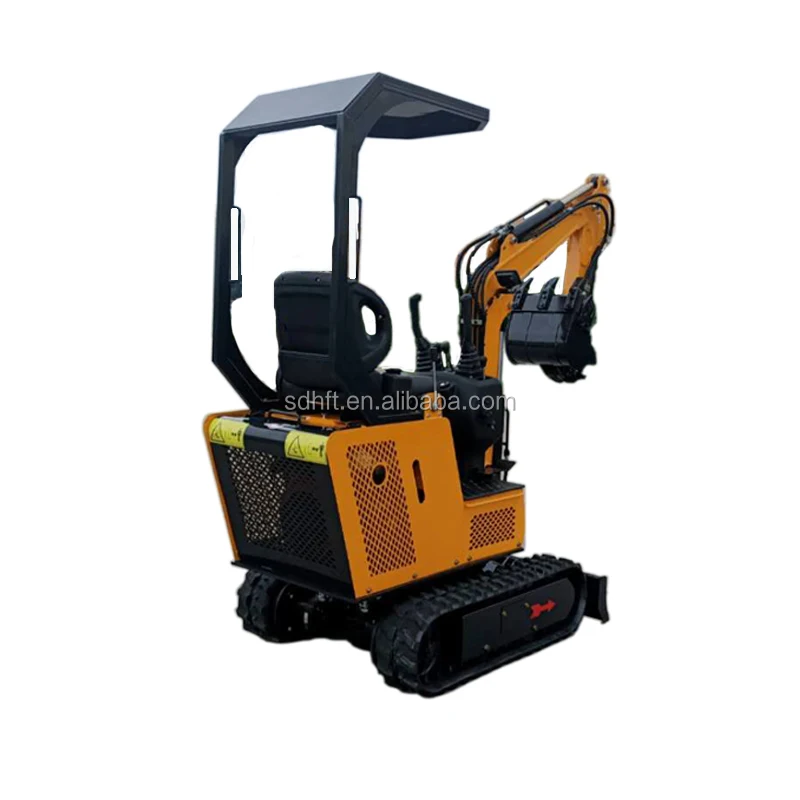

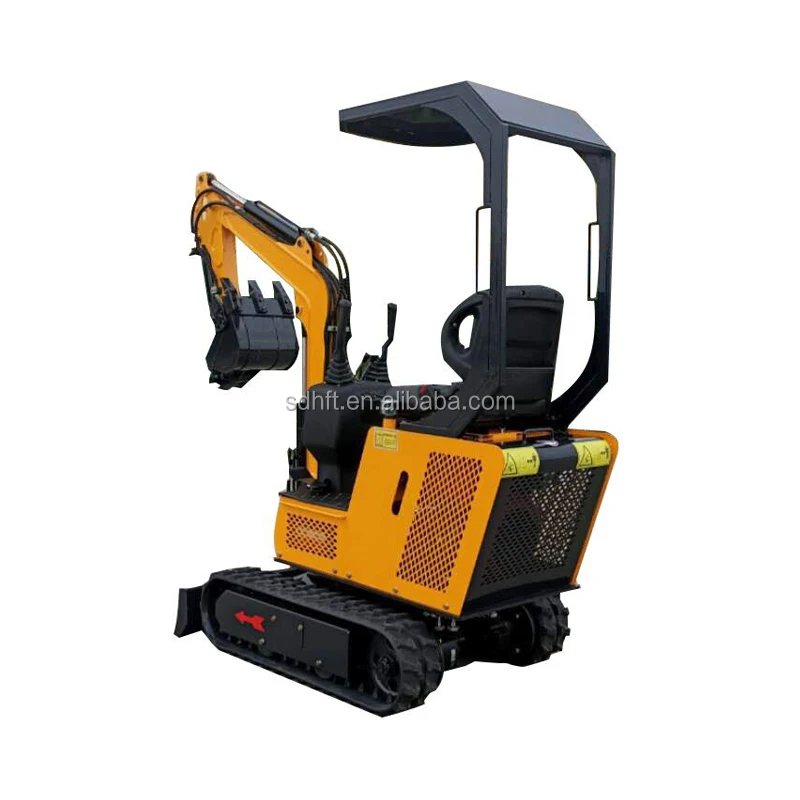

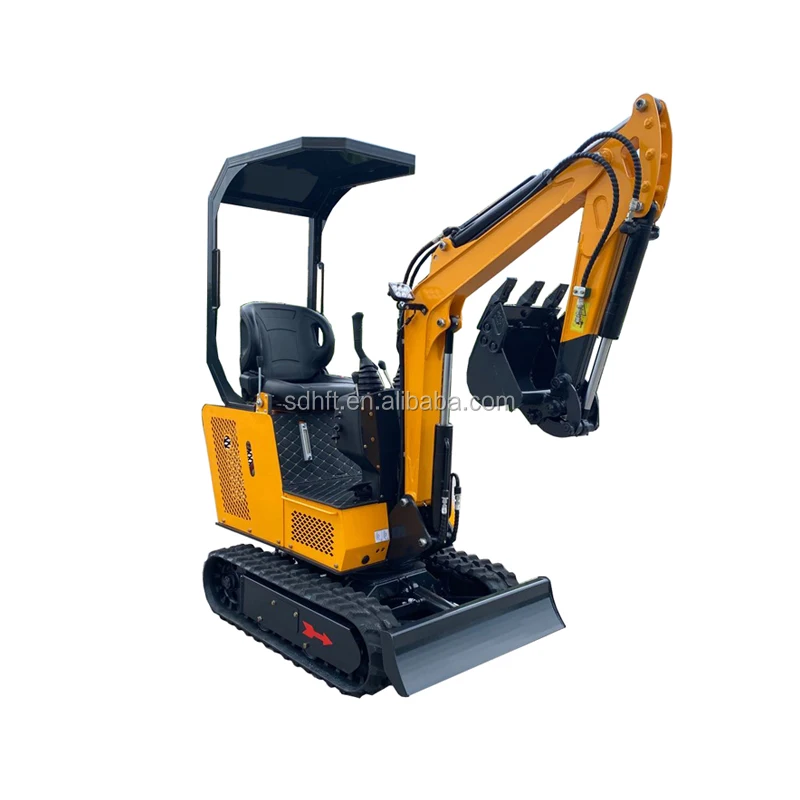

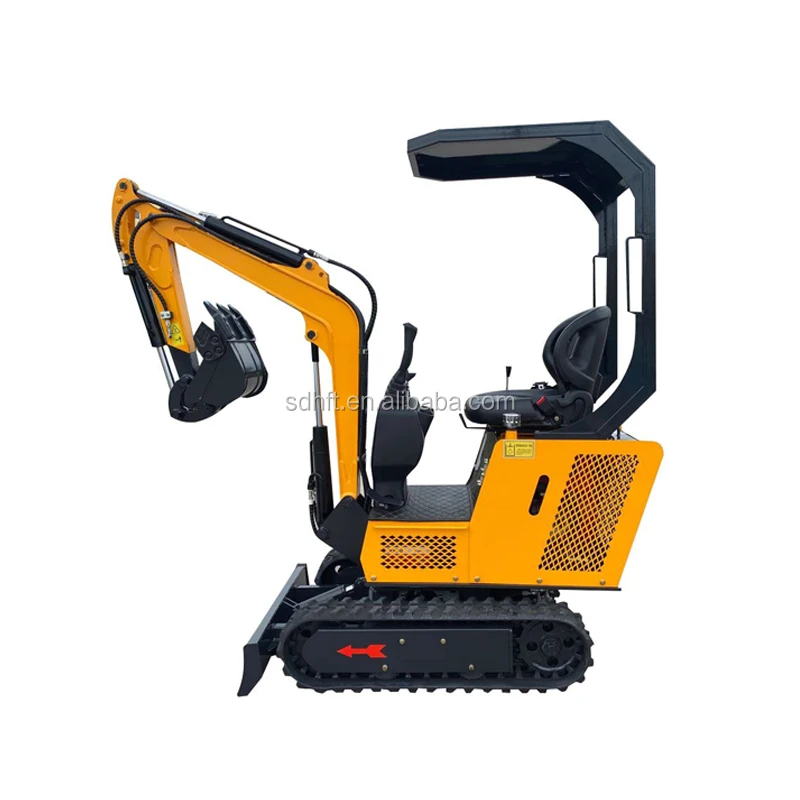

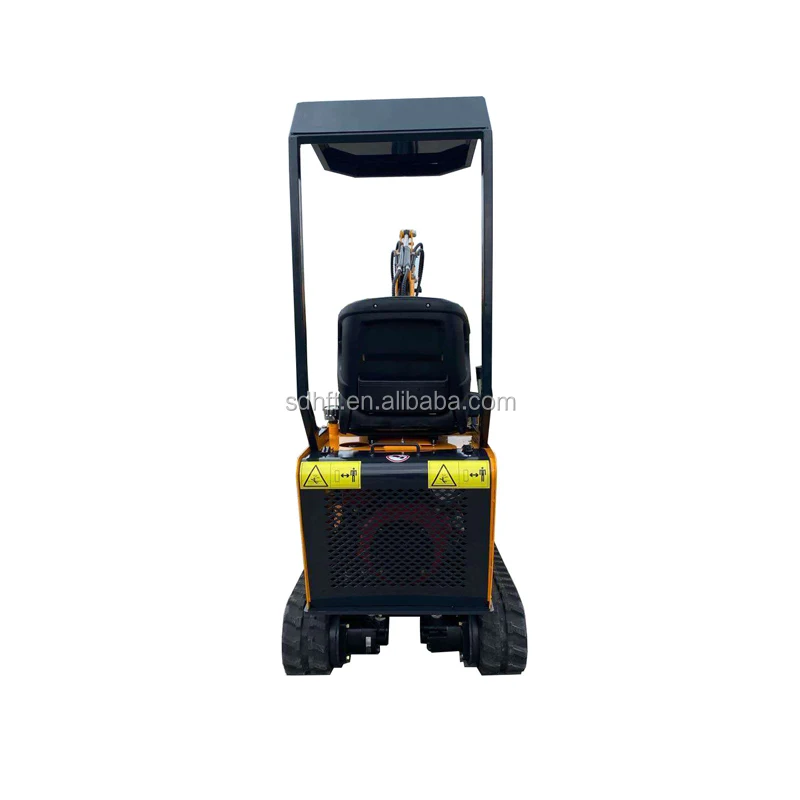

HFT10-1 1000kg Mini Excavator
HFT10 hydraulic excavator has beautiful design, its platform can rotate 360 degrees. The excavator is equipped with rubber track, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
Advantage:
High-end seats
Built-in breaker pedal
Standard excavator with timer
Excellent hydraulic system, E ATON motor SHIMADZ U pump
High-end seats
Built-in breaker pedal
Standard excavator with timer
Excellent hydraulic system, E ATON motor SHIMADZ U pump
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | HFT10 |
2 | Operating Weight | 1000kg |
3 | Digging bucket capacity | 0.02cbm/120kg |
4 | Maximum digging force | 7.5Kn |
5 | Engine | KOOP |
6 | Rated power | 8.6 Kw/3600rpm |
7 | Displacement | 0.211 L |
8 | Main pump | single cylinder, fan cool |
9 | Valve | BEIFANG |
10 | Displacement | 6.8ml/r |
11 | Swing motor | SJ-TECH (MP-1-160) |
12 | Traveling motor | KERSEN (OMS-2450) |
13 | Overall dimension( LxWxH) | 2480x720x1375 mm |
14 | Total length of track on land | 1140mm |
15 | Platform ground clearance | 80 mm |
16 | Platform back turning radius | 784 mm |
17 | Chassis width | 720mm |
18 | Track width | 150 mm |
19 | Chassis ground clearance | 132 mm |
20 | Track height | 320 mm |
21 | Max. Digging depth | 1440mm |
22 | Max. Vertical digging depth | 1375 mm |
23 | Max. Digging height | 2490mm |
24 | Max. Dumping height | 1700 mm |
25 | Max. Digging radius on ground | 2450 mm |
26 | Min. Rotation radius | 1190 mm |
27 | Max. Upgrade height of bulldozer blade | 325mm |
28 | Max. Digging depth of bulldozer blade | 275 mm |
PRODUCT CONFIGURATION
KOOP or EPA high power engine
Imported EATON control valve
Rubber track
SALES AND SERVICE NETWORK
Company Profile
Product packaging
Our Advantages
HFT mini excavators
1.The hydraulic system and Multi-valve of Korea and Japan adopt loop pressure compensation, load sensitive type valve, and non-pressure interference, so make the operation coordination.
2.Structural parts holes are made by full automatic numerical control fine boring, gap precision, well lubrication; surface with shot blasting, paint surface has strong adhesive force; cab and covering parts are processing with electrophoresis.
3.Full-Automatic welding, weld joint adopts ultrasonic flaw detection, achieved zero defect in weld.
4.Beautiful cab specially designed according to human engineering, and equipped with all-weather air conditioner, and a built-in cushion pad to reduce vibration. Making the driving environment safer and more reliable. It is featured by compact design, flexible movement and convenient operation.
2.Structural parts holes are made by full automatic numerical control fine boring, gap precision, well lubrication; surface with shot blasting, paint surface has strong adhesive force; cab and covering parts are processing with electrophoresis.
3.Full-Automatic welding, weld joint adopts ultrasonic flaw detection, achieved zero defect in weld.
4.Beautiful cab specially designed according to human engineering, and equipped with all-weather air conditioner, and a built-in cushion pad to reduce vibration. Making the driving environment safer and more reliable. It is featured by compact design, flexible movement and convenient operation.
