Ldm01brushless Электрический приводной вал с длительным сроком
- Категория: Axles >>>
- Поставщик: Ucom,(Guangzhou),Commercial,Industrial,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 233.10 $* | 245.24 $* |
| Aug-16-2025 | 231.67 $* | 243.19 $* |
| Jul-16-2025 | 194.77 $* | 204.53 $* |
| Jun-16-2025 | 227.7 $* | 238.2 $* |
| May-16-2025 | 198.37 $* | 208.35 $* |
| Apr-16-2025 | 223.73 $* | 234.72 $* |
| Mar-16-2025 | 221.23 $* | 232.87 $* |
| Feb-16-2025 | 220.0 $* | 231.87 $* |
| Jan-16-2025 | 218.81 $* | 229.43 $* |
Характеристики
Product Parameter
LDM01 /LDM02Series Transaxles
| Model NO. | LDM01-283-300 | LD01-355-500 | LD01-355-600 |
| Rate voltage | DC24V/36V/48V | DC24V/36V/48V | DC24V/36V/48 |
| Rate power | 300W | 500W | 600W |
| Gear Ratio | 1:19.75 | 1:19.75 | 1:19.75 |
| Free output RPM | 220RPM | 200RPM | 230RPM |
| Max output torque | 16Nm | 28Nm | 31Nm |
| Motor Diameter | 87mm | 87mm | 87mm |
| Brake torque | 4Nm | 4Nm | 4Nm |
| Motor Efficiency | 83% | 85% | 85% |
| Noise(db)(A) | ≤60 | ≤60 | ≤65 |

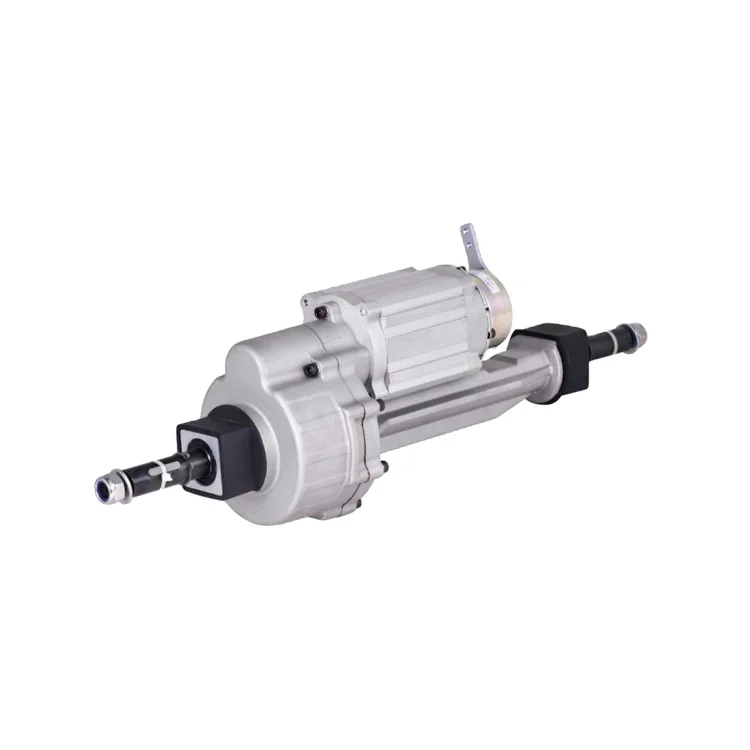

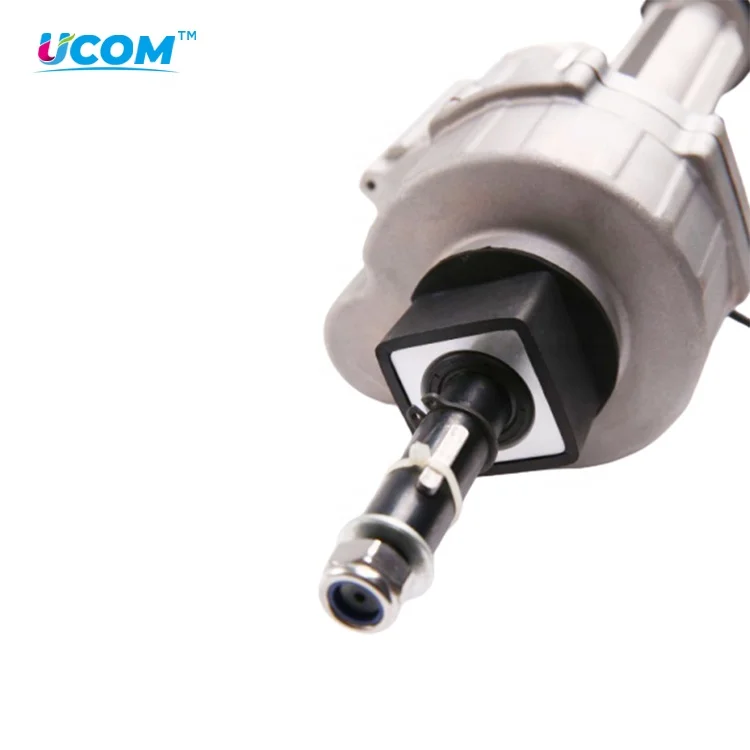

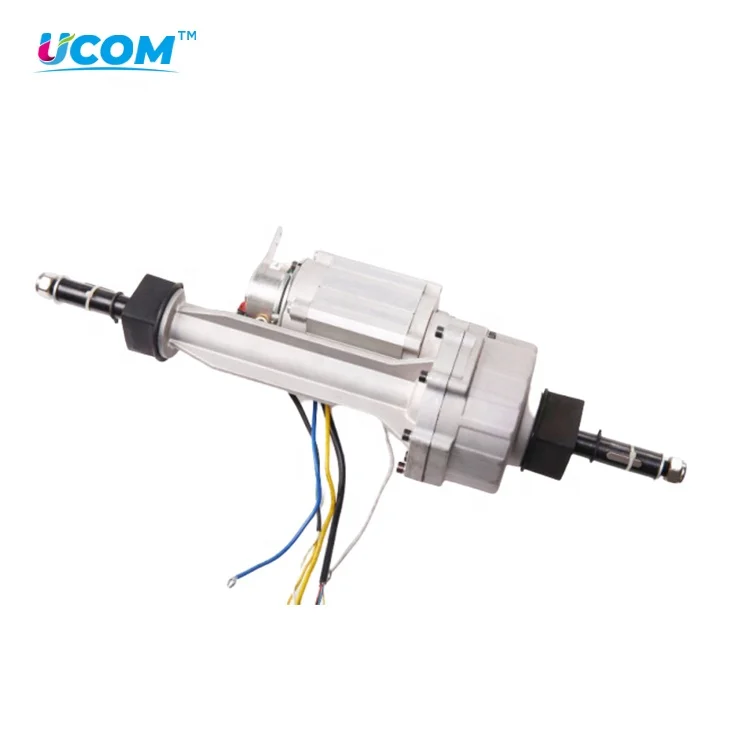

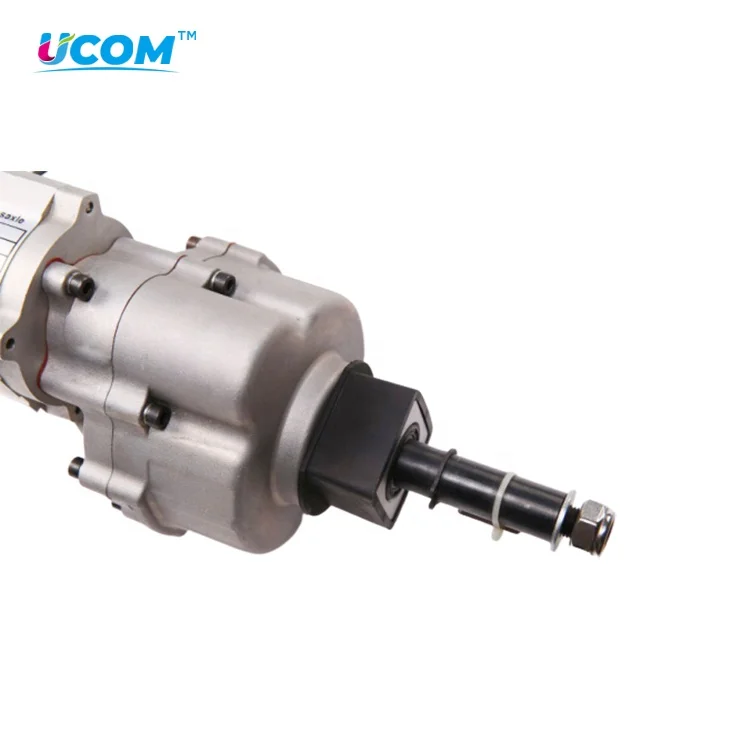

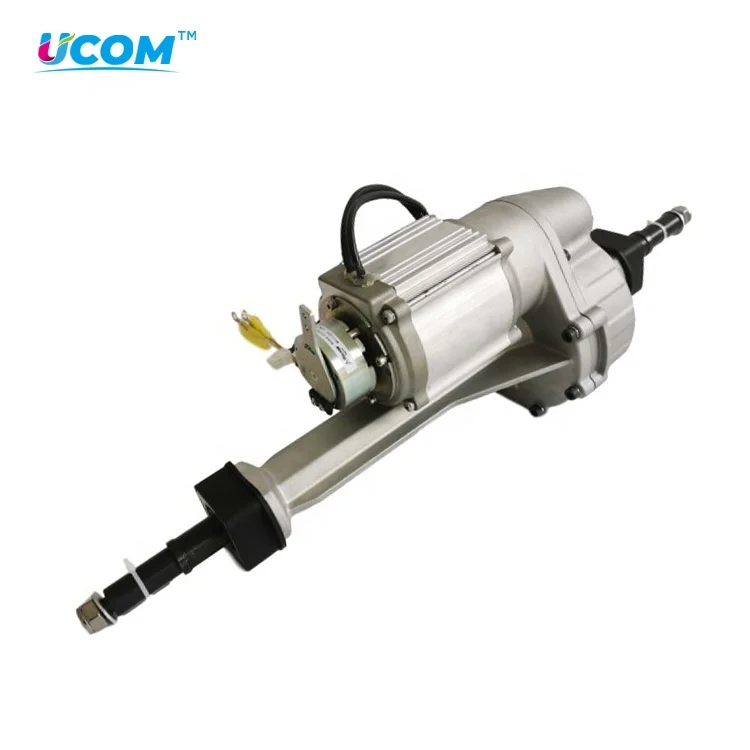

Product display
Application

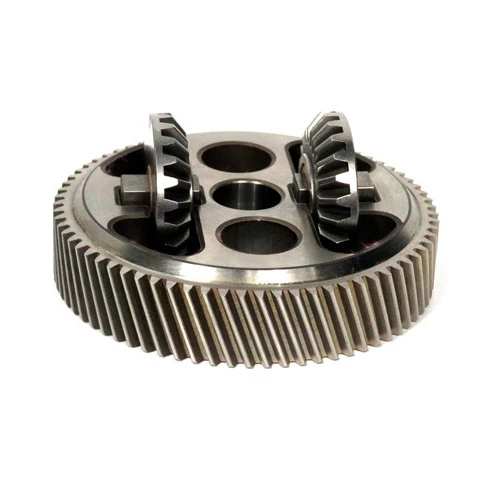

Electric Drive Axle is composed of a permanent magnet DC motor and a differential. It has the characteristics of small turning radius and high sensitivity.
Suitable for three-wheel and four-wheel electric vehicles that require rear drive. Specially designed for scooters, children's amusement vehicles, cleaning vehicles, dust carts, electric carts, and mobile trucks ,etc. Models can be selected and customized according to the requirements.
Factory
Packaging & Shipping
