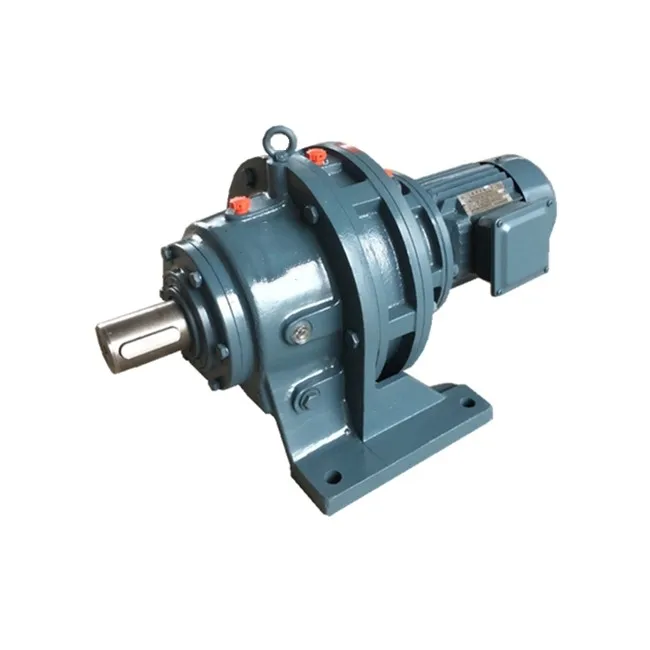

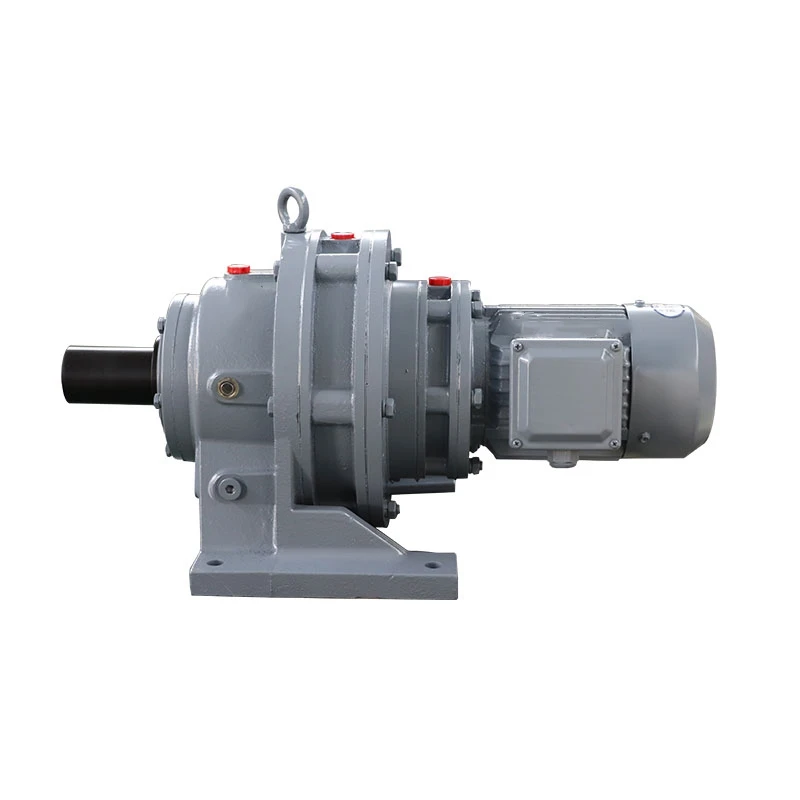

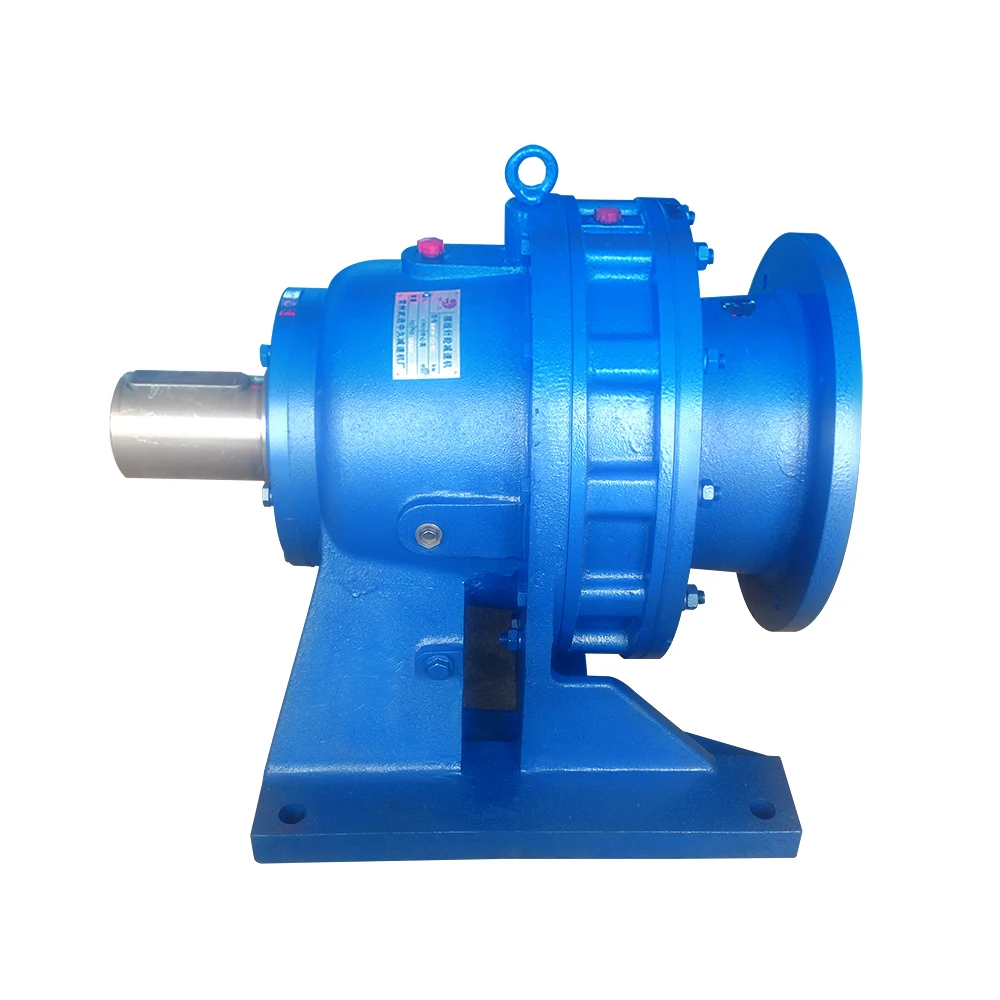

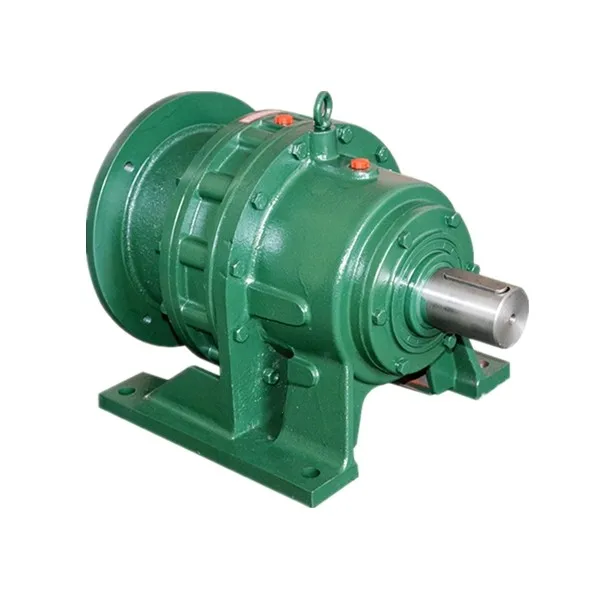

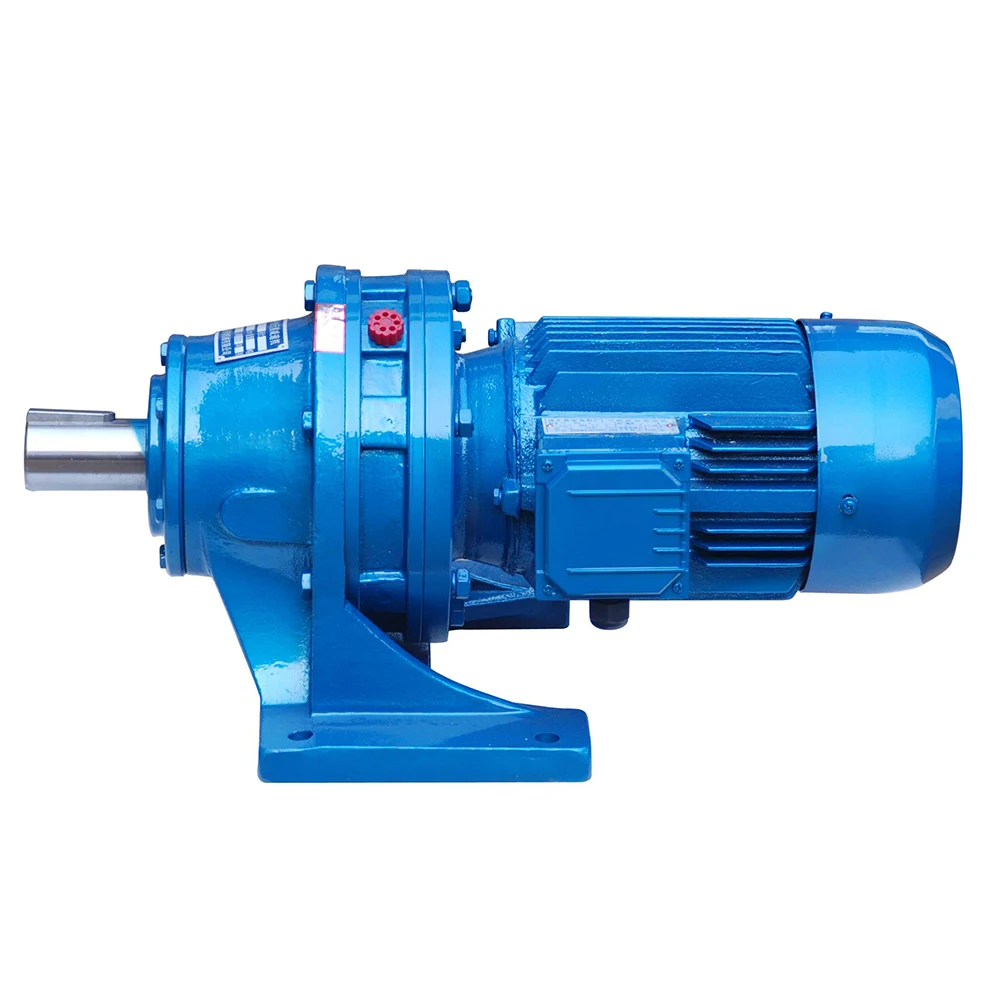

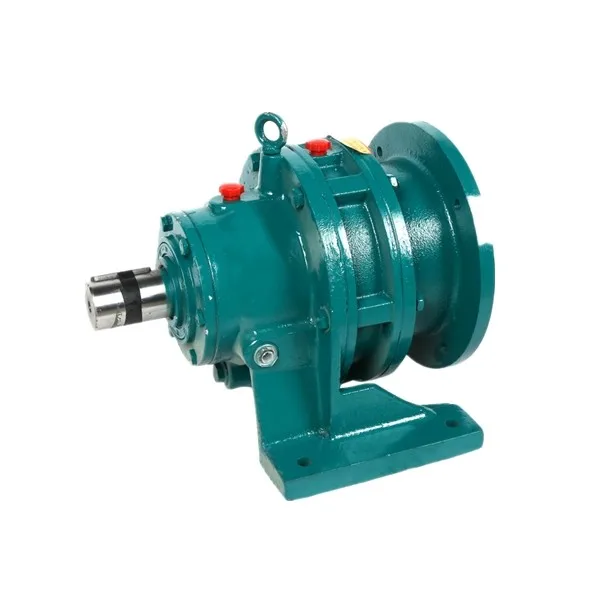

All planetary cycloidal reducer rotating device can be divided into three parts:input part,deceleration part and output part.
Dislocation on the input shaft is equipped with a 180℃ of double eccentric sleeve,equipped with two ball bearings on the eccentric sleeve,the formation of H two cycloid gear center hole is the eccentric sleeve on the turning arm bearing raceway,and by a groud of cycloid gear and pin gear ring of gear meshing,less bad tooth meshing reduction mechanism to form,(in order to reduce friction,in small ratio of speed reducer,the needle with needle teeth on the gear set).
When the input shaft with eccentric sleeve rotation for a week,as a result of the cycloid gear tooth profile curve characteristics and restricted by needle on the gear teeth,the movement of the cycloid gear becoming both revolution and rotation of the plane movement,and input shaft are
made for a week,eccentric sleeve also turn the week,cycloid gear in the opposite direction around a big tooth difference reduction is obtained, then with the help pf W output mechanism,the cycloid gear rotates at low speed movement through the pin shaft,passed to the output shaft,low output speed can be achieved.
The Designation of Cycloidal Reducers
Example: BL(E)D41-1225-0.37-WB: B series cyclo drive gearboxL: Vertical mounted with flange, Shaft downward(E): None-one stage, E-two stage, S-three stageD:Standard electric motors41: Model number 411225: Speed Reduction Ratio
0.37: Electric motor power:0.37kwW: Mounting way.
Basic Parameters
Power range: 0.25 - 90kW
Output speed(r/min): 0.011 - 161Output Torque(N.M): Top to 22920N.m
All models of this cycloidal motor reducer are
BW0、、BWD0、BW1、BWD1、BW2、BWD2、BW3、BWD3、BW4、BWD4、BW5、BWD5、BW6、BWD6、BW7、BWD7、BW8、BWD8、BW9、BWD9、BL0、BLD0、BL1、BLD1、BL2、BLD2、BL3、BLD3、BL4、BLD4、BL5、BLD5、BL6、BLD6、BL7、BLD7、BL8、BLD8、BL9、BLD9、
BWE20、BWED20、BWE30、BWED30、BWE31、BWED31、BWE41、BWED41、BWE42、BWED42、BWE52、BWED52、BWE53、BWED53、BWE63、BWED63、BWE74、BWED74、BWE85、BWED85、BWE95
BW12、BWD12、BW15、BWD15、BW18、BWD18、BW22、BWD22、BW27、BWD27、BW33、BWD33、BW39、WD39、BW45、BWD45、BW55、BWD55、
BL12、BLD12、BL15、BLD15、BL18、BLD18、BL22、BLD22、BL27、BLD27、BL33、BLD33、BL39、LD39、BL45、BLD45、BL55、BLD55、
BWE1512、BWED1512、BWE1812、BWED1812、BWE2212、BWED2212、BWE2215、BWED2215、BWE2715、BWED2715、BWE2718、BWED2718、BWE3318、BWED3318
XW0、XW1、XW2、XW3、XW4、XW5、XW6、XW7、XW8、XW9、XW10、XW11、XW12
XWD1、XWD2、XWD3、XWD4、XWD5、XWD6、XWD7、XWD8、XWD9、XWD10、XWD11、XWD12
XL0、XL1、XL2、XL3、XL4、XL5、XL6、XL7、XL8、XL9、XL10、XL11、XL1
XLD1、XLD2、XLD3、XLD4、XLD5、XLD6、XLD7、XLD8、XLD9、XLD10、XLD11、XLD12
XWED20、XWED32、XWED42、XWED53、XWED63、XWED74、XWED84、XWED85、XWED95、XWED106、XWED128
XLE20、XLE32、XLE42、XLE53、XLE63、XLE74、XLE84、XLE85、XLE95、XLE106、XLE128
XLED20、XLED32、XLED42、XLED53、XLED63、XLED74、XLEDK84、XLED85、XLED95、XLED106、XLED128
XJ0、JXJ0、XJ1、JXJ1、XJ2、JXJ2、XJ3、JXJ3、XJ4、JXJ4、XJ5、JXJ5、XJ6、JXJ6、
XJL0、JXJL0、XJL1、JXJL1、XJL2、JXJL2、XJL3、JXJL3、XJL4、JXJL4、XJL5、JXJL5、XJL6、JXJL6、XJE10、JXJE10、XJE20、JXJE20、XJE31、JXJE31、XJE41、JXJE41、XJE42、JXJE42、XJE52、JXJE52、XJE53、JXJE53、XJE63、JXJE63、
XJLE10、JXJLE10、XJLE20、JXJLE20、XJLE31、JXJLE31、XJLE41、JXJLE41、XJLE42
Reduction ratio mainly is 7,9,11,17,23,29,35,43,59,71,87,99,121,187,289,391,493,595,731,841,1003,1225,1505,1849,2065,2537,3481,4189,5133,7569.
Paint Color: Various
Material: Rugged cast iron or ductile housings
Lubrication: Grease or oil lubricated models available.
Seals: Nitrile material, dual lipped, double output seals available.
Working: 24 hours continuous available and shaft forward reverse
Reducer Reduction: Internal planetary gear mechanism with trochoidal curved tooth profile.
Atmosphere: Well ventilated location, free of corrosive gases, explosive gases, vapors and dust
Application :
• Conveyors • Sawmills and Wood Mills • Food Machinery • Wastewater Treatment• Mixers • Steel Mills • Automotive Plants • Construction Equipment• Paper Mills • Recycling Machines • Poultry Plants • Processing Plants• Oil Press Machine • Rotary Feeder
What are our unique advantages in making Cycloidal Reducers your choice factory infrastructure investment?
we can help you:
● Providing proper type gearbox and combined gearbox to meet your application needs;
● Better managing maintenance cost and lifting operation efficiency;
● Improving production capacity and boosting economic profitability.
cycloidal gear reducer is widely used in many industries such as Textile manufacturing and food industry. it is small but very good quality. This kind of gear reducer can divided into three parts, the input , the reduction part and the output shaft. There is a double eccentric locking collars in the input part. when input shaft turns a round, the eccentric locking collars will also turns a round so that transfer to the reduction part. to make the output shaft turns. so it make torques. Efficiency can get to 95% . Usually, there are two mounting way and this is vertical mounting.It can be widely used in industry of Coal, steel, machinery, chemical, textile, mixer etc. This can have one stage, two stages and three stages reduction gear. If you want it with flange, we can make. the price with flange or without flange is same.
How to choose a proper type of Gearbox : It is recommended that as much as possible of the following information be given in the enquiry or order so that a check can be made and advice given on the most suitable size of Worm Speed Reducer for any application.1.Type of prime mover.2. Horse-power of prime mover.3. Output torque required from driven member. 4. Input speed of gear unit.5. Output speed of gear unit. 6. Configuration of drive required and shaft disposition. 7. Total daily hours of running. If running is intermitteTo get the type-choose reference,please contact our technical rep or sales rep .
