Y3150 CNC ручной вертикальный мини дешевый зубчатый

Y3150 CNC ручной вертикальный мини дешевый зубчатый

Категория: Gear Cutting Machines >>>
Поставщик: Zhengzhou,Well-Known,Instrument,&,Equipment,Co.,Ltd.

Цена:7 500,00 $ - 8 600,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	8925.19 $*	9371.25 $*
Aug-16-2025	8850.26 $*	9293.39 $*
Jul-16-2025	7425.98 $*	7796.27 $*
Jun-16-2025	8700.18 $*	9135.88 $*
May-16-2025	7575.51 $*	7954.2 $*
Apr-16-2025	8550.76 $*	8978.40 $*
Mar-16-2025	8475.63 $*	8899.90 $*
Feb-16-2025	8400.62 $*	8820.80 $*
Jan-16-2025	8325.52 $*	8741.58 $*

Характеристики

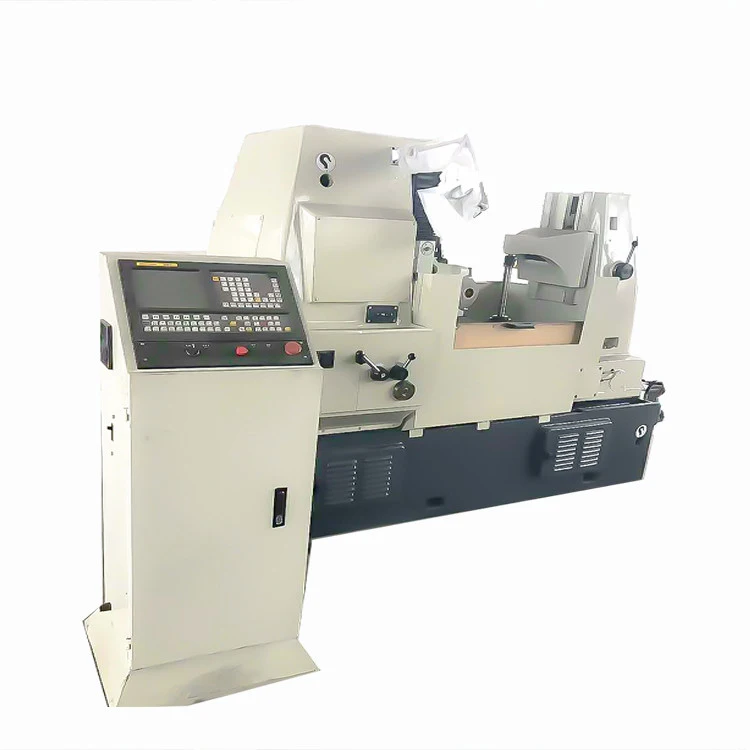

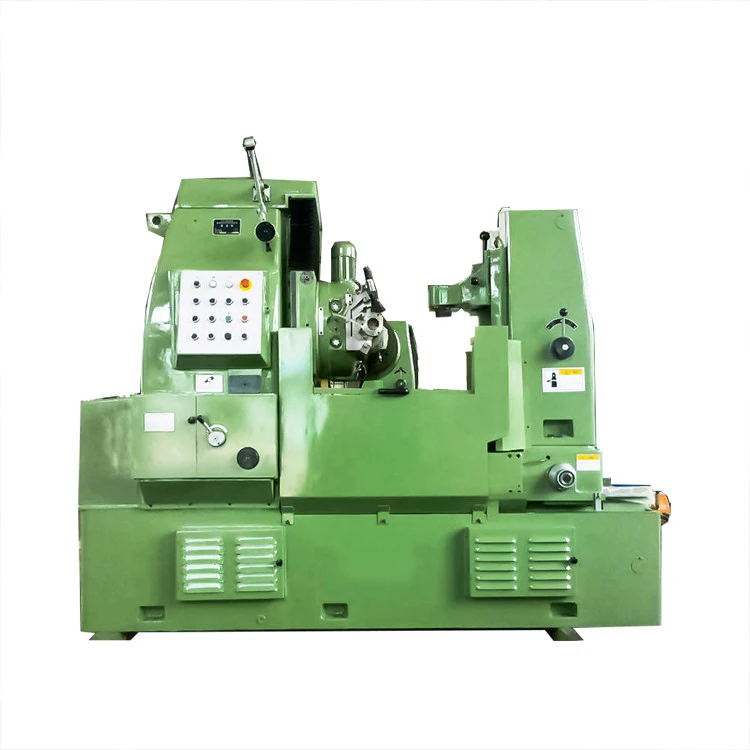

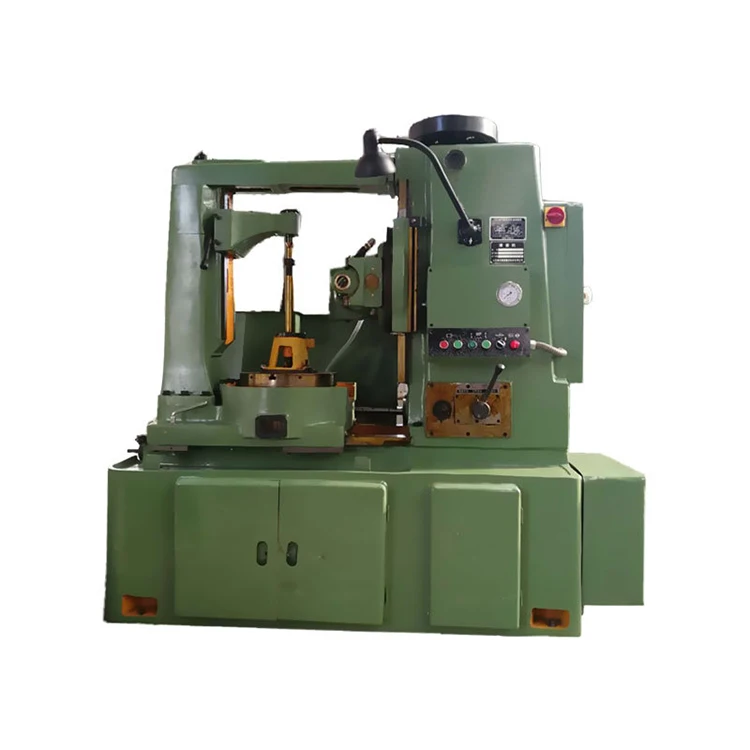

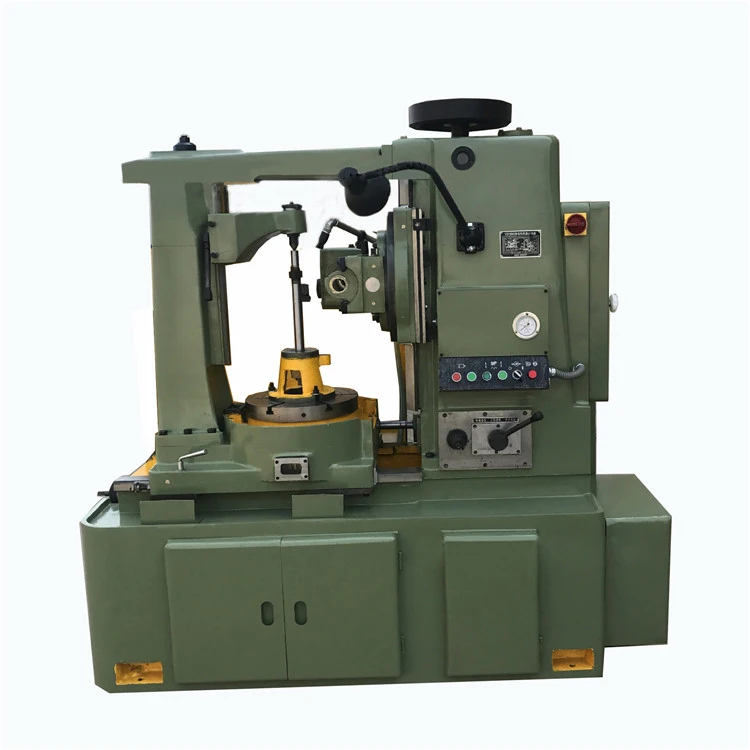

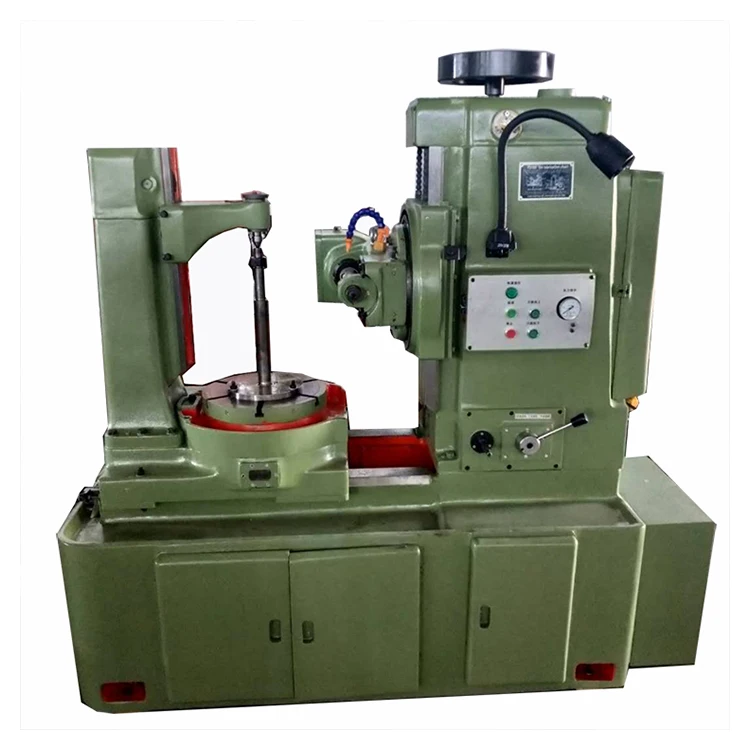

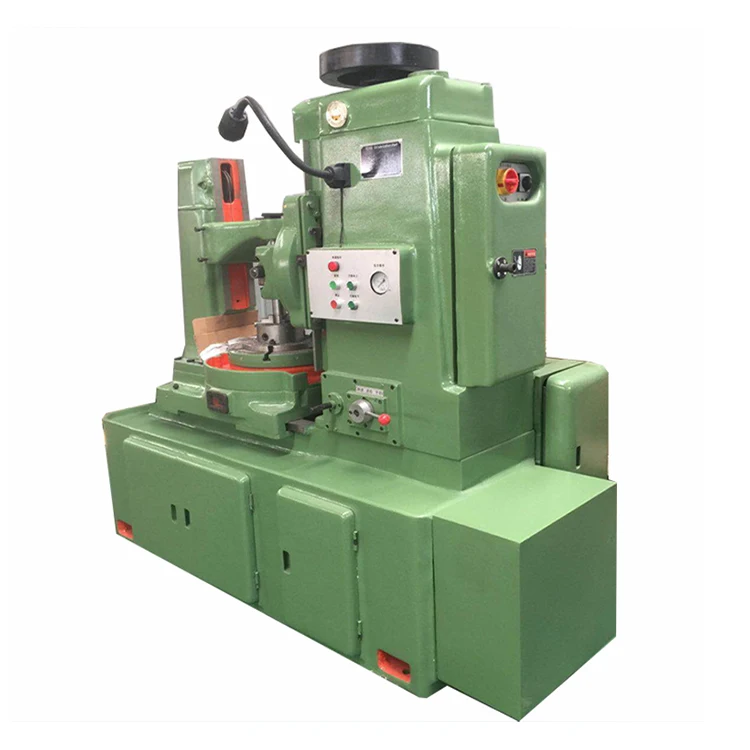

Y3150 CNC Manual Type Vertical Mini Cheap Hobber Gear Hobbing Machine

Product introduction:

The machine is suitable for processing a variety of cylindrical spur gears, helical gears and warrants. Suitable for single-piece production and batch production, such as with more than one of the same type of machine tool is the most reasonable way to use the number of machines dedicated to the use of fine grinding to ensure that the machine tool processing.

Product feature:

1.Using four-axis CNC system to achieve four-axis linkage

2.Machinable straight teeth, helical, small taper, drum and other gear

3.helical teeth can be easily 45 ° profile

4.Machinable splines, fewer teeth and other special gear gear

5.Machine bed, column and other major castings using high-rib plate structure and large rectangular plastic rail, compact structure, strong dynamic and dynamic

6.Machine rotation chain is short, high precision, processing accuracy can reach 6 The spindle adopts high-power servo motor, which can realize stepless speed regulation in cutting range

7.Tailstock top hydraulic automatic control

Product parameters:

SPECIFICATIONS	Unit	Y3150
Max.diameter of workpiece to be cut	mm	500
Max.cutting module	mm	Cast iron 6
Max.cutting module	mm	steel 5
Sliding plate stoke of tool carriage	mm	240
Max.Rotating angle(left,right)		45°
Max.diameter of hob	mm	120
Hob arbor diameters	mm	22,27,32
Hole diameter of work bench	mm	60
Grade of hob main axis spindle speed		8
Range of main axis spindle speed	r/min	50~275
Main mortor power	kw	3
Main mortor speed	r/min	1420
Cooling motor power	kw	0.12
Cooling motor speed	r/min	2760
Weight	kg	2400
Overall dimensions	mm	1825×960×1730
Gross Weight	kg	2700
Packing dimensions	mm	2260×1100×2060
