GS-A07103B антистатические Esd Pcb журнальные стеллажи для хранения на складе esd
- Категория: Stacking Racks & Shelves >>>
- Поставщик: Shenzhen,Gemisky,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2885.76 $* | 3029.89 $* |
| Aug-19-2025 | 2860.24 $* | 3003.90 $* |
| Jul-19-2025 | 2400.77 $* | 2520.95 $* |
| Jun-19-2025 | 2812.48 $* | 2953.90 $* |
| May-19-2025 | 2448.70 $* | 2570.38 $* |
| Apr-19-2025 | 2763.36 $* | 2901.66 $* |
| Mar-19-2025 | 2739.87 $* | 2876.55 $* |
| Feb-19-2025 | 2715.25 $* | 2851.0 $* |
| Jan-19-2025 | 2691.10 $* | 2826.67 $* |
Характеристики

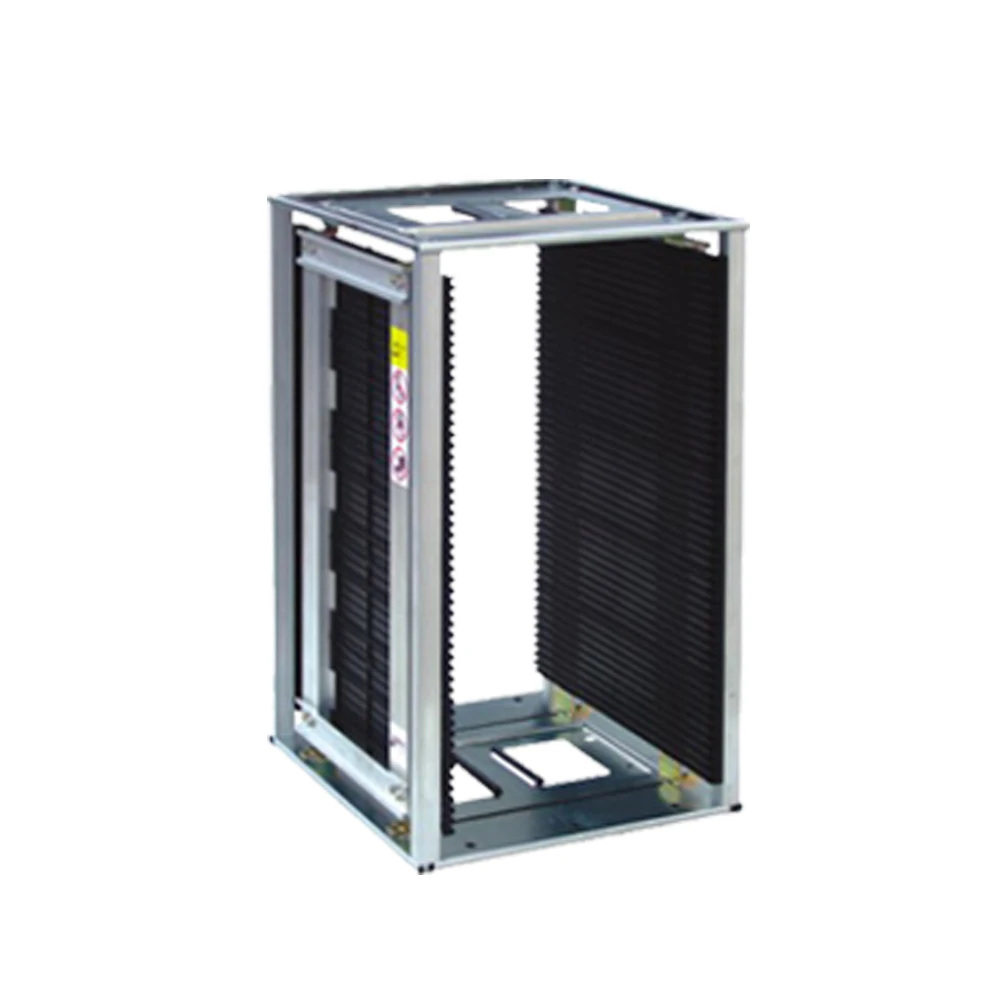

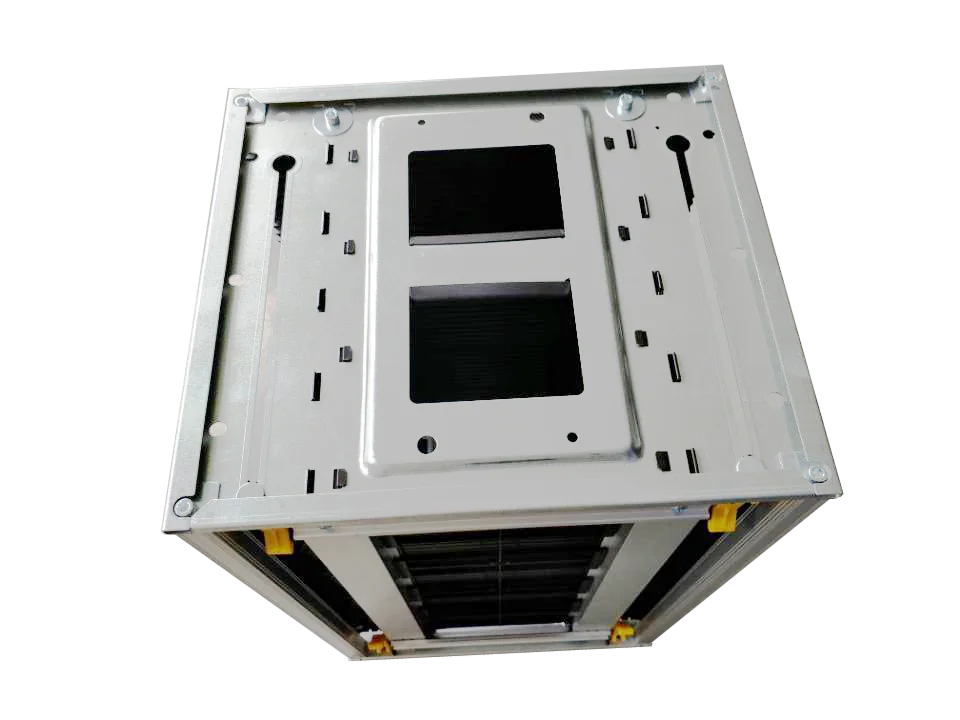

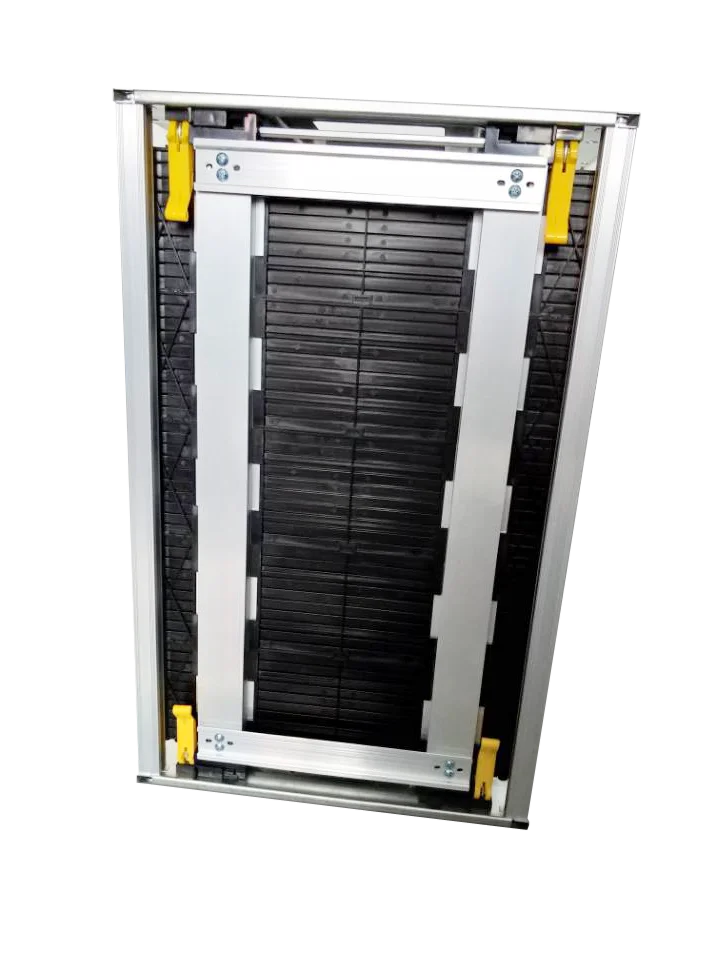

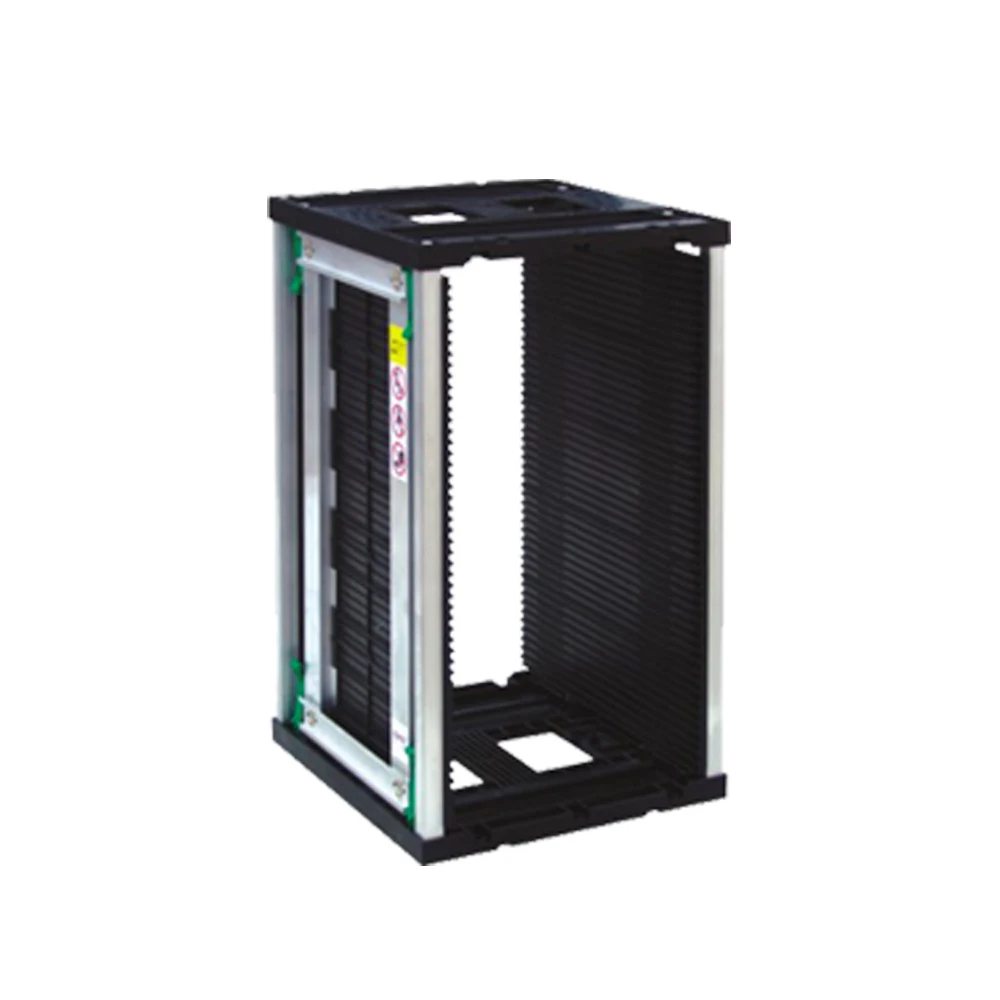

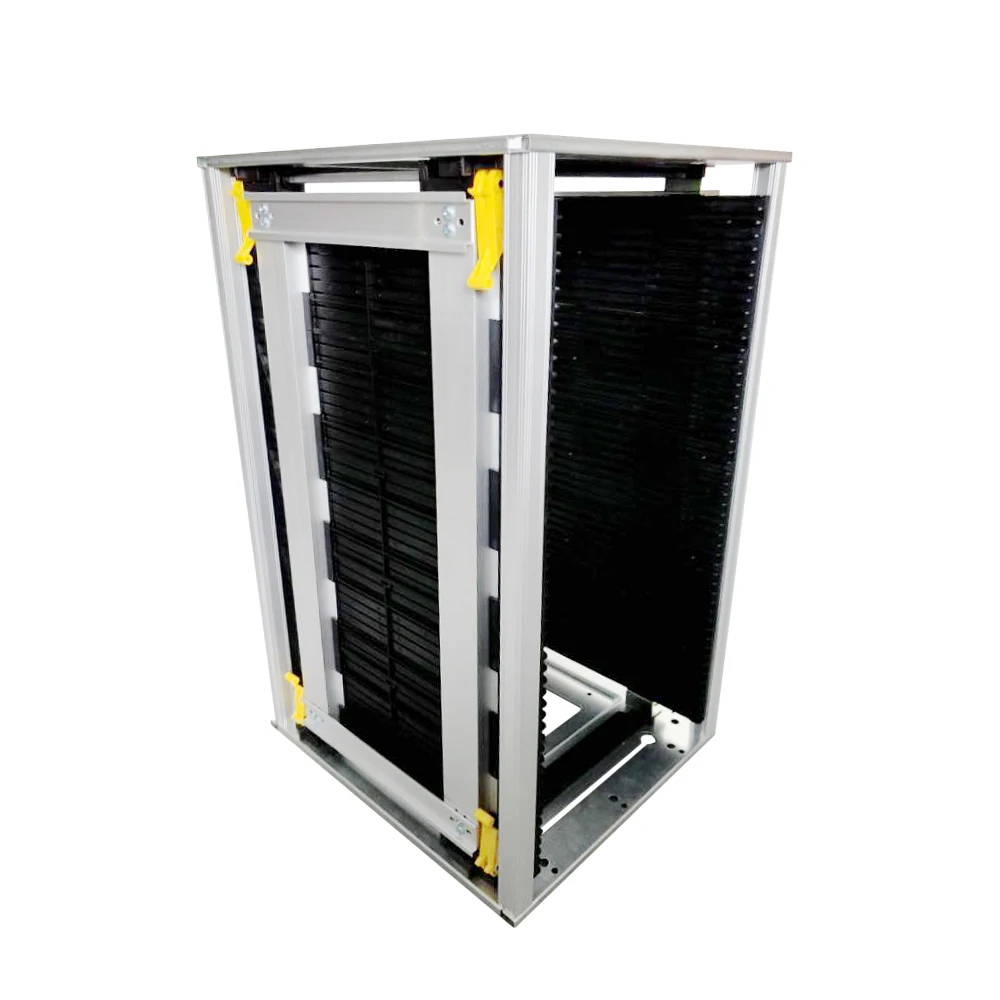

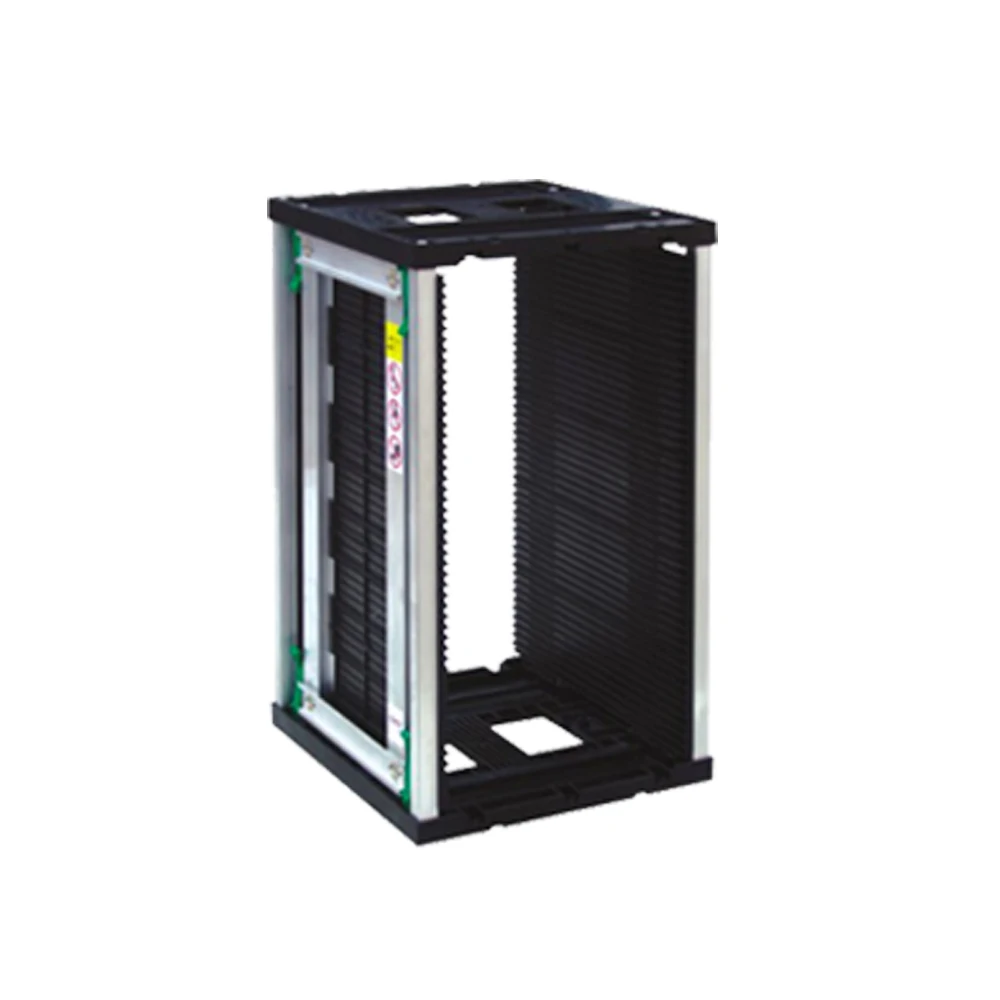

Anti-Static Esd Pcb Magazine Anti Static Rack
Specification
Model Number | Size | Width Adjustable | Depth | Weight | Weight Capacity | Ref Position |
GS-A07101 | 400x320x563mm | 400x(50-250)mm | 10mm | 6.88kgs | 100Kgs | A=34mm, B=34mm |
GS-A07102 | 355x315x580mm | 355x(80-250)mm | 10mm | 4.96kgs | 20Kgs | A=34mm, B=34mm |
GS-A07103 | 355x320x563mm | 350x(40-250)mm | 10mm | 5.51kgs | 20Kgs | A=34mm, B=34mm |
GS-A07104 | 400x320x563mm | 400x(50-250)mm | 10mm | 6.11kgs | 20Kgs | A=34mm, B=34mm |
GS-A07105 | 355x320x563mm | 350x(50-250)mm | 10mm | 5.67kgs | 20Kgs | A=34mm, B=34mm |
GS-A07106 | 460x400x563mm | 460x(80-330)mm | 10mm | 7.83kgs | 20Kgs | A=34mm, B=34mm |
GS-A07107 | 460x400x563mm | 460x(50-330)mm | 10mm | 8kgs | 20Kgs | A=34mm, B=34mm |
GS-A07108 | 535x460x569mm | 535x(50-380)mm | 10mm | 7.49kgs | 20Kgs | A=34mm, B=37mm |
GS-A07109 | 535x530x569mm | 535x(50-390)mm | 10mm | 13.5kgs | 20Kgs | A=34mm, B=34/40mm |
GS-A07110 | 460x400x563mm | 460x(50-330)mm | 10mm | 8kgs | 20Kgs | A=34mm, B=34/40mm |
GS-A07111 | 535x460x569mm | 535x(50-390)mm | 10mm | 13.5kgs | 20Kgs | A=34mm, B=34/40mm |
GS-A07112 | 535x530x569mm | 535x(50-390)mm | 10mm | 14.5kgs | 20Kgs | A=34mm, B=34/40mm |
Model Number | Base Board Material | Heat Resistance | Surface resistance | Adjust way | Side board Structure |
GS-A07101 | Aluminum; Plastic | 80℃/120℃ | 10^6~10^9 | Gear Track/Screw | Plastic, combined panel |
GS-A07102 | Plastic | 80℃ | 10^6~10^9 | Screw | Plastic panel |
GS-A07103 | Aluminum; Plastic | 100℃/120℃/150℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
GS-A07104 | Aluminum; Plastic | 80℃/120℃/200℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
GS-A07105 | Aluminum; Plastic | 80℃/120℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
GS-A07106 | Aluminum; Plastic | 100℃/120℃/150℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
GS-A07107 | Aluminum; Plastic | 85℃/120℃/200℃ | 10^6~10^9 | Screw | Plastic panel |
GS-A07108 | Aluminum; Plastic | 100℃/120℃/150℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
GS-A07109 | Aluminum; Plastic | 85℃/120℃/200℃ | 10^6~10^9 | Gear Track/Screw | Plastic panel |
GS-A07110 | Aluminum | 300℃ | 10^4~10^6 | Screw | Aluminum panel |
GS-A07111 | Aluminum | 300℃ | 10^4~10^6 | Gear Track | Aluminum panel |
GS-A07112 | Aluminum | 300℃ | 10^4~10^6 | Gear Track | Aluminum panel |
Product Description
Recommend Products
Company Profile
Payment & Shipping
FAQ
Q：Are you a manufacturer?
A:Yes,we own 1 factory with areas more than 2,000m2, 300+staff and 1 office.Beside that we also have a variety of experienced cooperative factories.Welcome your visit !
Q：What's the MOQ?
A:Normally,there is no MOQ for most products.Of course,if you have any concerns about it,you can timely communicate with our salesman.
Q：Is OEM/ODM available?
A:Yes,it's available.We have 10 years'of OEM&ODM experience,which makes us more professional.For details,please kindly contact us.
Q:Can I print my logo or custom design?
A:Yes,you can tell us your idea,we will make sample for your reference.
Q:How do we place an order?
A:Confirmed product details with shipping terms and we will send a PI or set up a order on Alibaba, the order is confirmed once you finish the payment.
Q:What's the shipping method?
A:DHL,UPS,FEDEX,Air Cargo or your own freight forwarder If the order is urgent or small,we will send express or special line to ensure timeliness transportation. If it is large or heavy goods,sea and railway transportation will be a better choice.
Q:What's the shipping time if I placed the order?
A:When express delivery,it will take 2 to 15 working days to arrive,according to different countries and regions,the fastest
arrival time is the next day. When by sea or railway transportation,it will take more time,around 25-60 working days.
Q:Will you push my order if I want them urgently?
A:Yes,we will confirm delivery time before your order,but if you need urgently we can arrange your order separately.
Q:Can you clear the customs if I don't want to do it?
A:Yes,we can clean the customs and pay the tax at our end,you just need to receive.
Q:What's the payment term?
A:We accepty T/T,Credit Cards,Western Union,MoneyGram and Paypal (only for order amount under $1000)
Q:Are you able to call me if we have too many or complicate things to communicate?
A:Yes,every sales do English train 3 times a week for this.
A:Yes,we own 1 factory with areas more than 2,000m2, 300+staff and 1 office.Beside that we also have a variety of experienced cooperative factories.Welcome your visit !
Q：What's the MOQ?
A:Normally,there is no MOQ for most products.Of course,if you have any concerns about it,you can timely communicate with our salesman.
Q：Is OEM/ODM available?
A:Yes,it's available.We have 10 years'of OEM&ODM experience,which makes us more professional.For details,please kindly contact us.
Q:Can I print my logo or custom design?
A:Yes,you can tell us your idea,we will make sample for your reference.
Q:How do we place an order?
A:Confirmed product details with shipping terms and we will send a PI or set up a order on Alibaba, the order is confirmed once you finish the payment.
Q:What's the shipping method?
A:DHL,UPS,FEDEX,Air Cargo or your own freight forwarder If the order is urgent or small,we will send express or special line to ensure timeliness transportation. If it is large or heavy goods,sea and railway transportation will be a better choice.
Q:What's the shipping time if I placed the order?
A:When express delivery,it will take 2 to 15 working days to arrive,according to different countries and regions,the fastest
arrival time is the next day. When by sea or railway transportation,it will take more time,around 25-60 working days.
Q:Will you push my order if I want them urgently?
A:Yes,we will confirm delivery time before your order,but if you need urgently we can arrange your order separately.
Q:Can you clear the customs if I don't want to do it?
A:Yes,we can clean the customs and pay the tax at our end,you just need to receive.
Q:What's the payment term?
A:We accepty T/T,Credit Cards,Western Union,MoneyGram and Paypal (only for order amount under $1000)
Q:Are you able to call me if we have too many or complicate things to communicate?
A:Yes,every sales do English train 3 times a week for this.
