Igbt японские сварщики инверсор дуговой сварочный аппарат
- Категория: >>>
- Поставщик: Yongkang,Songshi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 57.0 $* | 60.8 $* |
| Aug-15-2025 | 57.8 $* | 60.28 $* |
| Jul-15-2025 | 48.51 $* | 50.38 $* |
| Jun-15-2025 | 56.59 $* | 59.52 $* |
| May-15-2025 | 48.50 $* | 50.24 $* |
| Apr-15-2025 | 55.16 $* | 58.90 $* |
| Mar-15-2025 | 54.87 $* | 57.2 $* |
| Feb-15-2025 | 54.18 $* | 57.96 $* |
| Jan-15-2025 | 53.46 $* | 56.58 $* |
Характеристики
Product Description

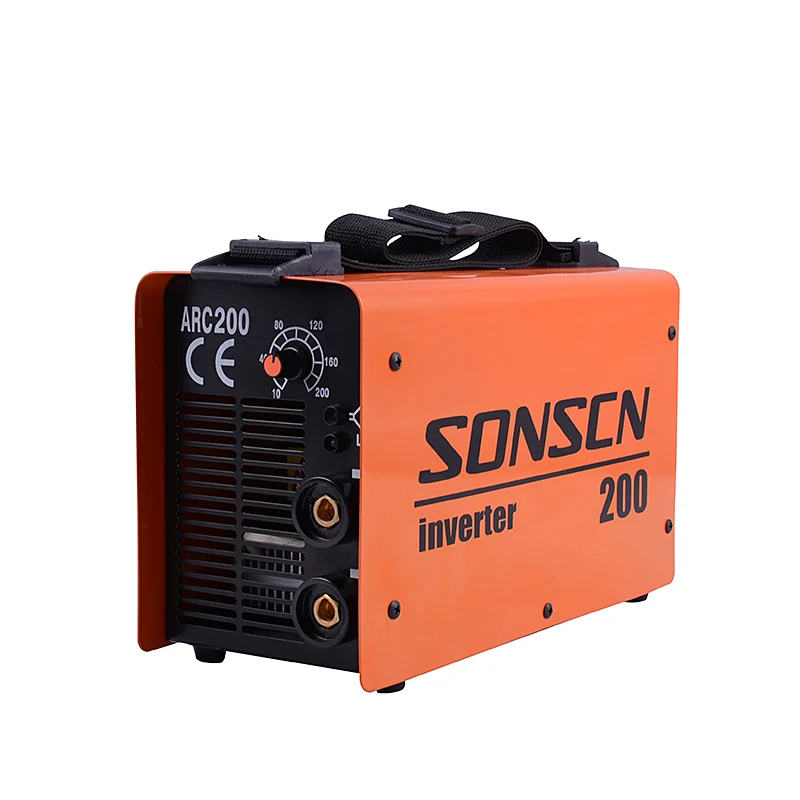

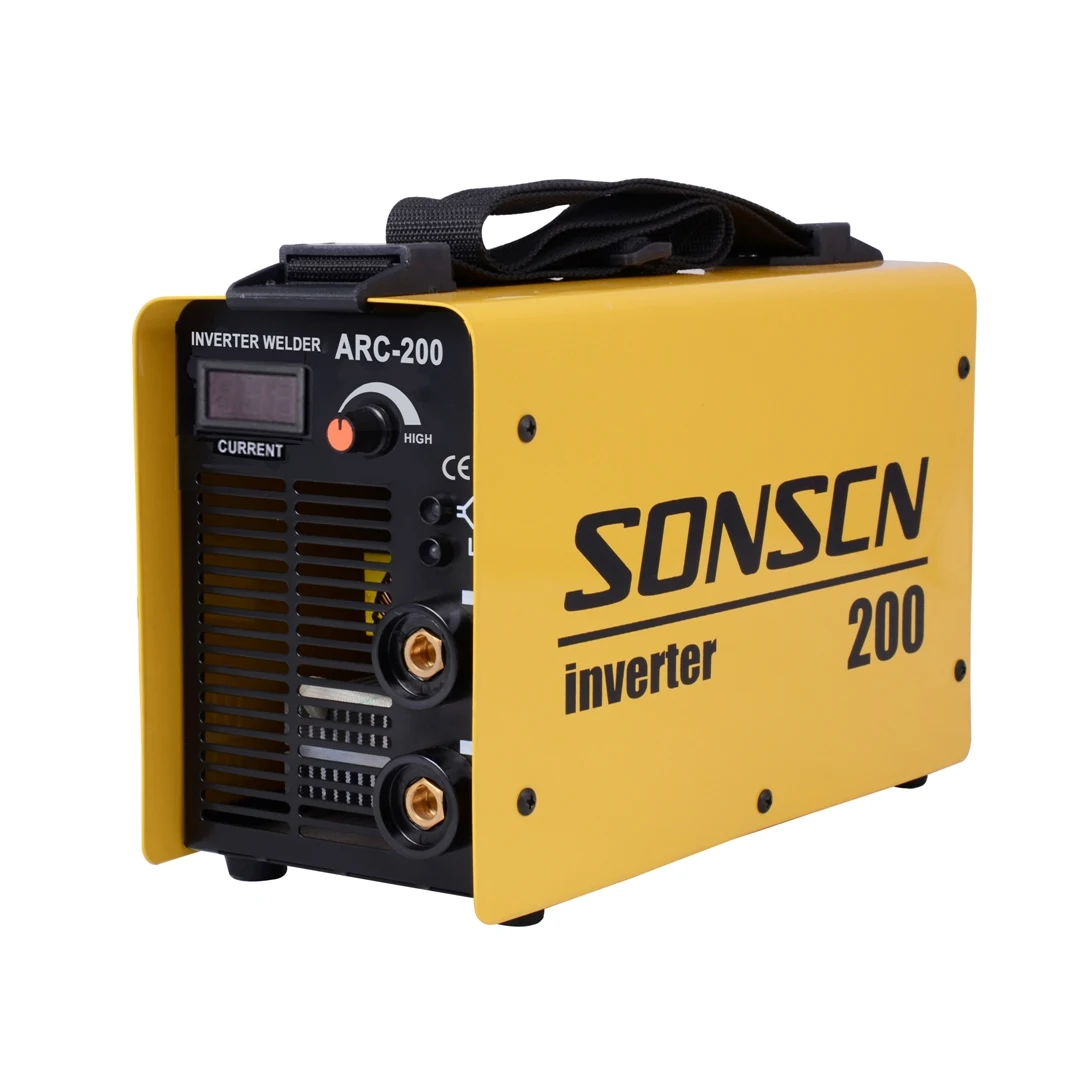

igbt Japan made soldadores inversor arc welder new mini welding machine
* Actual output current and duty cycle:
1. Maximum output current should be no lower as Technical data. Maximum current or full load means maximum current at which following condition is right: Uoutput=20+(0,04*Ioutput).
2. Duty cycle of any cycle at full load should be same as in Technical data. Test at a temperature of 25 degrees. Duty cycle is the ratio of the time of work under load for the time of a complete cycle. Complete cycle time is 10 minutes.
3. If time of work under full load of first cycle is longer than 15 minutes, then duty cycle is 100%
4. Every model should have temperature protection at fast recovery diodes radiator.
5. Temperature protection. After full loading temperature protection should activate not earlier than after elapsing time 3.5 minutes, even second and third cycles. The yellow led is on.
* Promise the actual output current, mark the specification as customized
1. Maximum output current should be no lower as Technical data. Maximum current or full load means maximum current at which following condition is right: Uoutput=20+(0,04*Ioutput).
2. Duty cycle of any cycle at full load should be same as in Technical data. Test at a temperature of 25 degrees. Duty cycle is the ratio of the time of work under load for the time of a complete cycle. Complete cycle time is 10 minutes.
3. If time of work under full load of first cycle is longer than 15 minutes, then duty cycle is 100%
4. Every model should have temperature protection at fast recovery diodes radiator.
5. Temperature protection. After full loading temperature protection should activate not earlier than after elapsing time 3.5 minutes, even second and third cycles. The yellow led is on.
* Promise the actual output current, mark the specification as customized
Specification
item | value |
Rated Input Voltage | 110v220v |
Rated Duty Cycle @40°C | 35% |
Max. Load Power Capacity | 8.0KVA |
Rated Output Voltage | 28V |
Rated Output Current | 200A |
Welding Current/Voltage Range | 10-200A |
Condition | New |
Place of Origin | China |
Zhejiang | |
Technology | IGBT FORWARDER CONVERTER |
Arc Current | 20-200A |
Pulse Frequency | 50/60 HZ |
Pilot Arc Current | 20-200A |
Rated Duty Cycle | 60% |
Motor Type | DC Motor |
Dimensions | 13*34*25cm |
Usage | metal dc arc Welding |
Voltage | 230V+-15% |
Weight (KG) | 4.7KG |
Certification | CE, CCC |
Function | manual metal arc welding |
Keyword | igbt Japan made soldadores inversor arc welder new mini welding machine |
Hot start | Easy Arc Ignition |
Factory Test | Accelerated Aging Test One |
ARC FORCE | Keep Fluid Weld Bead |
Anti-sticking | Compact Circuit |
Application | Metal MMA Welding Machine |
Duty cycle | 60% @200A |
PROTECTION GRADE | IP21S |
Feature | auto protection heat/ voltage |
Packing & Delivery
Normally, There are 2 packing ways of welding machine .
A. One machine and the accessories put in 1 color box or 1 cardboard box
Then 2 boxes put in one standard carton.
B. One machineand the accessories put in 1 plastic tool box.
Then 2 tool boxes put in one standard carton.
A. One machine and the accessories put in 1 color box or 1 cardboard box
Then 2 boxes put in one standard carton.
B. One machineand the accessories put in 1 plastic tool box.
Then 2 tool boxes put in one standard carton.
A. Cardboard/color box Packing | B. Plastic tool box packing | ||||
Box size | 36.5x15x28cm | Tool box size | 43x15x37cm | ||
Carton size | 38x33x30.5cm (2boxes/carton) | Carton size | 43.5x31.5x37.7cm (2boxes/carton) | ||
G.W/CTN | 16kgs | G.W/CTN | 18kgs | ||
20 FT'S | 1470pcs/735ctns | 20 FT'S (pcs) | 1040pcs/520ctns | ||
