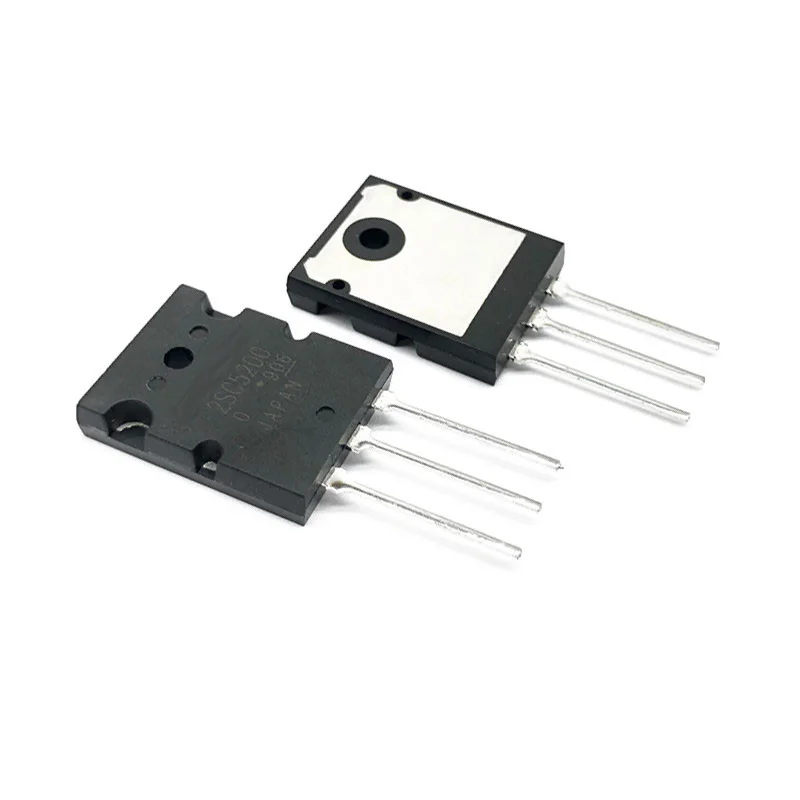

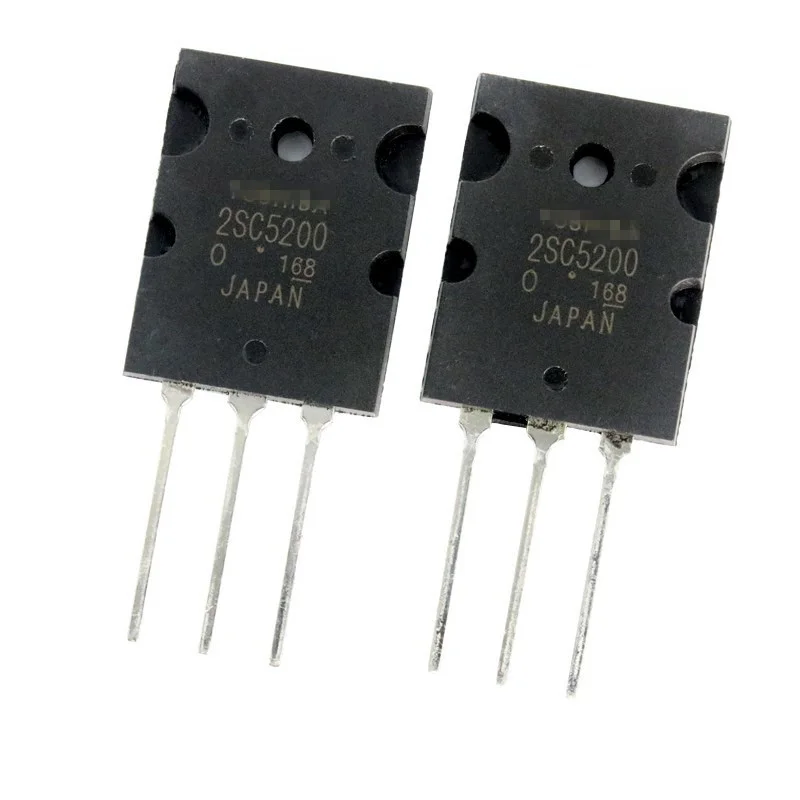

2SC5200

Current - Collector (Ic) (Max)	15A
Voltage - Collector Emitter Breakdown (Max)	230V
Vce Saturation (Max) @ Ib, Ic	3V  800mA, 8A
Current - Collector Cutoff (Max)	5µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	55  1A, 5V
Power - Max	150W
Frequency - Transition	30MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole

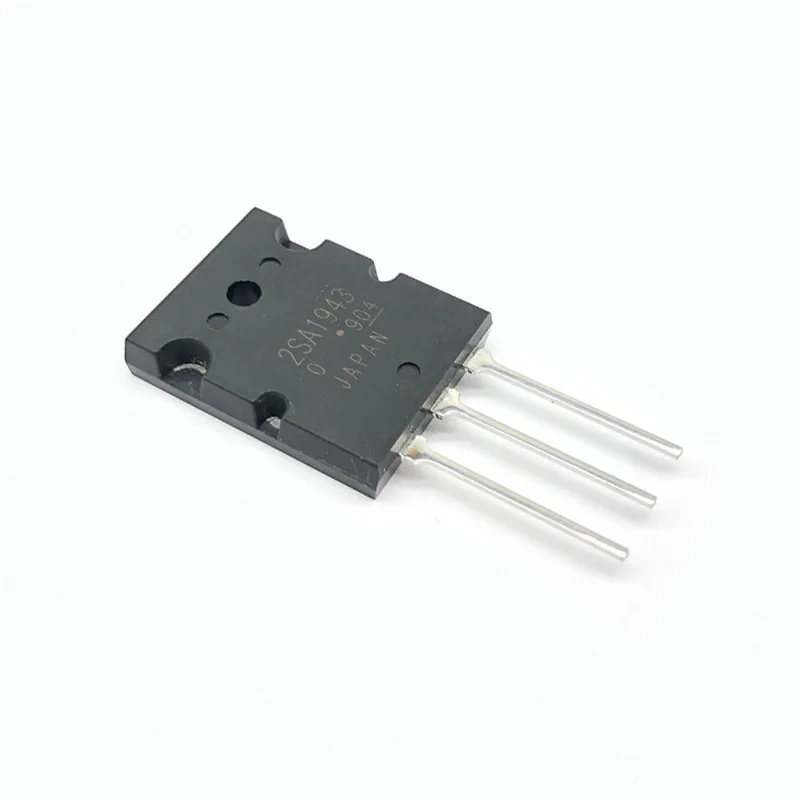

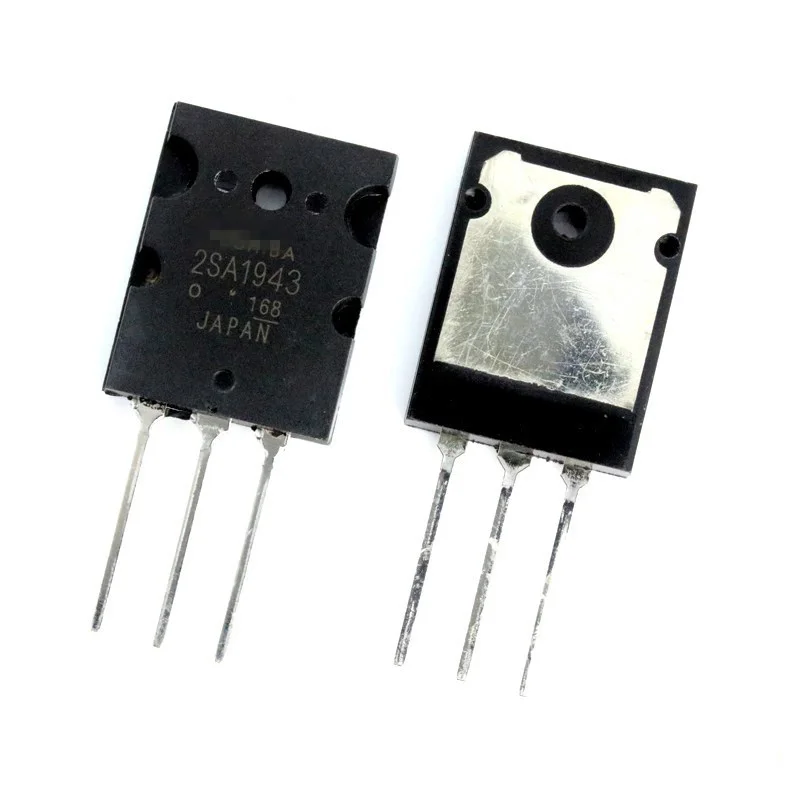

2SA1943



Package Height	26
Package Width	5
Package Length	20
Mounting	Through Hole
PCB changed	3
Tab	Tab
Type	PNP
Product Category	Bipolar Power
Material	Si
Configuration	Single
Number of Elements per Chip	1
Maximum Collector Base Voltage (V)	250
Maximum Collector-Emitter Voltage (V)	250
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	3 0.8A 8A
Maximum DC Collector Current (A)	17
Minimum DC Current Gain	55 1A 5V
Maximum Power Dissipation (mW)	150000
Maximum Transition Frequency (MHz)	30(Typ)
Minimum Operating Temperature (°C)	-50
Maximum Operating Temperature (°C)	150
Packaging	Tube
Automotive	No
Pin Count	3
Supplier Package	TO-264





1. Are these parts Original and New?

Yes, there are original and local factory products, if you have not mentioned, we will always sell you original and new parts.



2.When will parts ship after payment?

Normally parts we ship in 1-2 days after payment, if you are really urgent,please feel free to send me message, and we can push.



3.Are they real stocks? Can have discount if need large quantity?

Yes, parts you can order directly all have in stock. If you need large quantity, please message us first, we will apply best price for you.
