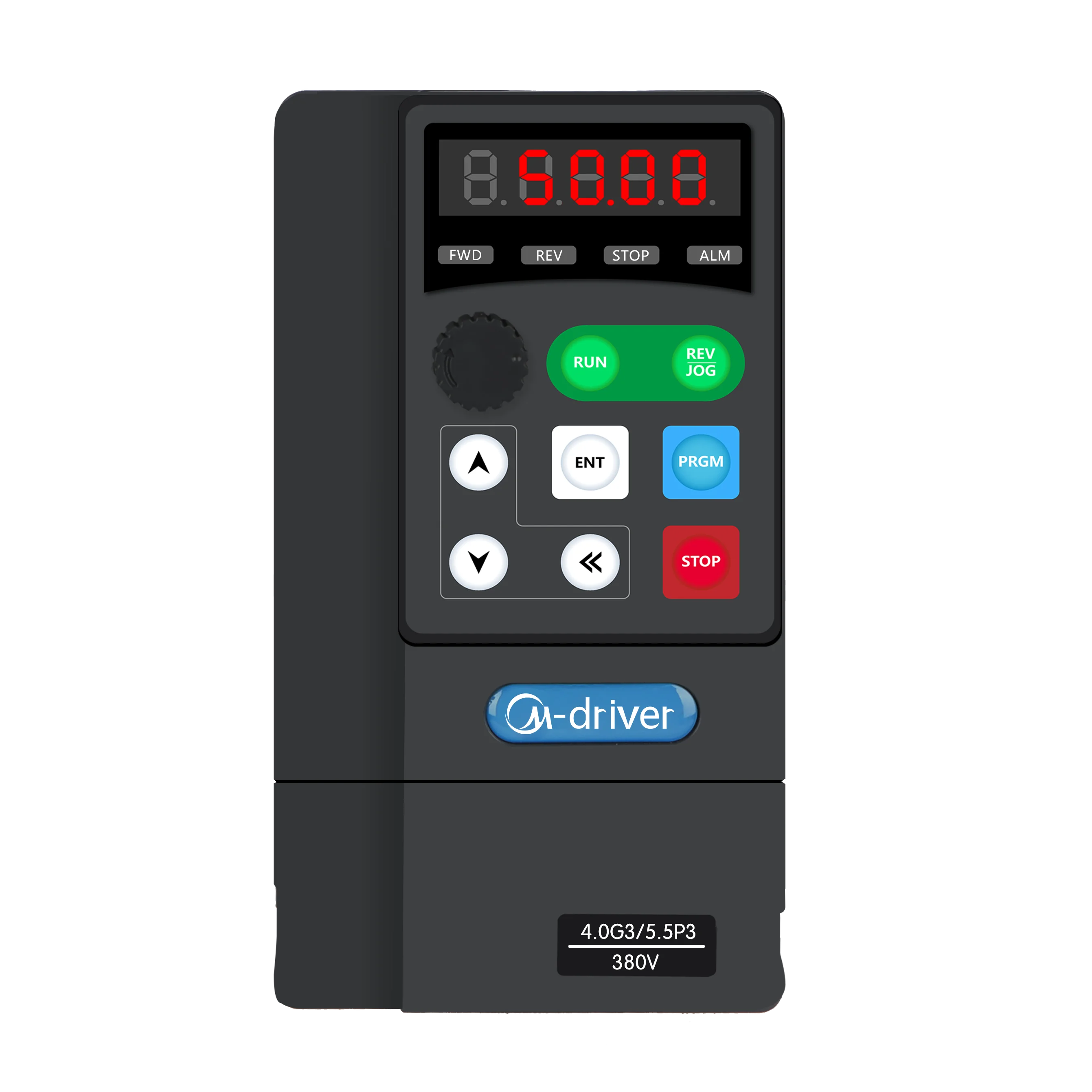

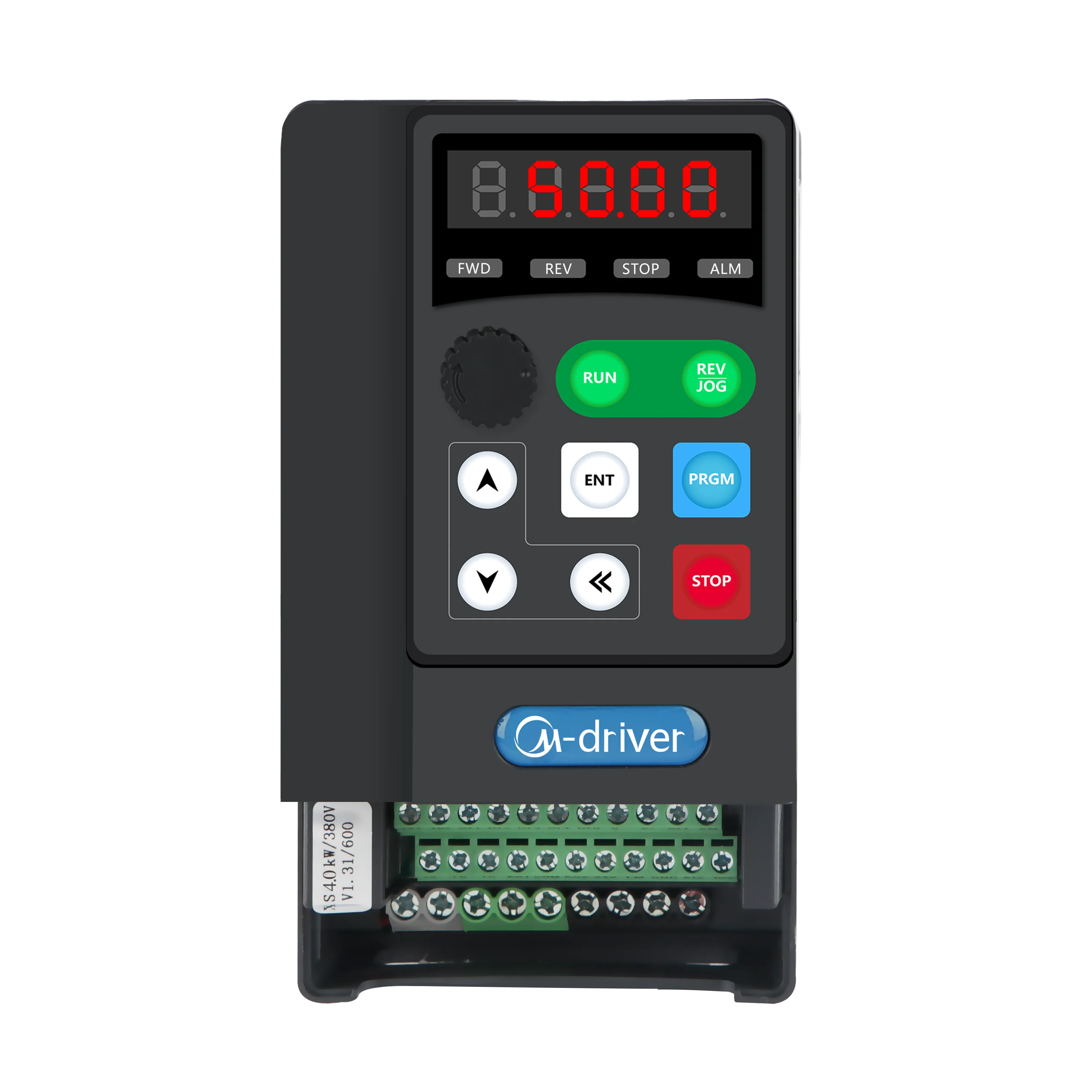

Двигатель солнечного насоса постоянного тока на переменный ток 4 кВт 5 7 погружной инвертор поверхностного л.с.


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.50 $* 0.65 $*
Aug-16-2025 0.98 $* 0.90 $*
Jul-16-2025 0.33 $* 0.36 $*
Jun-16-2025 0.30 $* 0.66 $*
May-16-2025 0.17 $* 0.53 $*
Apr-16-2025 0.33 $* 0.66 $*
Mar-16-2025 0.30 $* 0.38 $*
Feb-16-2025 0.90 $* 0.91 $*
Jan-16-2025 0.30 $* 0.58 $*

Характеристики


DC to AC solar pump drive 4kw 5.5kw 7.5kw submersible surface pump inverter 5hp 7.5hp 10hp


frequency converter freqency inverter ac driver



Product Description

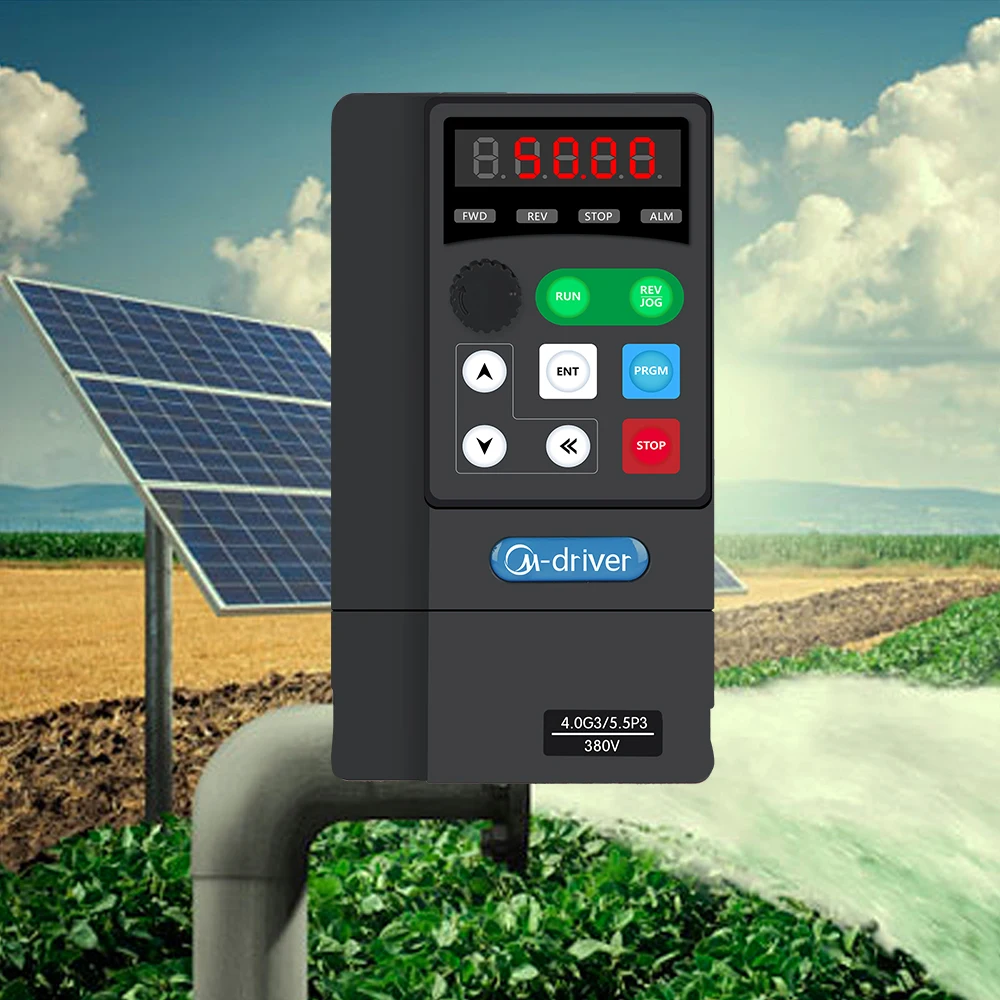

Solar pumping system





Specifics


_______________________________________











































































































































220V Solar Pumping Inverter
Input Specification
PV input
Maxiumum input DC voltage400V DC
Recommended MPPT voltage range250~350V DC
Recommended input Operation Voltage310V DC
Grid or backup generator input
Input voltageSingle phase 220V(-15%~30%)
Output Specification
Rated output voltage3PH 220V
Output frequency0~500.00Hz (default: 0~50.00Hz)
380V Solar Pumping Inverter
Input Specification
PV input
Maxiumum input DC voltage800V DC
Recommended MPPT voltage range450~600V DC
Recommended input Operation voltage540V DC
Grid or backup generator input
Input voltageThree phase 380V(-15%~30%)
Output specification
Rated ouput voltage3PH 380V
Output frequency0~500.00Hz (default: 0~50.00Hz)
Protection
Built-in ProtectionLighting Protection ,over-current, overvoltage, ouput phase lose, under-load, under-voltage, short circuit , overheating, water pump run dry etc.
General Parameters
Application siteNo direct sunshine, no dust,corrosive gas,combustible gas, oil mist, steam,dripping or salinity etc.
Altitude0~2000m
Derated use above 1000m, per 100m, the rated output current decrease 1%
Environment Temperature-10°C~40°C (Environment Temperature be 40°C~50°C, please keep derated use)
 Humidity 5~95%, non-condensation
 Vibration less than 5.9 m/s²(0.6G)
 Storage Temperature -20°C~+70°C
 Efficiency Rated Power Run≥93%
 Installation Wall or rail mounting
 Protectiion Grade IP20
 Cooling Forced Air Cooling











































































TypeDrive motorPower capacityInput currentOutput currentShape case
KWKVAAA
Single phase power supply: 220V, 50/60A
PV500-0004M10.40.55.42.5000
PV500-0007M10.7518.24000
PV500-0015M11.52147000
PV500-0007G10.7514.24001
PV500-0015G11.52147001
PV500-0022G12.232310001
Three phase power supply; 220V ,50/60hz















































































































































































































































































































PV500-0040G24518.116002
PV500-0055G25.57.52825003
PV500-0075G27.51037.132003
PV500-0110G2111549.845004
PV500-0150G2152065.460004
PV500-0185G218.52581.675004
PV500-0220G2223097.790005
PV500-0300G23040122.1110005
PV500-0370G23750157150006
PV500-0450G24560185170006
PV500-0550G25570215210007
PV500-0750G275100320300007
Three phase power supply: 380V ,50/60hz
PV500-0007G30.7513.42.1001
PV500-0015G31.5253.8001
PV500-0022G32.235.85001
PV500-0040G34510.59002
PV500-0055G35.57.514.613002
PV500-0075G37.51020.517002
PV500-0110G311152625003
PV500-0150G315203532003
PV500-0185G318.52538.538003
PV500-0220G3223046.545004
PV500-0300G330406260004
PV500-0370G337507675004
PV500-0450G345609290005
PV500-0550G35570113110005
PV500-0750G375100157150006
PV500-0930G393125180170006
PV500-1100G3110150214210007
PV500-1320G3132175256250007
PV500-1600G3160210307300007
PV500-1850G3185250385340008
PV500-2000G3200260385380008
PV500-2200G3220300430415008
PV500-2500G3250350468470008
PV500-2800G3280370525520008
PV500-3150G3315400590585009

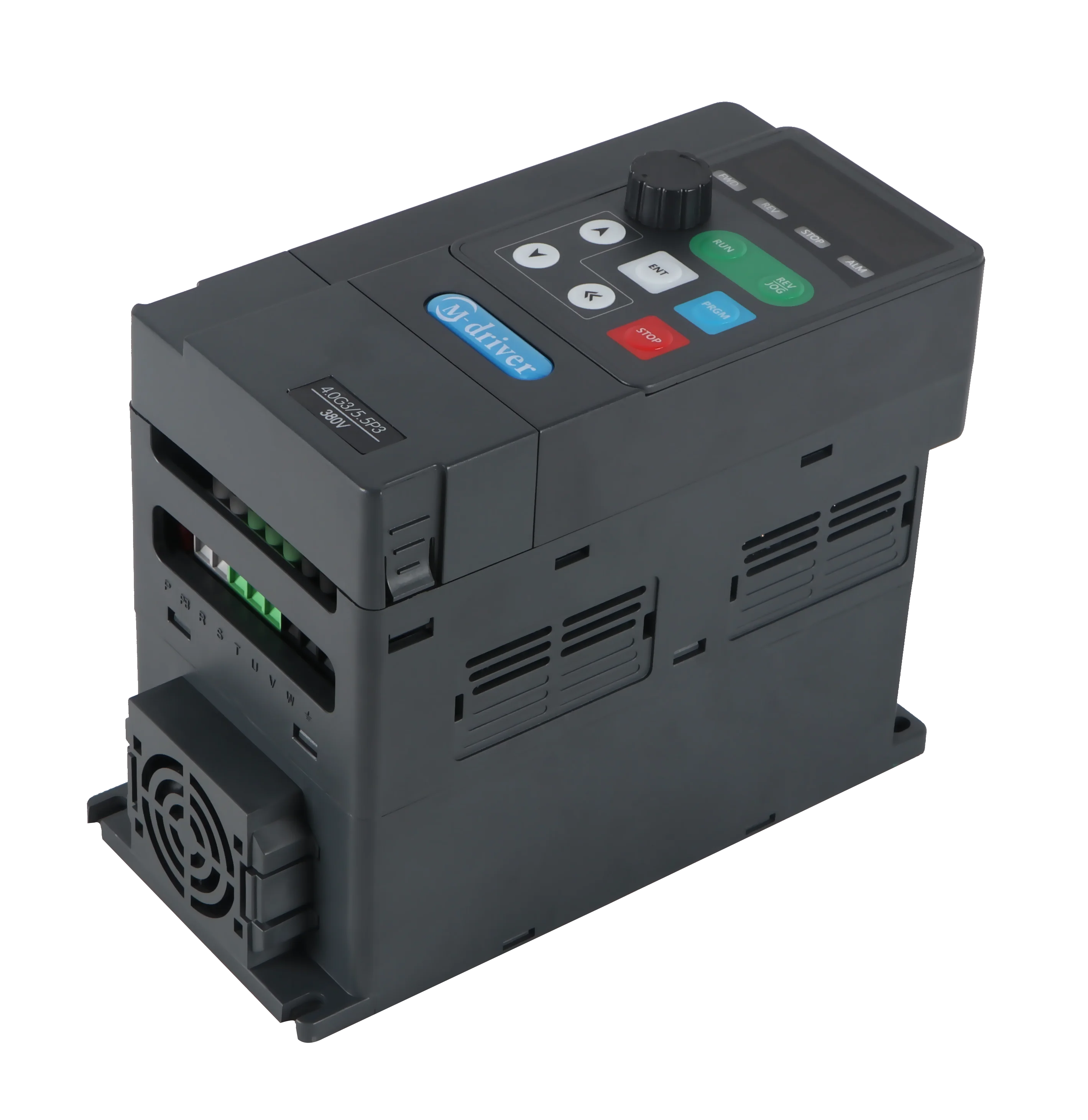

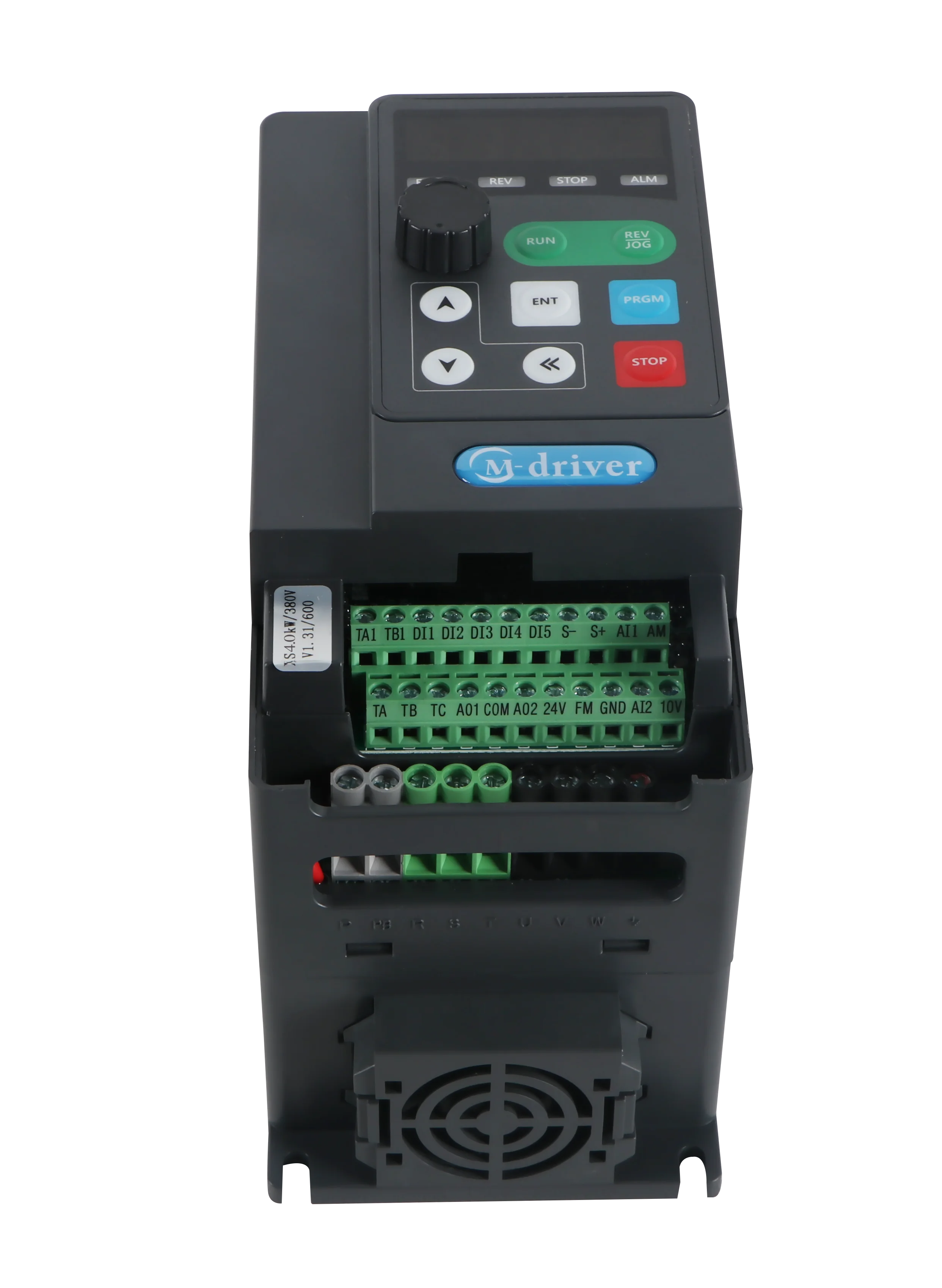

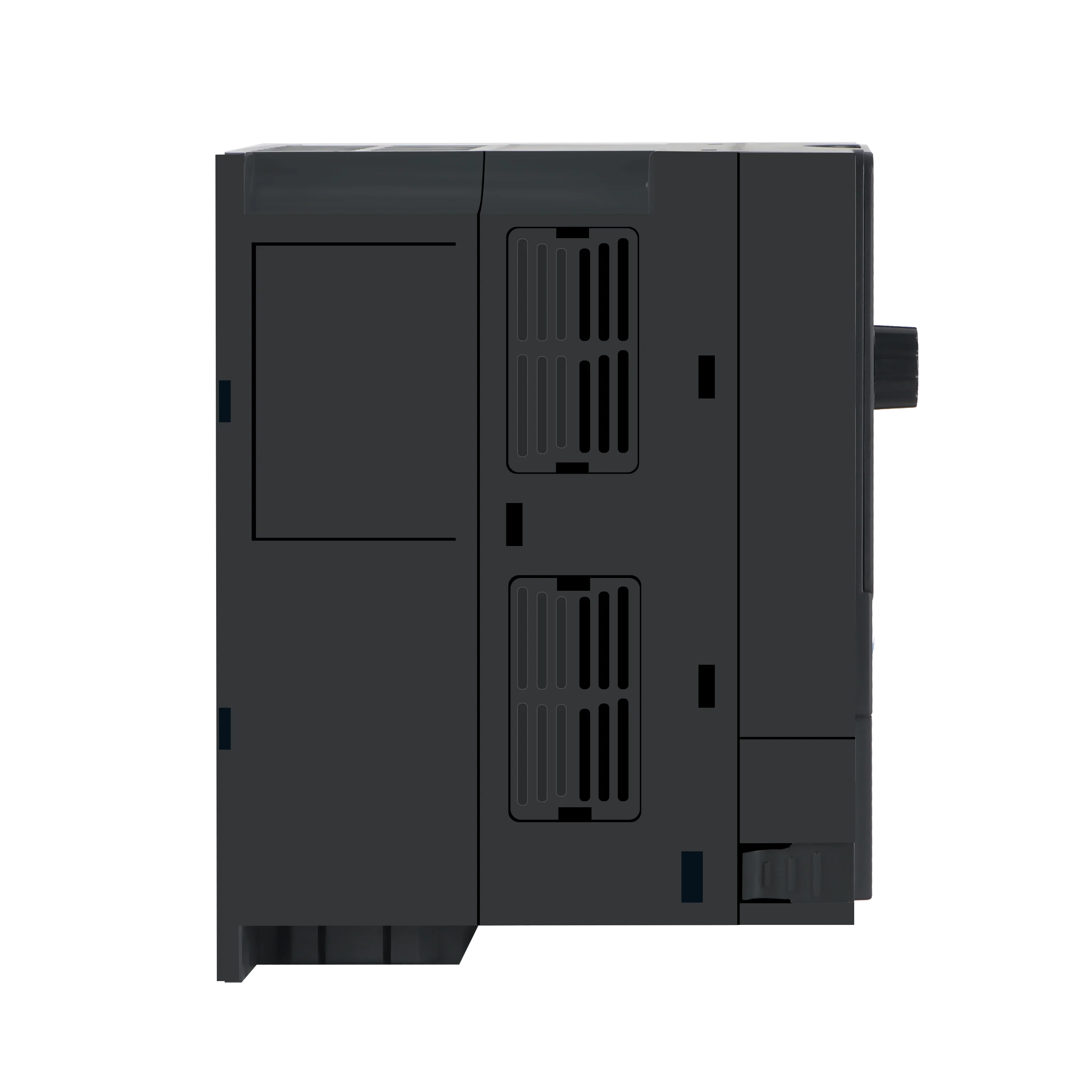

Product details


_______________________________________


solar pump inverter4-7.5kw7.5kw inverter (2)7.5kw drive (2)7.5kw pump inverter7.5kw drive





Connection diagram


_______________________________________








PV INPUT overview






























Application


Application VFD.jpg











Packaging & Shipping


packing for VFD.jpg9.webp





Company Information


inverters factory.jpg


Advantages










Frequency Inverters FAQ.jpg



FAQ





Q 1: Are you trading company or manufacturer ?


We are factory.



Q 2: How long is your lead time?


Generally 3-7 days if the goods are in stock, or 10-20 days if the stocks are not enough, it is according to quantity.



Q 3: Do you provide samples ? is it free or extra ?
Yes, we provide samples and charge for the samples with freight cost. The sample fees will be returned if the order quantity over 500pcs.



Q 4: What is your terms of payment ?
We accept T/T(30% deposit, 70% balance), L/C and CASH.



Q 5: What is the standard of package?


Single small carton or plywood crate.



Q 6. Is there any discount ?


The discount will depend on the quanlity you purchase.



Q 7. What is your supply capacity?


The daily production is 500pcs.



Q 8. Do you provide warranty for the goods?


Yes, we provide 18 months warranty for all the goods.



Q 9. Could M-driver provide technical support?


Yes, we worked 19 years in this field and have a lot of experienced engineers, they will provide solutions if get a problem.
