Product Description
Product description

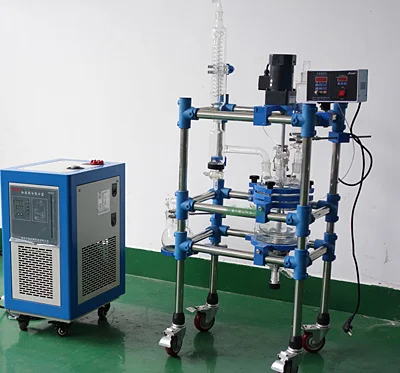

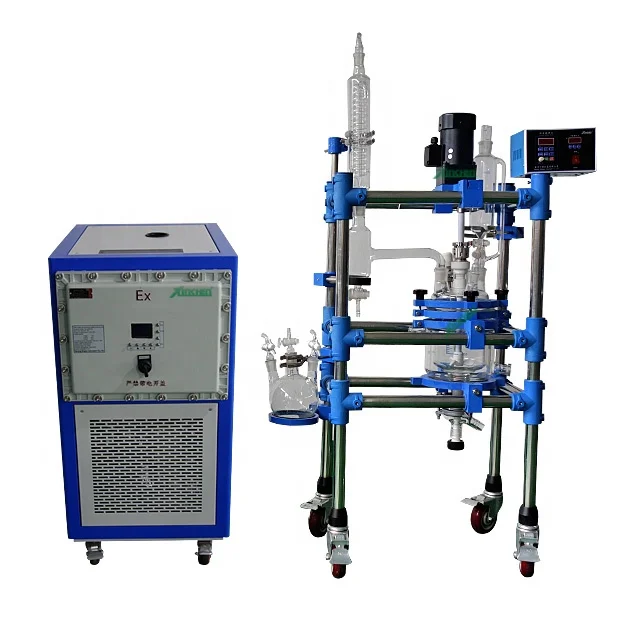

The glass reactor can be designed to be double walled reactor or three layer reactor. The reaction solution can be put into the inner layer to do stirring , inter-layer can be connected with different coolant or heat sources( refrigerants, steam or hot oil), low temperature reaction (ethanol), normal temperature ( water or hot steam), high temperature reaction(silicon oil). Under the setting of constant temperature, in sealed glass reactor, stirring reaction can be carried out at atmospheric pressure or negative pressure conditions according to the working , and also can carry out back flow and distillation of the reaction solution . This machine is an ideal production equipment for the modern fine chemical , pharmaceutical and biological synthesis of new materials.
Product features
The glass reactor can be designed to be double walled reactor or three layer reactor. The reaction solution can be put into the inner layer to do stirring , inter-layer can be connected with different coolant or heat sources( refrigerants, steam or hot oil), low temperature reaction (ethanol), normal temperature ( water or hot steam), high temperature reaction(silicon oil). Under the setting of constant temperature, in sealed glass reactor, stirring reaction can be carried out at atmospheric pressure or negative pressure conditions according to the working , and also can carry out back flow and distillation of the reaction solution . This machine is an ideal production equipment for the modern fine chemical , pharmaceutical and biological synthesis of new materials.
Product features

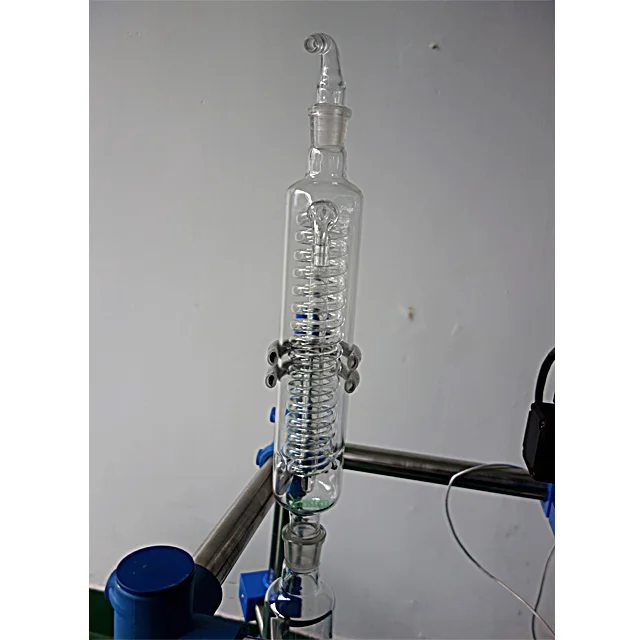

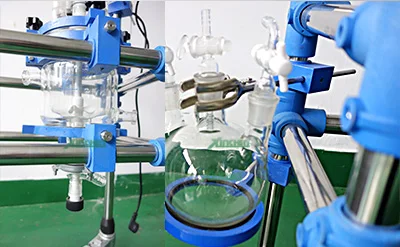

1. The whole stainless steel column, mobile framework ,4-6 cover of the reaction kettle, with full set of glass
for reflux , adding liquid , temperature measurement , etc .
2. Use G3.3 high borosilicate glass , with good chemical and physical properties.
3. Alloy steel mechanical seal , PTFE connector , to maintain a high precision seal in the working condition.
4. With PT100 temperature sensor probe ,high precision temperature measurement , small errors, high efficiency.

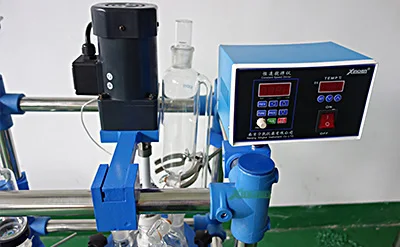

5. AC reduced motor , strong torsion , no noise .
6. PTFE stirring paddle , suitable for low or high viscosity liquid stirring and mixing .
7. PTFE discharge valve, movable interface , discharging completely and quickly.
8. PH meter , sand core filter , negative pressure control , automatic feeding control , combined reactor can be customized.
for reflux , adding liquid , temperature measurement , etc .
2. Use G3.3 high borosilicate glass , with good chemical and physical properties.
3. Alloy steel mechanical seal , PTFE connector , to maintain a high precision seal in the working condition.
4. With PT100 temperature sensor probe ,high precision temperature measurement , small errors, high efficiency.
5. AC reduced motor , strong torsion , no noise .
6. PTFE stirring paddle , suitable for low or high viscosity liquid stirring and mixing .
7. PTFE discharge valve, movable interface , discharging completely and quickly.
8. PH meter , sand core filter , negative pressure control , automatic feeding control , combined reactor can be customized.
Specification
Product model | XC-1L | XC-2L | XC-3L | XC-5L |
Volume(L) | 1L | 2L | 3L | 5L |
Jacket volume(L) | 0.3L | 0.6L | 0.9L | 1.5L |
Neck No on lid | 4 | 4 | 5 | 6 |
Lid diameter(mm) | 150mm | 150mm | 150mm | 180mm |
Inner vessel (mm) | 113mm | 135mm | 150mm | 180mm |
Outer vessel(mm) | 150mm | 180mm | 200mm | 230mm |
Vessel height(mm) | 250mm | 280mm | 300mm | 400m |
Motor power(W) | 90W | 90W | 90W | 120W |
Vacuum degree(Mpa) | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Rotational speed (rpm) | 50-800rpm | 50-800rpm | 50-600rpm | 50-600rpm |
Torque(Ncm) | 30Ncm | 30Ncm | 30Ncm | 162Ncm |
Dimension (mm) | 320*350*800mm | 320*350*800mm | 320*350*900mm | 450*450*1100mm |
Voltage(V) | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Packing & Delivery
Company Profile
Ningkai Instrument Co . Ltd is located in Nanjing , China , where own hundreds of universities and research institutes. And famous as its thousands of years long history culture. Profound culture and strong scientific research strength , provide sustainable and vigorous power for Ningkai development . Main products include Glass Reactor(single layer, double- layer and three- layer) , rotary Evaporator , Short Path Molecular Distillation , Heating Circulators , Heating Refrigeration Circulator , Low Temperature Circulator , Ultrasonic Cell Crusher , Industrial Ultrasonic Treatment Equipment , Ultrasonic Cleaning Machine , High(Low) Temperature Constant Temperature Trough , Hybridization Oven , UV Cross-linker , Flap Type Homogenizer , Dry Bath and etc .Ningkai Instrument has exported its products to Europe , South America , North America , Latin America , Asia , Australia , Middle East , Africa and etc . Providing technical support for tens of thousands organizations to solve problems within their research , special for university , research institutes, inspection agencies ,industries and etc . We have CE and ISO certificates , and the products we sell to the world markets with reasonable price
FAQ
1. What’s the difference between single-layer and double-layer glass reactor? Single-layer glass reactor can directly heating or cooling, it is similar to water or oil bath, inferior in temperature control aspect; while double-layer glass reactor has
inter-layer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better.
2.How to decide which glass reactor I should buy?
Single-layer or double-layer? According to first question, please depend on specific heating or cooling requirements. 3.What is the glass texture?
Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.
4.What’s the loading capacity of double-layer glass reactor?
Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating.
5.What kind of oil does the reactor use to heat?
For temperature around 130℃, use silicone oil, glycerinum or 32# machine oil.
6.Is it easy to wash the reaction bottle?
Big access opening, convenient to wash.
7.What kind of payment term do you accept?
Normally we accept TT , Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
8.How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea..
9.How to package the products?
We package products in dedicated carton, you can order Non Fumigation wooden case if has special requirements.
inter-layer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better.
2.How to decide which glass reactor I should buy?
Single-layer or double-layer? According to first question, please depend on specific heating or cooling requirements. 3.What is the glass texture?
Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.
4.What’s the loading capacity of double-layer glass reactor?
Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating.
5.What kind of oil does the reactor use to heat?
For temperature around 130℃, use silicone oil, glycerinum or 32# machine oil.
6.Is it easy to wash the reaction bottle?
Big access opening, convenient to wash.
7.What kind of payment term do you accept?
Normally we accept TT , Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
8.How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea..
9.How to package the products?
We package products in dedicated carton, you can order Non Fumigation wooden case if has special requirements.
