Характеристики

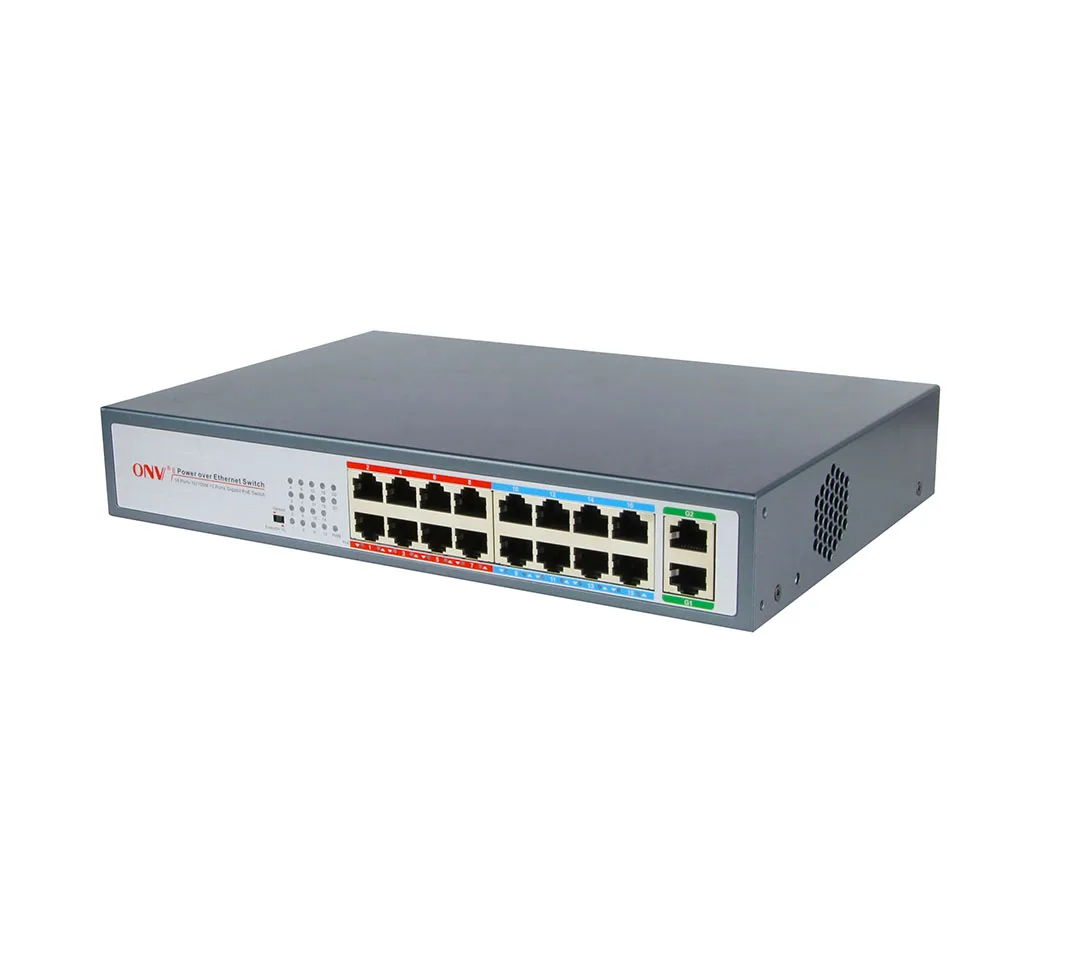

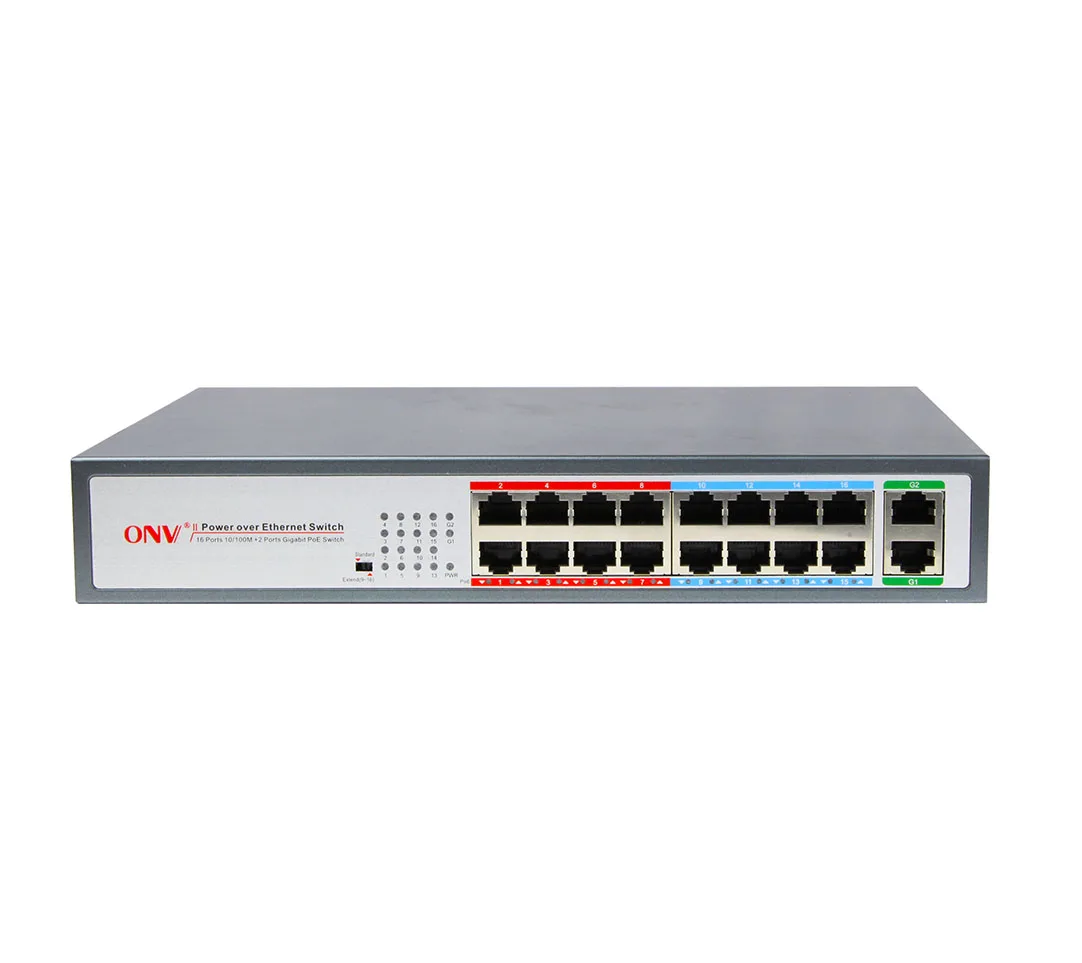

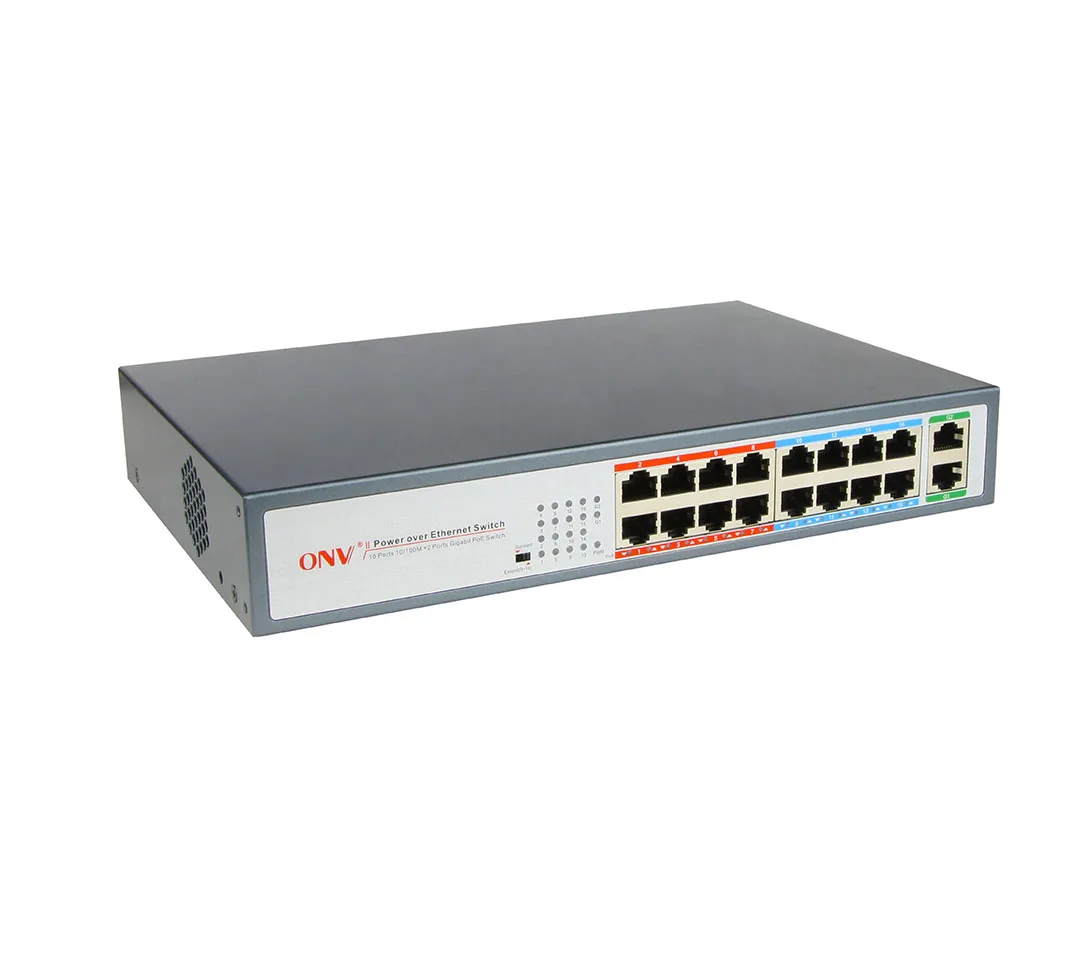

18-Port Gigabit Uplink PoE Switch
The ONV-POE31016PL series is an unmanaged PoE switch independently developed by ONV. It has 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports . Port 1-16 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 250W.
10/100Mbps access , gigabit uplink
— All series supports "10/100M RJ45 port and 10/100/1000M RJ45 port" combination, which enables users to flexibly build networking to meet the needs of various scenarios.
— Support non-blocking wire speed forwarding.
— Support full duplex based on IEEE802.3x and half duplex based on Backpressure
Smart PoE power supply function
— 16*10/100Base-TX RJ45 ports support PoE power supply, which meets the requirements of PoE power supply in various scenarios in the security field.
— Comply with IEEE 802.3af /at PoE power supply standard, automatically identify PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power is 250W, and the maximum PoE output power of a single port is 30W.
— The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is preferentially guaranteed to prevent the device from being overloaded.
Innovative function
— Long distance switch: When opening, the speed of 9-16 port is reduced to 10M. With the existing twisted pair cable, the transmission limit of the twisted pair can be broken. The transmission distance can reach 250 meters; on the other hand, It can solve the problem of poor transmission caused by line aging.
The equipment is stable and reliable，easy to operate
— The host has low power consumption, fanless mute design, aluminum alloy metal shell, and excellent heat dissipation to ensure stable operation of the product.
— ONV self-developed power supply, high redundancy design, provides long-term stable PoE power output.
— The equipment fully meets the safety requirements of CCC,CE, FCC, and RoHS and is safe and reliable to use.
— User can easily understand the working status of the device through the power indicator (PWR), port status indicator, and PoE operation indicator.
— Plug and play, no configuration, simple and convenient.
— Support desktop and 1U/19 inch cabinet installation.
Model | ONV-POE31016PL | |||
Interface Characteristics | ||||
Interface | 16*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T Uplink RJ45 ports (Data) | |||
Ethernet Port Feature | 10/100Base-T(X) ,10/100/1000Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive | |||
Twisted Pair Transmission | 10BASE-T:Cat5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 100BASE-T:Cat5e or later UTP(≤100 meter) | |||
Functional Switch | After opening, port 9-16 support 10M/250 meters long distance transmission. | |||
Note: When the switch status changes, the PoE switch must be restarted for the switch function to take effect. | ||||
Chip Parameter | ||||
Network Management Type | L2 | |||
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-TX IEEE802.3z 1000Base-X; IEEE802.3x | |||
Forwarding Mode | Store and Forward(Full Wire Speed) | |||
Switching Capacity | 14.8Gbps | |||
Forwarding Rate@64byte | 5.36Mpps | |||
MAC | 16K | |||
Buffer Memory | 4M | |||
Jumbo Frame | 10K | |||
LED Indicator | Power indicator: PWR (green); Network indicator : 1-16/G1-2 (green); POE indicator:PoE (green) | |||
PoE & Power | ||||
PoE Port | Port 1-16 support PoE @ IEEE802.3af/at | |||
Power Supply Pin | Default 1/2(+), 3/6(-); Optional 4/5(+), 7/8(-) | |||
Max Power Per Port | 30W/15.4W | |||
Total PWR / Input Voltage | 250W (AC100-240V) | 600W (AC100-240V) | ||
Power Consumption | Standby:<15W;Full load:<240W | Standby:<22W;Full load:<600W | ||
Power Supply | Built-in switching power supply, AC 100 ~ 240V 50-60Hz 4.1A, support short circuit, over current, overload protection | |||
Physical Parameter | ||||
Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing | |||
Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |||
Dimension (L*W*H) | 270*171*44.5mm | |||
Net /Gross Weight | <1.7kg / <2.5kg | <4.6kg / <5.3kg | ||
Installation | desktop type ,wall mounted,19 inch 1U cabinet installation | |||
Certification & Warranty | ||||
Lightning protection | Lightning protection: 4KV 8/20us; Protection level: IP30 | |||
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |||
Warranty | 3 years , lifelong maintenance. | |||
Model | Description |
ONV-POE31016PL | Unmanaged PoE switch with 2*10/100/1000M uplink RJ45 ports and 16*10/100M PoE ports and ,Port 1-16 can support IEEE 802.3af/at PoE standard, Port 9-16 can support 10M/250 meters long distance transmission. Built-in 250W power supply, Support 1U/19 inch cabinet installation. |
PACKING LIST | CONTENT | QTY | UNIT | ||
18-port Gigabit Uplink PoE switch (ONV-POE31016PL) | 1 | SET | |||
AC Power Cable | 1 | PC | |||
Mounting Kits(Hanging Ear) | 1 | SET | |||
User Guide | 1 | PC | |||
Warranty Card | 1 | PC | |||
