adapter poe shenzhen desktop usb wifi adapter



Specification:

1.With CE FCC ROHS C-tick approved.

2.High quality with competitive price, fast delivey
3.Different AC power cord for US,UK, AU, EU to meet your local market
4.Work as genuine parts
5.Low ripple &noise, prefect performance
6.Over voltage & Overload & Short ciruit protection

7.OEM/ODM service





Description:

Ethernet power supply (POE)
POE characteristic	*IEEE802.3 af 15.4W ; Power(max):16W *IEEE802.3 at 25.5W; Power(max): 25W *one port support POE power supply
Power supply way	*Spare Part to 4/5(+) ,7/8(-) *Data Part to 1/2(+) ,3/6(-)
Port and Performance
Port	2 Ethernet front-end ports
Port parameters	*Electrical interface : RJ45 *Cable type :5 kinds of shielded twisted-pair cable(UTP) or higher level
Transmission rate	10/100mbps adaptive
Protocol standard	*IEEE802.3 i 10 BASE-T; *IEEE802.3 u 100 BASE-TX; *IEEE802.3 x Flow Control; *IEEE802.3 af Power over Ethernet;
Interface protection	Meet IEC61000-4-2( ESD) ±15KV(air), ±8KV(contact) requirements, and withstand 8/20us 24A(12A) energy.
LED indicator	Each port : rate,link indicator
Environment and Specification
Environment condition	*Operating Temperature :0~55℃; Storage Temperature : -20~70℃ *Operating Humidity : 90% ,No condensation; Storage Humidity :95%,No condensation
Dimension	83*43*29mm
Weight	0.075kg
Safety standard	CE/LVD
Warranty	3 years
Other Characteristic
Power support	AC220  0.5A/DC-48V (built-in)
Power consumption	2W
Electromagnetic  compatibility	*CE Class B *FCC Part 15 , Class B *VCCI Class B *C-Tick
Certification	CE, FCC ,ROHS

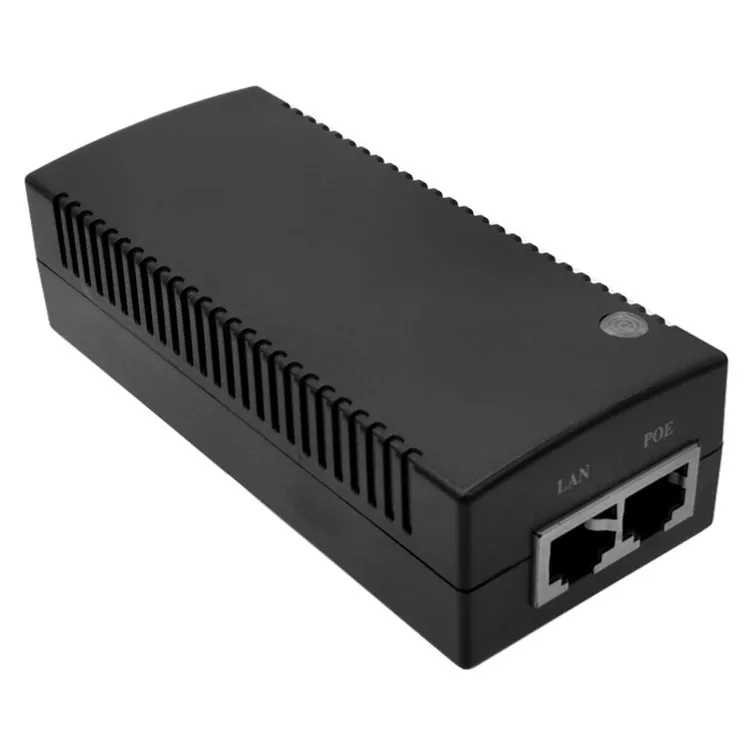

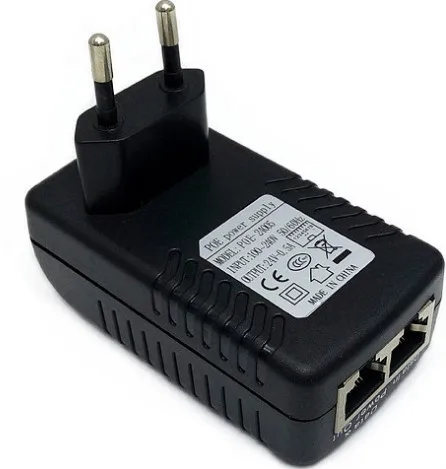

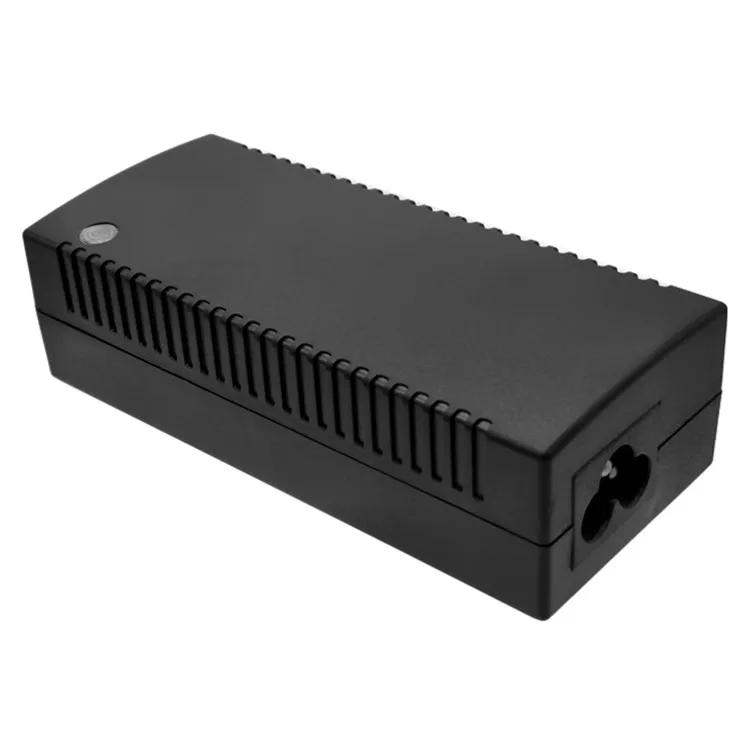

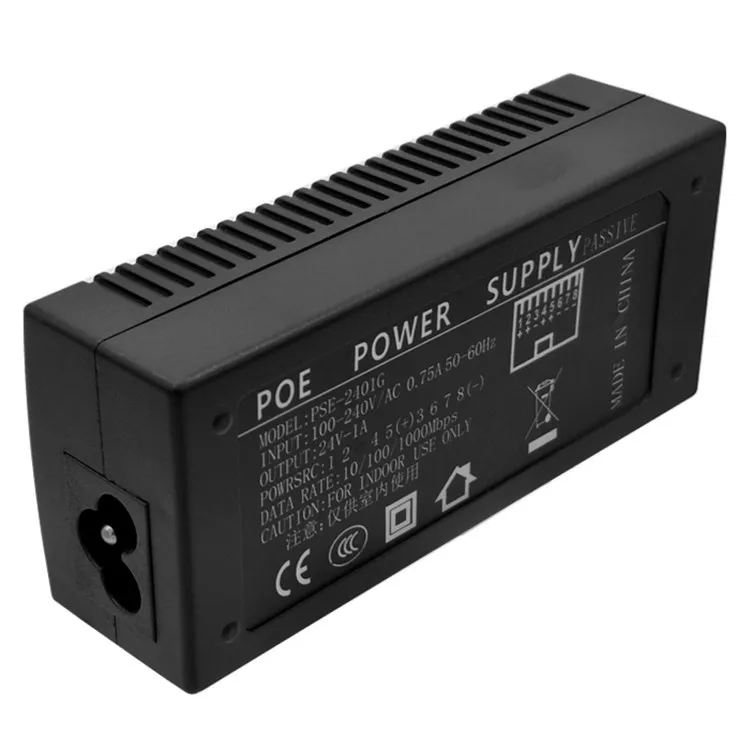

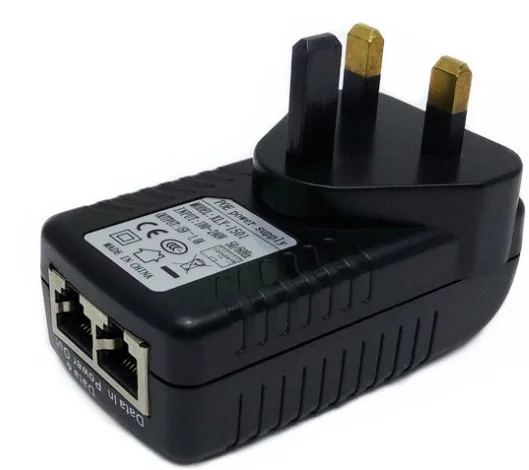

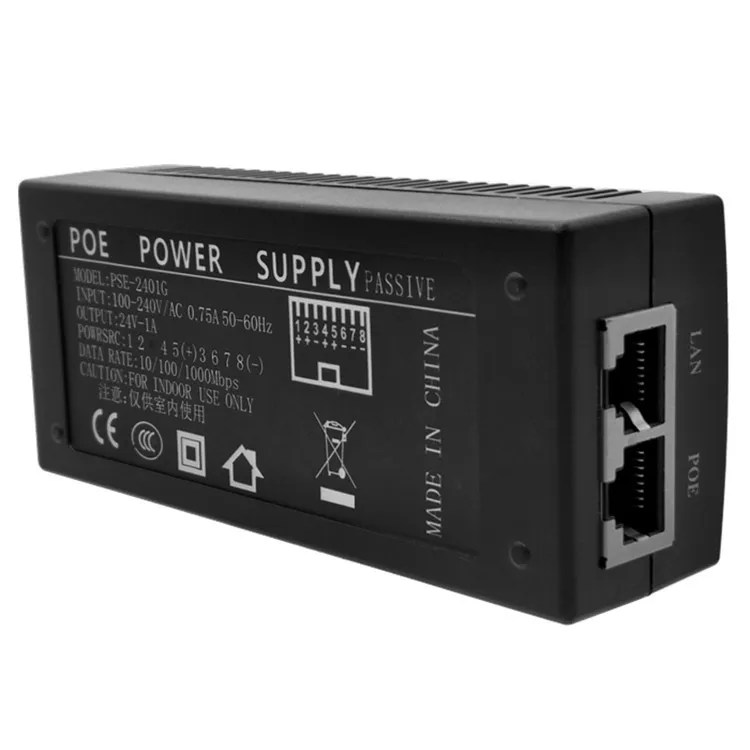

Picture :





Typical Application Solutions:
Application-1: IP Terminal support POE power supply
Just connect the IP terminals to the PoE power supply, through the Internet to transmit data,at the same time, provide a DC power supply,and IP terminal without laying power.

Application-2: IP Terminal do not support POE power supply
Just connect the IP terminals to the PoE power supply, through the Internet to transmit data,at the same time, provide a DC power supply,and IP terminal without laying power.



Quality check:

100% droping test before shipment.

100% aging test before shipment.



Advantage:

1.Samples are availbal.
2.Small orders are acceptable.
3.Timely delivery,usually 1 to 2 days on small order and 5 to 7 days for big order.
4.Competitive factory wholesale price with quality gurantee.
5.Good after-sale service, wall mount desktop type POE injector have one year warranty.



Company:

1. We are 100% manufacturer-1000sqm clean workshop for quality assurance.
Main product: laptop /lcd adapter,wall charger,car charger,universal adapter,usb charger/cable, OEM wall mount desktop type POE injector.
2. Rich experience-8 years on electronics developing,10 years of experience in the supply of foreign trade companies to export to overseas markets, and now we have set up overseas markets team.
3. High quality-100% internal QC ensures products’ quality, 100% and perfect after-sales service guarantee plan;
4. Quick shipment, usually 1 to 2 days on small order and 5 to 7 days for big order.
5. Good service, sincere, active and honest sales team.
6.1-stop solution supplier for OEM/ODM-we are more professional for our customer!





Welcome to your inquiry of OEM wall mount desktop type POE injector!
