Tensile strength is 440-460Mpa(1Mpa=1N/mm2=0.1kgf/kgs)
Normal Size:5.5mm, 6.5/6mm,8mm, 10mm, 12mm, 14mm,16mm.
Package:In bundle fasten by steel strip,normally:1.8-2.2tons/bundles.
Normal black/black annealed/Electro galvanized/Hot dipped galvanized iron wire
Iron Wire(8-24#)
Wire gauge
SWG
BWG
Metric
Size
(mm)
(mm)
(mm)
8
4.06
4.19
4
9
3.66
3.76
-
10
3.25
3.4
3.5
11
2.95
3.05
3
12
2.64
2.77
2.8
13
2.34
2.41
2.5
14
2.03
2.11
-
15
1.83
1.83
1.8
16
1.63
1.65
1.65
17
1.42
1.47
1.4
18
1.22
1.25
1.2
19
1.02
1.07
1
20
0.91
0.89
0.9
21
0.81
0.813
0.8
22
0.71
0.711
0.7
normal black iron wire: (Q195/Q235 material)
The wire rod is directly drawn.
Wire diameter: 2.5-4mm
Pull force: 350-550Mpa is relatively hard.
Generally used to make ordinary nails.
Packing: 100-500 kg/bundle, with a layer of plastic film. (Woven bags according to customer needs)

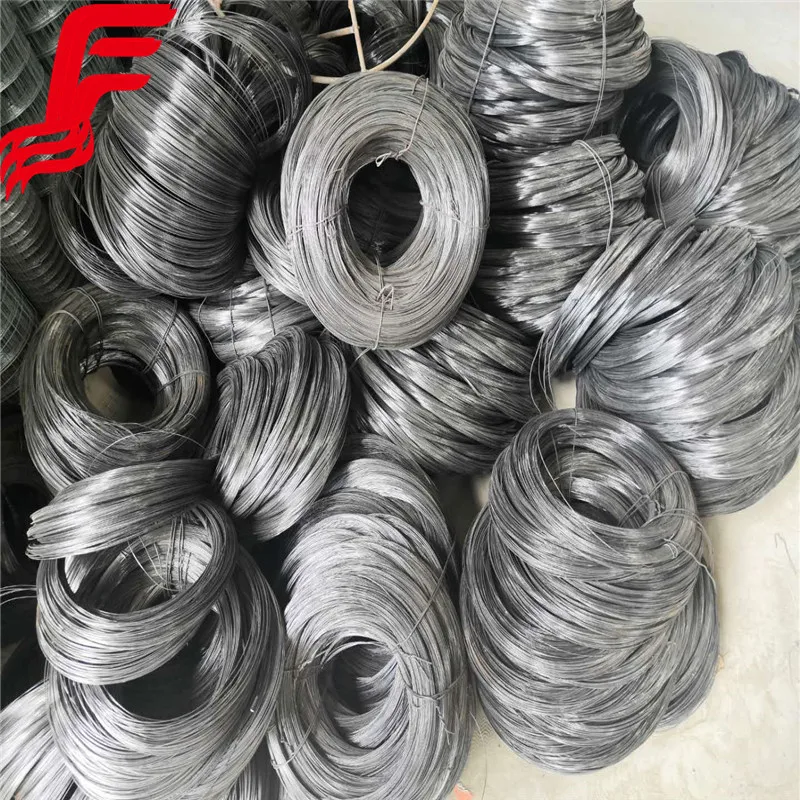

Black annealed iron wire: (Q195 material)
Generally used as a tie wire.
Wire rod-ordinary black wire-annealing (softened)
Wire diameter: generally common 16#-24# (1.6-0.7mm), (8-24# can smother)
Tensile force: 400-1200Mpa(400-1200N/mm2)
It is soft and used for binding wire.
Packing: 0.5-500kg/coil. Plastic inner and outer weaving/plastic inner and hemp.(Common ones are 1-25 kg per roll)

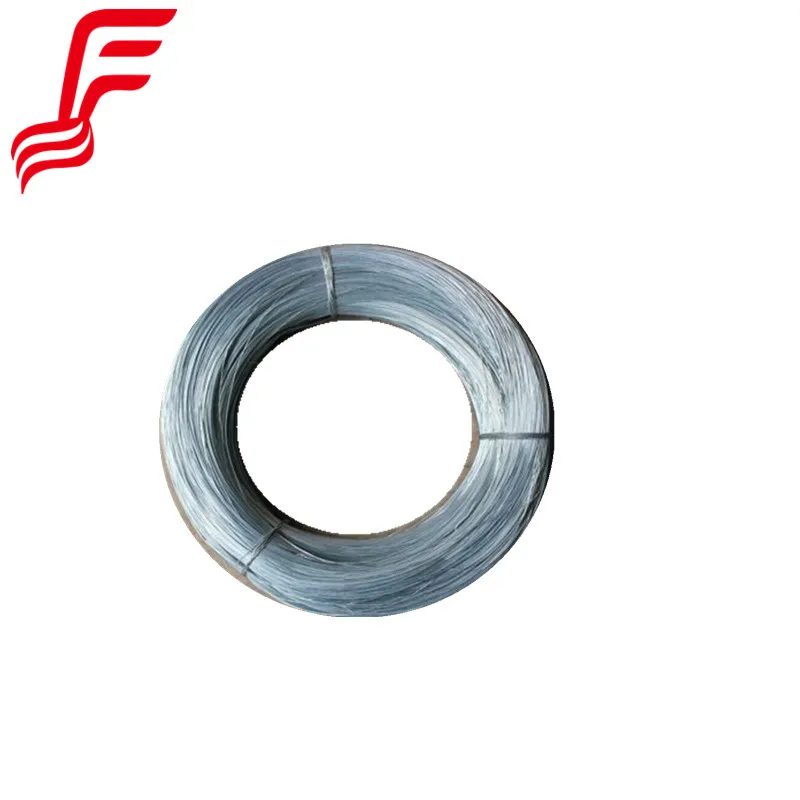

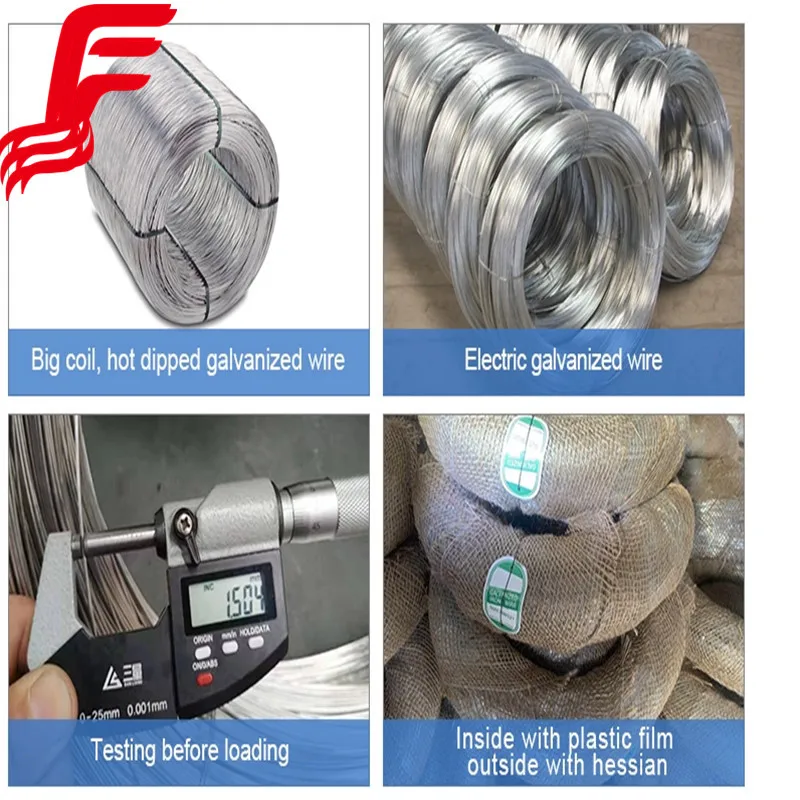

Electro galvanized iron wire. (Q195/Q235 material)
Zinc layer: 10-30g/m2.
Rally: 350-550Mpa
Packing: 1-500kg/coil. (plastic inner and outer braid/plastic inner and outer hemp)
Thick wire diameter can be used as nails, other construction use Thin wire diameter: wire mesh (farm, ranch, prison, border, etc.), other construction wire.
1) Changing the drawing wire: 0.5-1.6mm (for nail thread)
sealing nails, code nails, staples and the like.
After the modification, the zinc layer is generally about 8-15 grams.
The packaging is generally 25/50 kg per roll,
Plastic inner and outer weaving/plastic inner and outer hemp. Or shaft mounted,
The export is usually a plastic shaft, and then the export is supported.
2) Electroplating tie wire. Q195 material
Usually tie wire. Tensile force: 400-1200Mpa(400-1200N/mm2)
