COMS Датчик QR DPM считыватель кода 1d 2d сканер штрих-кода промышленный дальнего действия камера для обработки
- Категория: Scanners >>>
- Поставщик: Smartgiant,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 574.38 $* | 603.61 $* |
| Aug-18-2025 | 569.55 $* | 597.48 $* |
| Jul-18-2025 | 477.42 $* | 501.99 $* |
| Jun-18-2025 | 559.25 $* | 587.71 $* |
| May-18-2025 | 487.0 $* | 511.43 $* |
| Apr-18-2025 | 549.95 $* | 576.44 $* |
| Mar-18-2025 | 545.34 $* | 572.96 $* |
| Feb-18-2025 | 540.80 $* | 567.74 $* |
| Jan-18-2025 | 535.16 $* | 562.6 $* |
Характеристики
Product Description

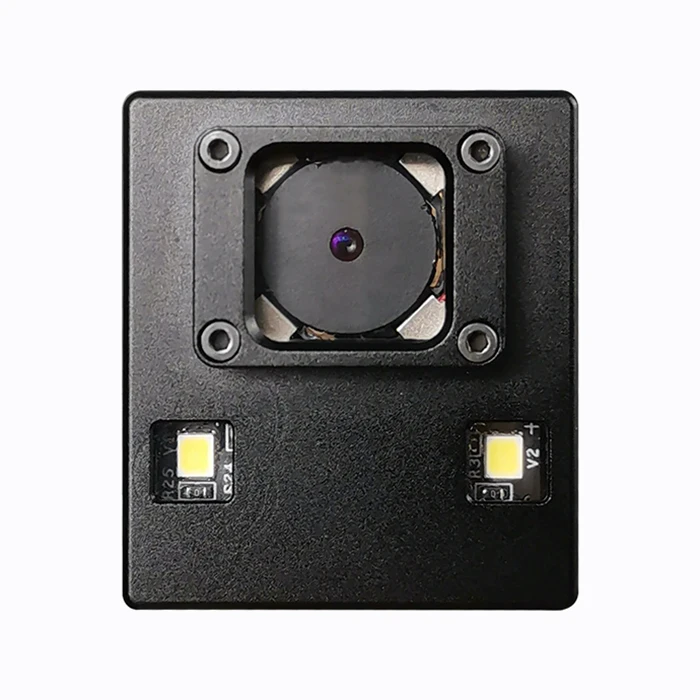

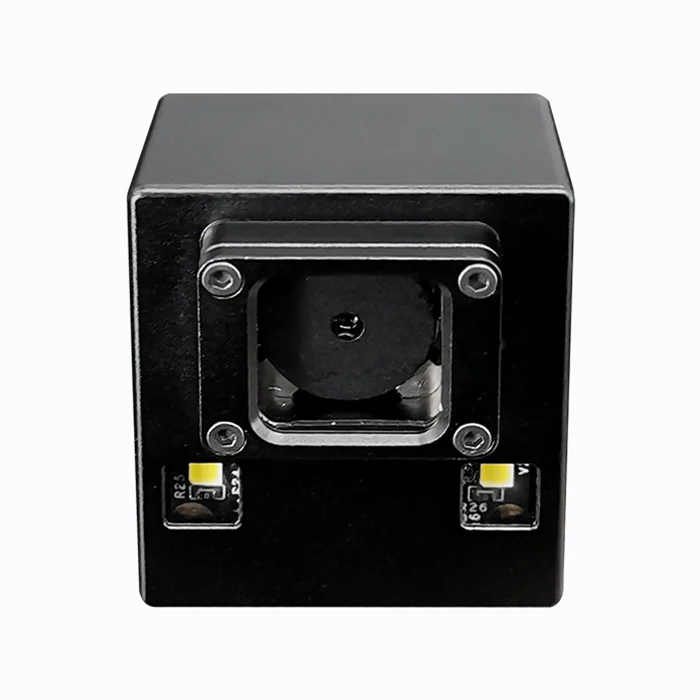

COMS sensor CCTV camera android qr DM code reader 1d 2d barcode scanner android scanner
AS1000 Advantage
. Small size, easy to install, Size 40 × 35 × 27.1mm
. High-Precision Decoding, Built-in Barcode Decoding System
· High-Resolution Electric AF Lens & Color Sensor, support industrial DPM ,small size
code recognition
· Rich Decoding Type & High Recognition Rate, Support multi-code identification, can
deal with common defect code identification, fast decoding
. High-Precision Decoding, Built-in Barcode Decoding System
· High-Resolution Electric AF Lens & Color Sensor, support industrial DPM ,small size
code recognition
· Rich Decoding Type & High Recognition Rate, Support multi-code identification, can
deal with common defect code identification, fast decoding
AS1000 Specification
Product Name | Stationary Barcode Reader for Industry | ||||
Model | AS1000 | ||||
Working Distance | 100~1000 mm | ||||
Dimensions (L x W x H) | 40 × 35 × 27.1 mm | ||||
Focus Option | Auto / Manual | ||||
Light Source | White LED × 2 512-step flexible adjustment for each LED | ||||
Scan Performance | Barcode Type (including DPM) | 1D: code39, code93, code128 | |||
2D: Micro QR, Data Matrix (ECC200) | |||||
Minimal DM Resolution | 1D | 3 mil | |||
2D | 5 mil | ||||
FOV(Field of View) | Capture Range | Min: 72 × 52 mm, Max: 720 × 523 mm | |||
Sensor | Aperture (F.NO) | f/2.8, Color Image & Global Shutter | |||
Pixel | 2592 (H) × 1944 (V) | ||||
Interface | Ethernet | Standard | IEEE802.3az-2010 | ||
USB | Standard | USB 2.0 High-Speed | |||
Adapter | DC | 24 VDC ± 5%,200 mA ± 10% | |||
Environmental | Ambient Temperature | 0~50°C, non-condensing | |||
Humidity | 35~85% RH, non-condensing | ||||
Support OS | Windows 10 Professional or Higher, 32/64 bit Windows 7 Professional or Higher, 32/64 bit | ||||
AS1000 Details
Company Introduction
Guangzhou Smartgiant Network Technology Co., Ltd.
SmartGiant Technology is an experienced provider of online automated testing solutions, integrating services of R&D,manufacturing, sales, and after-sales maintenance.
● Professional optical darkrooms, calibration rooms, and high-temperature aging rooms
● Factory areas over 4,800 m²
● Professional optical darkrooms, calibration rooms, and high-temperature aging rooms
● Factory areas over 4,800 m²
Certifications
Our Production Line
Testing and Measurement Instruments/Solutions
Vision Inspection Instruments/Solutions
Hardware/Firmware Designs
Vision Inspection Instruments/Solutions
Hardware/Firmware Designs
Application Field
Embedded Instrument System
Vision Inspection Solutions
Customized Designs & Verification
Vision Inspection Solutions
Customized Designs & Verification
Location
Headquarter, Panyu, Guangzhou
Pre-Research Center,Huangpu,Guangzhou
Shanghai/Shenzhen/Changsha Branch Office
Hongkong, Sillicon Valley
Pre-Research Center,Huangpu,Guangzhou
Shanghai/Shenzhen/Changsha Branch Office
Hongkong, Sillicon Valley
Our Team
Exhibition
Why Choose Us
* 15+ years in AI vision inspection & Automated testing.
* Certificate: ISO-9001,CE,CCC, 41 Copyrights, 32 Patents.
* Over 300 million Revenue in recent 3 years.
* 7X24 hours Aftersales service and technical support.
* Plant Area: 3000 Square meter
* Certificate: ISO-9001,CE,CCC, 41 Copyrights, 32 Patents.
* Over 300 million Revenue in recent 3 years.
* 7X24 hours Aftersales service and technical support.
* Plant Area: 3000 Square meter
Packaging & Shipping
FAQ
Q: What's included in the shipping fee?
A: The shipping fee includes the costs for shipping and customs declaration fees. For a single order, the customs declaration fee is $50. The shipping cost is based on the packaging volume or weight of the goods. Please contact us for more details.
Q: The ordering system limits the order to 1pcs of sample. Why can't I place an order for 2 pcs or more?
A: This is because the final charge involves calculation of the freight and customs fees of the goods. For orders of 2 pcs or more, please contact us for more details.
Q: What is the delivery time?
A: It depends on your order quantity and the season you place an order. For a small quantity, shipment takes about 7–15 days. For a large quantity, shipment takes about 30 days.
Q: What is the payment method?
A: T/T, L/C, Western Union, PayPal. Specific payment terms are negotiable.
Q: What is the shipping method?
A: By sea, by air, or by express delivery (EMS, UPS, DHL, TNT, FedEx, etc.).
Please confirm with us before placing an order.
A: The shipping fee includes the costs for shipping and customs declaration fees. For a single order, the customs declaration fee is $50. The shipping cost is based on the packaging volume or weight of the goods. Please contact us for more details.
Q: The ordering system limits the order to 1pcs of sample. Why can't I place an order for 2 pcs or more?
A: This is because the final charge involves calculation of the freight and customs fees of the goods. For orders of 2 pcs or more, please contact us for more details.
Q: What is the delivery time?
A: It depends on your order quantity and the season you place an order. For a small quantity, shipment takes about 7–15 days. For a large quantity, shipment takes about 30 days.
Q: What is the payment method?
A: T/T, L/C, Western Union, PayPal. Specific payment terms are negotiable.
Q: What is the shipping method?
A: By sea, by air, or by express delivery (EMS, UPS, DHL, TNT, FedEx, etc.).
Please confirm with us before placing an order.
