LX-BW-L1 Многофункциональный Ультразвуковой человека/ветеринарная портативная документов лазерный сканер
- Категория: Ультразвуковое, оптическое, электронное оборудование >>>
- Поставщик: Shanghai,Link,Instruments,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1983.31 $* | 2082.1 $* |
| Aug-18-2025 | 1966.49 $* | 2064.58 $* |
| Jul-18-2025 | 1649.19 $* | 1731.88 $* |
| Jun-18-2025 | 1933.93 $* | 2030.42 $* |
| May-18-2025 | 1683.3 $* | 1767.26 $* |
| Apr-18-2025 | 1899.8 $* | 1994.40 $* |
| Mar-18-2025 | 1883.43 $* | 1977.10 $* |
| Feb-18-2025 | 1866.51 $* | 1959.65 $* |
| Jan-18-2025 | 1849.49 $* | 1941.8 $* |
Характеристики
Product Description
\t\t\t\t\t\t\t\t\tProduct Detail \t\t\t\t\t\t\t

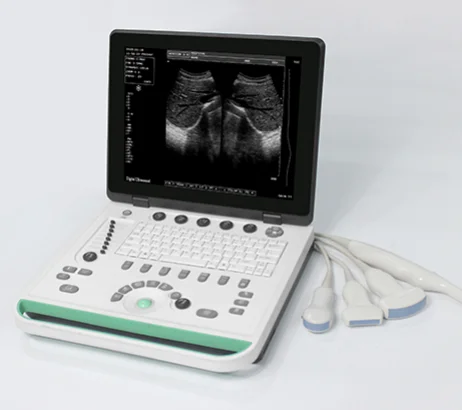

Multipurpose ultrasound Human / Veterinary portable ultrasound scanner price
Feature
-15 inch LCD screen
-Full digital imaging technology, crystal-clear Image
-Pretty and light
-8 segment TGC
-Broadband multi-frequency probes
-2 probe connector
-Silica gel backlight gravure laser keyboard
-USB flash disk large volume image storage
-Cine loop
-Built-in battery(can work more than 5 hours)
-High Cost-effective
-15 inch LCD screen
-Full digital imaging technology, crystal-clear Image
-Pretty and light
-8 segment TGC
-Broadband multi-frequency probes
-2 probe connector
-Silica gel backlight gravure laser keyboard
-USB flash disk large volume image storage
-Cine loop
-Built-in battery(can work more than 5 hours)
-High Cost-effective
Specitifications
-Display size: 15 inch LCD screen
-Working frequency: 2.0MHz~10MHz
-Display mode: B, B+B, B+M, M, 4B
-Scanning range: Convex array 60°~150°
-Amplification factor:1.0, 1.2, 1.5,2.0
-Gain control: 8 segments TGC and overall gain can be adjusted respectively
-Image processing: 8 γ corrections, frame correlation, point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color processing, etc
-Image gray-scale: 256 levels
-Scanning line number: 512 lines/frame
-Frame rate: 30 frames/second
-Digital scanning conversion: 512×512×8 bits
-Memory: USB flash disk large volume image storage
-Conventional measurements: distance, perimeter, area, volume
-Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC),
expected date of confinement and fetus weight, etc.
-Report function: auto make report
-Built-in battery capacity: can work more than 5 hours

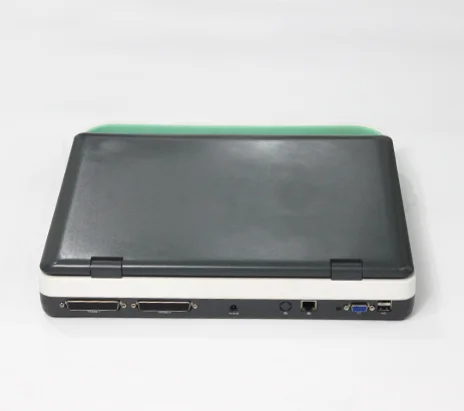

-Output interface: USB port, video.
-Overall size: 362mm×340mm×60mm
-Total weight: 4Kg(with battery)
Standard configuration
One host, one convex probe, one aluminum trunk
Optional

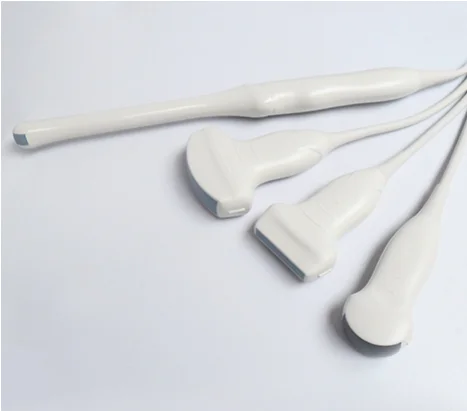

Transvaginal, linear, micro-convex probe;

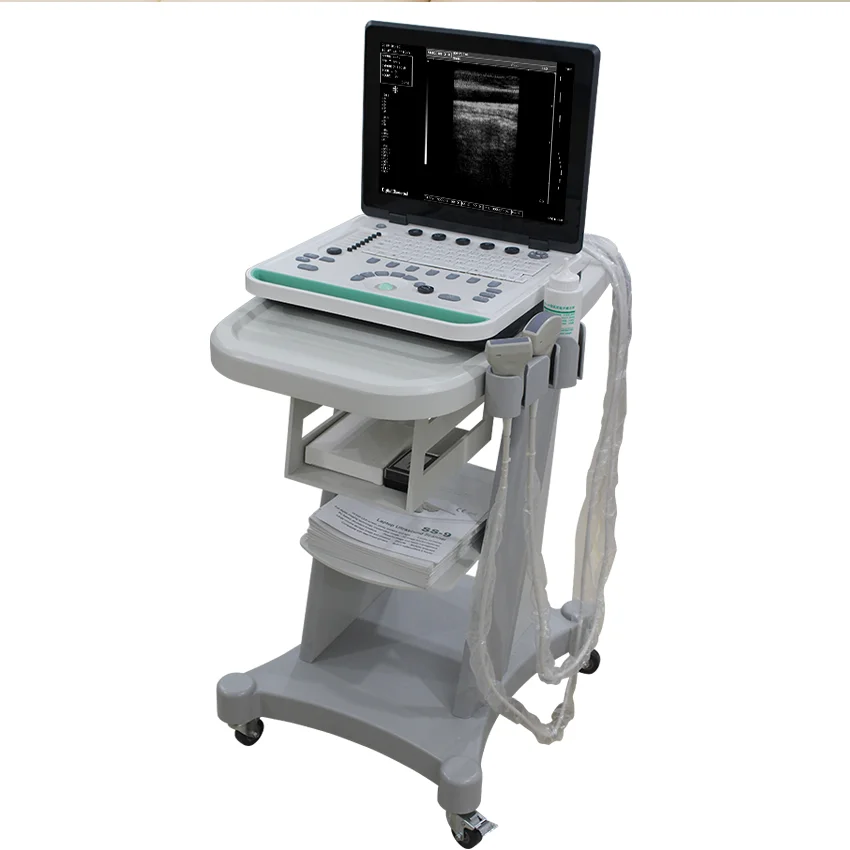

Biopsy; Trolley; Printer.
-Working frequency: 2.0MHz~10MHz
-Display mode: B, B+B, B+M, M, 4B
-Scanning range: Convex array 60°~150°
-Amplification factor:1.0, 1.2, 1.5,2.0
-Gain control: 8 segments TGC and overall gain can be adjusted respectively
-Image processing: 8 γ corrections, frame correlation, point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color processing, etc
-Image gray-scale: 256 levels
-Scanning line number: 512 lines/frame
-Frame rate: 30 frames/second
-Digital scanning conversion: 512×512×8 bits
-Memory: USB flash disk large volume image storage
-Conventional measurements: distance, perimeter, area, volume
-Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC),
expected date of confinement and fetus weight, etc.
-Report function: auto make report
-Built-in battery capacity: can work more than 5 hours
-Output interface: USB port, video.
-Overall size: 362mm×340mm×60mm
-Total weight: 4Kg(with battery)
Standard configuration
One host, one convex probe, one aluminum trunk
Optional
Transvaginal, linear, micro-convex probe;
Biopsy; Trolley; Printer.
\t\t\t\t\t\t\t\t\trelated \t\t\t\t\t\t\t
Specification
Model | SS-7 Laptop full digital ultrasound scanner |
Monitor | 15" LCD |
Display mode | B, B+B, B+M, M, 4B |
Probe interface | single |
Net weight | About 4kgs. |
Output interface | USB port, video. |
Image gray-scale | 256 levels |
Scanning line number | 512 lines/frame |
Options | Transvaginal, linear, micro-convex probe; Biopsy; Trolley; Printer. |
