earth drilling auger for excavator suits to CX160B excavator
US $1300-$1500
Экскаватор ворс молоток крушитель трубопроводы бетона выключателя насадка для
- Категория: Other Construction Machinery Attachments >>>
- Поставщик: Yantai,Shijin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.3 $* | 0.64 $* |
| Aug-17-2025 | 0.51 $* | 0.82 $* |
| Jul-17-2025 | 0.77 $* | 0.2 $* |
| Jun-17-2025 | 0.29 $* | 0.95 $* |
| May-17-2025 | 0.49 $* | 0.25 $* |
| Apr-17-2025 | 0.55 $* | 0.43 $* |
| Mar-17-2025 | 0.59 $* | 0.5 $* |
| Feb-17-2025 | 0.50 $* | 0.5 $* |
| Jan-17-2025 | 0.9 $* | 0.36 $* |
Характеристики
Product Description
WE are the real manufacturer in China. All breakers are produced, assmebled and backed by DEHN!
To get your order and satisfaction, we offer you:
1. factory direct price
2. good quality
3. support 7 days refund money
4. small order is welcomed
5. OEM customized
6. longer warranty
7. 24 hours on line to offer you professional service
8. Trade assurance for shipment and payment as we are Alibaba VIP and gold supplier.
Hydraulic Breaker for 30ton excavator for sale
SIDE TYPE BREAKER
1.Reducing total-lenght
2.More convenience to handle the breaking object
3.Easy maintenance
2.More convenience to handle the breaking object
3.Easy maintenance
SILENCED TYPE BREAKER
1.Low noise level
2.Full-closed bracket protects main body from damage
2.Full-closed bracket protects main body from damage
TOP TYPE BREAKER
1.Easy-control and easy-position make it more convenience to excavation work
2.Without side weight,reducing the rate of chisel breakage
3.longer total-length and heavier total-weight
2.Without side weight,reducing the rate of chisel breakage
3.longer total-length and heavier total-weight
Model | SB121=DEHN1550 | |||
Total Weight(side/top/box) | kg | 2577/2745/2968 | ||
Length(side/top/weight) | mm | 2776/3102/3075 | ||
Working Flow Rate | liter /min | 180-240 | ||
Oil Relief Pressure | kg/cm2 | 170-200 | ||
Working Pressure | kg/cm2 | 150-170 | ||
Striking Frequency | bpm | 300-450 | ||
Chisel Diameter | mm | ¢155 | ||
Oil Pipe Nominal Diameter | inch | 1/1/4 | ||
Chisel Weight | kg | 190 | ||
Applicable Excavator Weight | ton | 28-35 | ||
Suitable Bucket Capacity | m3 | 1.1-1.4 | ||
Payment Term | TT/LC/Westunion | |||
Standard Parts: Two chisels, two hoses, one set of N2 charging kit with N2 bottle and pressure gauge, one set of spare seal kit,one tool box with necessary maintenance tools and operation manual as well. | ||||
→ Through bolts: Longer service life by to applied heat treatment.
→ Back head: Material: 20CrMo, impact energy is accumulated due to charged nitrogen gas in the block.
→ Front Head: Using 20CrMo material, high quality with long life using.

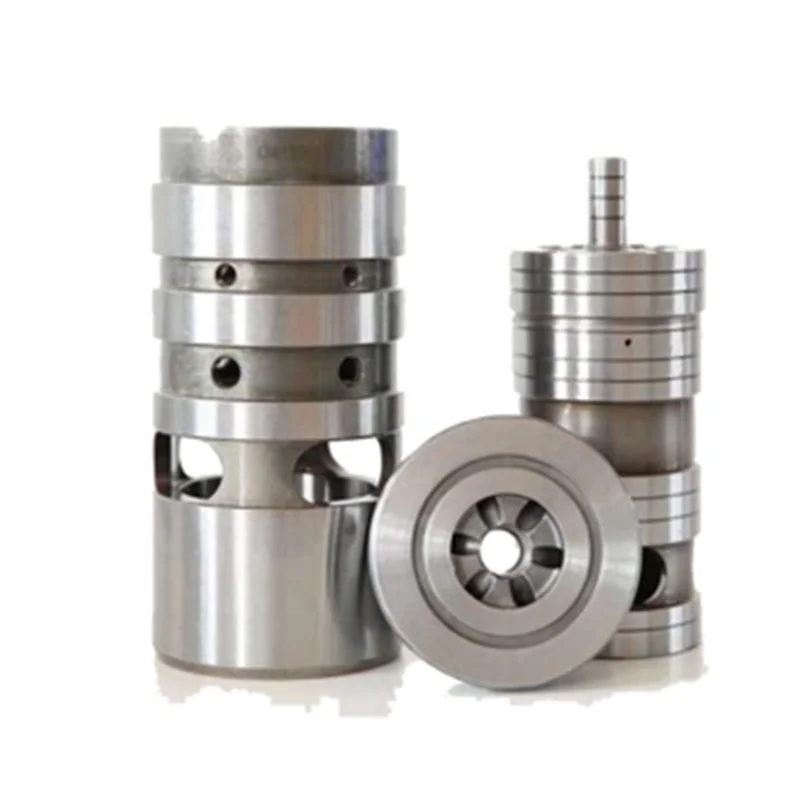

→ Valve: We adopt production process by grinding machine, with high precision.
→ Cylinder body: Material: 20CrMo, it is best quality material.
→ Piston: Longer service life by optimized design and high quality special steel.
→ Front Head: Using 20CrMo raw material, which are provided by domestic famous manufacturer, forging again and again to make
Internal organization more tight and increasing the hydraulic breaker wear-resistance.
→ Chisel: The specially heat treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt,
Flat, Conical Point. The material is 42CrmoA.
→Main Body: Including Front head, cylinder and back head. Ensure your breaker will be in best performance
→ Seal Kit: We can supply both Parker and NOK seal kit which are most famous brand in the business line.
Advantages:
1.Select raw material – high quality heavy duty wear resistant alloy steel.
2.Advanced manufacturing facilities, introduced from South Korea.
3.Ten years of experiences in research and development .
4.Powerful impact blow. Compared with other brand's products, JMB series Hydraulic Breakers has more powerful stroke and reliableperformances.
5.Easy maintenance.
6.Long lifetime.
7.Convenient A/S service.
→ Back head: Material: 20CrMo, impact energy is accumulated due to charged nitrogen gas in the block.
→ Front Head: Using 20CrMo material, high quality with long life using.
→ Valve: We adopt production process by grinding machine, with high precision.
→ Cylinder body: Material: 20CrMo, it is best quality material.
→ Piston: Longer service life by optimized design and high quality special steel.
→ Front Head: Using 20CrMo raw material, which are provided by domestic famous manufacturer, forging again and again to make
Internal organization more tight and increasing the hydraulic breaker wear-resistance.
→ Chisel: The specially heat treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt,
Flat, Conical Point. The material is 42CrmoA.
→Main Body: Including Front head, cylinder and back head. Ensure your breaker will be in best performance
→ Seal Kit: We can supply both Parker and NOK seal kit which are most famous brand in the business line.
Advantages:
1.Select raw material – high quality heavy duty wear resistant alloy steel.
2.Advanced manufacturing facilities, introduced from South Korea.
3.Ten years of experiences in research and development .
4.Powerful impact blow. Compared with other brand's products, JMB series Hydraulic Breakers has more powerful stroke and reliableperformances.
5.Easy maintenance.
6.Long lifetime.
7.Convenient A/S service.

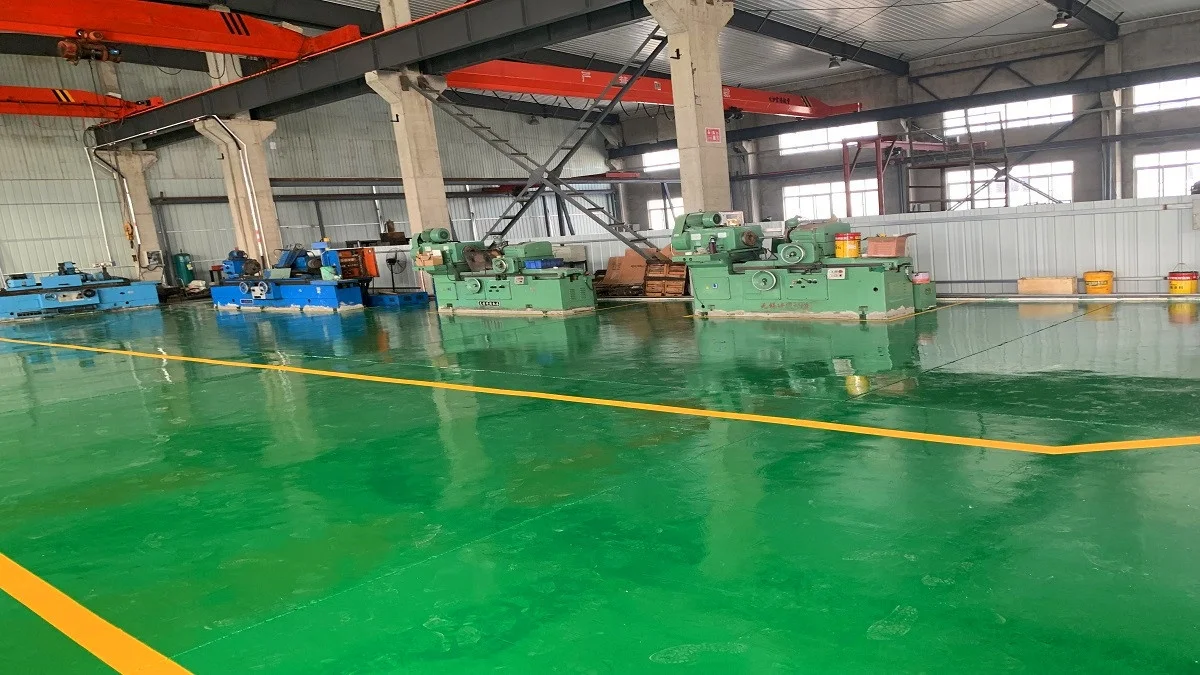

Product Real Show:
Related Serials:
SB10 Top Breaker
Suit for 0.8-2.5ton excavator
SB20 Top Breaker
Suit for 1.2-3.0ton excavator
SB30 Side Breaker.
Suit for 2.5-4.5ton excavator
SB40 Box Breaker
Suit for 4-7ton excavator
SB43 Side Breaker.
Suit for 6-9ton excavator
SB121 Side Breaker.
Suit for 27-36ton excavator
SMALL RANGE | |||||
Description | unit | DEHN 400 | DEHN 450 | DEHN 530 | DEHN 600 |
Operating Weight(side/top/box) | kg | 70/72/102 | 95/95/126 | 138/138/152 | 180/180/224 |
Length(side/top/box) | mm | 910/1086/1190 | 1090/1235/1331 | 1178/1344/1417 | 1239/1460/1472 |
Working Flow | liter/min | 15-25 | 20-30 | 25-50 | 30-60 |
Oil Pressure | kg/cm2 | 160 | 160 | 160 | 160 |
Working Pressure | kg/cm2 | 90-120 | 90-120 | 90-120 | 100-130 |
Impact Rate | bpm | 800-1400 | 700-1200 | 600-1000 | 500-1000 |
Chisel Diameter | mm | ¢40 | ¢45 | ¢53 | ¢60 |
Impact energy | joule | 190 | 350 | 550 | 600 |
Suitable bucket | m3 | 0.07 | 0.03-0.1 | 0.06-0.2 | 0.06-0.2 |
MEDIUM SIZE | ||||||
Description | unit | DEHN 680 | DEHN750 | DEHN850 | DEHN 1000 | DEHN 1350 |
Operating Weight | kg(side/top/box) | 263/263/299 | 334/335/375 | 559/569/589 | 761/866/861 | 1653/1847/1510 |
Length | mm(side/top/box) | 1373/1684/1660 | 1515/1706/1712 | 1735/2120/2074 | 1994/2387/2354 | 2423/2900/2847 |
Working Flow | liter/min | 40-70 | 50-90 | 60-100 | 80-110 | 130-170 |
Oil Pressure | kg/cm2 | 170 | 170 | 190 | 190 | 210 |
Working Pressure | kg/cm2 | 110-140 | 120-150 | 127-147 | 150-170 | 160-185 |
Impact Rate | bpm | 500-900 | 400-800 | 400-800 | 350-700 | 400-650 |
Chisel Diameter | mm | ¢68 | ¢75 | ¢85 | ¢100 | ¢135 |
Impact energy | Joule | 800 | 1000 | 1800 | 2100 | 3800 |
Suitable bucket | m3 | 0.15-0.3 | 0.2-0.35 | 0.4-0.6 | 0.4-0.6 | 0.6-1.0 |
Suitable Carrier | ton | 4-7 | 6-9 | 7-14 | 10-15 | 16-21 |
HEAVY DUTY | |||||
Description | unit | DEHN 1400 | DEHN 1550 | DEHN 1650 | DEHN 1750 |
Operating Weight(side/top/box) | kg | 1774/2059/1866 | 2577/2745/2968 | 2751/3156/2916 | 3905/4057/3902 |
Length(side/top/box) | mm | 2480/2866/2793 | 2776/3102/3075 | 2820/3285/3337 | 3184/3812/3723 |
Working Flow | liter/min | 120-180 | 180-240 | 200-260 | 200-260 |
accumulator | / | Optional | Yes | Yes | yes |
Working Pressure | kg/cm2 | 160-185 | 170-200 | 160-180 | 180-210 |
Impact Rate | bpm | 350-500 | 300-450 | 250-400 | 200-350 |
Chisel Diameter | mm | ¢140 | ¢155 | ¢165 | ¢175 |
Impact energy | Joule | 4500 | 7500 | 10000 | 13000 |
Suitable Carrier | ton | 18-26 | 28-35 | 30-40 | 35-45 |

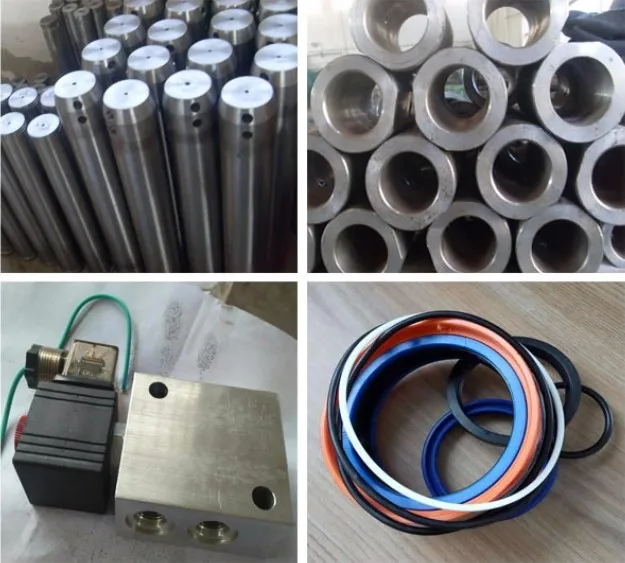

Spare Parts
Chisel
Piston

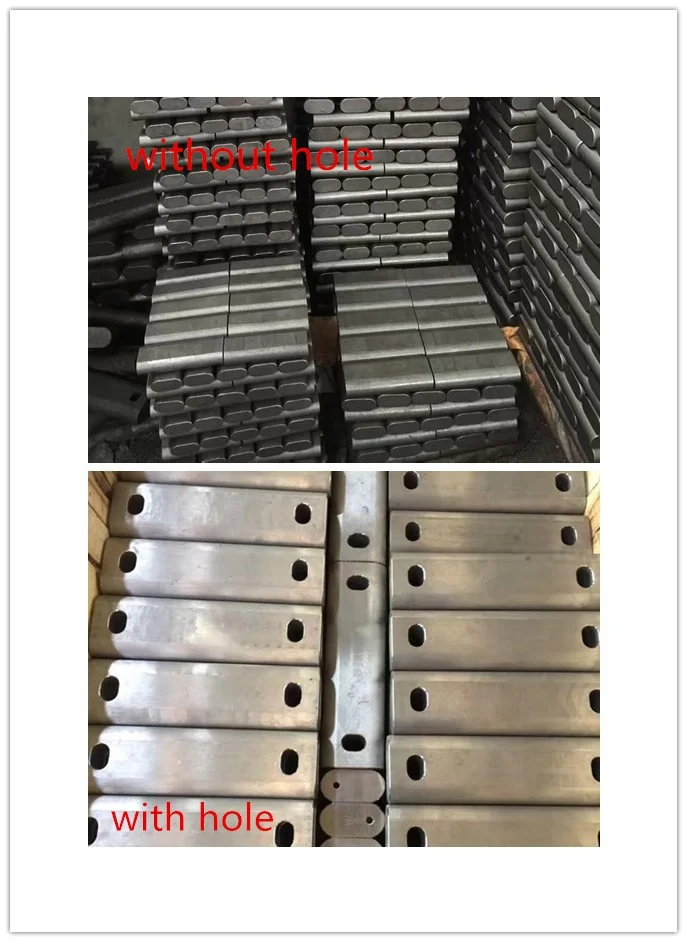

Ring Bush Rod pin
Application
1.Mining--------Mining,Second-time breaking
2.Metallurgy----Clearing slag,Demolition of furnace and foundation
3.Road-----------Repairing,Breaking,Foundation work
4.Railway--------Tunneling,Demolition of bridge
5.Construction---Demolition of building and reinforced concrete
6.Ship repairing--Clearing clam and rust from the hull
7.Others-----------Breaking frozen mud
2.Metallurgy----Clearing slag,Demolition of furnace and foundation
3.Road-----------Repairing,Breaking,Foundation work
4.Railway--------Tunneling,Demolition of bridge
5.Construction---Demolition of building and reinforced concrete
6.Ship repairing--Clearing clam and rust from the hull
7.Others-----------Breaking frozen mud
Packing and Shipping
Package:
1.Inner is stretch film , outside is export wooden case or as customer's request .

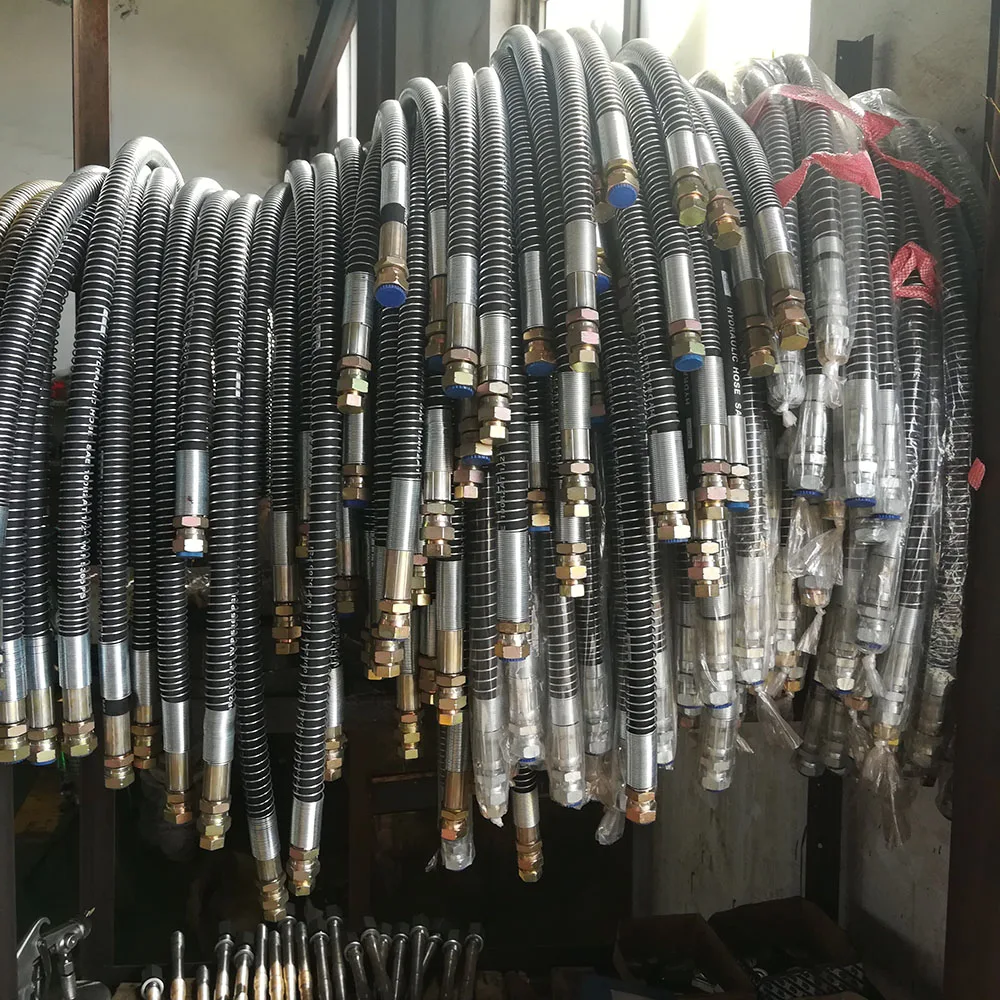

2.The standard free spare parts: 2 pcs of Chisel , 2 pcs of oil tube , 1 pc of Nitrogen Cylinder , 1 set of repair tools with tool
box , a nitrogen pressure gauge .
Delivery:
☆Delivery time: Usually 3-7days (1-9sets) after receiving the payment
☆We can arrange hydraulic breaker shipment by ocean or air transportation according to your request from any port of China.
1.Inner is stretch film , outside is export wooden case or as customer's request .
2.The standard free spare parts: 2 pcs of Chisel , 2 pcs of oil tube , 1 pc of Nitrogen Cylinder , 1 set of repair tools with tool
box , a nitrogen pressure gauge .
Delivery:
☆Delivery time: Usually 3-7days (1-9sets) after receiving the payment
☆We can arrange hydraulic breaker shipment by ocean or air transportation according to your request from any port of China.
About Us
Yantai Shijin Machinery CO., Ltd was established in 2010.Our company is specialized in manufacturing Hydraulic Breaker, Quick,Coupler, Hydraulic Chisel, Earth Anger, Excavator Ripper and Spare Parts.There are 2 kinds of brand DEHN products for you of Global per square kilometer.
We hope you can find the goods you need in our company.And we sincerely hope to cooperate with our partners for common development.
To assure the product quality , the company has a complete quality control system with full range of policies and strict monitoring on the procedures for breaker chisel , silenced type/box type/side type hydraulic breaker , quick coupler ,excavatorripper , hydraulic compactor,and piston , through bolt of spare parts .
DEHN is determined to be the Top Brand in engineering machinery industry . we have always regarded Product Quality as Soul of the company , sticks to the principle of " Service , Innovation and Sustainable Development " , and aims to create value for customers continually .
Certifications
Trade Show
FAQ
1. What color can you produced?
Reply: Usually yellow, blue, orange....If you need special, please tell us, We will comply with your request.
2. How about the delivery time?
Reply: we have a great deal of products and spare parts in stock. On leading time, we have big advantages as a Manufacturer,
usually in 3-7 days after order confirmation.
3. What’s the payment?
Reply: we usually accept T/T, L/C or Western Union, other terms also could be negotiated, Recommended Trade Assurance, will
guarantee buyer's interest.
4. Can you produce according to customer’s design?
Reply: Sure, we are professional manufacturer, OEM is available.
5.What's your advantage?
Reply: We have competitive prices. Fast delivery time etc. High quality products, high reliability, high safety.
6. Which country have you exported?
Reply: Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
7. Are you sure that your product will fit my excavator?
Reply: Our chisel can be adapted to different excavators. Show me your model number, and we can give you best solution.
8. How about the packing of the goods?
Reply: Standard export package, wood cases, or as customers' demands.
Reply: Usually yellow, blue, orange....If you need special, please tell us, We will comply with your request.
2. How about the delivery time?
Reply: we have a great deal of products and spare parts in stock. On leading time, we have big advantages as a Manufacturer,
usually in 3-7 days after order confirmation.
3. What’s the payment?
Reply: we usually accept T/T, L/C or Western Union, other terms also could be negotiated, Recommended Trade Assurance, will
guarantee buyer's interest.
4. Can you produce according to customer’s design?
Reply: Sure, we are professional manufacturer, OEM is available.
5.What's your advantage?
Reply: We have competitive prices. Fast delivery time etc. High quality products, high reliability, high safety.
6. Which country have you exported?
Reply: Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
7. Are you sure that your product will fit my excavator?
Reply: Our chisel can be adapted to different excavators. Show me your model number, and we can give you best solution.
8. How about the packing of the goods?
Reply: Standard export package, wood cases, or as customers' demands.
If you are interested in our products,please show us your excavator or backhole loader model No. or operating weights, I will quote to you.
Email:allen@ytdehn.com
Website:https://shijinmachine.en.alibaba.com
Tel/Whatsapp/Wechat : 008613325168629
Facebook: Dehn Hydraulic Breaker
Website:https://shijinmachine.en.alibaba.com
Tel/Whatsapp/Wechat : 008613325168629
Facebook: Dehn Hydraulic Breaker
