Характеристики



Product Description








--03_02--03_04Lab Li on Battery Spot Welder 5000A/8000A Manual Battery Pack DC Pulse Spot Welding Machine Battery Tab Welder







Features


The equipment includes inverter, welding controller and intermediate frequency transformer. It adopts modular design, selects imported components and is equipped with the company's advanced microcomputer controller, and cooperates with 2 sets of analog/digital conversion circuits to change the power supply voltage. Temperature changes are automatically controlled to maintain a stable output.

The spot welder is widely used, and the welding transformer has a small volume and a large output energy.





1.The current is rectified in order to supply DC welding current.


2.It helps to reduce the energy of iron core material.


3.Transform the electric energy into DC power


4.DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .





Specifications


















































Model



LITH-DC-01



Transformer Maximum Output Power



35KVA



Maximum Output Short Circuit Current



5000A



Welding Conditions



8



Open Circuit Voltage



10V



Control Mode



Constant Current Control



Input Frequency



AC 220V±10% 50Hz



Weight



55KG



Welding Thickness



Maximum thickness of parallel welding:0.03mm~0.5mm



Maximum Thickness of Upper and Lower Butt Welding



0.3mm+1mm



Size



185x280x420mm







Selection





















































































































































































Current



5000A



8000A



Input Power



AC 380V±10%,


50Hz±2Hz



AC 380V±10% ,


50Hz±2Hz



Rated capacity



25KVA



35KVA



Maximum output  short circuit current



5000A



8000A



Output current range



800-5000A



500-8000A



Output voltage



10V



10V



Inverter frequency



4KHz



4KHz



Welding time



1.0ms—99.0ms adjustable,accuracy:0.1ms



1.0ms—99.0ms adjustable,accuracy: 0.1ms



Welding pulse section



2



3



Welding cycle period



1



11



Working table size



600mm*800mm



600mm*800mm



Welding range



580mm*580mm



580mm*580mm



Adjustable height range of welding head



10-150mm



10-150mm



Welding needle specification



1.5mm-3mm/6mm optional



1.5mm-3mm/6mm optional



Adjustable distance between welding needles



0-10mm



0-10mm



Adjustable stroke of cylinder



5-30mm



5-30mm



Specification of secondary discharge cable



95mm²



95mm²



Cable length



500mm



500mm



Adjustable range of welding head pressure



1-5kg



1-5kg



Welding speed



0.5-0.8s/point



0.5-0.8s/point



Plane double needle welding thickness



0.08-0.25mm


plated nickel/pure nickel



0.08-0.3mm


plated nickel/pure nickel



Welding thickness of convex point and flat needle



0.15-0.3mm


plated nickel/pure nickel



0.2-0.5mm


plated nickel/pure nickel



Number of settable specifications



8



99



Display



LED



TFT 800X480 Capacitive touch screen



Over limit alarm setting mode



Current setting



Current setting + current wave monitoring



Welding mode



Single welding



Single or double welding



control mode



PWM



PWM



Control way



1200V 200A IGBT



1200V 300A IGBT



Control mode



Constant current



Constant current and constant voltage



Cooling



Forced air cooling



Forced air cooling



Weight



35KG



40KG



Weight of main machine



430L*185W*280H  mm



455L*205W*315H  mm



Transformer size



265L*180W*255H  mm



475L*200W*290H  mm



Whole main size



800Lx600Wx1200H  mm



800Lx600Wx1200H  mm



Welding application



Battery connection piece, hardware sheet, wire harness, terminal block, etc



Battery connection piece, hardware sheet, wire harness, terminal block, etc

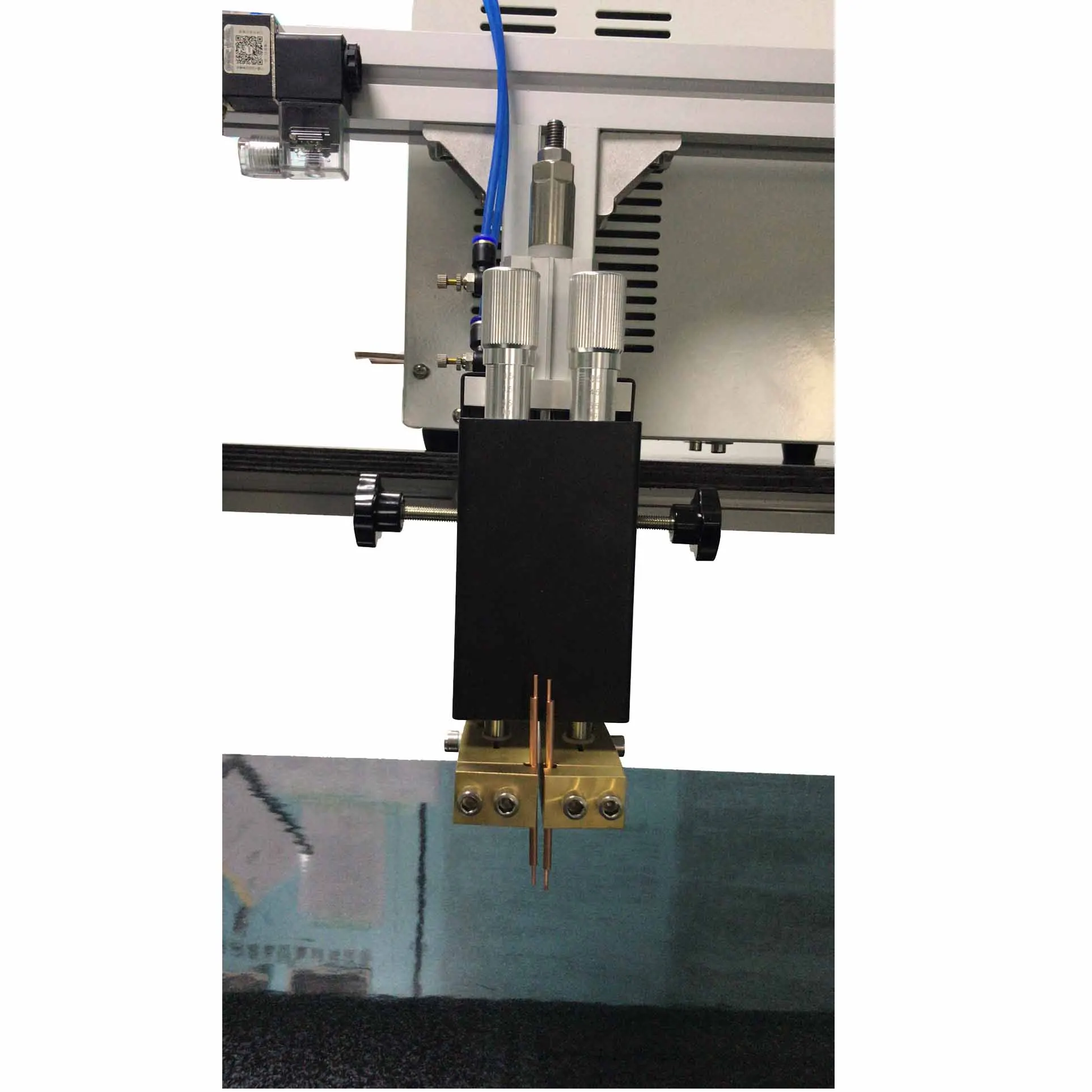

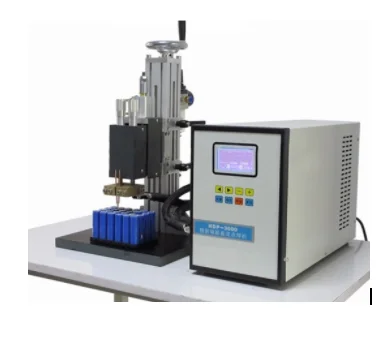

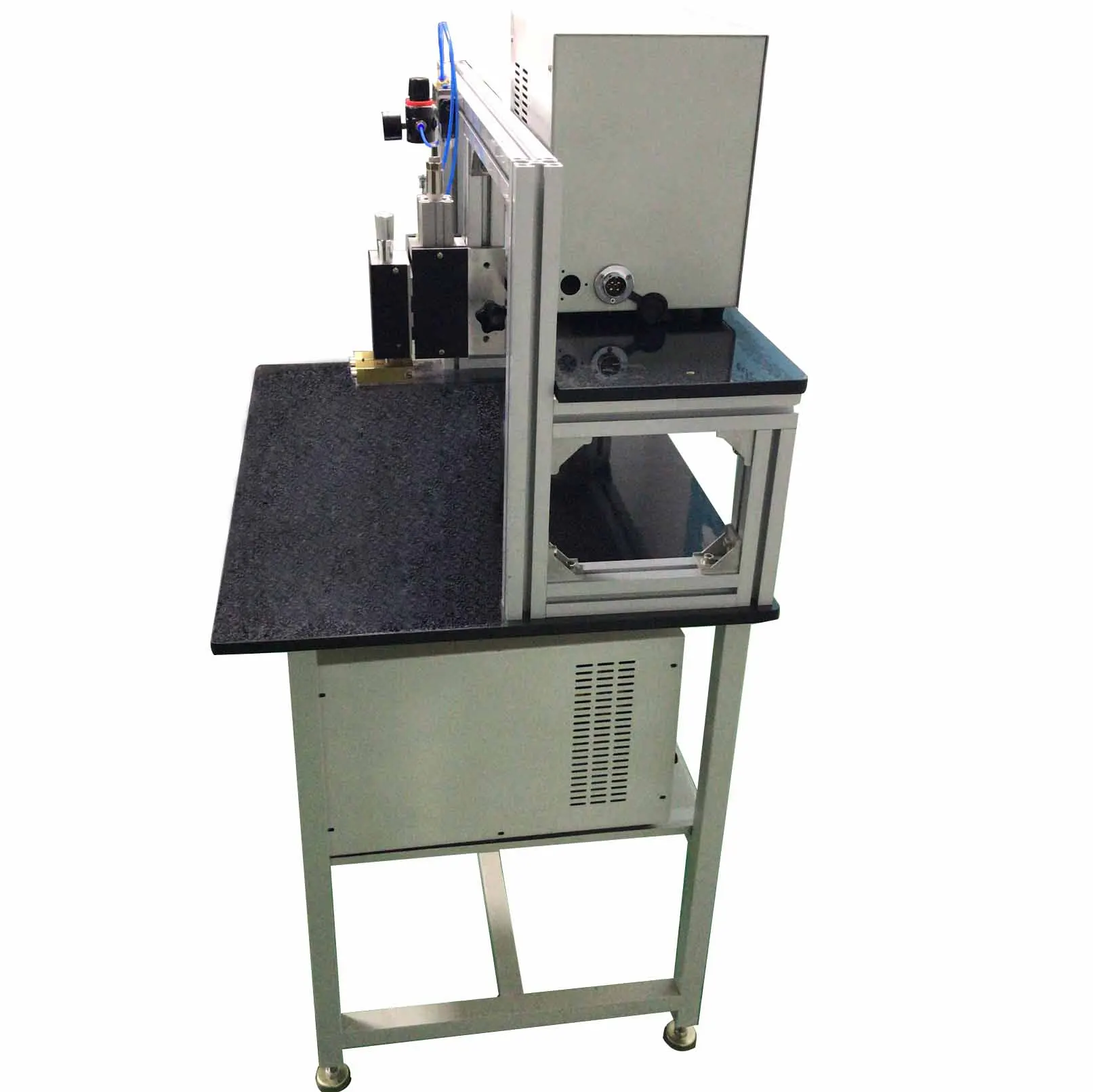

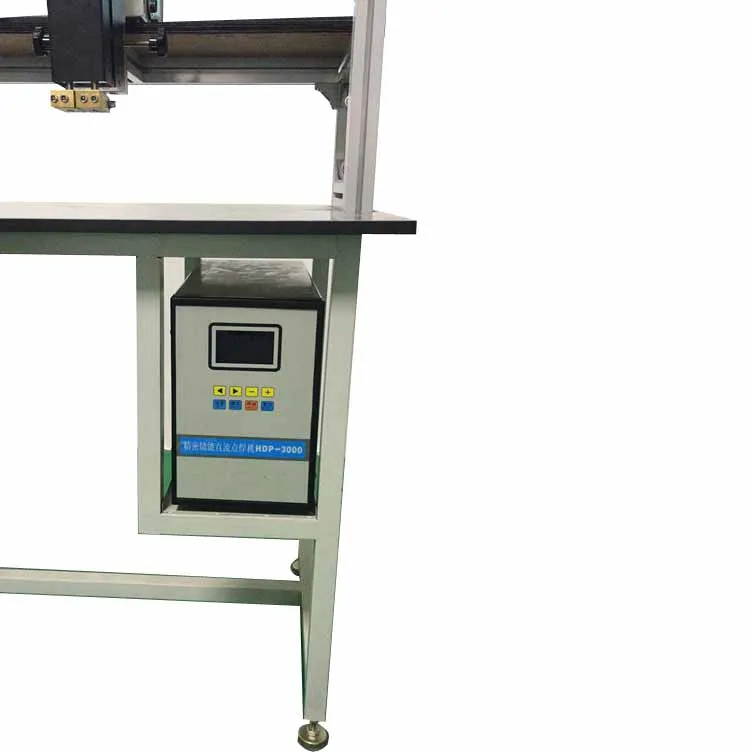

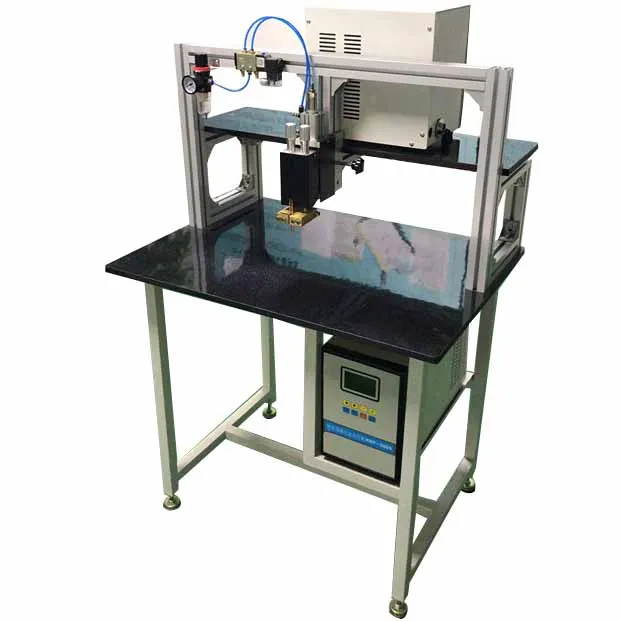

 Product Images














Related Products


--03_08























Certifications




Company Information




Cooperative Partners




FAQ


--03_22-23


Q. Are you a manufacturer or a trading company?


A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.





Q. Our country's power supply and plug are different. How do you solve it?


A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.





Q. How long is your delivery time? If I want to customize the instrument, how long does it take?


A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.





Q. How to pay?


A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.





Q. How is the package of goods? Delivery methods?


A.1. Standard export fumigation sign wooden box packaging


    2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.











Packaging & Shipping


--03_25




1 Standard exported package: Internal anticollision protection, external export wooden box packaging.


2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
