Главная
Все Категории
Гаечный ключ
Цифровой Динамометрический ключ 85 нм с 38 драйверами и

Цифровой Динамометрический ключ 85 нм с 38 драйверами и

Категория: Гаечный ключ >>>
Поставщик: Wenzhou,Tripod,Instrument,Manufacturing,Co.,Ltd.

Цена:81,70 $ - 90,80 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	103.82 $*	105.56 $*
Jul-18-2025	83.82 $*	85.74 $*
Jun-18-2025	101.70 $*	103.29 $*
May-18-2025	100.68 $*	102.75 $*
Apr-18-2025	80.33 $*	82.92 $*
Mar-18-2025	99.84 $*	101.85 $*
Feb-18-2025	98.65 $*	100.28 $*
Jan-18-2025	97.27 $*	99.19 $*

Характеристики

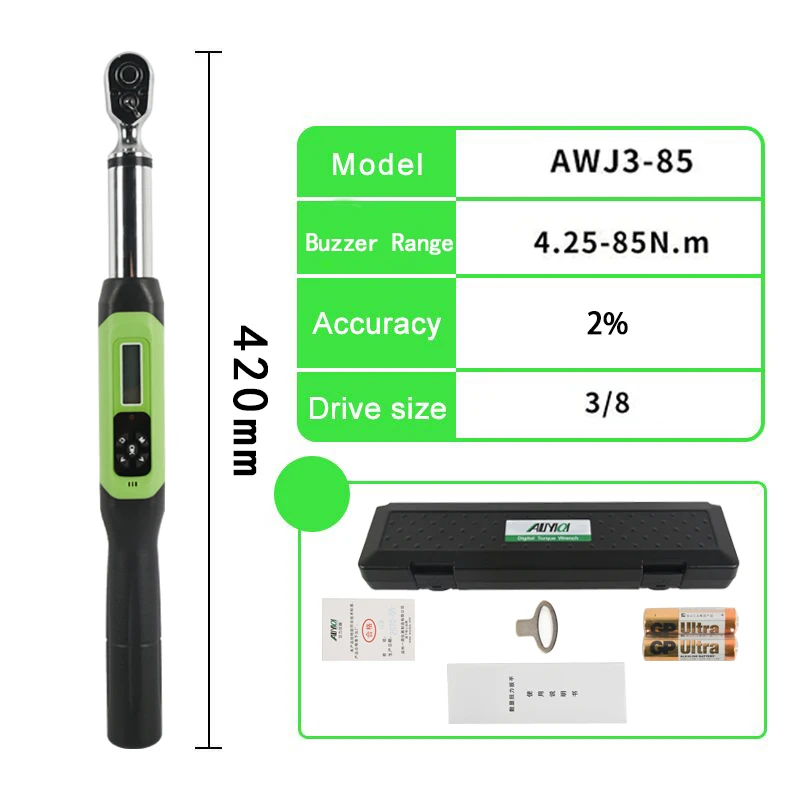

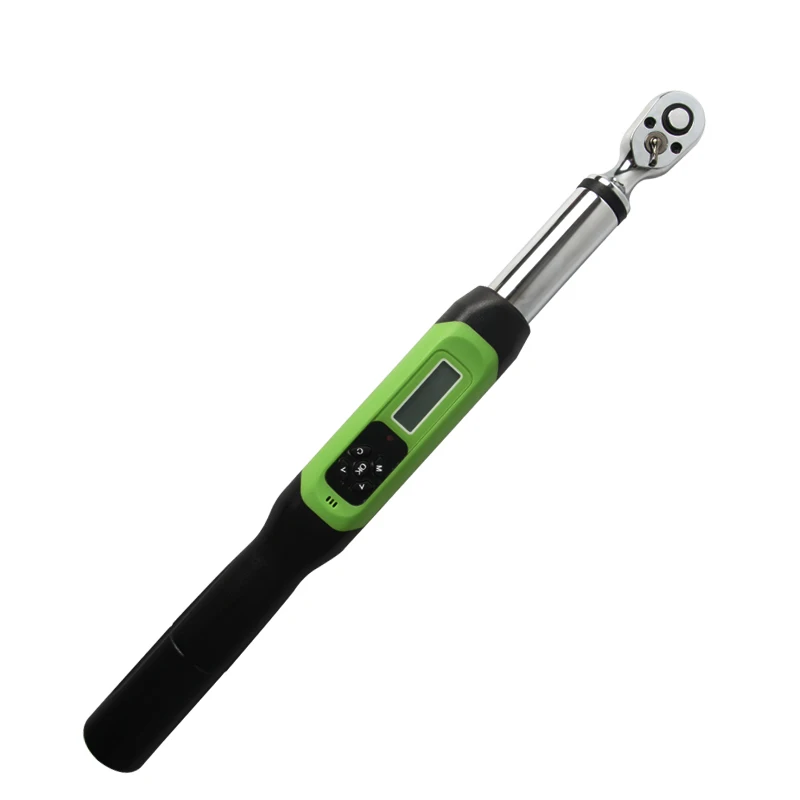

85Nm digital torque wrench 3/8 drive with backlight

Product Description

The Electronic Torque Wrenches are designed for simple and precise measurement of industrial, automotive, aerospace and many other applications. It displays Real-Time and Peak torque on a LCD display in ft-lb, in-lb or N-m or Kgf.cm, user selectable.

The AWJ features a target set point that indicates a desired torque value with a bright LED and audible beep

Functions and features

Reading value of digital display torque

1.2.2 Accuracy of ±2% by clockwise, and ±2.5% by counterclockwise(Max.operating range is within 20~100%)

1.2.3 It can be operated by both clockwise and counterclockwise

1.2.4 Peak hold and real time mode

1.2.5 Buzzer and LCD indication (when the torque value is pre-set)

1.2.6 Four kinds of engineering units (ft.lb,in.lb,N.m,kgf.cm)

1.2.7 99 groups of recorded values can be stored

1.2.8 Automatic shutdown in 5 minutes

1.3 Product model and selection

Model	010	030	030	060	085	135	135	200	340	500	850
Min.scale value	0.01					0.1
Max. operating range (N.m)	10N.m/7.37ft.lb/88.50in.lb/101.97kgf.cm	30N.m/22.12ft.lb/265.5in.lb/305.91kgf.cm	30N.m/22.12ft.lb/265.5in.lb/305.91kgf.cm	60N.m/44.25ft.lb/531.04in.lb/611.82kgf.cm	85N.m/62.69ft.lb/752.31in.lb/866.75kgf.cm	135N.m/99.57ft.lb/1195in.lb/1376.61kgf.cm	135N.m/99.57ft.lb/1195in.lb/1376.61kgf.cm	200N.m/147.5ft.lb/1770in.lb/2039.43kgf.cm	340N.m/250ft.lb/3009in.lb/3467.03kgf.cm	500N.m/4424in.lb/368.7ft.lb/5098.58kgf.cm	850N.m/7521in.lb/626.8ft.ln/8667.58kgf.cm
Connectors (inches)	1/4		3/8				1/2			3/4
Setting range of buzzer (N.m)	0.5~10	1.5~30	1.5~30	3~60	4.25~ 85	6.75~ 135	6.75~135	10~ 200	17~340	25~500	42.5~ 850
Length	390		420				535		655	950	1220
Accuracy*1	Clockwise: ±2% Counterclockwise:±2.5%					Clockwise: ±2.5% Counterclockwise:±3.5%
Storage capacity of materials	100
Operating mode	Peak hold (P)/real time mode (T)
Unit	N.m,in.lb,ft.lb,kgf.cm
Type of ratchet head	Two-way ratchet head
Teeth number of ratchet head	36									48
Number of key	5
Battery	2 sets of 1.5V#5 battery
Operating temperature	-10℃~60℃
Storage temperature	-20℃~70℃
Humidity	It can reach 90% under no condensation
Drop testing height	1m
Vibration testing condition*2	10G
Life test*3	10000times

https://www.alibaba.com/product-detail/AWJ-60Nm-3-8-drive-size_62225707757.html?spm=a2747.manage.0.0.79de71d2Gml2GG

FAQ

Q1;What is the accuracy?

A;± 2% clockwise, ± 2.5% counterclockwise (20 ~ 100% of maximum operating range)

Q2;What is the ratchet head size?
A;1.Wrenches with different force values have different ratchet head sizes
2,10Nm-30Nm;1/4inches
30Nm-135Nm;3/8inches

135Nm-340Nm;1/2 inches

340Nm-850Nm’3/4 inches

Q3; What is the length of the wrench

A;1;Wrenches with different force values have different lengths

2;10-30Nm;390cm

30-135Nm;420cm

135-200Nm;535cm

340Nm; 655cm

850Nm;1220cm

Q4;What is the shelf life?

A;One year
