Быстрая доставка умное матовое электростатическое стекло PDLC защитная
- Категория: Building & Industrial Glass >>>
- Поставщик: Shenzhen,Vanlong,Opto,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10.67 $* | 11.92 $* |
| Aug-16-2025 | 9.37 $* | 9.33 $* |
| Jul-16-2025 | 8.25 $* | 8.22 $* |
| Jun-16-2025 | 9.44 $* | 9.13 $* |
| May-16-2025 | 8.33 $* | 8.6 $* |
| Apr-16-2025 | 9.96 $* | 9.44 $* |
| Mar-16-2025 | 9.72 $* | 9.59 $* |
| Feb-16-2025 | 9.68 $* | 9.61 $* |
| Jan-16-2025 | 9.10 $* | 9.72 $* |
Характеристики
Product Description
The film is composed of PET film,ITO film,polymer and liquid crystal molecules. When the film is under off state, the randomly aligned liquid crystal molecules stay along on the walls of capsule, the reflection of liquid crystal molecules and polymer makes light disperses then it is opaque. While electricity supplied, these molecules arrange themselves in a specific direction then parallel light can pass through the film makes it transparent
Product Specification
Smart PDLC Film Test Result / Description | Status | Data | Remarks | ||||
Optics | Parallel light transmittance | on | > 83% | GB/T 2410-2008 | |||
off | < 4% | ||||||
Visible light transmittance | on | >80% | GB/T 22476-1994 | ||||
off | > 50% | ||||||
SHGC | off | 51% | / | ||||
on | 82.9% | / | |||||
off | 0.59 | / | |||||
on | 0.95 | / | |||||
U Value | on/off | 5.59W/m2•k | GB/T 22476-2008 | ||||
Haze | on | < 6% | GB/T 2410-2008 | ||||
off | > 90% | ||||||
UV Block | on/off | > 98% | / | ||||
viewing angle | on | > 160∘ | / | ||||
Electrical | Power voltage | on | 60VAC | electrical measuring instrument | |||
Response time | on → off | < 200ms | Liquid crystal measuring instrument | ||||
off → on | < 45ms | ||||||
Power consumption | on | < 5W/ M 2 | multimeter | ||||
Environment | Work Temperature | on/off | - 20℃ to + 70℃ | Far from heat, chemical, liquid, wet. | |||
Storage Temperature | / | - 15℃ to + 50℃ | |||||
Humidity | / | < 70%RH | |||||
Duribility | Life time | / | > 50000 Hours | / | |||
Switch time | / | > 5 million | / | ||||
peel strength | / | > 70 gf/inch | / | ||||
Temperature - 20℃, +70℃, Humidity > 95%RH 240 H test passed | |||||||
PDLC Film | Thickness | Standard Size | Length tolerance | Width tolerance | |||
Roll | 390µm ± 10% | 1.0*50m, 1.2*50m,1.5*50m, 1.8*50m, 2.0*50m | +0. 5 / -0 meter | +5 / -0 mm | |||
Sheet with busbar | 390µm ± 10% | Max. 2.0 *4.8 M | +0 / -2 mm | +0 / -2 mm | |||
Our Advantages
1.Professional focus on switchable glass and PDLC Film research, production and marketing.
2.Over 10 years experience, high stable quality, over 20 long term overseas distributors.
3.Fast delivery time.
4.Good after sales services.
5.Warranty

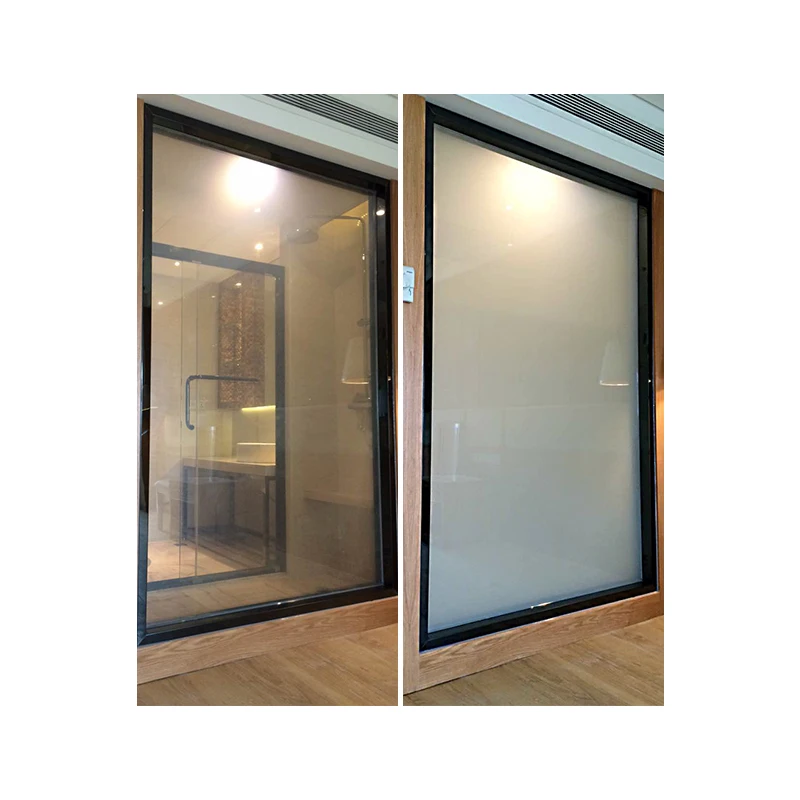

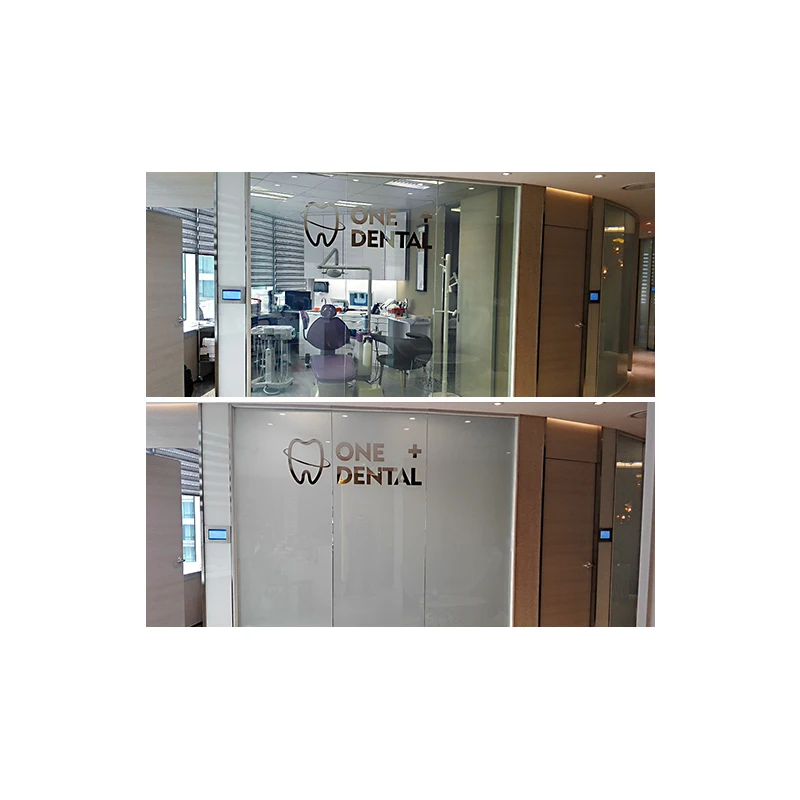

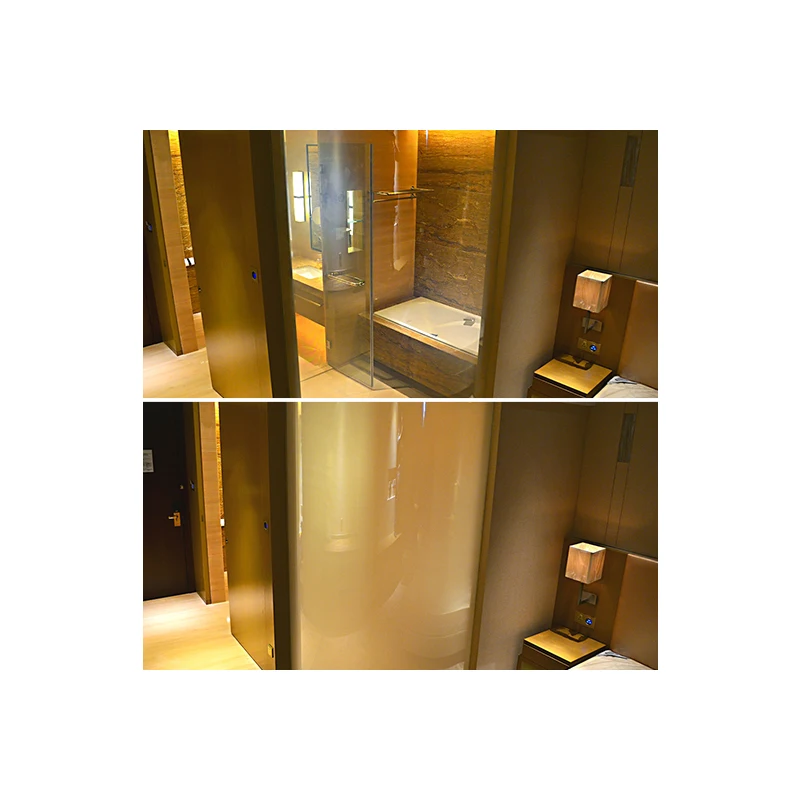

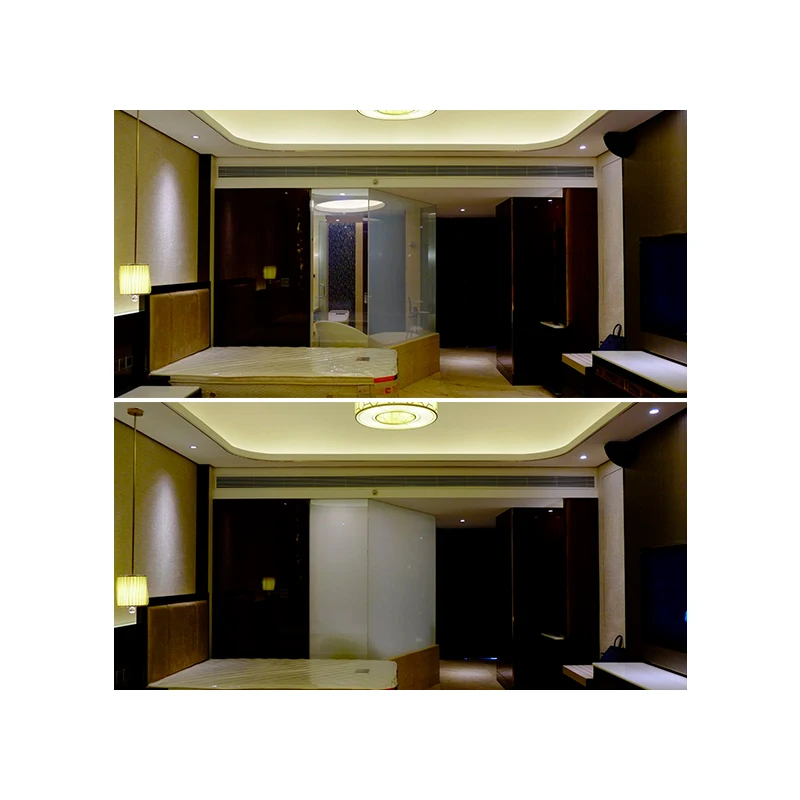

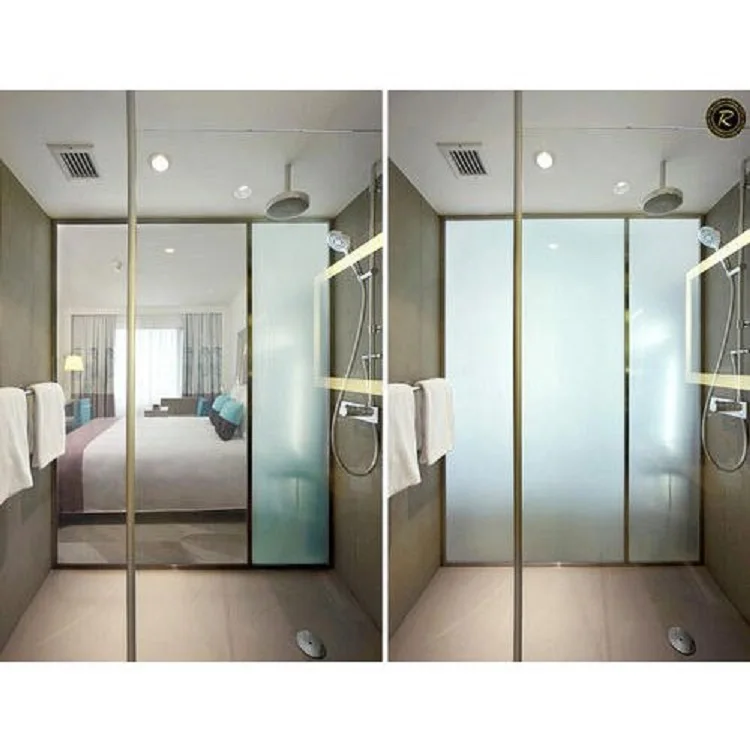

Application

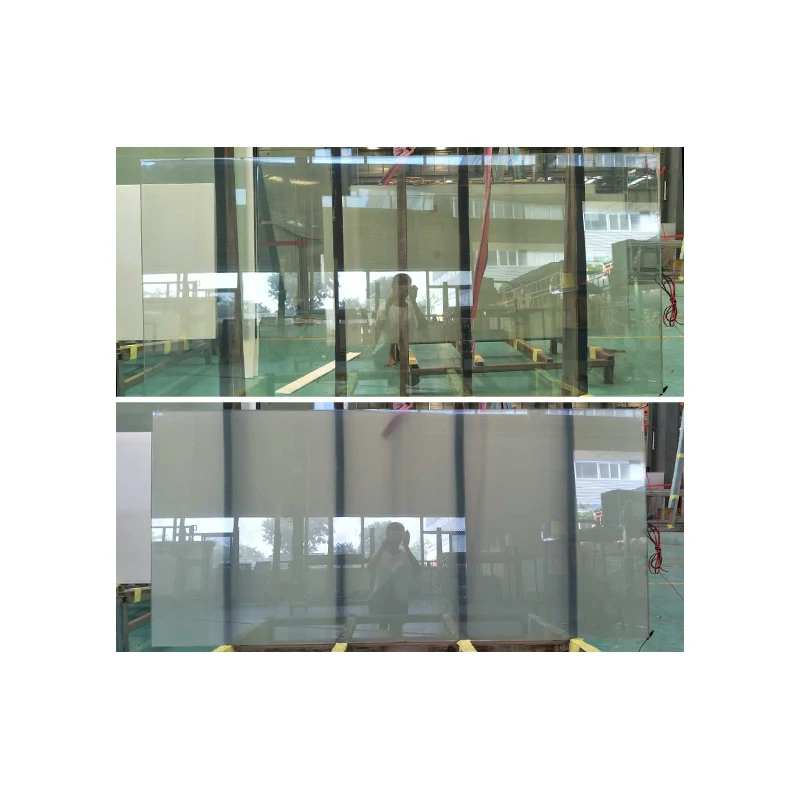

Factory Display
Welcome to Shenzhen VANLONG Technology Co., ltd, We are a supplier focus on switchable privacy glass, smart PDLC film and power supply transformers. As a professional supplier in PDLC field, we have over 8 years experience and our products are welcomed by worldwide customers, which has achieved remarkable social and economic benefits. we set up fine managing and brand credit in fierce market competition.
Packaging & Delivery
FAQ
1. How does Smart Film work?
In “Off State” when no electrical power is applied on the smart film the light is absorbed or scattered and the film looks dark gray or white. In “On State” the light is transmitted and the film looks transparent.
2. What is the product lead time?
Lead time for PDLC Film Products is 5-7 days after received payment.
3. What is the size of your package?
In “Off State” when no electrical power is applied on the smart film the light is absorbed or scattered and the film looks dark gray or white. In “On State” the light is transmitted and the film looks transparent.
2. What is the product lead time?
Lead time for PDLC Film Products is 5-7 days after received payment.
3. What is the size of your package?
1 roll / 60 square meter 1* box L146*W38*H38CM
4. What are your shipment terms?
We deliver it by air/express transportation.
Customer clear custom, release and deliver to final destination.
5. Is there a MOQ (Minimum of Quantity)?
1 square meter
6. What is the expected life of your products?
Life expectancy is approximately 10 years or switch >2000000times.
4. What are your shipment terms?
We deliver it by air/express transportation.
Customer clear custom, release and deliver to final destination.
5. Is there a MOQ (Minimum of Quantity)?
1 square meter
6. What is the expected life of your products?
Life expectancy is approximately 10 years or switch >2000000times.
