original 5A USB tester color screen, voltage and current meter, power capacity, fast charging protocol, charger treasure zk-UT

 Product Highlights:

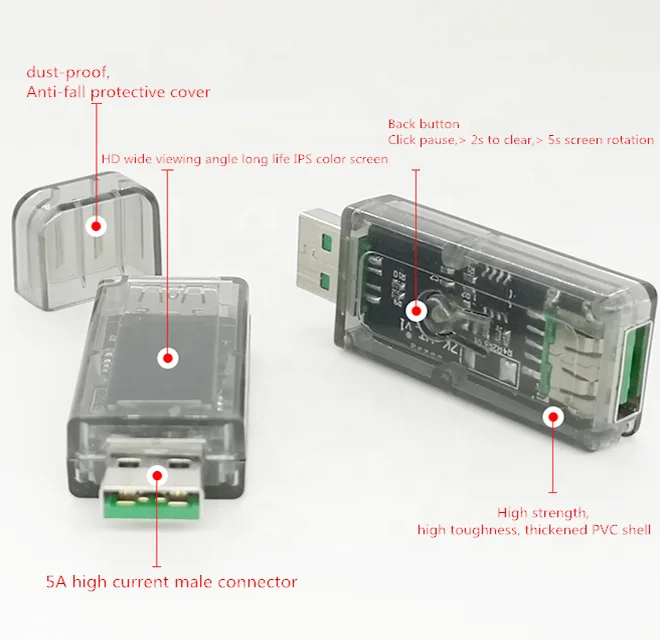

1. Using 5A high current USB interface, it can realize 5A high current measurement, and it is not easy to burn the USB interface due to overheating.
2. Fast charge recognition covers almost all fast charge protocols, including Huawei FCP and SCP, to satisfy Huawei mobile phone users.
3. Add time measurement, up to 100 hours, hour, minute, and second intuitive display, no need to use mobile phone for timing.
4. The statistics of capacity, energy and time can be paused or cleared, and the starting point is reset to zero, which is convenient for statistics without recording the initial value.

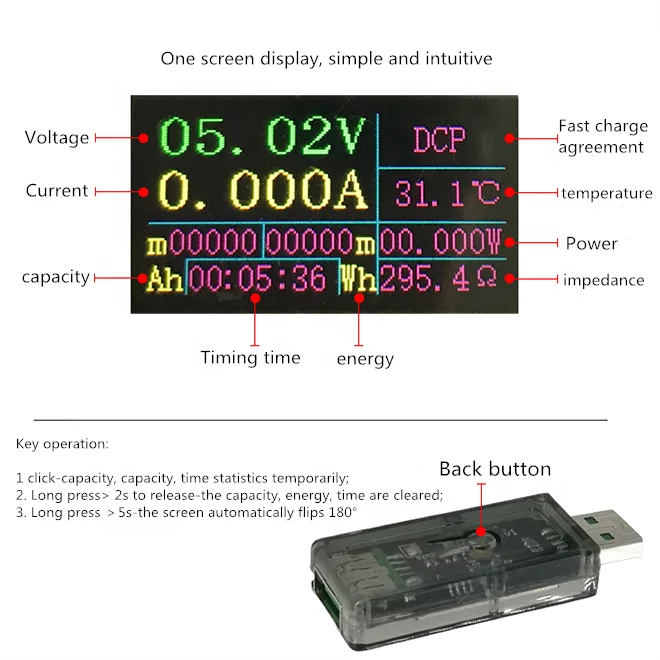

5. The screen can be rotated for easy viewing from multiple angles.

Technical index
Product model: ZK-UT
Display screen: 0.96 inch IPS color LCD display
Measuring voltage: 3.7V-30V
Measuring current: 0.000-5.000A
Capacity measurement range: 0-99999mAh
Energy measurement range: 0-99999mWh
Load impedance measurement range: 0.5-999.9
Temperature measurement range: 0-80℃
Operating temperature range: 0-70℃
Voltage measurement resolution: 0.01V
Voltage measurement accuracy: ±(1%+2 words)
Current measurement accuracy ± (2%+2 words)
Power measurement range: 0-150W
Temperature measurement error: ±3℃
Data refresh frequency: 2Hz real-time display
With packaging weight 28g

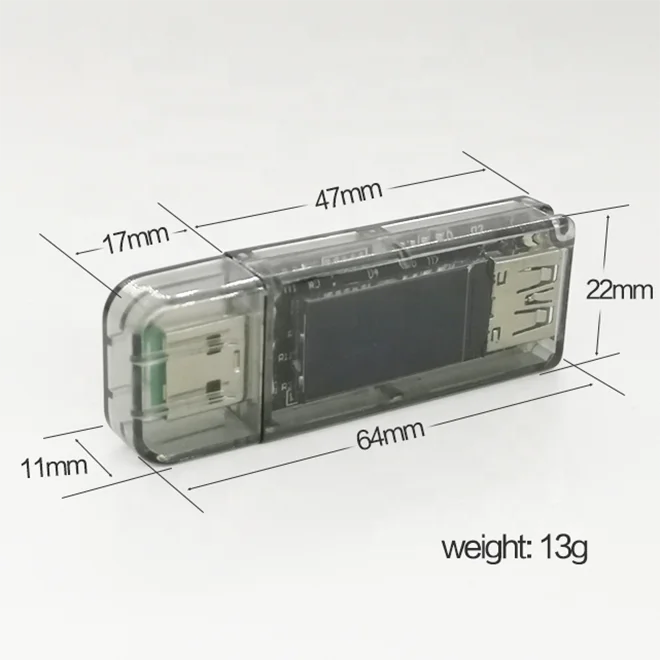

Product size: 64mm*22mm*11mm
Time measurement range: 00:00:00-99:59:59, up to 100 hours
Fast charge recognition mode: QC2.0, QC3.0, APPLE2.4A/2.1A/1A/0.5A, Android DCP, SAMSUNG AFC, Huawei FCP, Huawei SCP
5 highlights:
1. Using 5A high current USB interface, 5A high current measurement can be realized, and the interface is not easy to burn out due to overheating
2. Fast charge recognition covers almost all fast charge protocols, including FCP and SCP
3. Add time measurement, up to 100 hours
4. The capacity, energy and time can be paused or cleared
5. The screen can be rotated
