Датчик de vibracion ПМС 500mV / g baja
Датчик de vibracion ПМС 500mV / g baja
Датчик de vibracion ПМС 500mV / g baja
Датчик de vibracion ПМС 500mV / g baja
Датчик de vibracion ПМС 500mV / g baja
Датчик de vibracion ПМС 500mV / g baja
Датчик de vibracion ПМС 500mV / g baja

Датчик de vibracion ПМС 500mV / g baja


Поделиться:


Цена:7 533,79 ₽ - 15 067,58 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-20-2025 9567.53 $* 9758.3 $*
Jul-20-2025 7759.99 $* 7914.10 $*
Jun-20-2025 9416.85 $* 9604.86 $*
May-20-2025 9341.80 $* 9528.22 $*
Apr-20-2025 7458.38 $* 7607.93 $*
Mar-20-2025 9190.10 $* 9374.36 $*
Feb-20-2025 9115.11 $* 9297.28 $*
Jan-20-2025 9040.6 $* 9221.9 $*

Характеристики

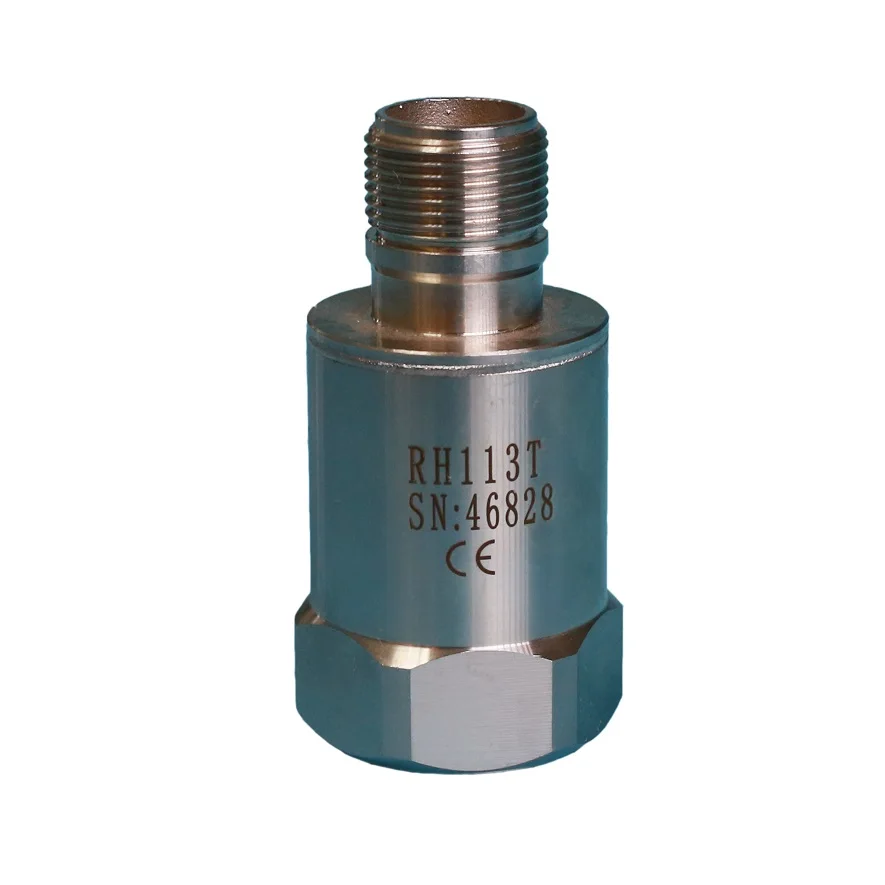

Product Description

Built-in IEPE circuit, isolation output, constant current power supply.
Laser seal welded
Low frequency, high sensitiviey
Military connector, can be used in harsh industrial field
Unconditional lifetime warranty


Parameter
Index
Remarks
Sensitivity
500mV/g
Acceleration Rnage
+/-10g
Amplitude Linearity
1%
Frequency Response (±10%)
0.2~5000Hz
Frequency Response (±3 dB)
0.1~10000Hz
Resonance Frequency
16KHz
Transverse Sensitivity
≤5%
Mount Screw Thread
6mm
Bias Voltage
10-12VDC
Constant Current
2-20mA, Typical  4mA
Voltage Excitation
18-30VDC, Typical  24VDC
Output Impedance
＜150Ω
Casting  Dielectric Resistance
＞10(8)Ω
Maximum Shock Level
5000g
Weight
116g
Dimensions
DXH, 27x54mm
Sealing Arrangement
Laser welding
Sensor composition
Plane shear
IP Grade
IP68
Casting Material
316L Stainless Steel
Output Mode
Top Output, 2pin Mil-C-5015
Temperature Range
-40～+120℃
Mount Torque
About 2.7～6.8N.m (M6)
Certificate
CE
Anti-explosion option
Explosion Proof Identification
ExiaIICT4
RH113 EX, Used for Area 0,1,2
Temperature Measuring Option
Measuring Range
0~120℃
RH113T, Output: 3pin Mil-C-5015
Certifications

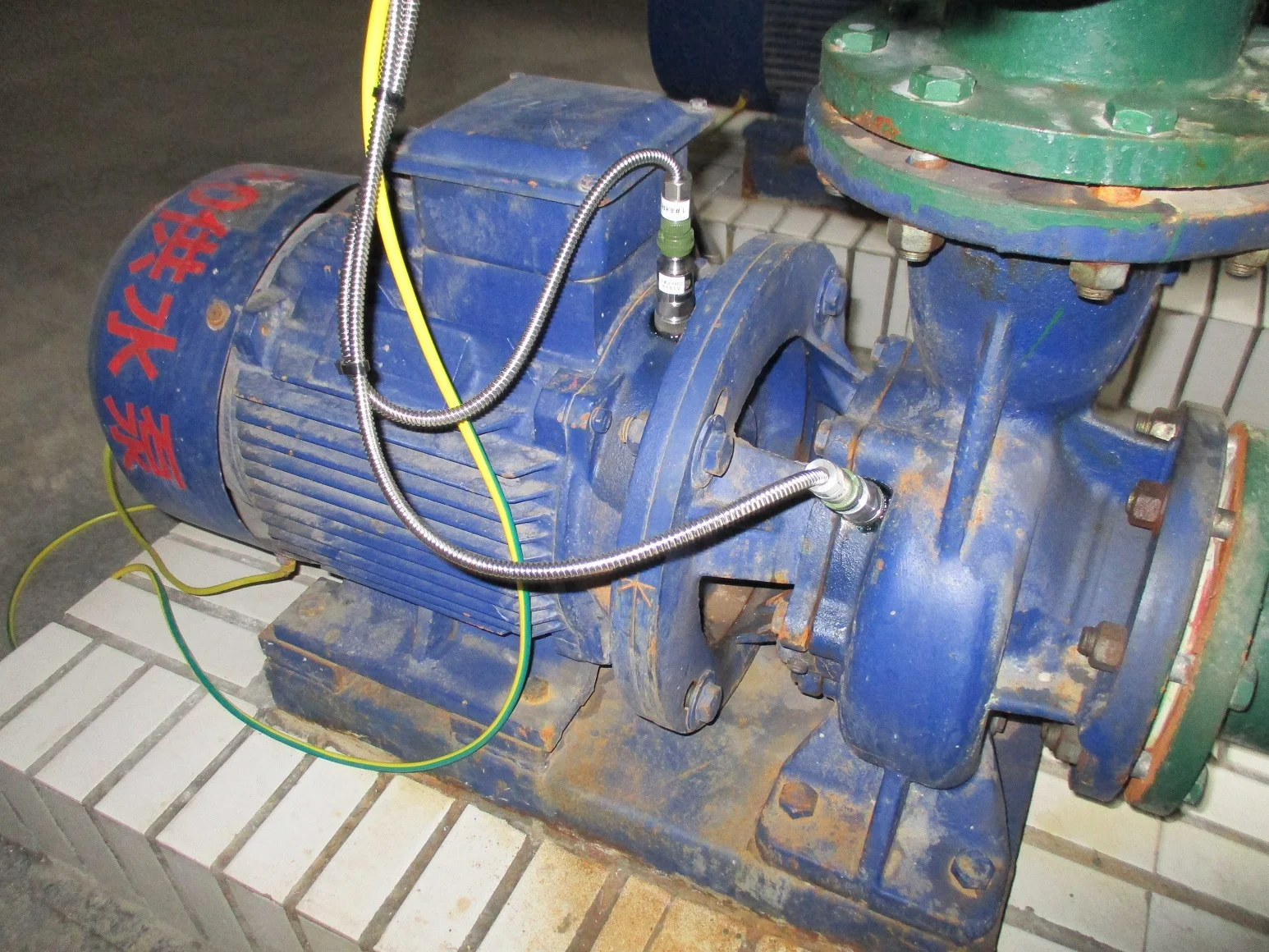

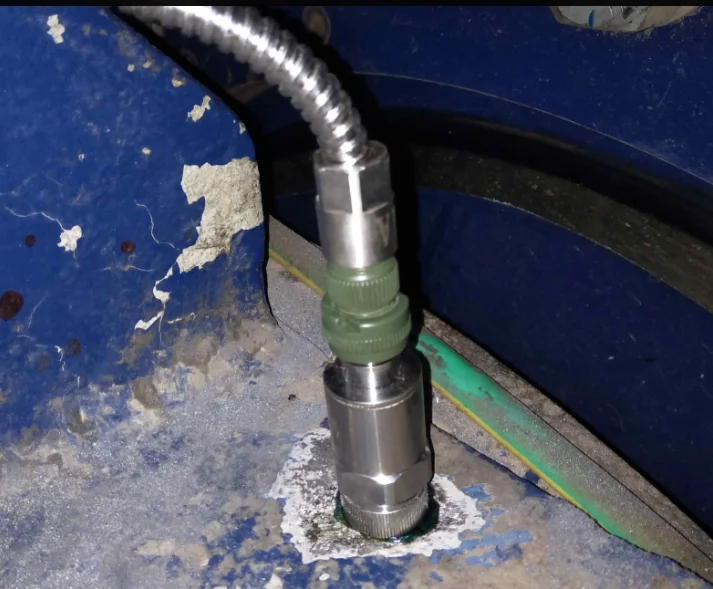

Projects

RH102 in xx steel mill

RH1000 - RH103 in xx power plant

RH103 in Singapore xx water plant

RH1000-RH103 in xx wind farm

RONDS FACTORY

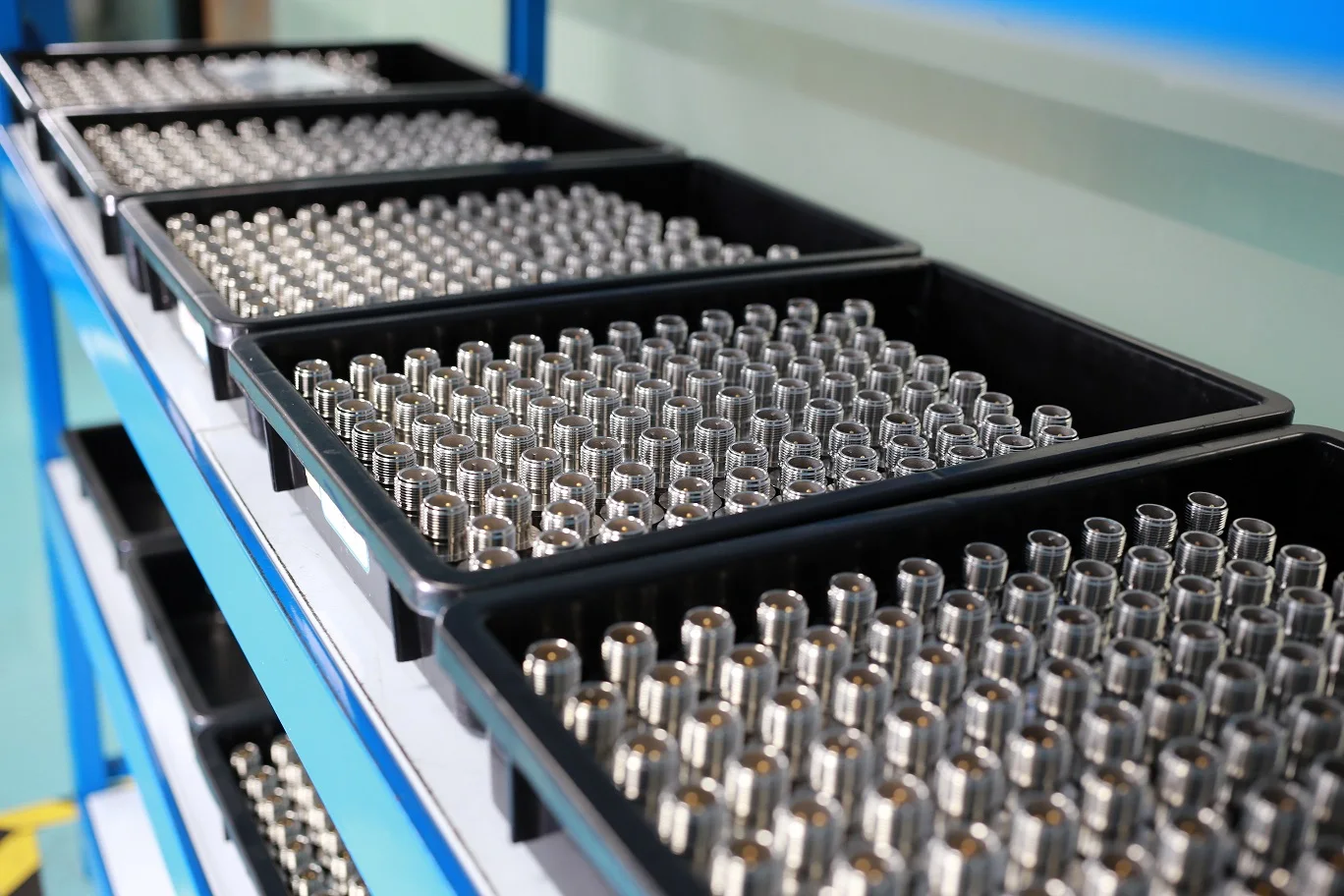

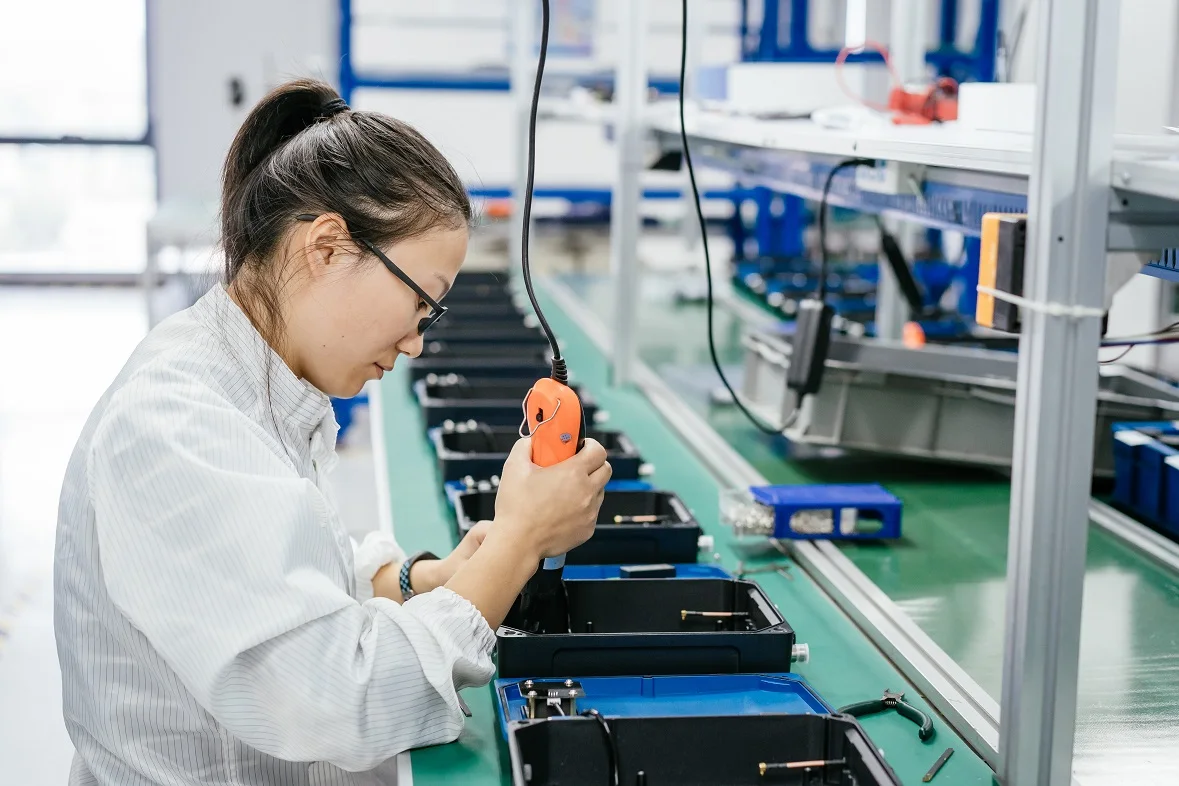

Assembly Workshop


Testing Device


Circuilt Testing


Logo Marking


Remote Diagnosis Center

Case Library

Our Company

30 Professional vibration analysists

Diagnosis experts with more than 20 years’ experience
CAT III vibration analysts
CAT II vibration analysts

Intelligent Algorithm--big data team
Algorithm team with 11members, leading by famous doctoral tutor
Big data team with 13 members
