Every laser cutting machine must use protection gas, compare with oxygen and nitrogen, compressed air is the most economic one. A high quality air compressor and the compressed air treatment system are very important to laser cutting machine. There are water and impurity in the air. If do not purify, it will pollute and damage laser head lens,make the laser capacity weak and the cutting parts bad.
Specification
Air Process Volum
1.0m3/min
Pressure
1.6MPa
Transmission
Belt
Cooling
Air
Power Capacity
11KW
Work Mode
Continuous
Power Supply
380V/50HZ/3PH（60HZ option）
Air connector caliber
G½*-φ10/φ12
Rotation speed
2940
Main Components

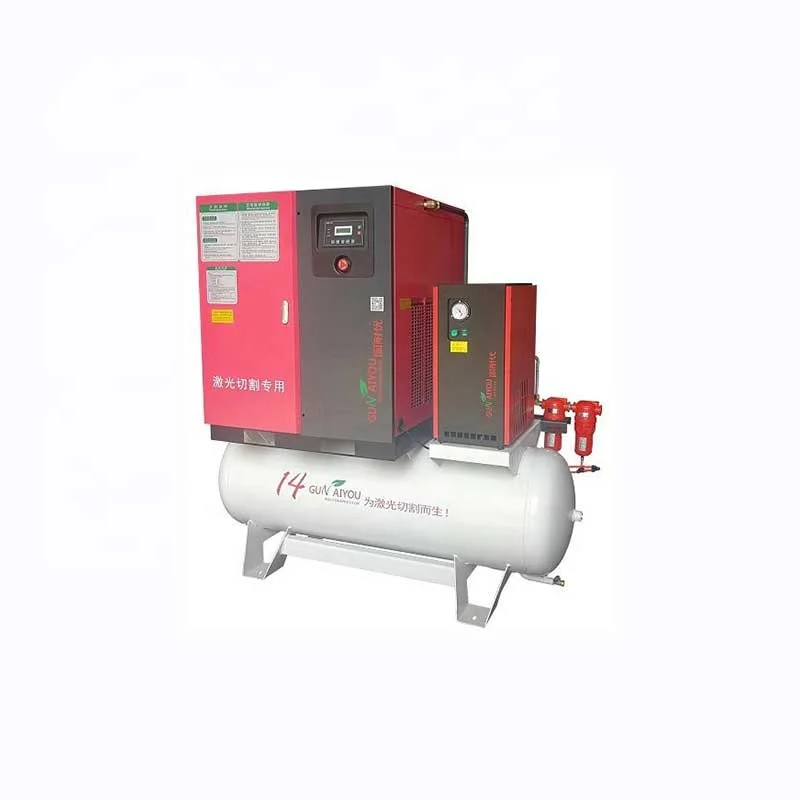

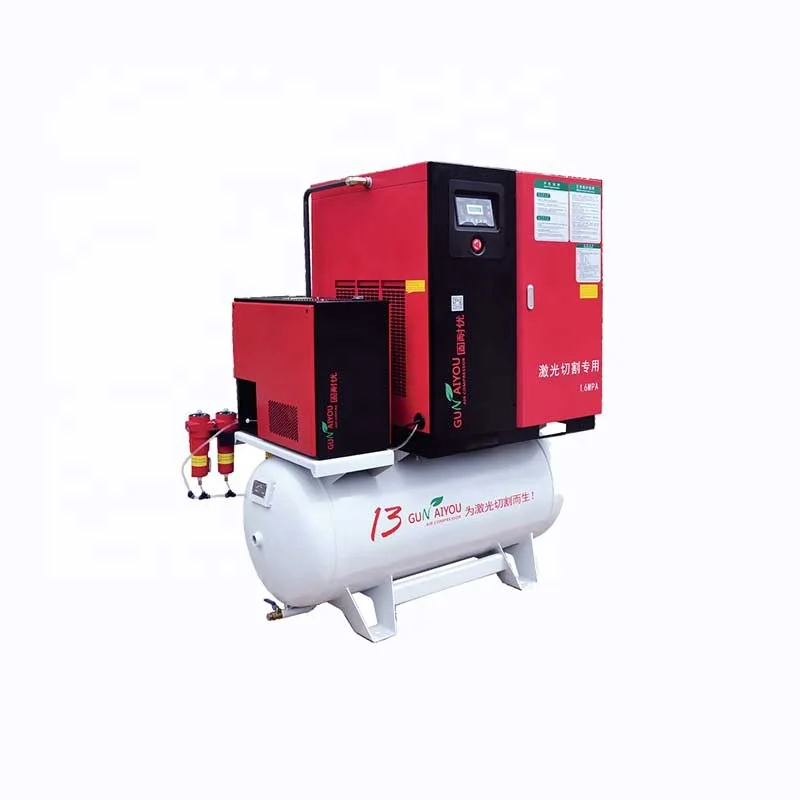

This 4 in 1 air compressor composed of 4 parts:

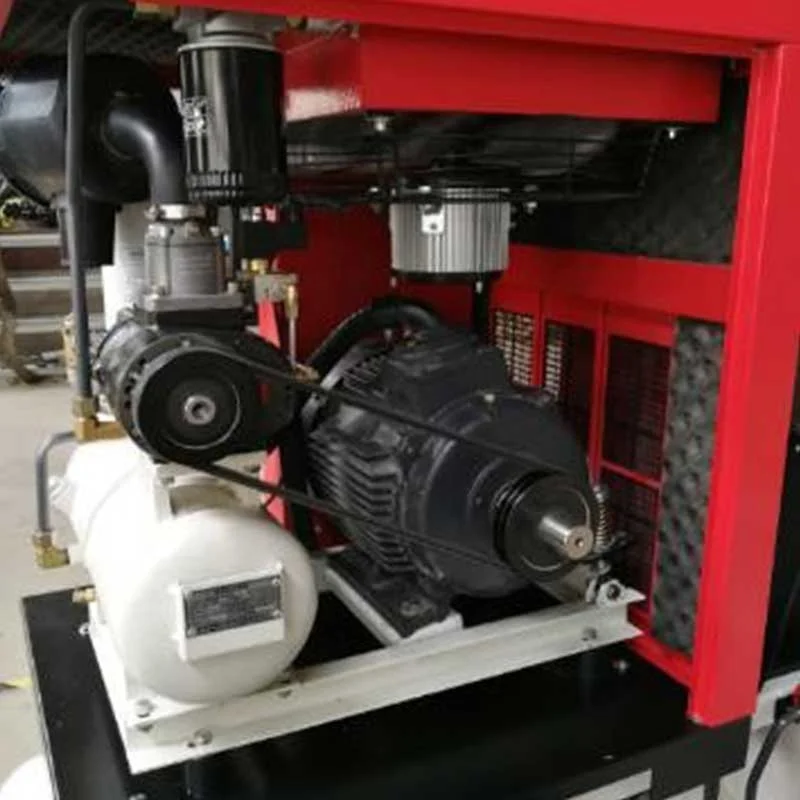

Air compressor
Refrigerated air Dryer
Air Filter
Air tank
Refrigerated air Dryer Air Filter

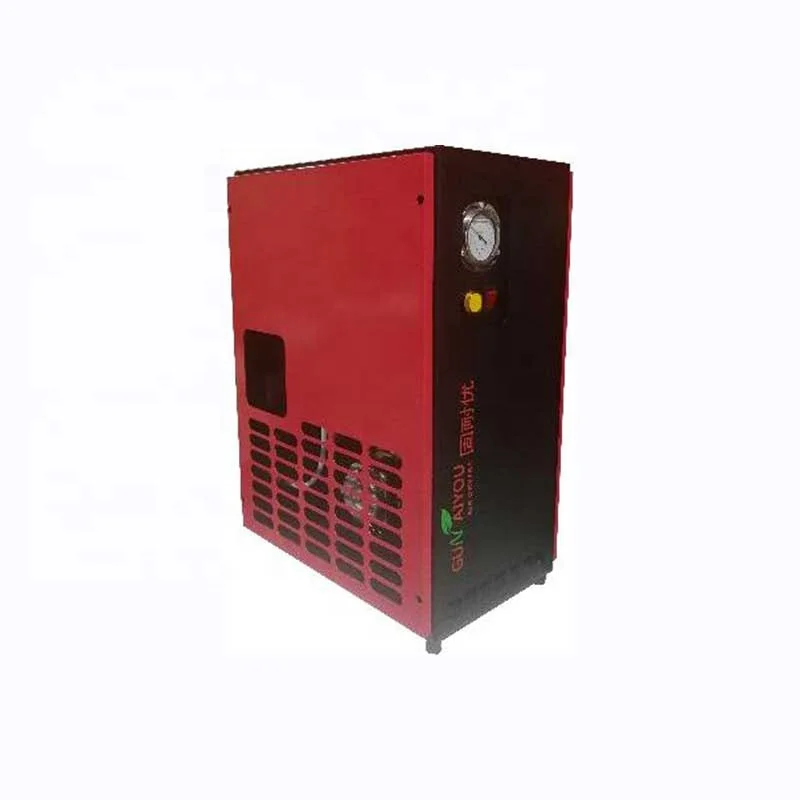

Tech Data of Refrigerated air Dryer
Air process volume
1.5m3/min
Working mode
Continuous
Pressure
0.6～1.6MPa
Design pressure dewpoint
3-10℃
Air temperature
≤45℃
Power supply
220V/50HZ/2PH
Cooling
Air
Pressure lost
≤5％
Environment
≤45℃
Refrigerant
R-134a

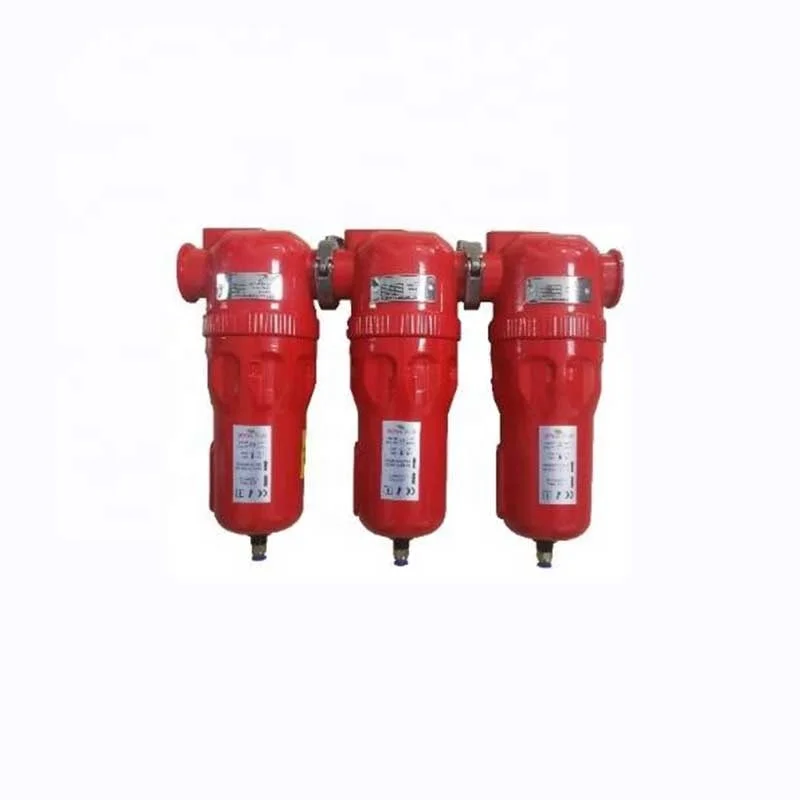

Tech Data of Air Filter
Air Process
1.5m3/min
Dimension
89*42*130mm
Working Mode
Continuous
Weight
1.5kg
Filtration Accuracy
Accuracy:1um Oil content: 0.5mg/m3 Pressure drop:0.01-0.02 Working pressure:1.60Mpa
Air connector caliber
G1/2
Packing & Delivery
If LCL, we will use wooden box and interior steel structure to protect the laser cutting machine. Normally, the laser cutting machine will be loaded in full container.
Company Profile
Honeybee CNC focus on metal cutting solution since 2010. We provide solution for our clients all metal cutting requirement. The main equipment include gas, plasma and laser cutting machines, air compressor system, spare parts and wear parts/consumables.
FAQ
1. Do you provide laser cutting machine either?
Yes, we provide total solution for our clients, include the laser cutting machines, air compressor, wear parts, etc.
2. For the fiber laser cutting machine, do you come to our factory to install for me?
Yes, we supply field installation for our laser cutting machine customer. But during the special period now, we can only provide online instruction via video, call, message, email, etc.
3. If malfunction, how can you help me?
We will instruct you how to find the reason and replace the parts. We will send parts to you at free during the warranty period. If the situation permit, we can send engineer to offer field service.
